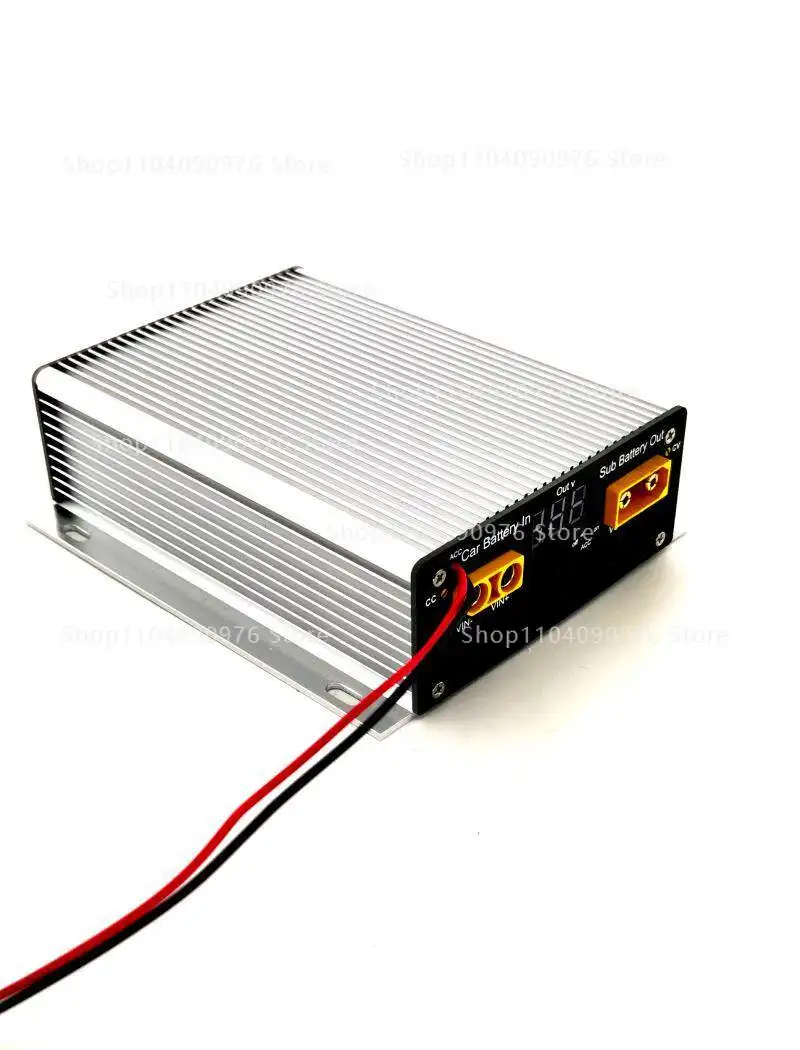

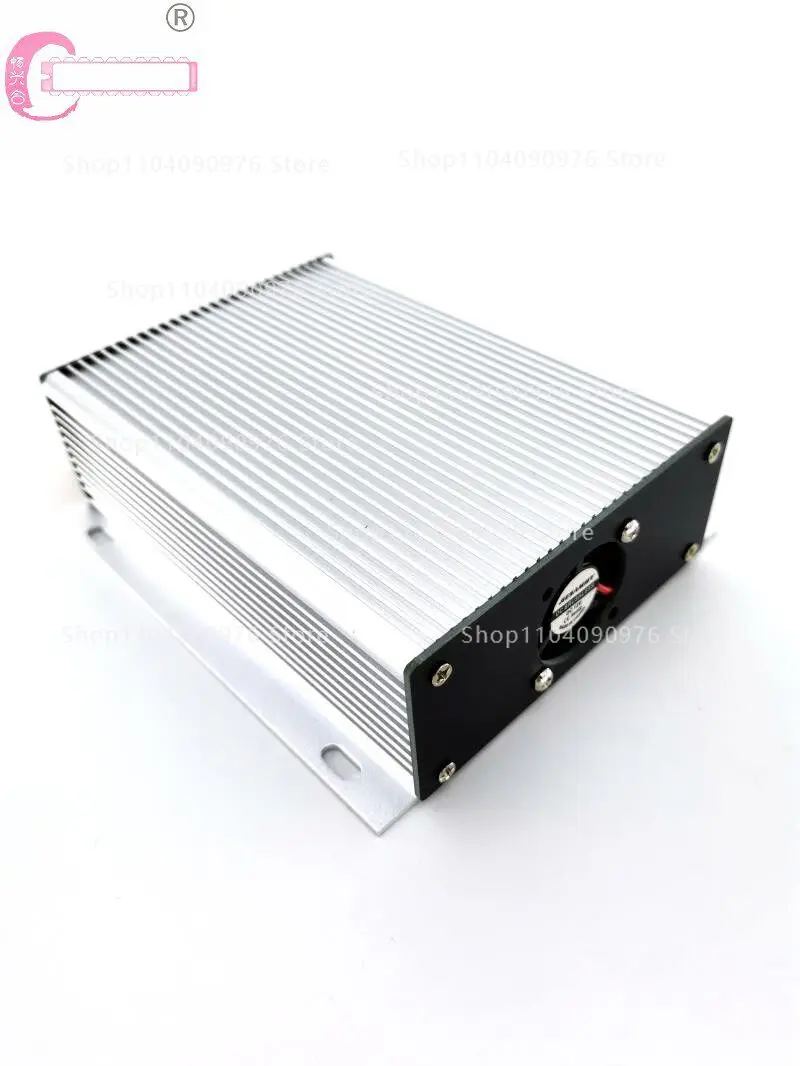

Input 10-30v output 10v-30v voltage adjustable DC-DC20A RV driving charger

Product Description

1: CXH20DCV3 charger host DC20A host
2. CXH20DCV3 charger host + input and output cable DC20A charger + input
4 application scenarios are available: 12 v →12 v, 12 v ↗24 v, 24 v→24 v , 24 v↘ 12 v.

It doesn't matter if the input voltage is unstable. The input voltage varies within 12-30v, and the output is stable (as many as you set). Users can use it for energy recovery applications.

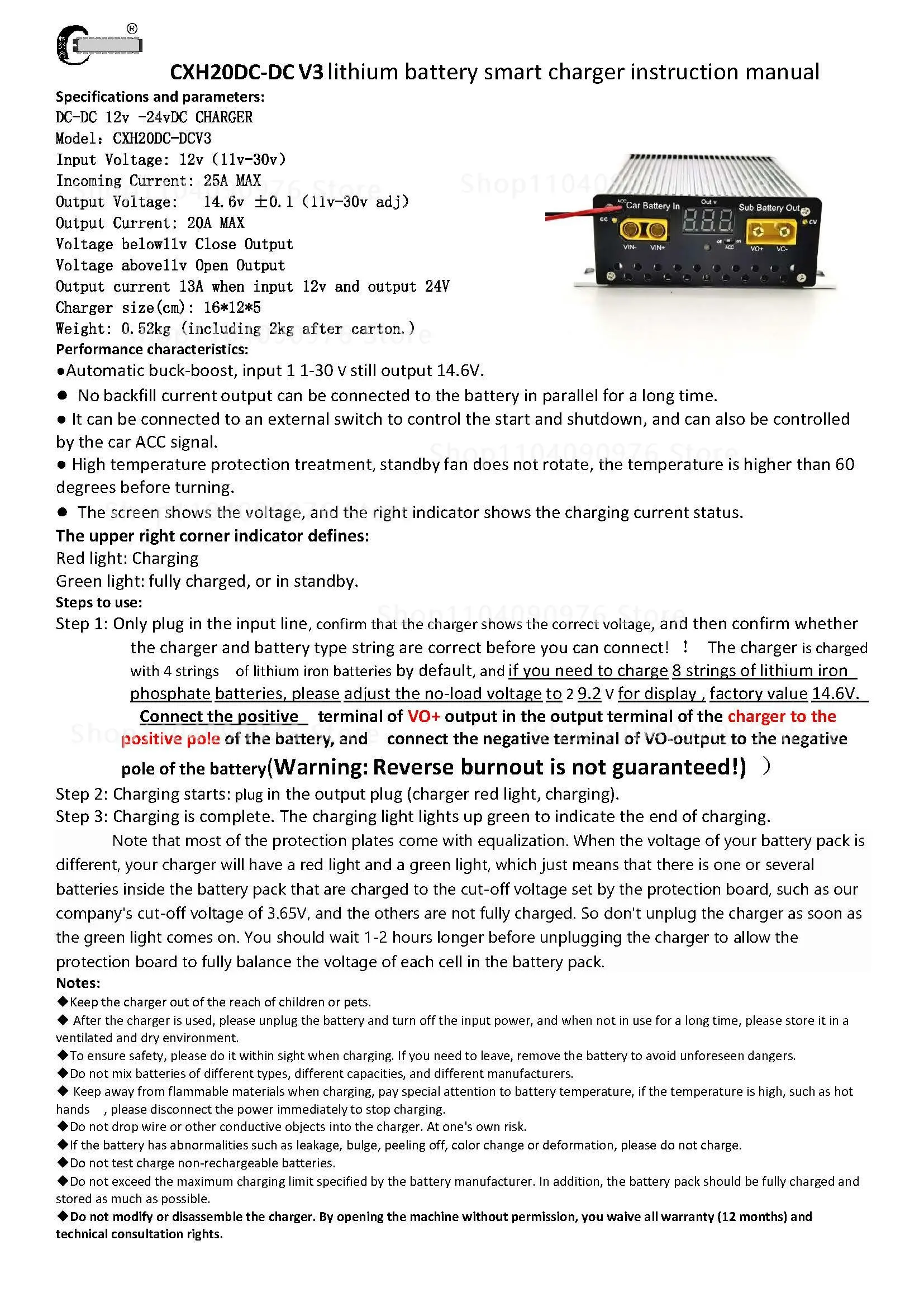

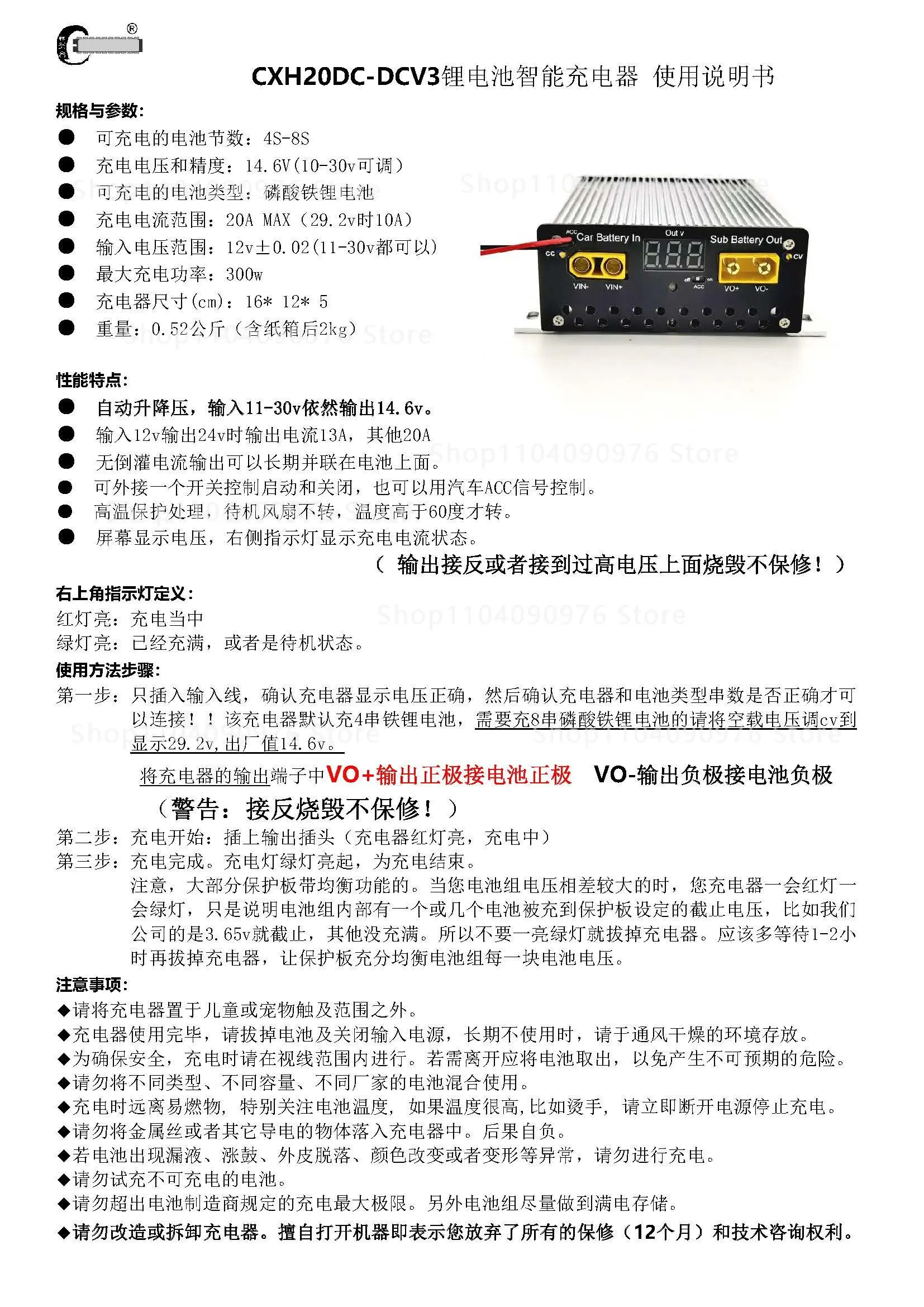

Model: CXH20DCV3

Input voltage: 12V (11-30V input changes, the back end is stable output, automatic boost and buck,)

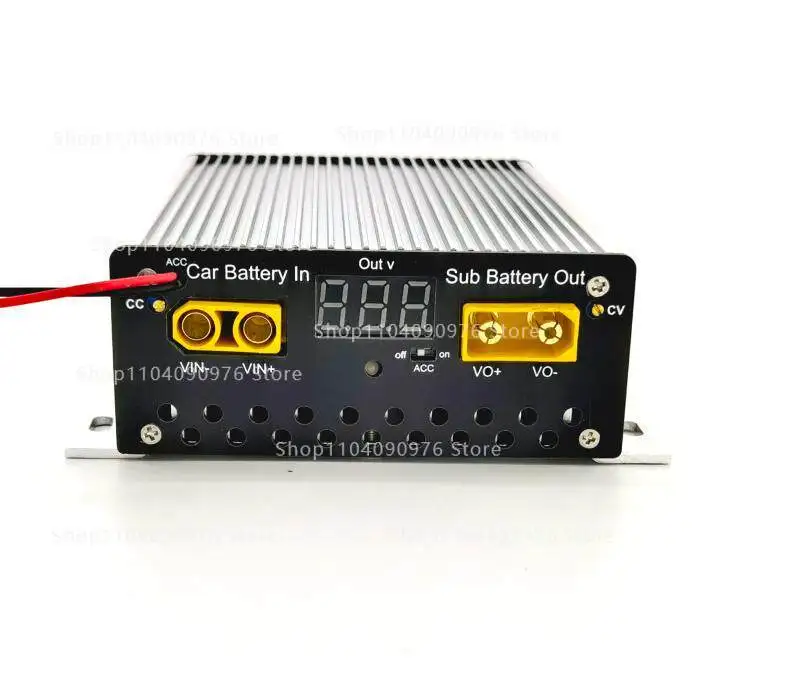

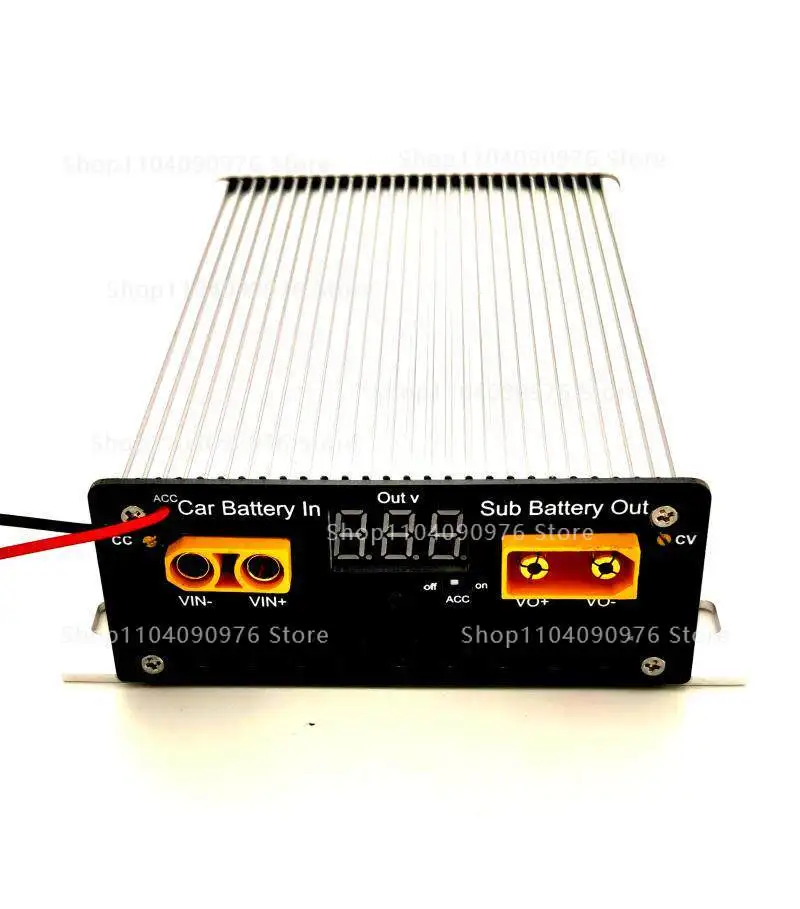

Output voltage: 14.6V (adjustable from 11-30V, adjusted by CV potentiometer on the right side of the panel. Lithium iron phosphate, lead acid, and ternary lithium batteries can be charged, as long as the specified charging voltage is set when the output is not connected to the battery), it can be charged.

Input current: 25A

Output current: 20A (1-20A adjustable. The current is about 13A when the input is 12v and the output is 24v. In other cases, 20A. CC potentiometer adjustment on the left side of the panel)

Input terminal: XT90 terminal female

Output terminal: XT90 terminal male

Backflow current: Anti-backflow technology is done internally, and the output socket does not need to be unplugged after it is full.

You can control the output of the charger in the following three ways.

Control mode 1:The panel toggles the on-off switch to control the charger output.

Control mode 2:Connect an external switch, short the red and black small wire of the Acc port (the panel control switch position is off).

Control mode 3:The ACC red wire of the charger is connected to the ACC wire of the car (usually the positive electrode of the cigarette lighter).(The position of the panel control switch is off). This can charge the car after starting, and stop and charge after the car is turned off.

Note: The charger is output by dual voltage selection, so confirm whether the no-load voltage is 14.6v or 29.2v before charging. Then charge the battery.

The ACC terminal is a quick-plug terminal. Just press the white button and put the cable into the jack. No screwdriver is required.

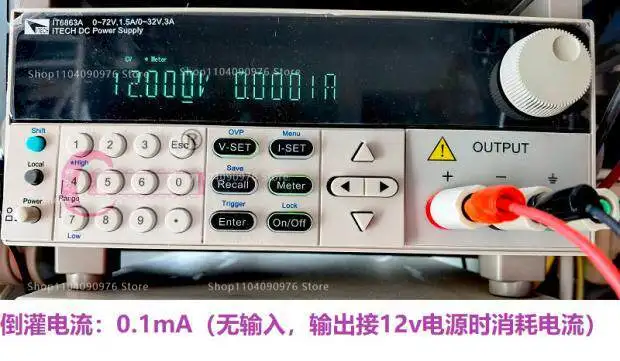

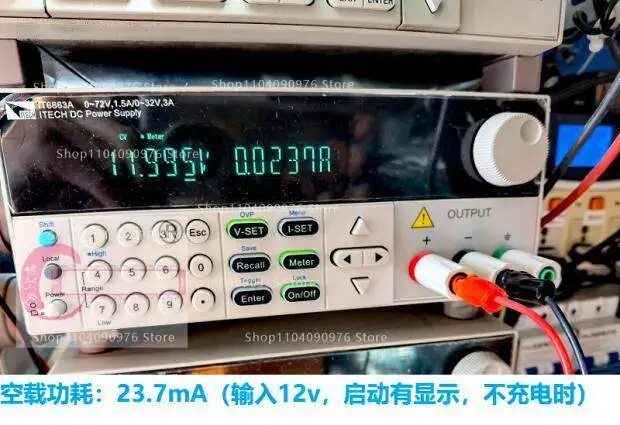

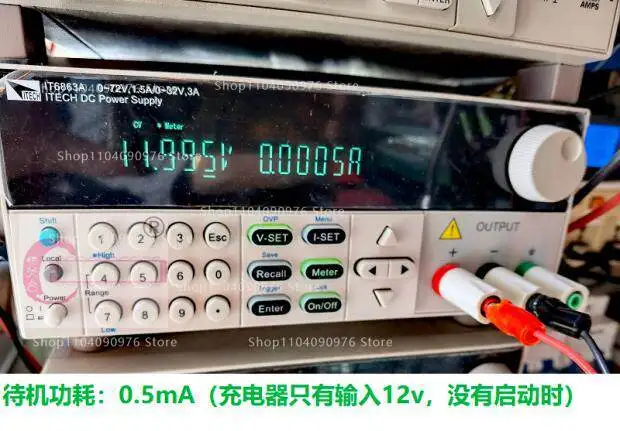

About power consumption: standby power consumption 0.5mA, inverted current 0.1mA, negligible.

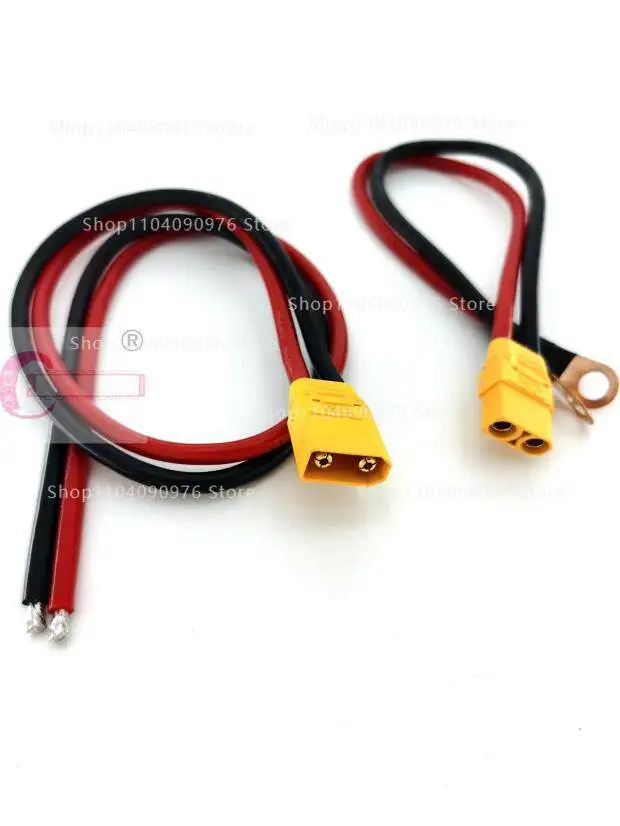

The following is the matching XT90 plug and socket, the input cable is 60cm, the output cable is 30cm, and the input and output cable is high temperature resistant silicone cable 10AWG (optional)
