Product Description
6710 0.8NM DC brushless motor wireless remote control speed control torque flat disc ultra-thin motor
6710 0.8NM DC brushless motor wireless remote control speed control torque flat disc ultra-thin motorA. Single motor (rotor front shaft)B. Motor (rotor front shaft) + external driver
C. Motor (rotor front shaft) + external driver + remote control speed regulation
D. Single motor (stator rear output shaft)

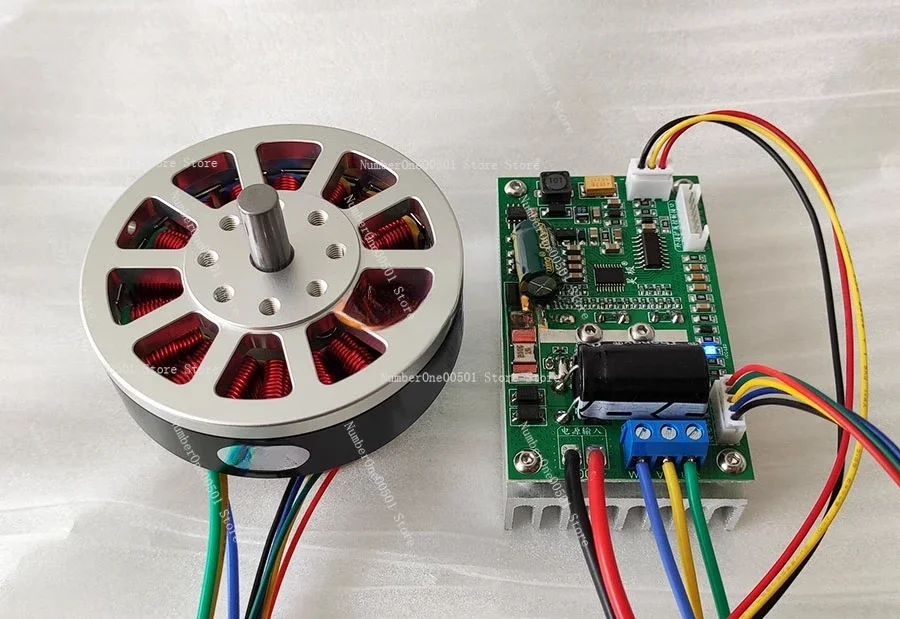

E. Motor (stator rear output shaft) + driver
F. Motor (stator rear shaft) + drive + infrared remote control
The external diameter of the motor78MMThis motor is a permanent magnet three-phase motor, and it needs to purchase a suitable brushless motor driver board before it can be used. At the same time, this is also a generator that can output three-phase AC power when receiving external transmission (such as hydraulic, wind, hand crank, treadmill, Stirling engine, etc.), and can be converted into DC by connecting a three-phase rectifier bridge to charge the battery.Due to the simple structure of the motor, easy disassembly and assembly, flexible installation and fixing methods, multiple coaxes can be connected in parallel to obtain multiple power outputs. There is an M4 wire hole at the bottom end of the shaft, which can be used to install magnetic encoder magnetic rings (such as AS5048, TLE5012 and other low-cost magnetic encoders, which can measure the rotor position angle), and then adapt to open-source DC servo drives such as ODrive to integrate into a set of DC servo brushless drive solutions. It is the best choice for early Product Research & Development, DIY production of various model toys, and small generators.
This product adopts a standard magnetic circuit design, and the housing and stator form a magnetic flux circuit to effectively enhance the electromagnetic torque. Coupled with an excellent combination of pole grooves, the overall performance of the motor is maximized. The stator punch is designed with a Hall embedded positioning groove, which allows the Hall element to accurately measure the rotor position, making the three-phase winding brushless commutation accurate, and ensuring the consistent forward and reverse performance of the motor.Note: This product has not been carefully corrected by dynamic balance, and the motor may vibrate in the high speed range. Try to reduce the vibration value when shipping, but the specific data cannot be guaranteed.
Special attention: This motor design index is based on power and torque, while ignoring other indicators (such as cogging torque, electromagnetic noise, mechanical noise, high and low speed characteristics, etc.), and is not suitable for certain light loads, high speed, low noise, and low vibration. It is used by individual users to load lighter quality turntables and other things after purchase. Our store is not responsible for the specific application of the user. Once the motor is usedtestThe goods cannot be returned or exchanged after installation. Be sure to know before purchase. It is best to buy before purchase.withCustomer service communication is used for where and whether it is applicable before purchasing.
The pictures of this product are for reference only. During the iterative update and optimization of the product, the details may be different, please be aware.
First, product parameters:
Size:78 * 31.3Mm (without shaft)
Weight:about350g
Shaft:diameter8mm*out shaft17.5mm
Stator size:diameter67* thick10mm
Voltage range: DC12~ 48V
Rated voltage: DC36V
No-load current: 0.53A
Rated current: 6.8A
Rated torque: 0.8Nm
Conversion efficiency:85%
Lead Length:20~30cm
Hall phase angle:120degree
Line sequence: green =Ａ(U), yellow =Ｂ(V), blue =Ｃ(Ｗ)
Hall line sequence: red =positive, black =negative, green =Ａ(U), yellow =Ｂ(V), blue =Ｃ(Ｗ)
Hall voltage:DC5~30V

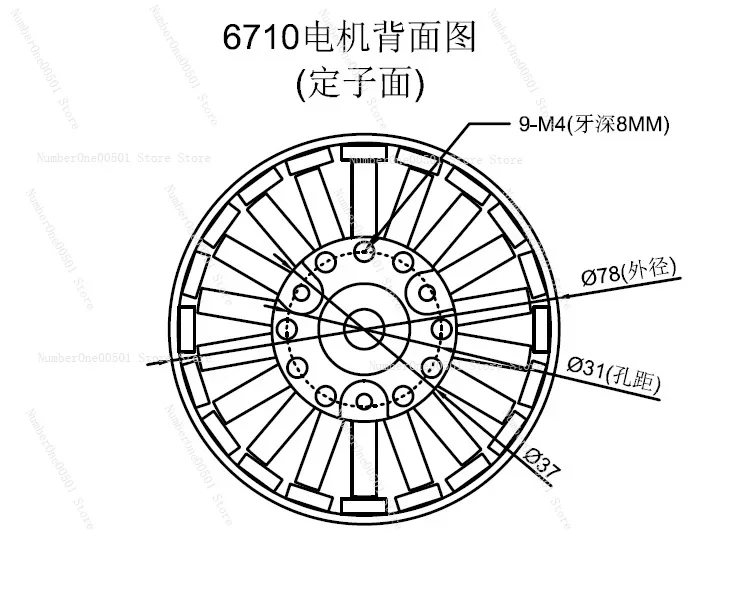

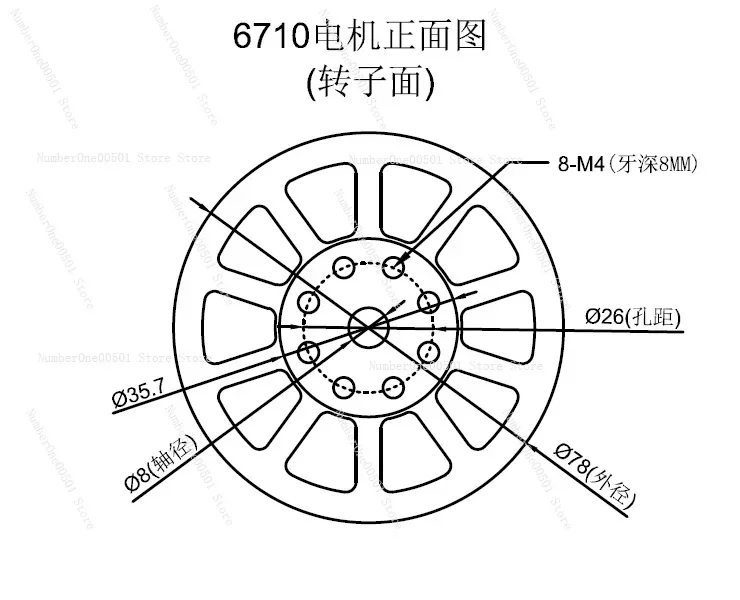

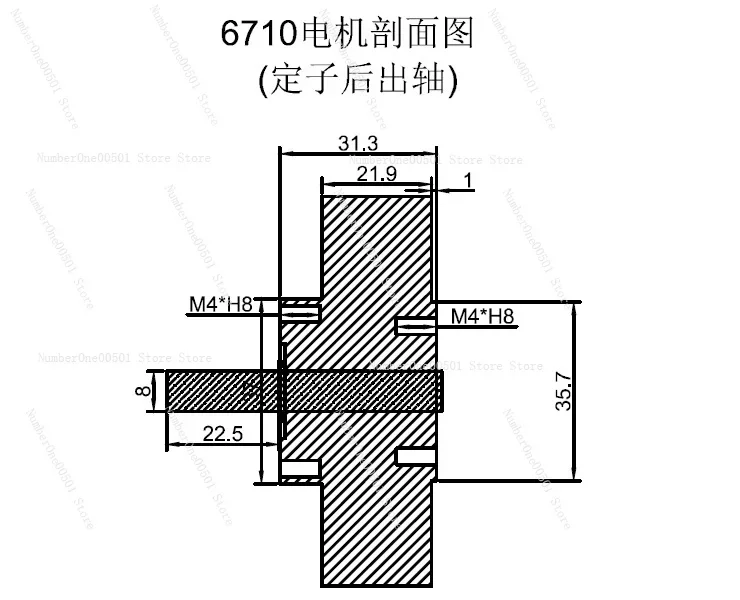

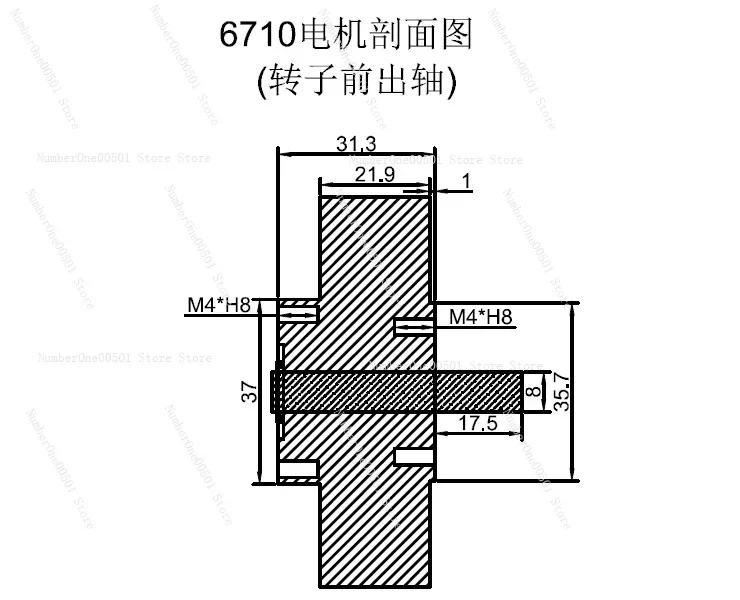

Second, the product size drawing:

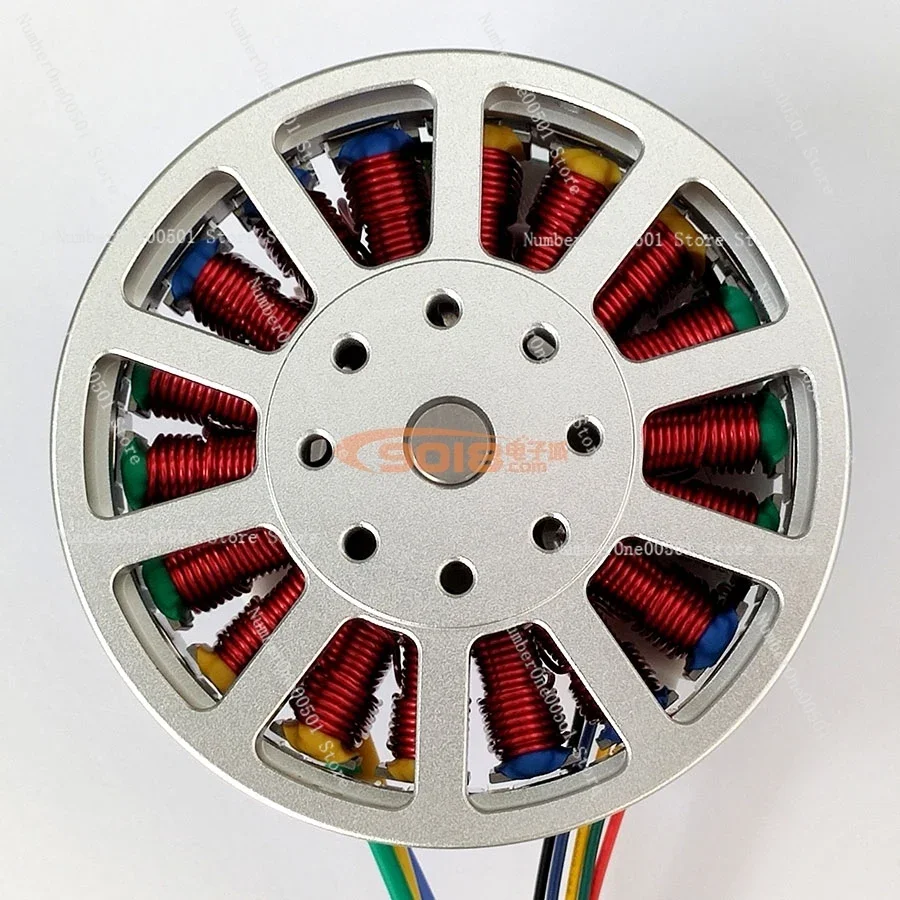

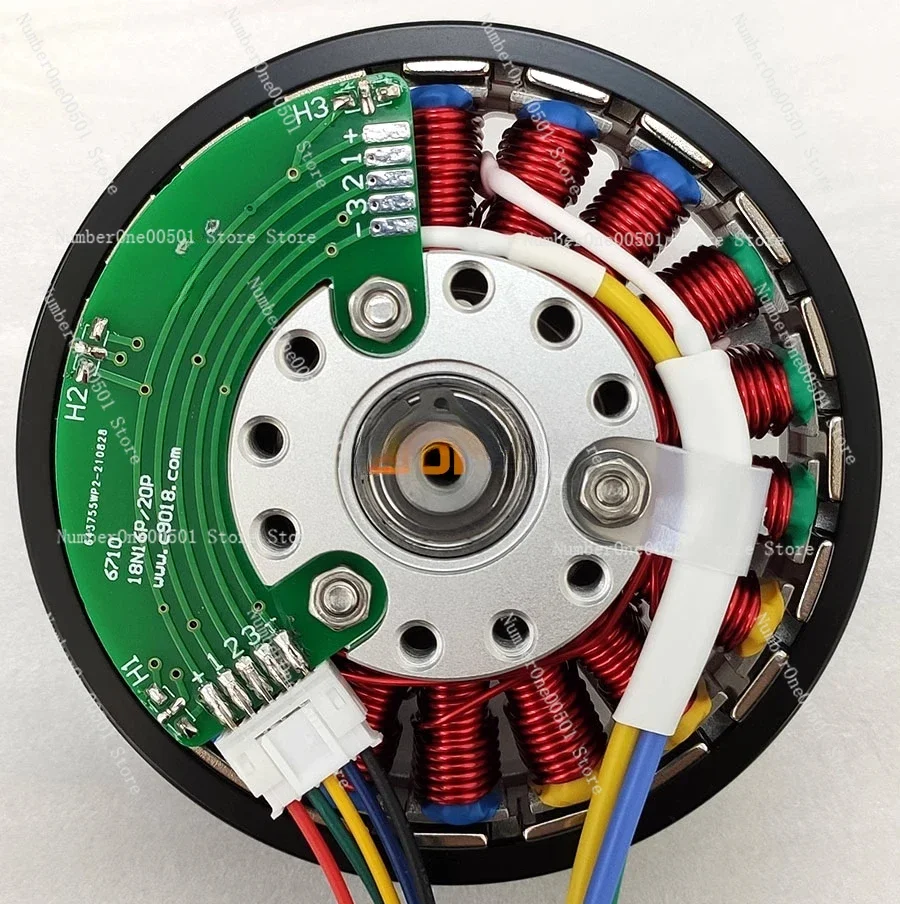

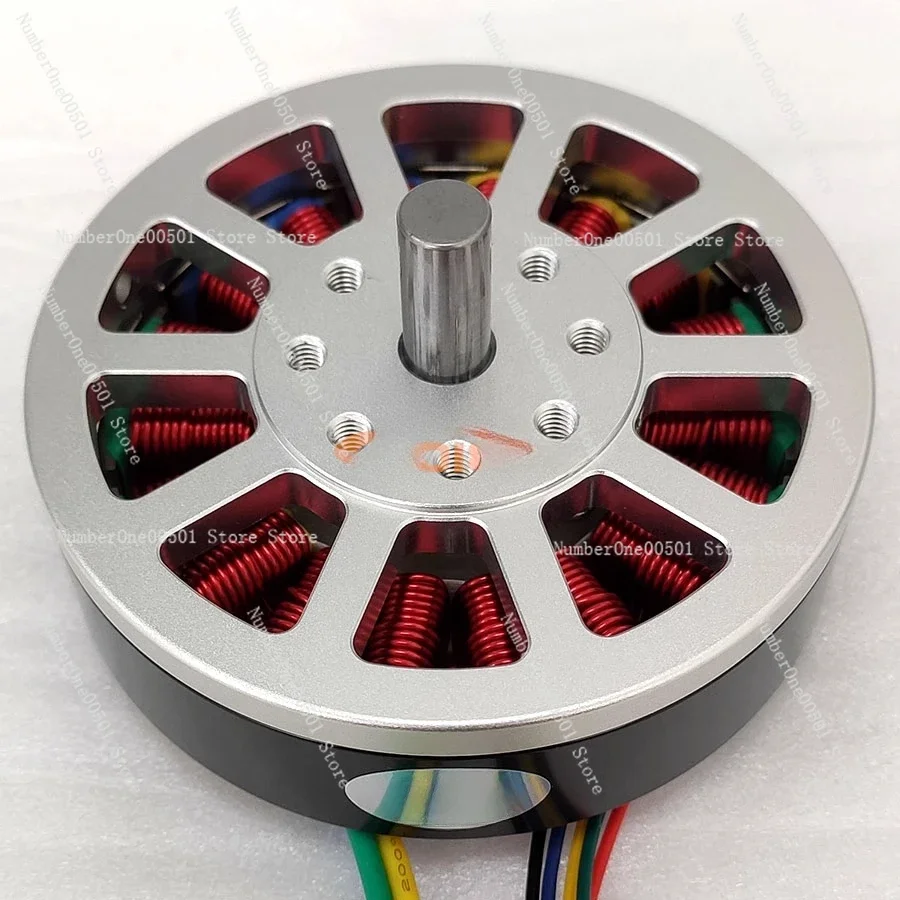

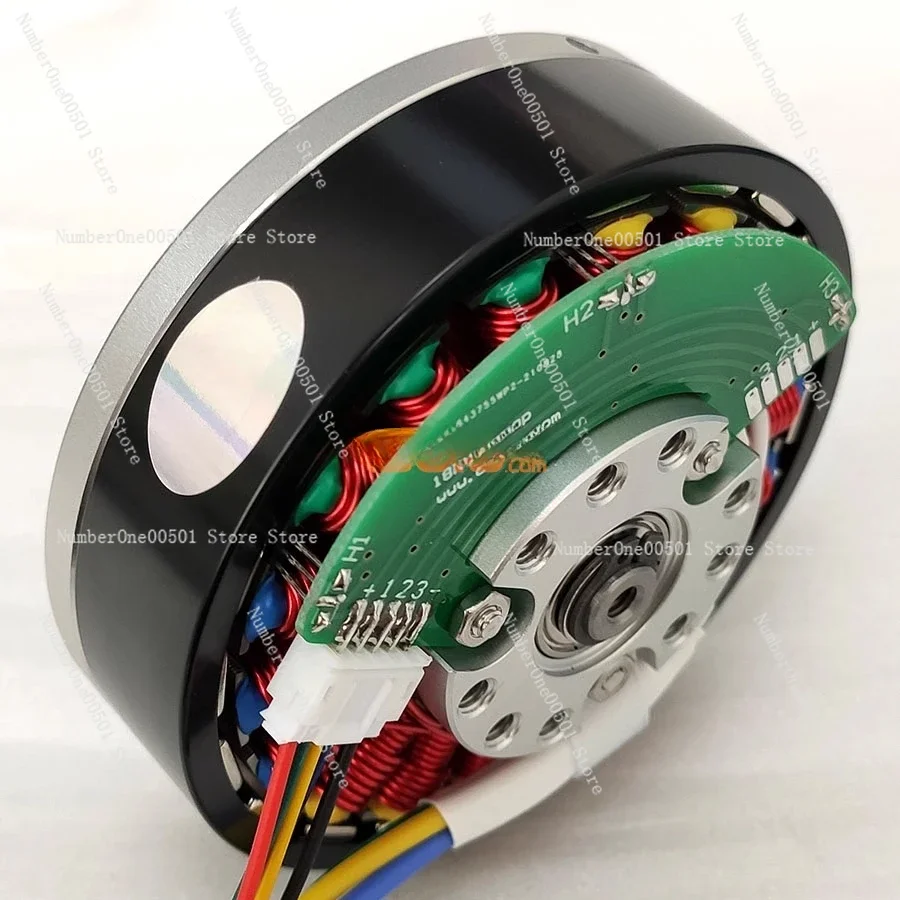

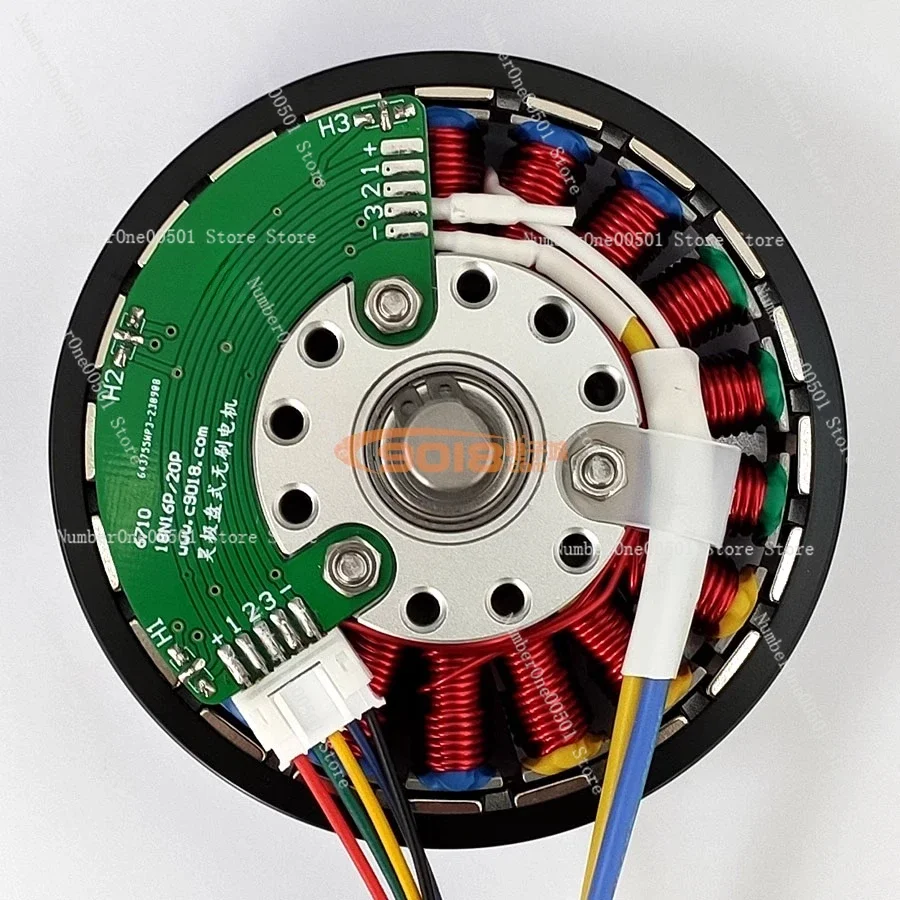

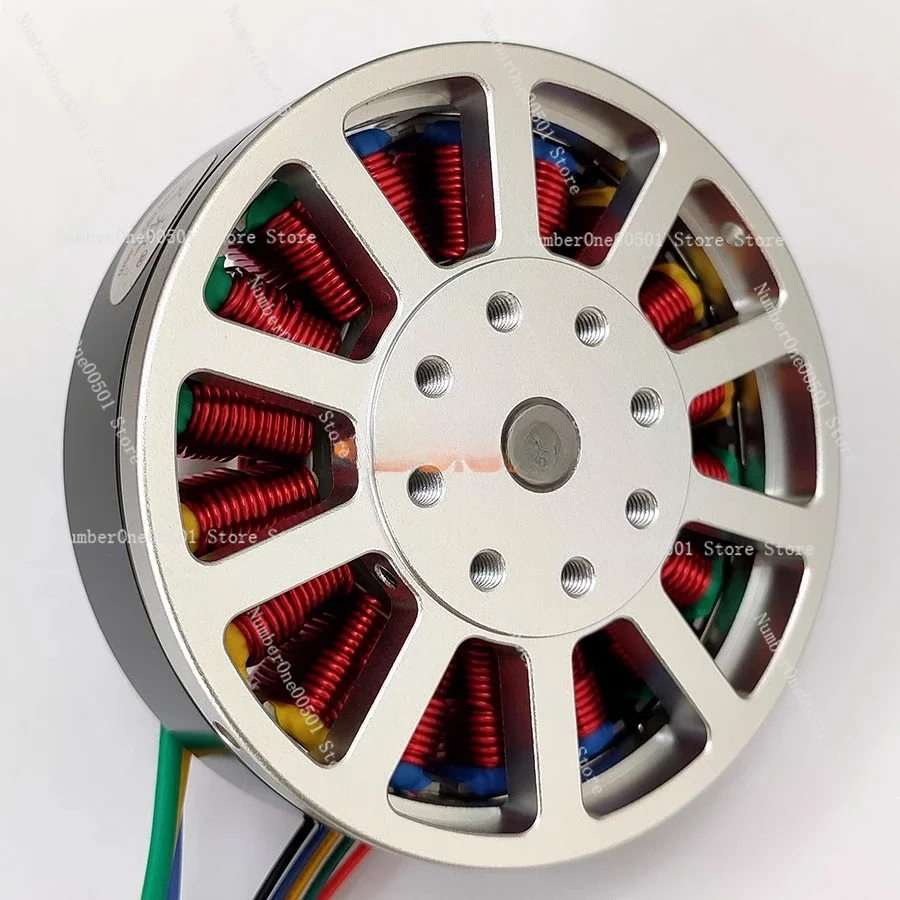

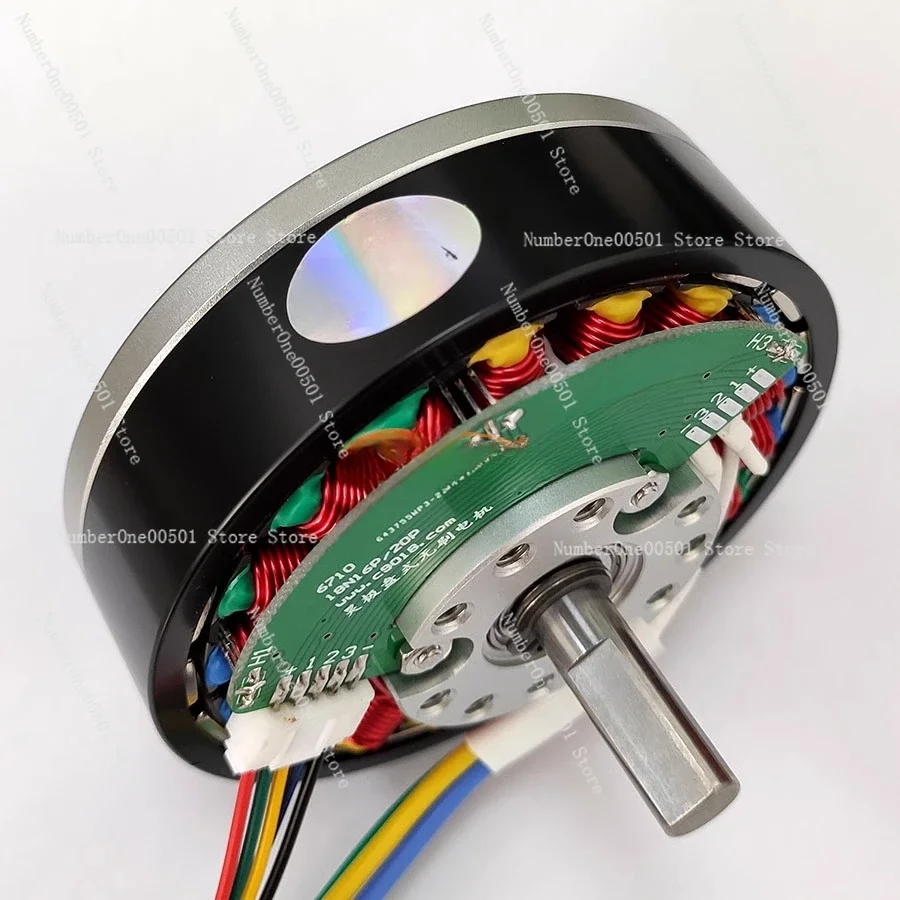

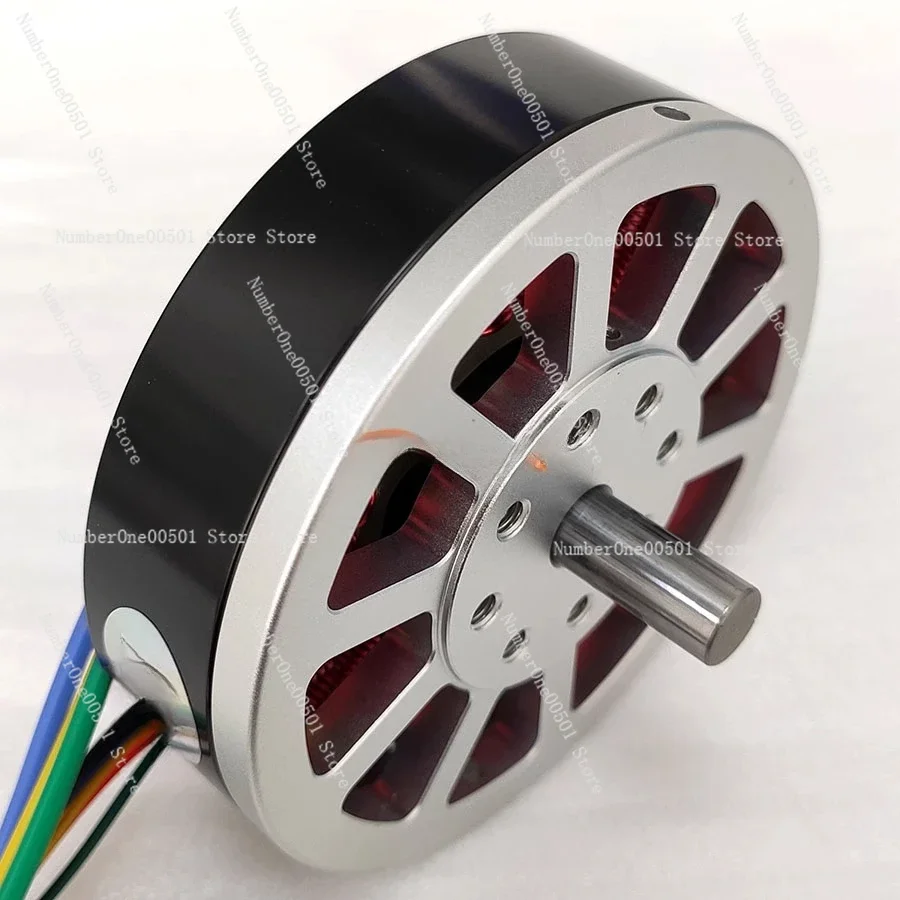

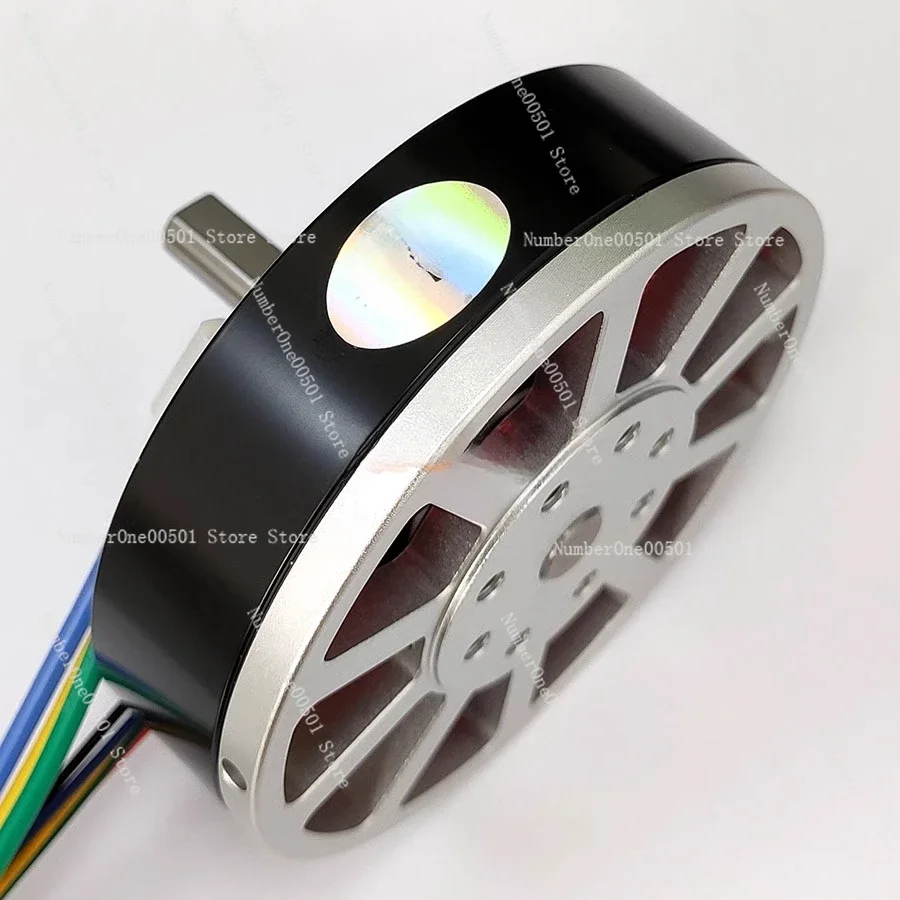

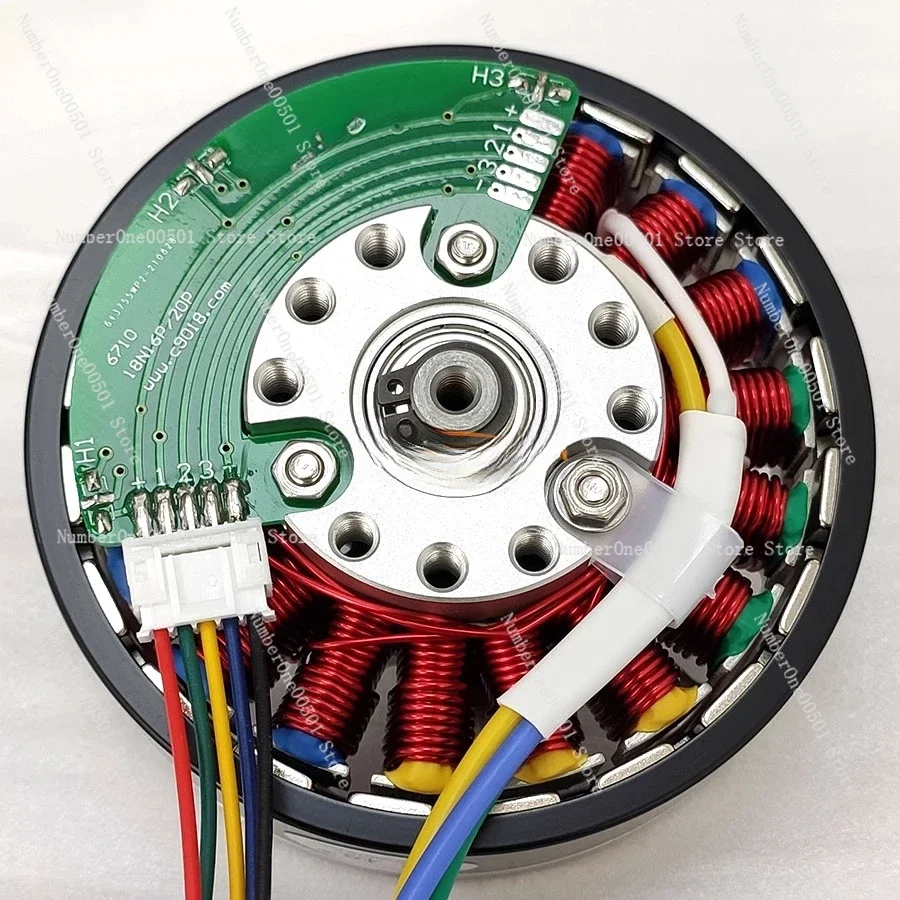

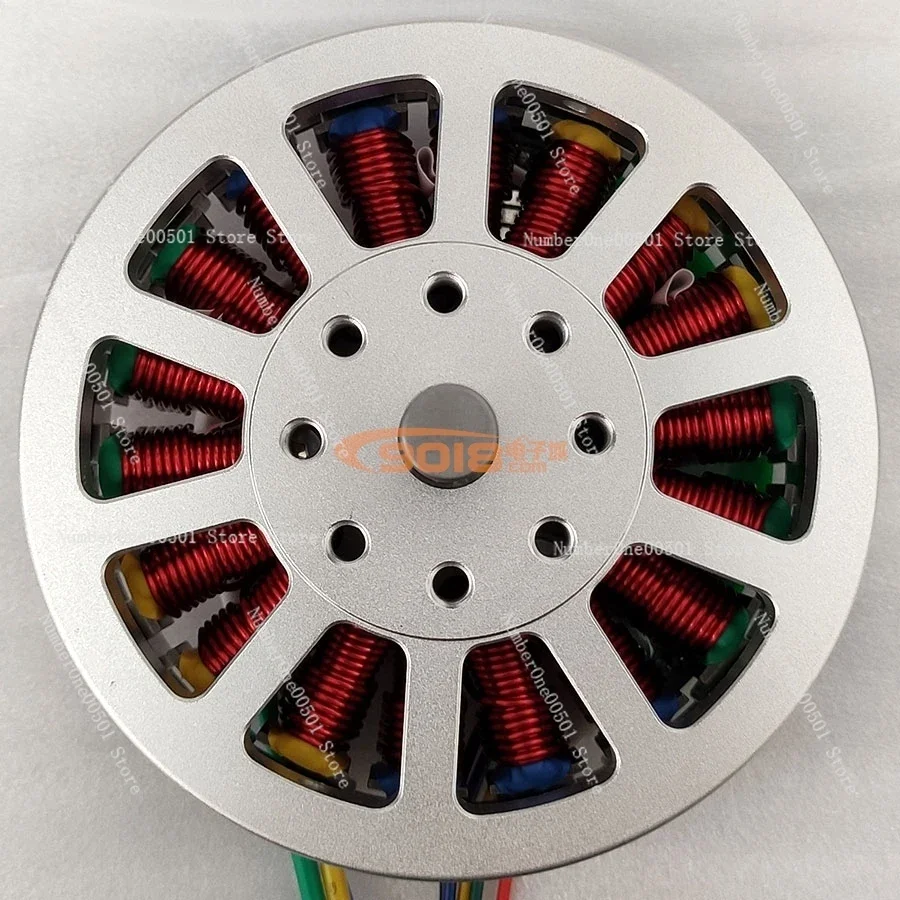

Third, product pictures:
