2 Sets 915MHZ ESP32 Lora V3 WiFi+BLE Development Board 0.96inch OLED Display ESP

Product Description

Docs & Resource

Summary

WiFi LoRa 32 V3also called Heltec V3, durable IoT maker kit powered by the ESP32S3 MCU and

SX1262 LoRa Node chips, intergrated three wireless communication ways ——LoRa、BLE、Wi-Fi，

along with an on-board OLED display, it presents a robust, all-in-one solution.

Its superior RF design and stable, minimal system design ensure the product is ready-to-use and support

for development methods like Arduino, Platform IO, ESP-IDF, and MicroPython makes it beginner-

friendly. It is now widely used in well-known long-range wireless open-source projects such as

Meshtastic and Meshcore, serving applications in smart cities, smart farms, industrial control, and

security systems.

Specifications

Main Features

●Microprocessor: ESP32-S3FN8 (Xtensa® 32-bit LX7 dual-core processor, five-stage pipeline rack

Structure, frequency up to 240 MHz).

●SX1262 LoRa node chip.

●Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF

shielding, and other protection measures.

●Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and

discharge management, overcharge protection, battery power detection, USB / battery power automatic

switching).

●Onboard 0.96-inch 128*64 dot matrix OLED display can be used to display debugging information,

battery power, and other information.

●Integrated WiFi, LoRa, Bluetooth three network connections, onboard Wi-Fi, Bluetooth dedicated

2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa use.

●Integrated CP2102 USB to serial port chip, convenient for program downloading, and debugging

information printing.

●Support the Arduino development environment.

●With good RF circuit design and low-power design.

WiFi LoRa 32 (V3) supports the following development methods:

Dimension

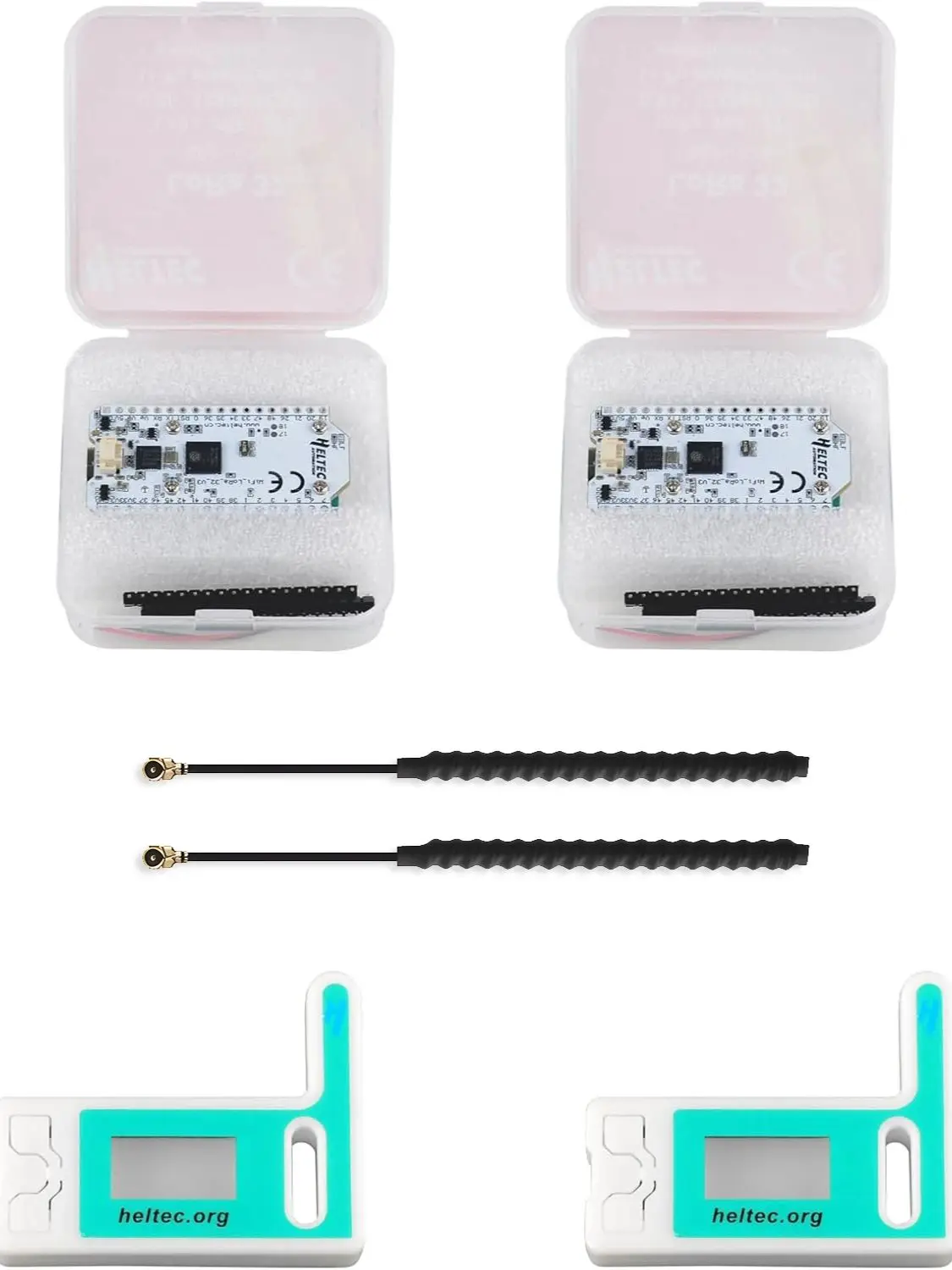

2PCS LoRa 32 With Shell Packing list

Packing list

FAQ

Can the onboard 2.4GHz antenna be replaced?

The 2.4GHz antenna is a spring antenna, and there is no additional interface on the board for 2.4GHz wireless signals.

Can ESP32’s WiFi and Bluetooth be used at the same time?

No, the WiFi LoRa 32 don’t have an external PSRAM.

What development methods does it support?

Support Arduino, Micro Python, Platform.io, Espressif IDE

We strongly recommend using Arduino.

Meshtastic screen has a digital front-end issue?

It’s caused by the meshtastic setting. Changing the default screen to SSD1306 can solve the problem.

The specific steps are as follows:

“Radio configuration”→”Display”→”Override OLED auto-detect”→”SSD1306”

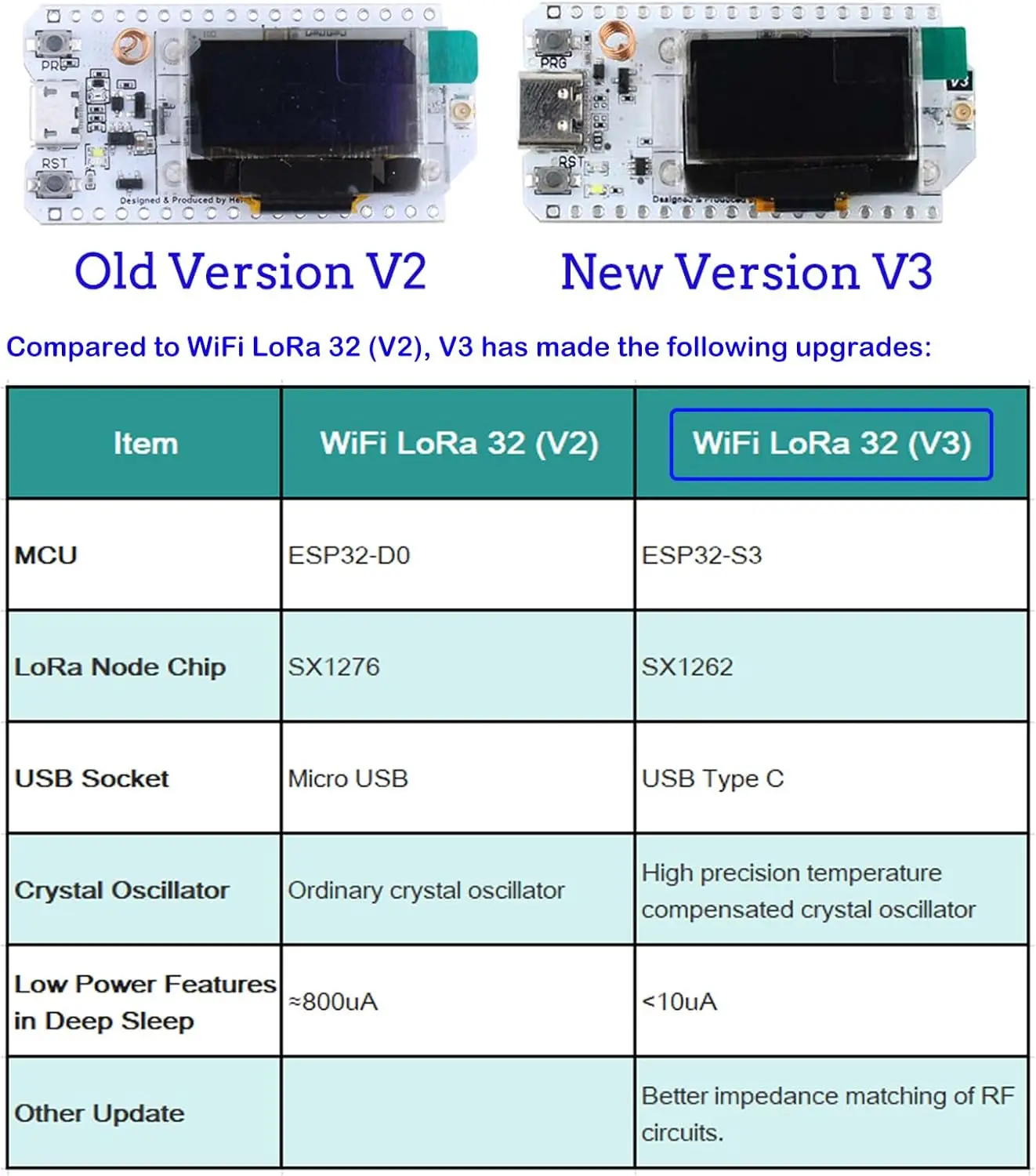

Is V2 code compatible with V3?

No, the MCU is different.
