Product Description

Heltec Wi-Fi HaLow Dongle 1km Ultra-long-range Wireless Network Bridge IEEE 802.11ah Wi-Fi HaLow Wireless Ethernet Jumper 915Mhz

Heltec Wi-Fi HaLow Dongle 1km Ultra-long-range Wireless Network Bridge IEEE 802.

Docs & Resource

Heltec Wi-Fi HaLow Dongle 1km Ultra-long-range Wireless Network Bridge IEEE 802.

It has two typical usage scenarios:

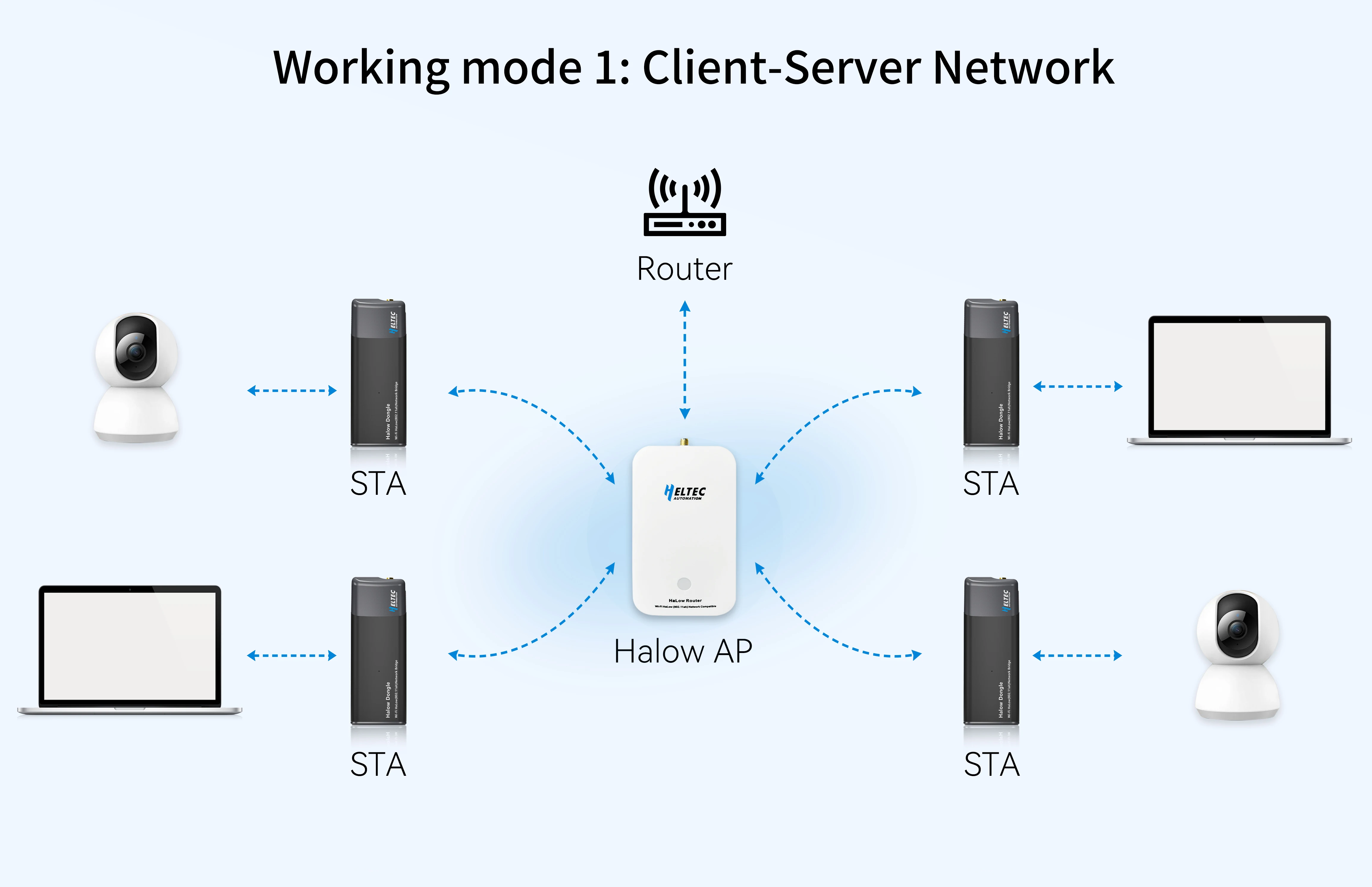

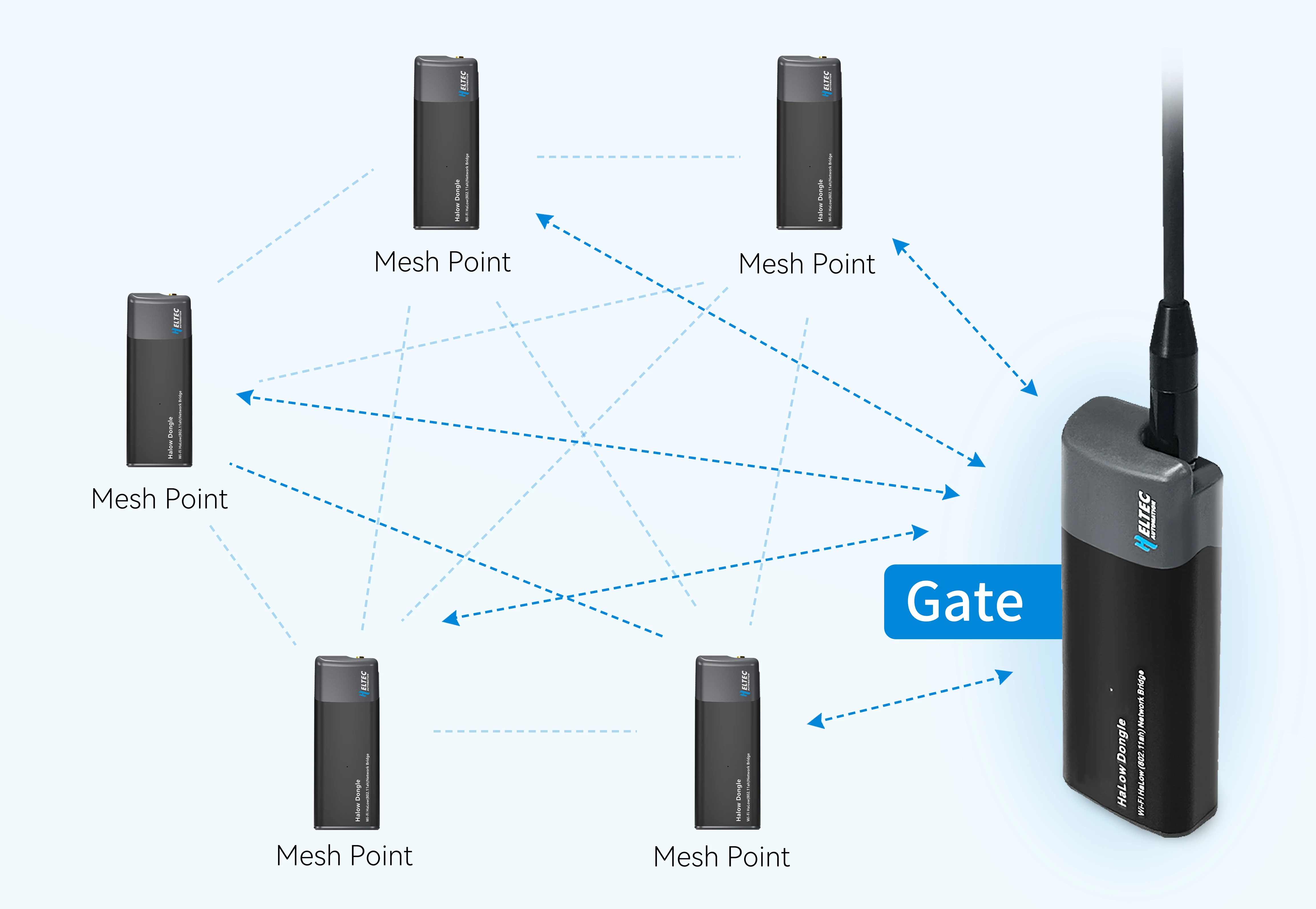

Cooperate with HT-H7608 HaLow router to achieve star networking.

Heltec Wi-Fi HaLow Dongle 1km Ultra-long-range Wireless Network Bridge IEEE 802.

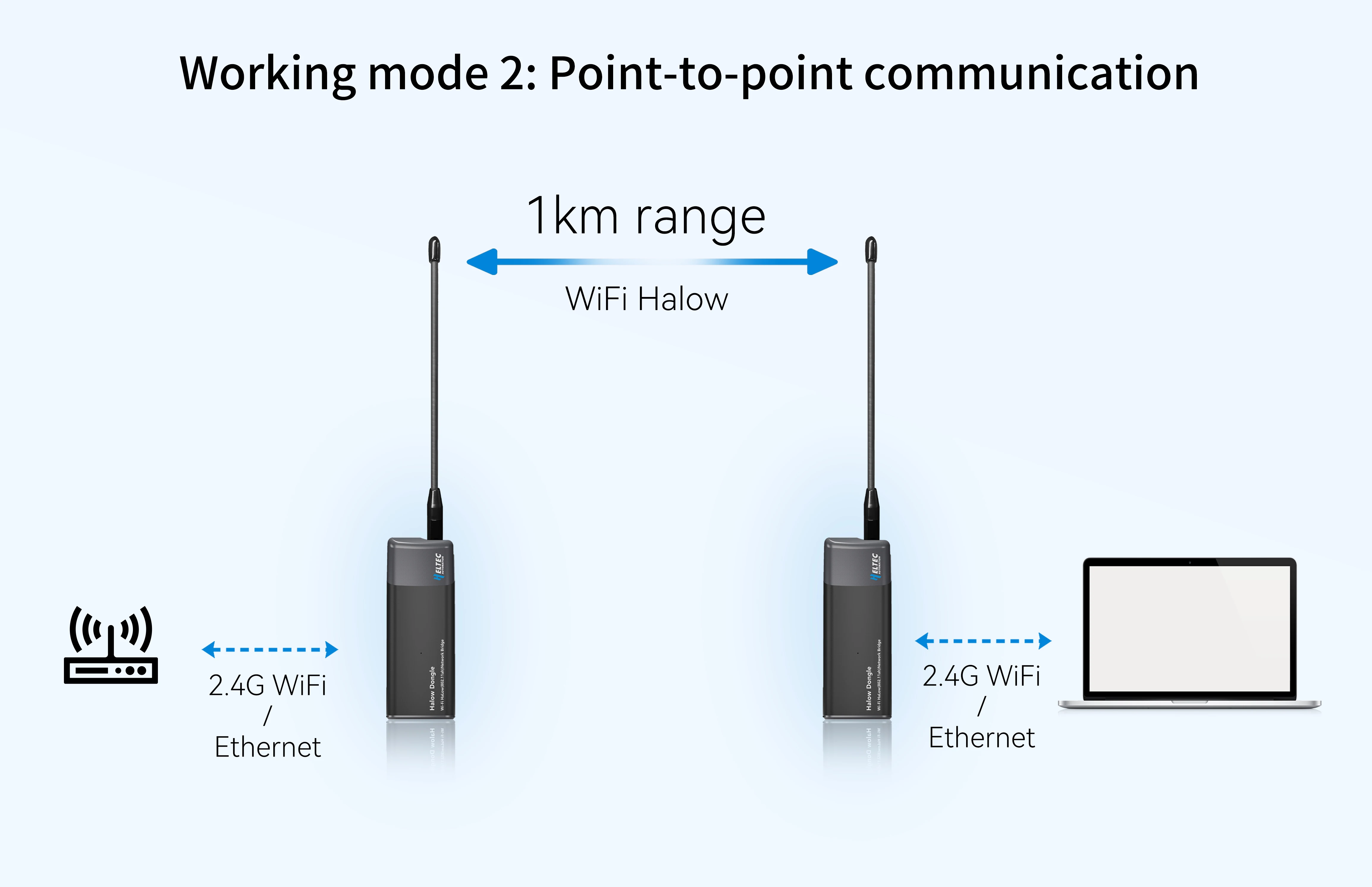

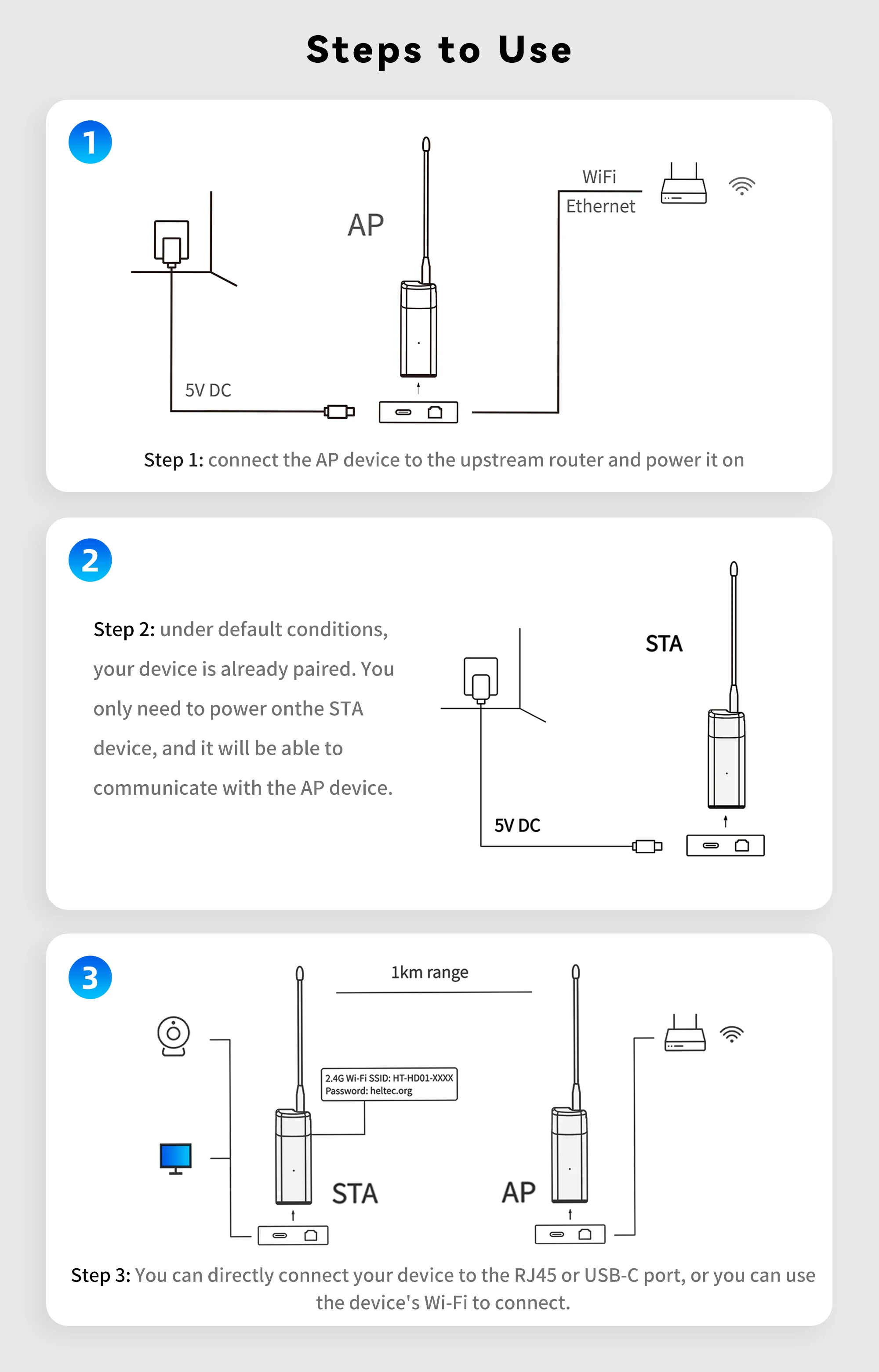

Pairing two HT-HD01 devices for point-to-point communication.

Heltec Wi-Fi HaLow Dongle 1km Ultra-long-range Wireless Network Bridge IEEE 802.

At least TWO HT-HD01 can be paired for use, or cooperate with a HaLow router.

Heltec Wi-Fi HaLow Dongle 1km Ultra-long-range Wireless Network Bridge IEEE 802.

Summary

HaLow Dongle is a plug-and-play network bridge designed to significantly extend the transmission range of traditional networks, offering lower power consumption and improved penetration capabilities. You can think of it as a type of ultra-long-range Wi-Fi or Ethernet cable, and maintaining high transmission speeds even at extended distances.

Heltec Wi-Fi HaLow Dongle 1km Ultra-long-range Wireless Network Bridge IEEE 802.

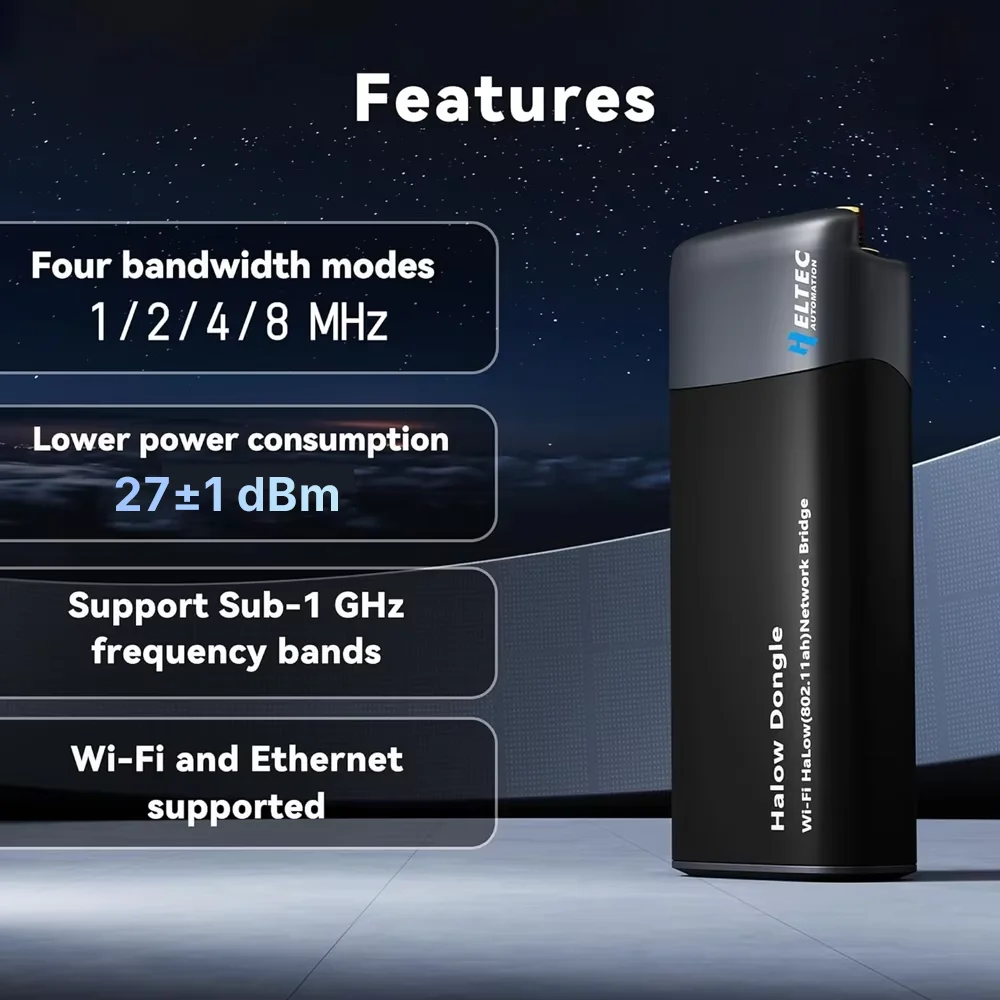

Main Features

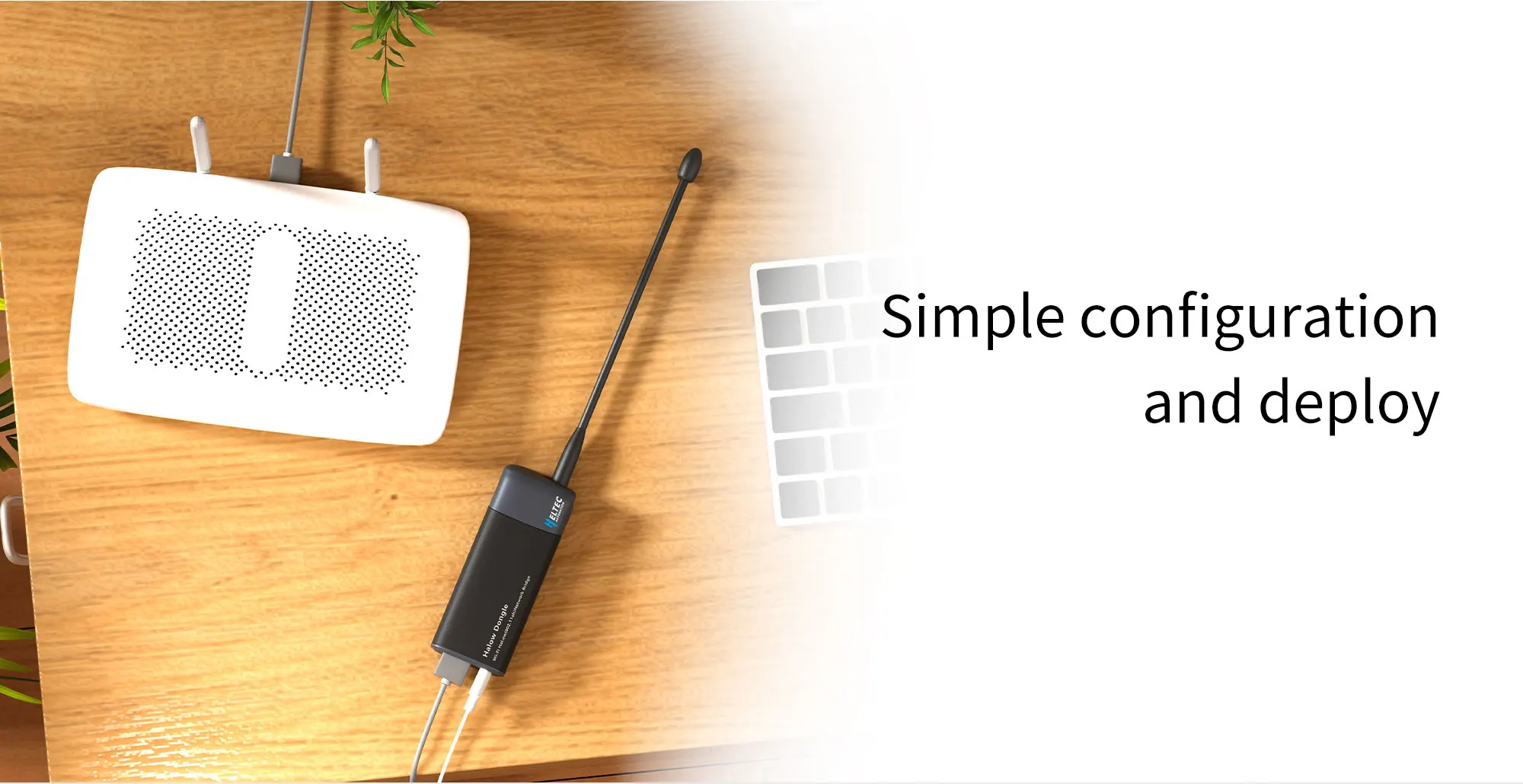

Factory matching, plug and play.

You can connect your device to the Dongle through three methods: USB Type C, Ethernet, and 2.4GHz Wi Fi.

Long transmission range.
It can be seamlessly connected to traditional networks.
Large capacity allows access to a large number of devices simultaneously.
Low power consumption design with high penetration.
High transmission rate, 32.5Mbps@8MHz.
Support Sub-1 GHz frequency bands, frequency range: 902~928 MHz.

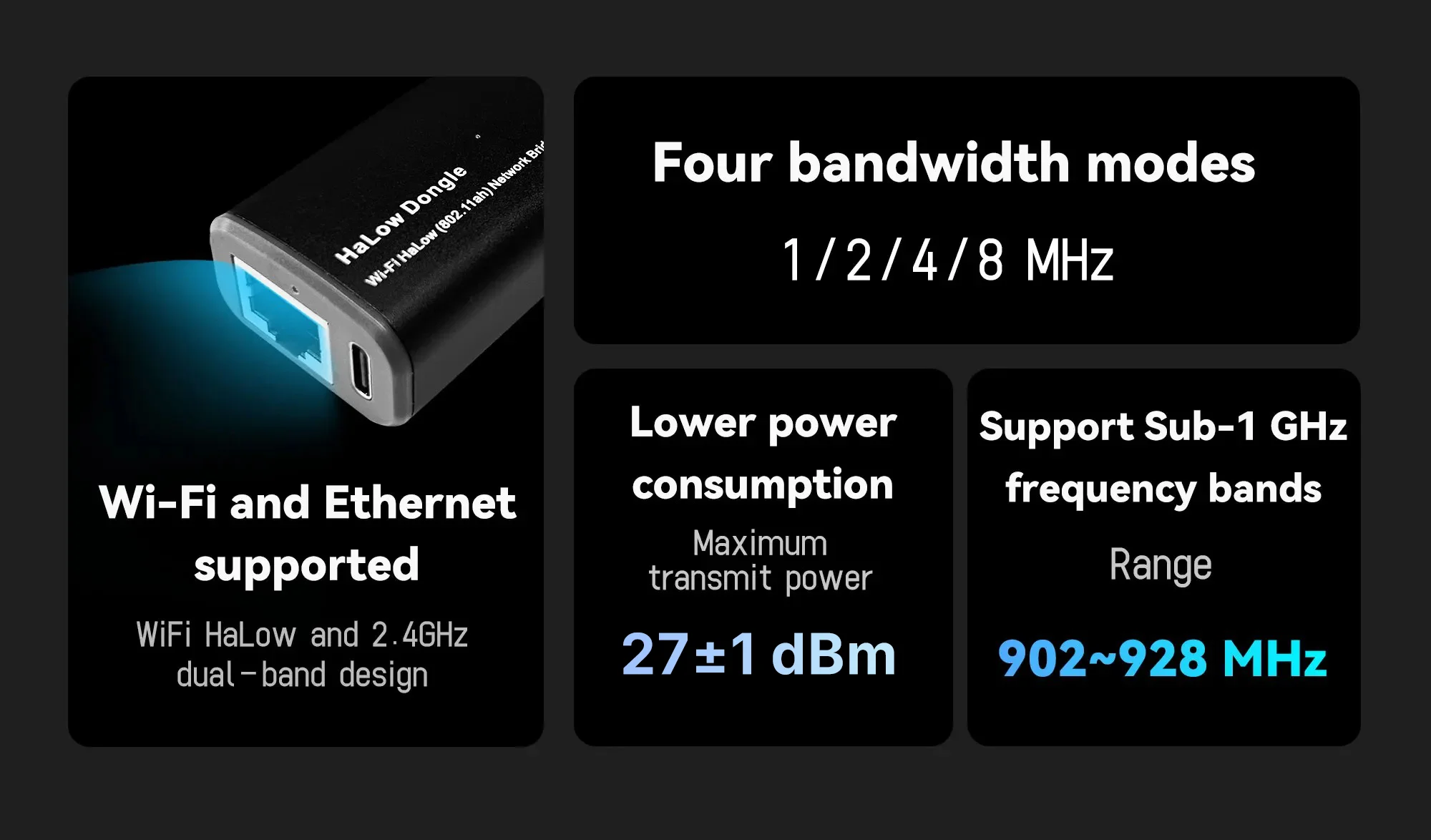

It offers four bandwidth modes 1/2/4/8MHz.
Lightweight and easy to deploy.

Rich in features and strong in extensibility.

Specifications

Parameters	Description
MCU	MT7628
Wi-Fi HaLow module	HT-HC01
Wi-Fi	IEEE 802.11 b/g/n
Ethernet	RJ45(10/100M)，USB-C
Wi-Fi HaLow	Standard: IEEE 802.11 ahFrequency: 902-928MHzMax. TX power: 27±1 dBmBandwidth: 1/2/4/8 MHzMax Data Rate: 32.5 Mbps @ 8 MHz
ANT Interface	SMA female socket
Operating Condition	Temperature: -20 ~ +70℃Humidity: 10%～90%( no-condensing)
Power	USB-C, 5V
Consumption	300mA(Typical)
Ingress Protection	Without waterproof features
Shell material	Aluminum Alloy, Plastic
Weight	53.5g (Antenna included),40g(Antenna excluded)

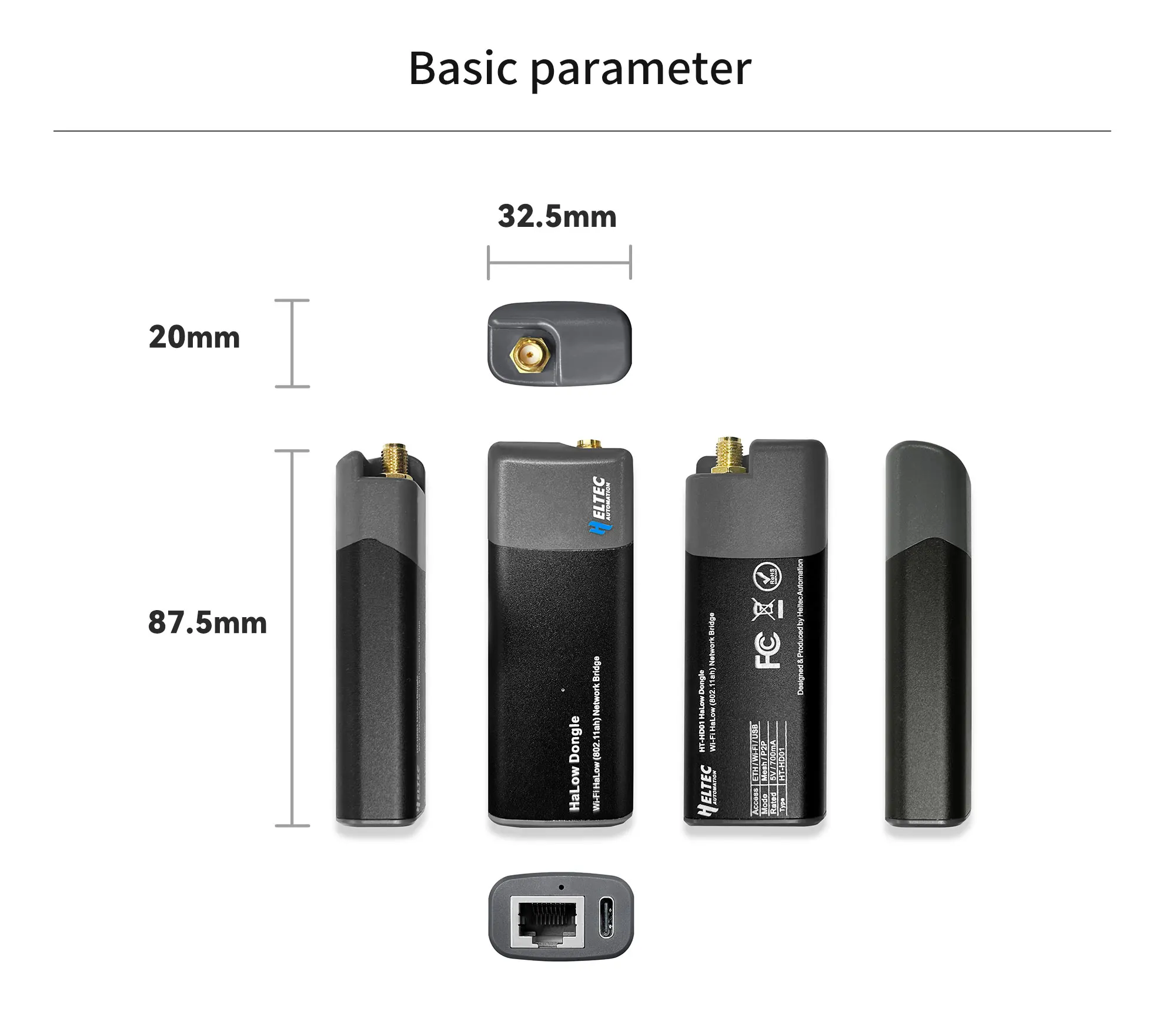

Dimensions	87.532.520m3(Antenna excluded)

Heltec Wi-Fi HaLow Dongle 1km Ultra-long-range Wireless Network Bridge IEEE 802.

HT-HD01 is a Wi-Fi HaLowbased network bridge that extends the transmission range of traditional Wi-Fi

and Ethernet networks, offering better penetration. It is designed to improve connectivity in various

environments, particularly for applications where long-range, low-power communication is essential.

Here are some potential use casesfor the HT-HD01:

Heltec Wi-Fi HaLow Dongle 1km Ultra-long-range Wireless Network Bridge IEEE 802.

Packing list

The default packing list without selecting any accessories is as follows:

Item	Quantity
Wi-Fi HaLow Dongle AP(Only valid when selecting AP configuration)	x1
Wi-Fi HaLow Dongle STA(Only valid when selecting STA configuration)	x1
Wi-Fi HaLow Dongle AP+STA(Only valid when selecting AP+STA configuration)	x1
Atenna	x1
USB-C cable	x1
Reset button trigger pin	x1
Paper user guide	x1
Ethernet jumper	x1

FAQ1.The configuration page cannot be accessed when configured via Wi-Fi.Do not enter the configuration mode via Wi-Fi while connecting the network cable. If this situation occurs, please unplug the power and network cable, and then re-enter the configuration mode.2.How do you get device‘s IP address?(1) Look in the upstream router：Introduction — ht-h7608 latest documentation.(2)Connect to the 2.4GWi-Fi provided by the dongle and enter “192.168.1.1” or “10.42.0.1” in the browser (depending on the mode of operation of the device, if you are not sure which one to enter, you can try both). You will see the IP of the connected device and the IP of the Dongle itself.
