Product Description
Heltec V4 WiFi LoRa 32 Expansion Kit With Battery ESP32S3 SX1262 928MHz GPS Module For Meshtastic LoRaWAN Touch Screen Devboard
Heltec V4 WiFi LoRa 32 Expansion Kit With Battery ESP32S3 SX1262 928MHz GPS Module For Meshtastic LoRaWAN Touch Screen DevboardDocs & Resource
Introduction

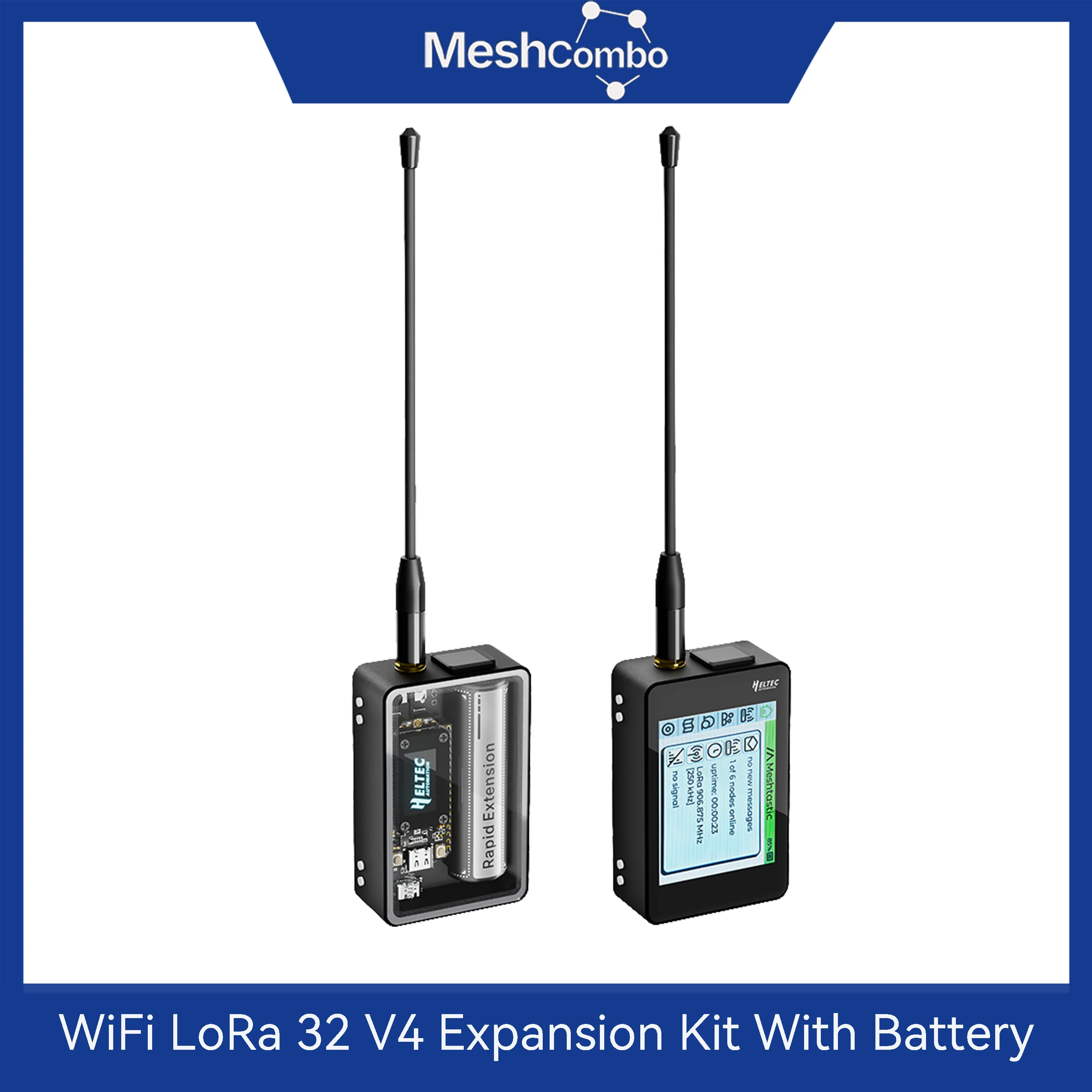

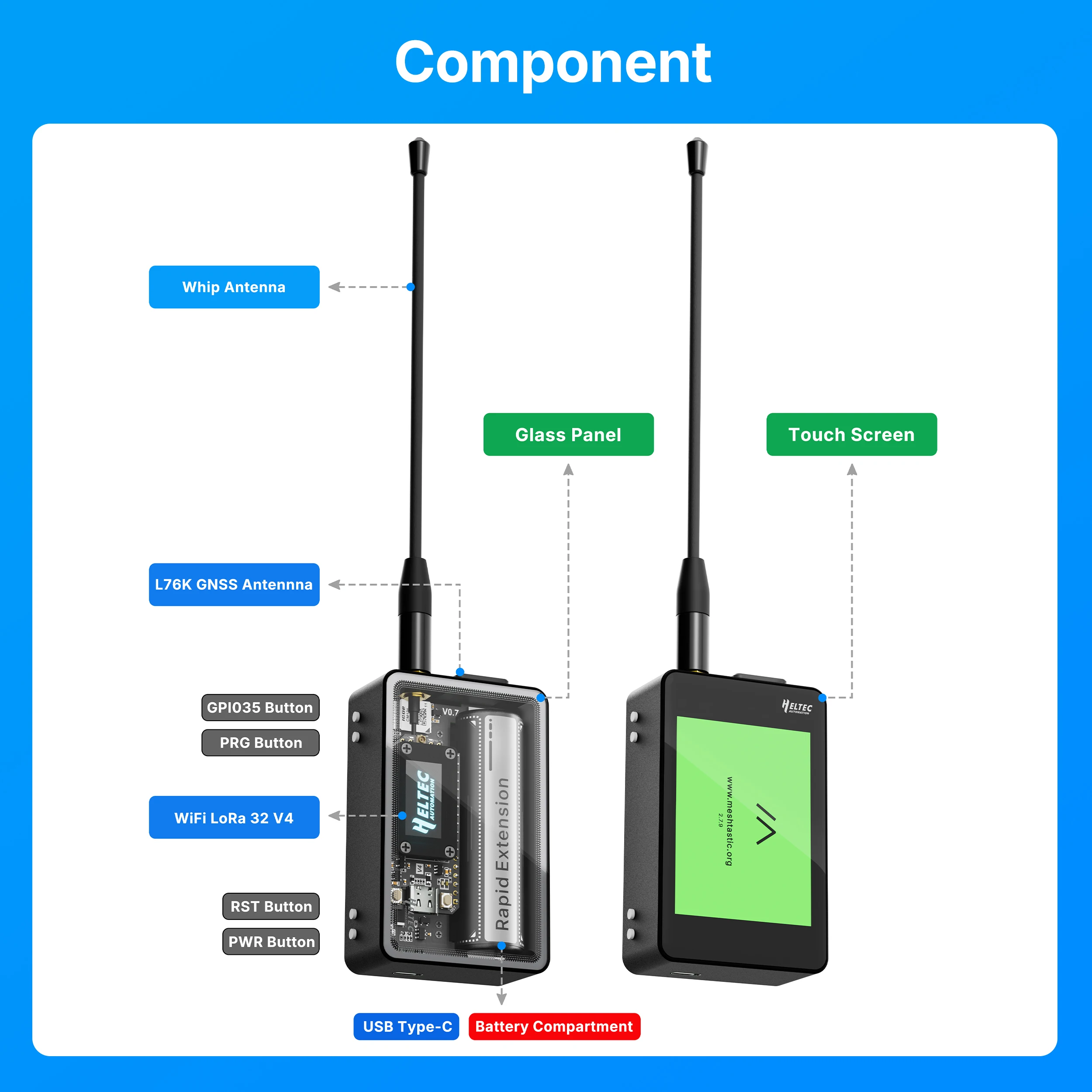

The WiFi LoRa 32 Expansion Kit is a comprehensive set specifically designed for the WiFi LoRa 32 series, including protective cases, expansion carrier boards, sensor modules, and more. You can view 3D models and customize product parameters on the MQB platform to assemble a kit that meets your needs.
Specifications
Parameters | Description |
Enclosure Material | Front Cover: Tempered Glass / Touch Screen; |
Battery | 2800mAh 18650 Li-Ion Battery (Selecting “With Battery” will incur additional shipping costs) |
GNSS Module(Optional) | Quectel L76K |
Triaxial Accelerometer | DA217 |
Dimensions | 52×52×15mm |
Weight | 200g (excluding battery) |
Expansion Socket | B2B Female |
Antenna Socket | SMA Female |
FAQ
1.Does it include the battery?
Yes.
2.What battery should I choose?
Any 18650 lithium battery with a voltage range of 3.3~4.2V.
3.Does it include the WiFi LoRa 32 V4 development board?
Yes.
4.Is the device waterproof?
No, it does not feature waterproofing.
5.Why is my buzzer making strange sounds?
When the device is identifying GPS, the timing of the buzzer is disrupted, causing it to sound somewhat
unusual. This commonly occurs when the device is first started up, and it will return to normal after about
one minute.
