Product Description

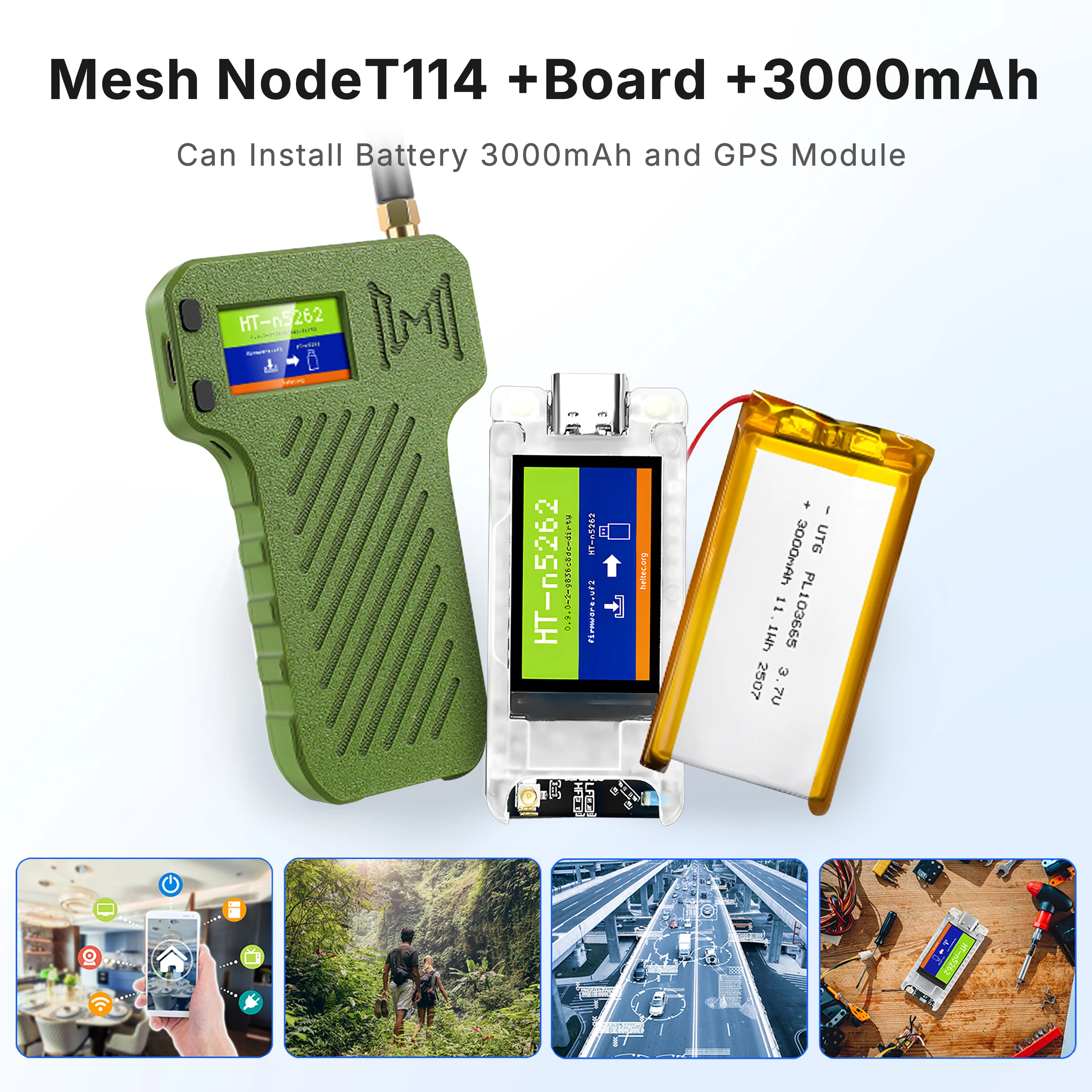

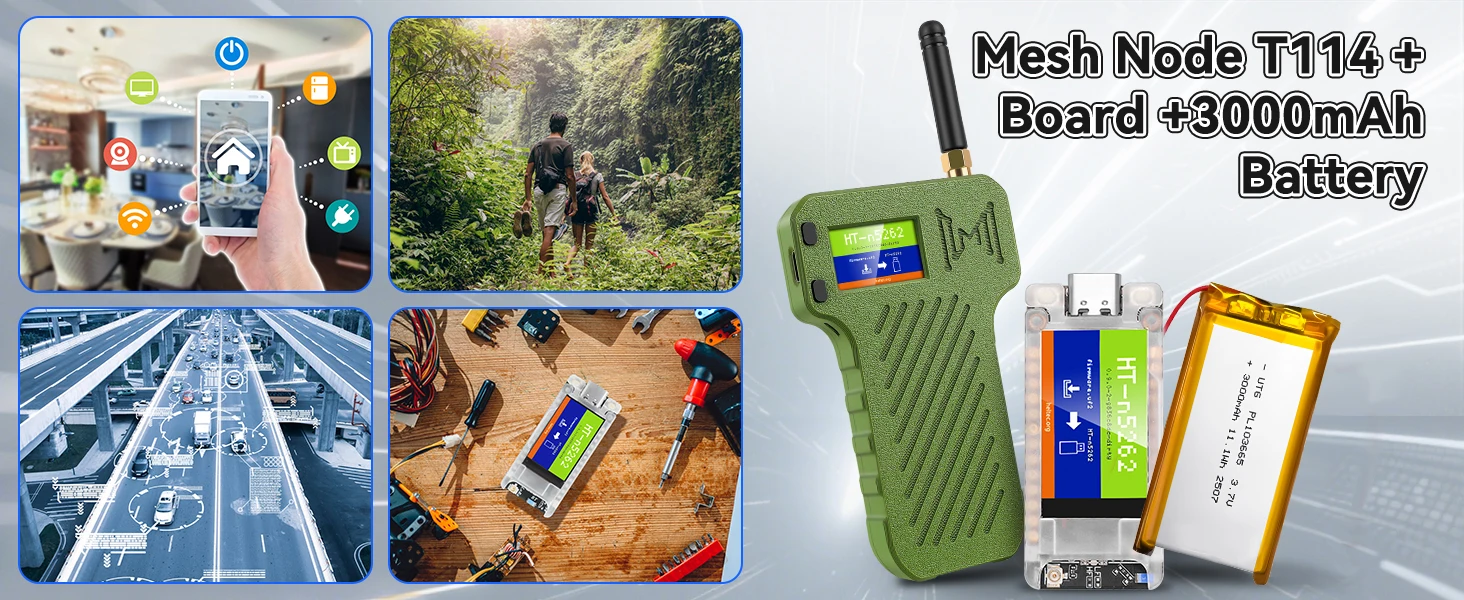

Heltec T114 V2 nRF52840 SX1262 1.14 Inch Display Tracker Nordic Support Meshtastic LoRaWAN LoRa Arduino Dev-board
Heltec T114 V2 nRF52840 SX1262 1.14 Inch Display Tracker Nordic Support Meshtastic LoRaWAN LoRa Arduino Dev-board
Docs & Resource
Description
Specification
Parameters | Description |
MCU | nRF52840 |
LoRa Node Chip | SX1262 |
Frequency | 470~510MHz; |
Max. TX Power | 21±1dBm |
Max. Receiving sensitivity | -135dBm@SF12 BW=125KHz |
Bluetooth | Bluetooth LE: Bluetooth 5, Bluetooth mesh |
Hardware Resource | USB 2.0, 4 * SPI, 2 * TWI, 2 * UART, 4 * PWM, QPSI, 12S, PDM, QDEC Etc. |
Memory | 1M ROM |
Interface | Type-C USB |
Battery | 3~4.2V battery power supply and charge. |
Operating Temperature | -20 ~ 70 ℃ |
Dimensions | 50.80*22.86mm |
Electrical characteristics | Deep Sleep: ~11uA |
Display | onboard 1.14 inch TFT-LCD display |
Summary
Mesh Node T114 is a development board based on nRF52840 and SX1262, supports LoRa and
Bluetooth 5.0. It integrated a variety of power interfaces (5V USB, lithium battery and solar panel),
optional 1.14 inch TFT display and GPS module as accessories, and has powerful long-distance
communication capabilities, scalability, and low power design. With Heltec nRF52 development
environment and libraries , you can use it for LoRa/LoRaWAN development work, and also use it to run
some open source projects, such as Meshtastic.
Main Features
MCU nRF52840 (Bluetooth), LoRa chipset SX1262.
Powerful display function (optional), onboard 1.14 inch TFT-LCD display contains 135(H)RGB
x240(V) dots and can display up to 262k colors
Low power consumption, 11 uA in deep sleep
Powerful display function, onboard 1.9-inch TFT-LCD display contains 170 (RGB)X320 dots and can
display up to 262k colors.
Operation condition: -20 ~ 70℃, 90%RH(No condensing).
Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF
shielding, and other protection measures
Compatible with Arduino, we provide development frameworks and libraries.
Various Interfaces: 1.25*2P LiPo connector, 1.25*2P Solar panel connector, 1.25*8P GNSS module
connector, which greatly increase the extensibility of the board.
Low Power Chracteristics
