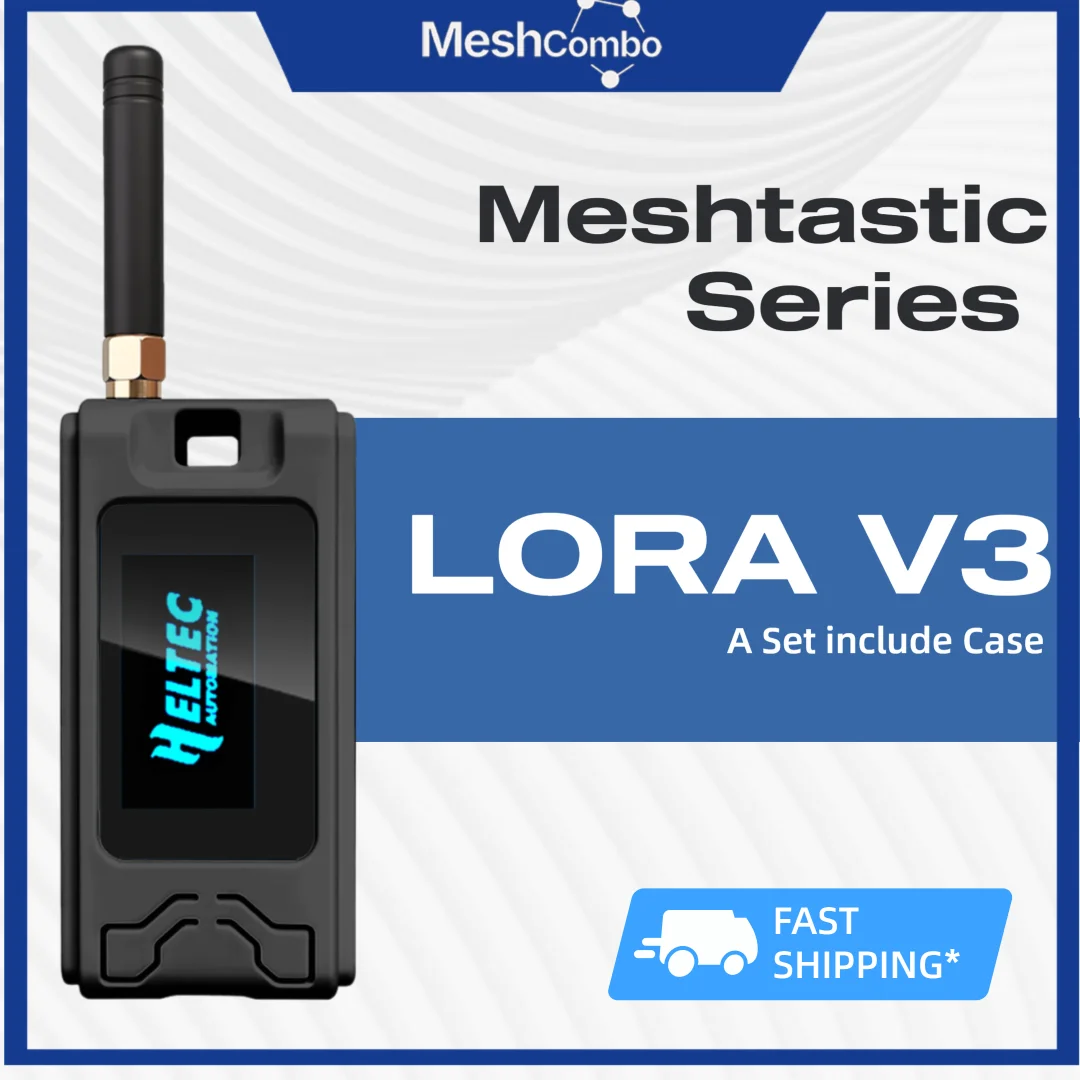

1 Set Heltec ESP32 LoRa V3 Module Board SX1262 CP2102 Meshtastic LoRaWAN IoT Nod

Product Description

Note:

This product does not include batteries!!!

If you need to purchase batteries separately, please select this link:

Why do we need Maker series products?

NEW 3 in 1 ESP32 LoRa V3 Development Board + Protect Case

Set

Summary

"WiFi LoRa 32 V3also called Heltec V3, durable IoT maker kit powered by the ESP32S3 MCU and

SX1262 LoRa Node chips, intergrated three wireless communication ways ——LoRa、BLE、Wi-Fi，

along with an on-board OLED display, it presents a robust, all-in-one solution.

Its superior RF design and stable, minimal system design ensure the product is ready-to-use and support

for development methods like Arduino, Platform IO, ESP-IDF, and MicroPython makes it beginner-

friendly. It is now widely used in well-known long-range wireless open-source projects such as Meshtastic

and Meshcore, serving applications in smart cities, smart farms, industrial control, and security systems."

Compared to WiFi LoRa 32 (V3), V2 has made the following upgrades:

Product	WiFi LoRa 32v3	WiFi LoRa 32v2
Display
Low Power Feature	<10μA	<100μA
MCU	ESP32-S3FN8	ESP32-D0WDQ6
LoRa node chip	SX1262	SX1267
Bluetooth	BLEv5.0	BLEv4.2
Socket	2.54Header;Type-c;IPEX(V1);SH1.25Battery Port	2.54Header;MicroUSB;IPEX(V1);SH1.25Battery Port

WiFi LoRa 32 is compatible with the following open-source projects:

• ESP32 Paxcounter

• Disaster Radio

• Meshtastic

• Tiny GS

• ...

We also provide a standard ESP32 Arduino LoRaWAN library:

• Heltec ESP32 LoRaWAN

This library is already included in the Heltec ESP32 Arduino Framework by default.

The default packing list without selecting any accessories is as follows:

1.Can the onboard 2.4GHz antenna be replaced?

The 2.4GHz antenna is a spring antenna, and there is no additional interface on the board for 2.4GHz wireless

signals.

2.Can ESP32 WiFi and Bluetooth be used at the same time?

No, the WiFi LoRa 32 don’t have an external PSRAM, if your application need use Bluetooth and Wi-Fi at the

same time, you can look into this product: Heltec Wireless Bridge.

3.What development methods does it support?

• Arduino

• Micro Python

• Platform.io

• Espressif IDE

We strongly recommend using Arduino. We have complete technical support and provide complete LoRaWAN

code for ESP32 Arduino framework.

4.What’s the battery socket type?

You can find this type of socket by search “SH1.25 x 2”.

5.Can I order a version without the OLED display?

Of course, you can contact our sales staff and provide your ideas.

6.Is V2 code compatible with V3?

No, the MCU is different.

More info about Heltec products

Heltec provides a comprehensive app and cloud platform that enables efficient and effective device

registration, management, data storage, and graphing.

Help Achive Comprehensive System Architecture
