Meshtastic Heltec LoRa 32 V4 ESP32 SX1262 Dev-Board Low Power 0.96inch OLED Solar Powered Support GPS WiFi BLE For Arduino IoT
Meshtastic Heltec LoRa 32 V4 ESP32 SX1262 Dev-Board Low Power 0.96inch OLED Solar Powered Support GPS WiFi BLE For Arduino IoT
Docs & Resource
Summary

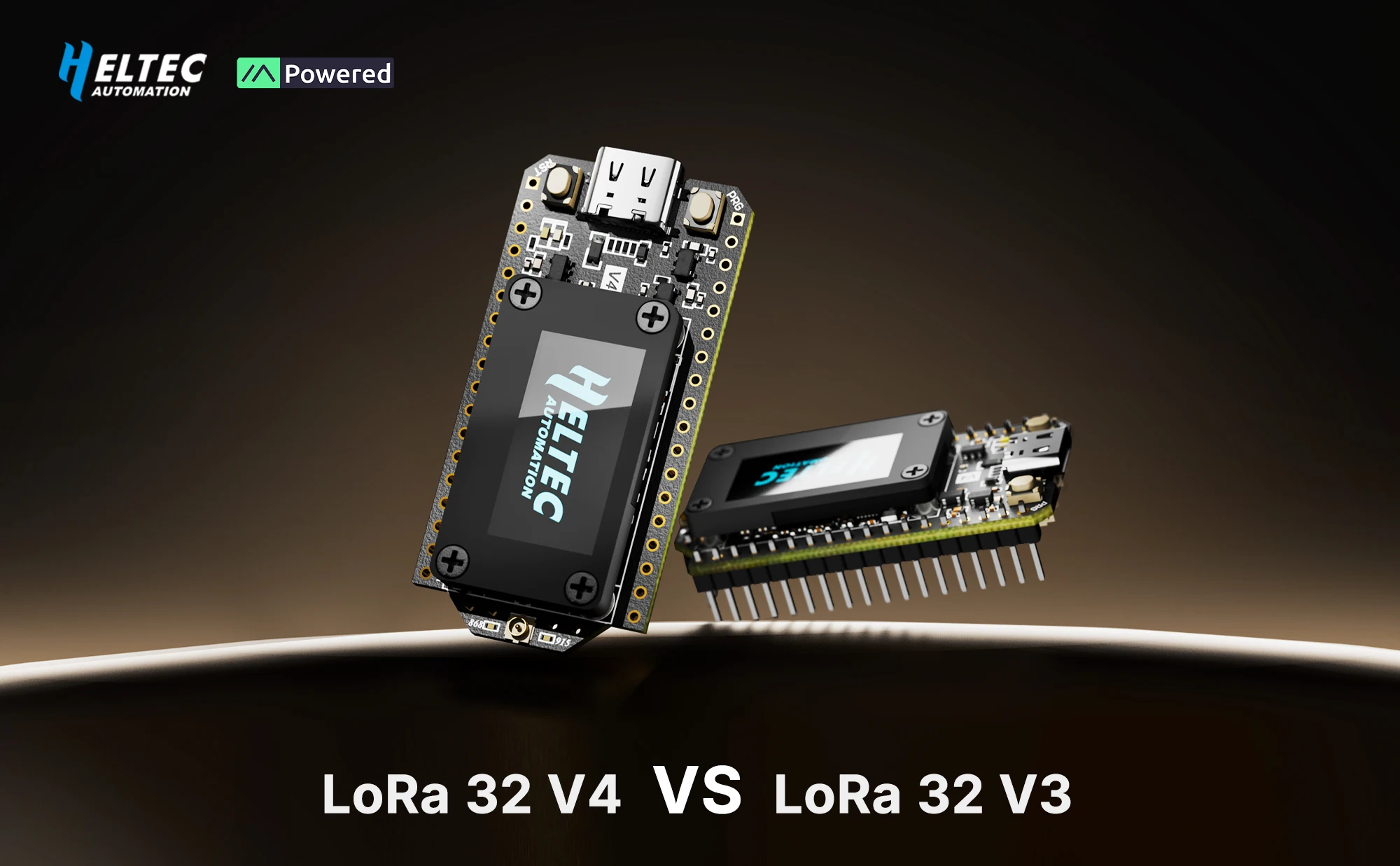

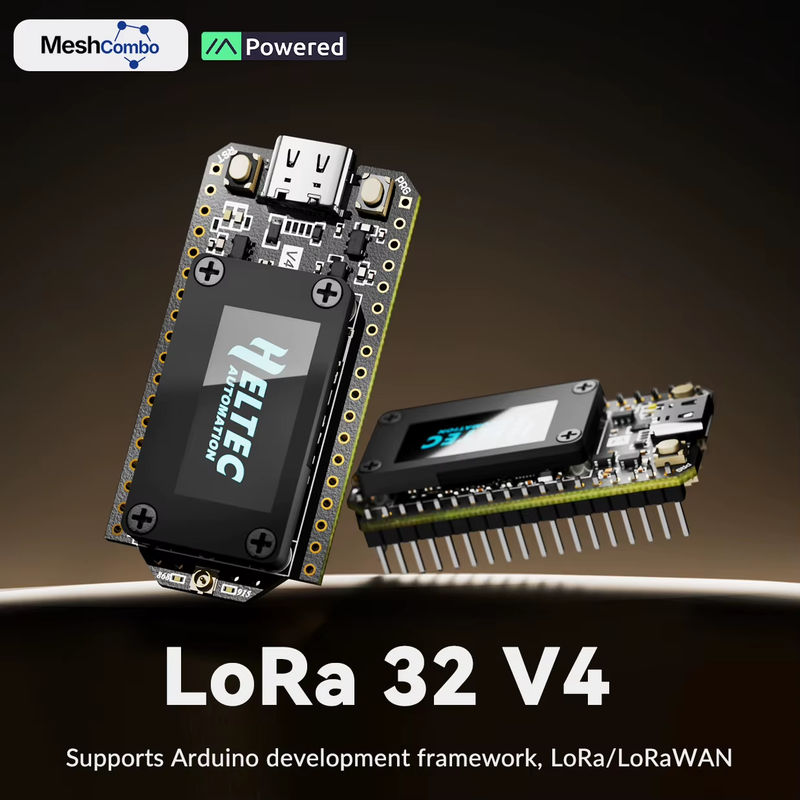

The WiFi LoRa 32 V4, the next gen to the Heltec V3, is a powerful, high-efficiency IoT maker board featuring an ESP32S3 MCU and SX1262 LoRa Node chip; retaining the V3's size and identical pinout, it integrates performance upgrades including a built-in Wi-Fi/Bluetooth antenna, 28±1dBm LoRa output power, and a protected OLED display; its superior RF and stable system design ensure it's ready-to-use and highly beginner-friendly, supporting development via Arduino, Platform IO, ESP-IDF, and MicroPython; making it ideal for long-range wireless open-source projects like Meshtastic, LoRaWAN, and Meshcore in applications such as smart cities and industrial control.

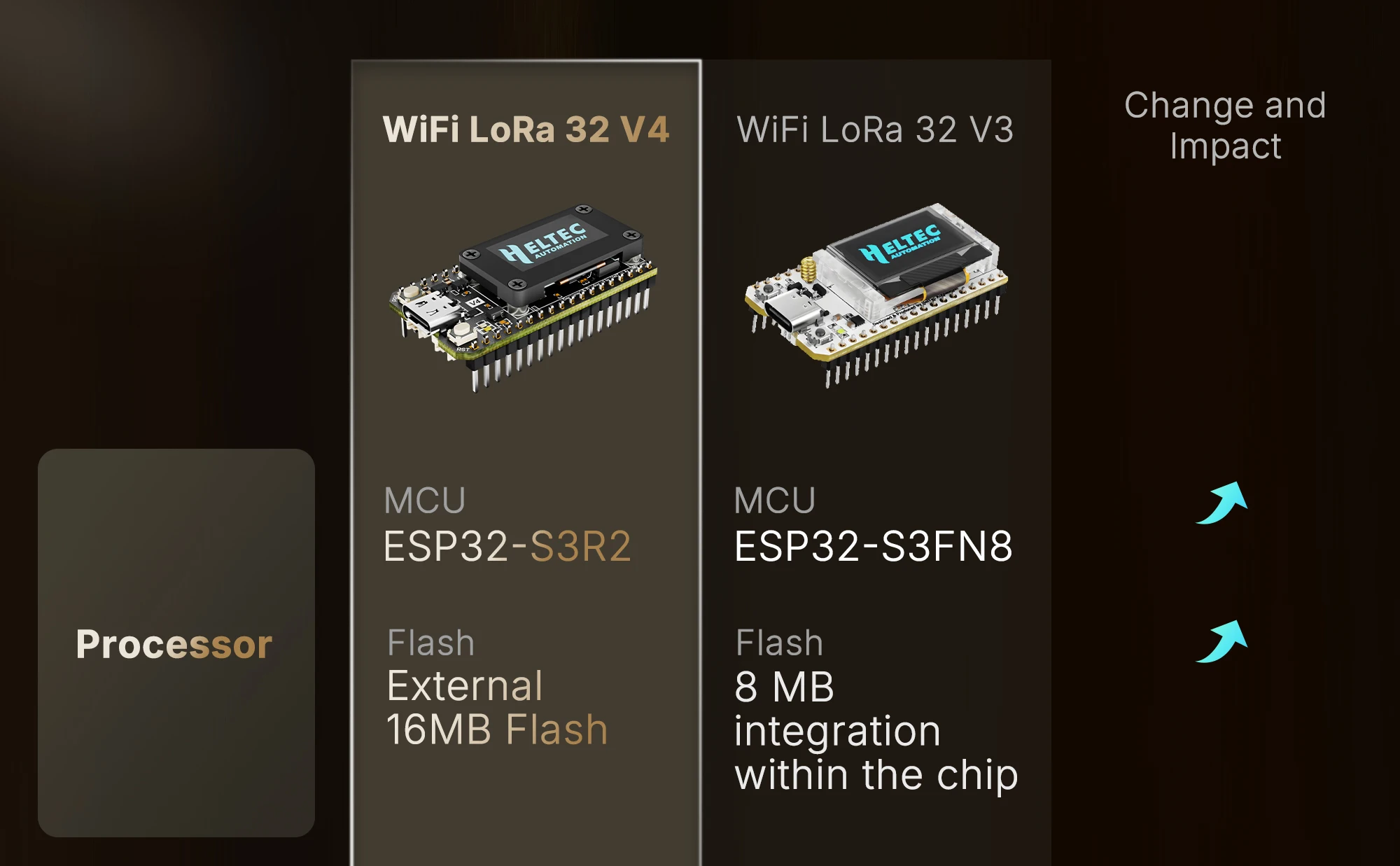

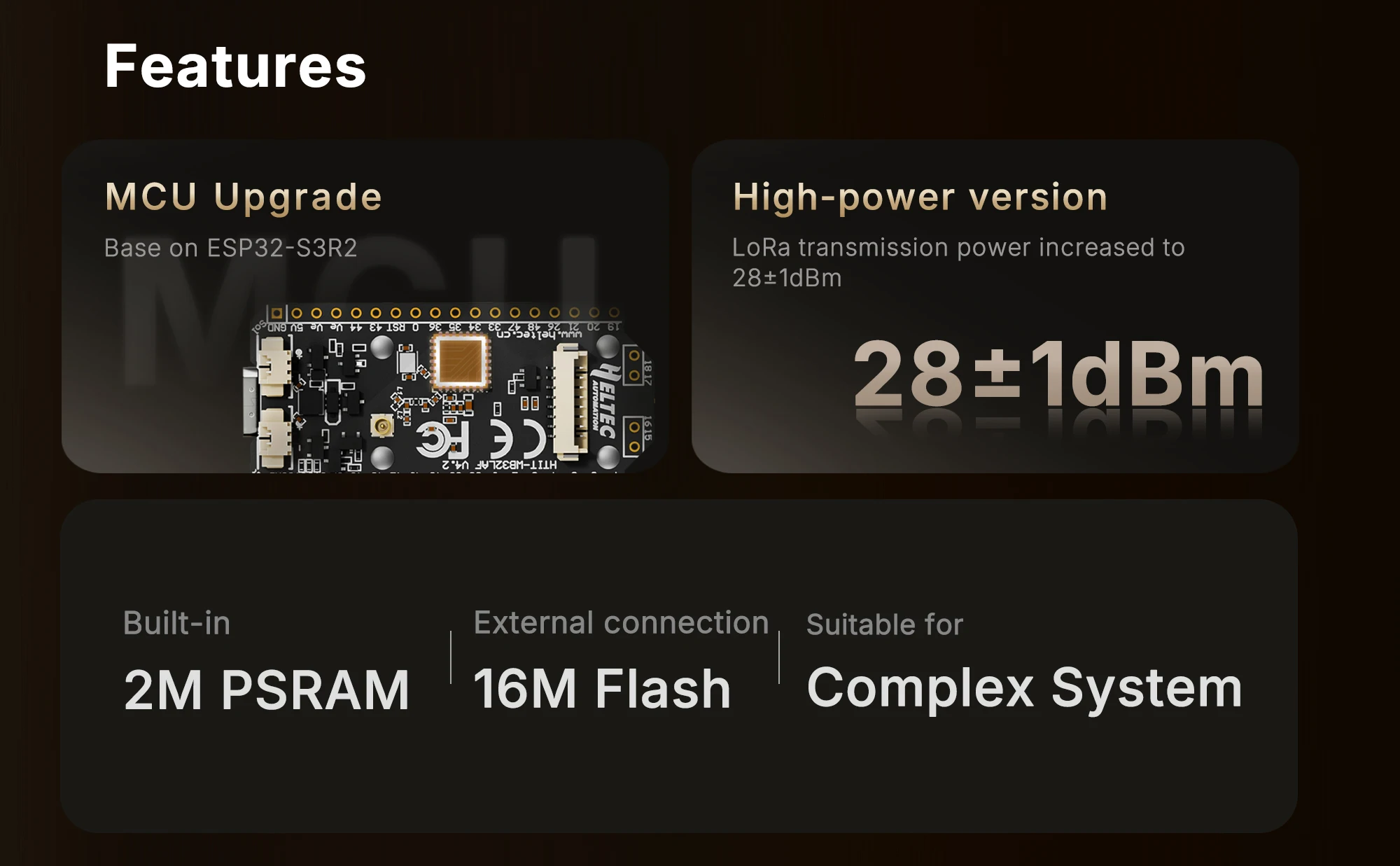

Base on ESP32-S3R2 & SX-1262, supports Wi-Fi b/g/n, BLE, and LoRa communication.
2MB PSRAM and 16MB external Flash, more suitable for UI and complex system .

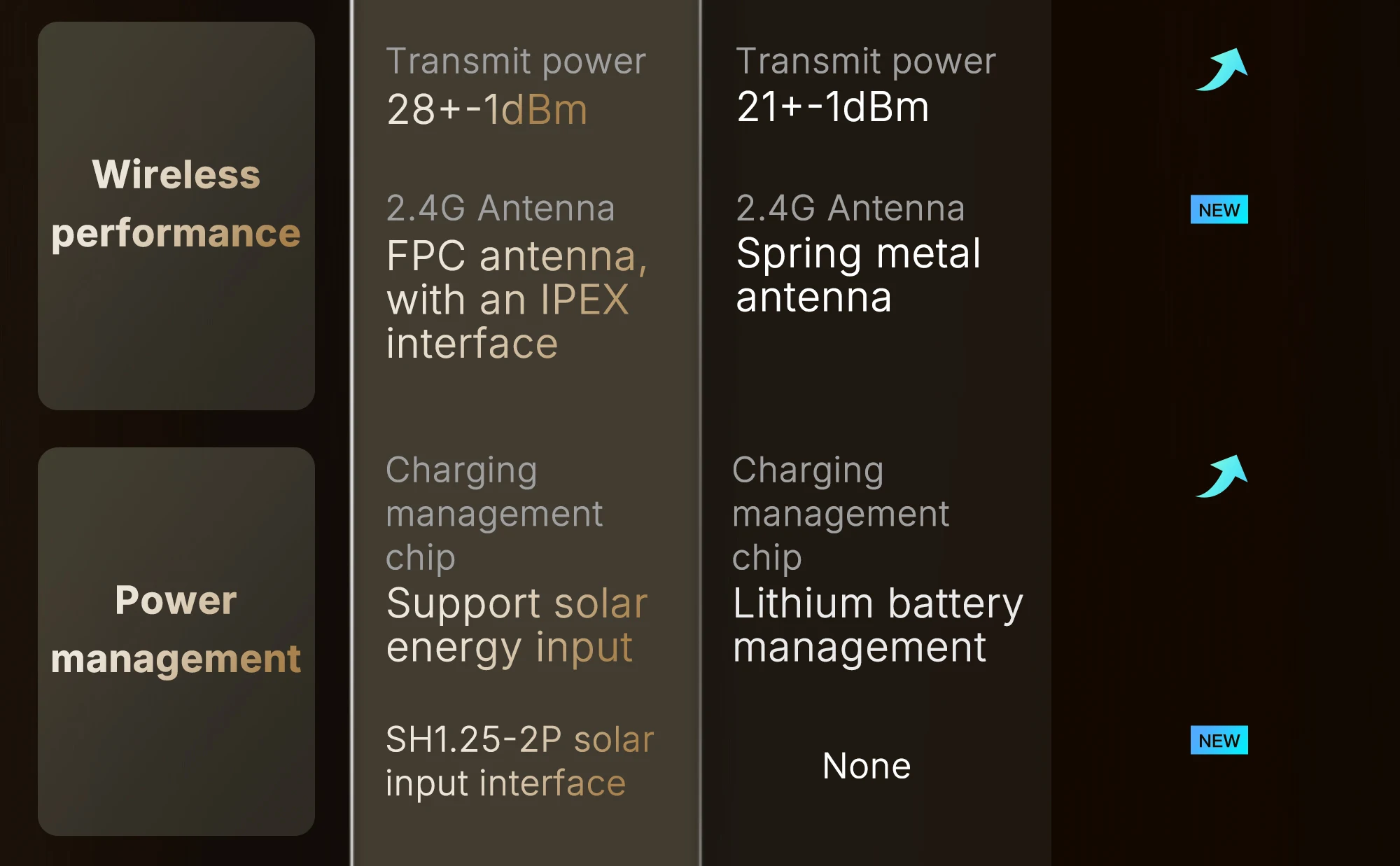

High-power version with LoRa transmission power increased to 27±1dBm.

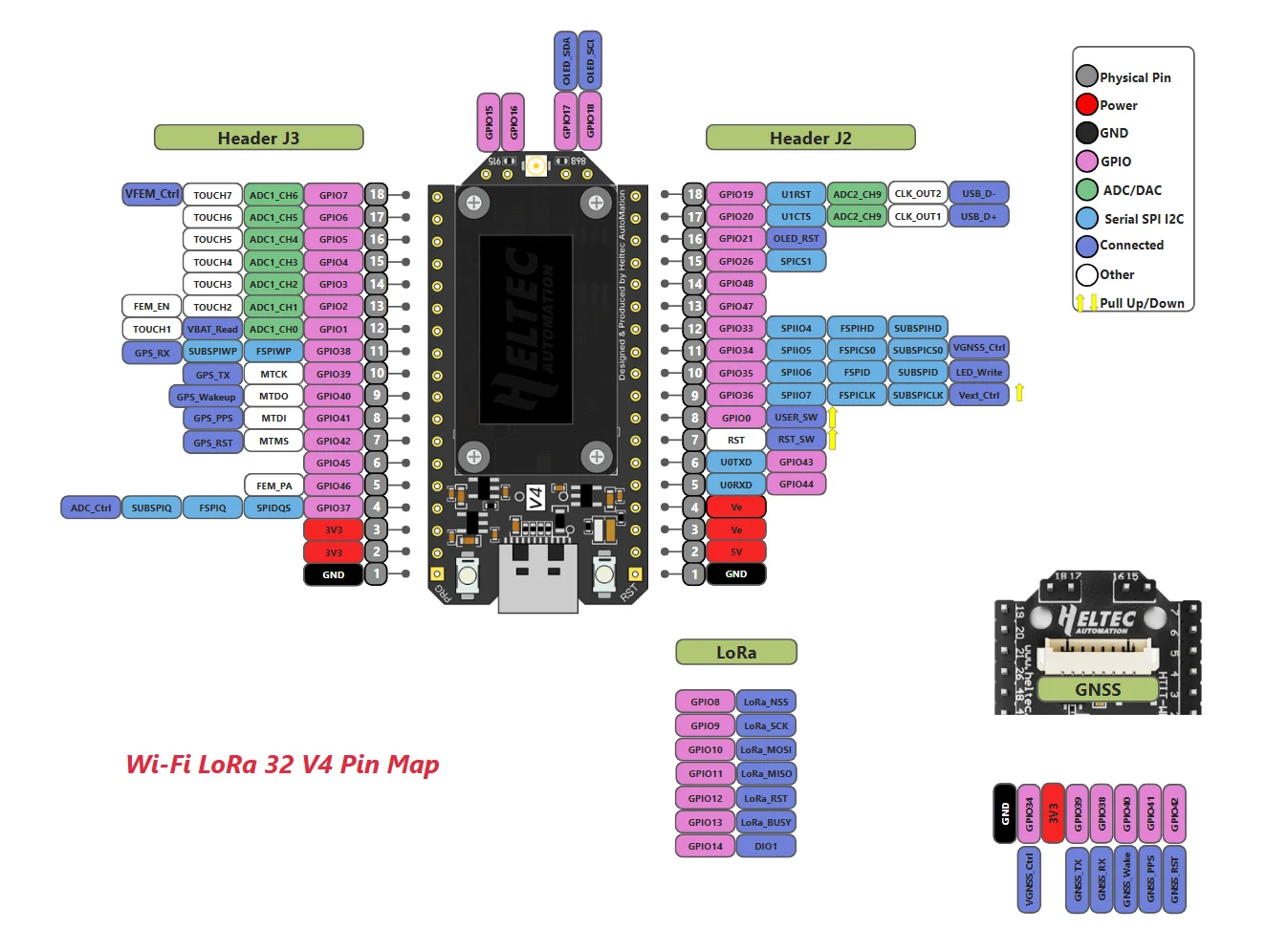

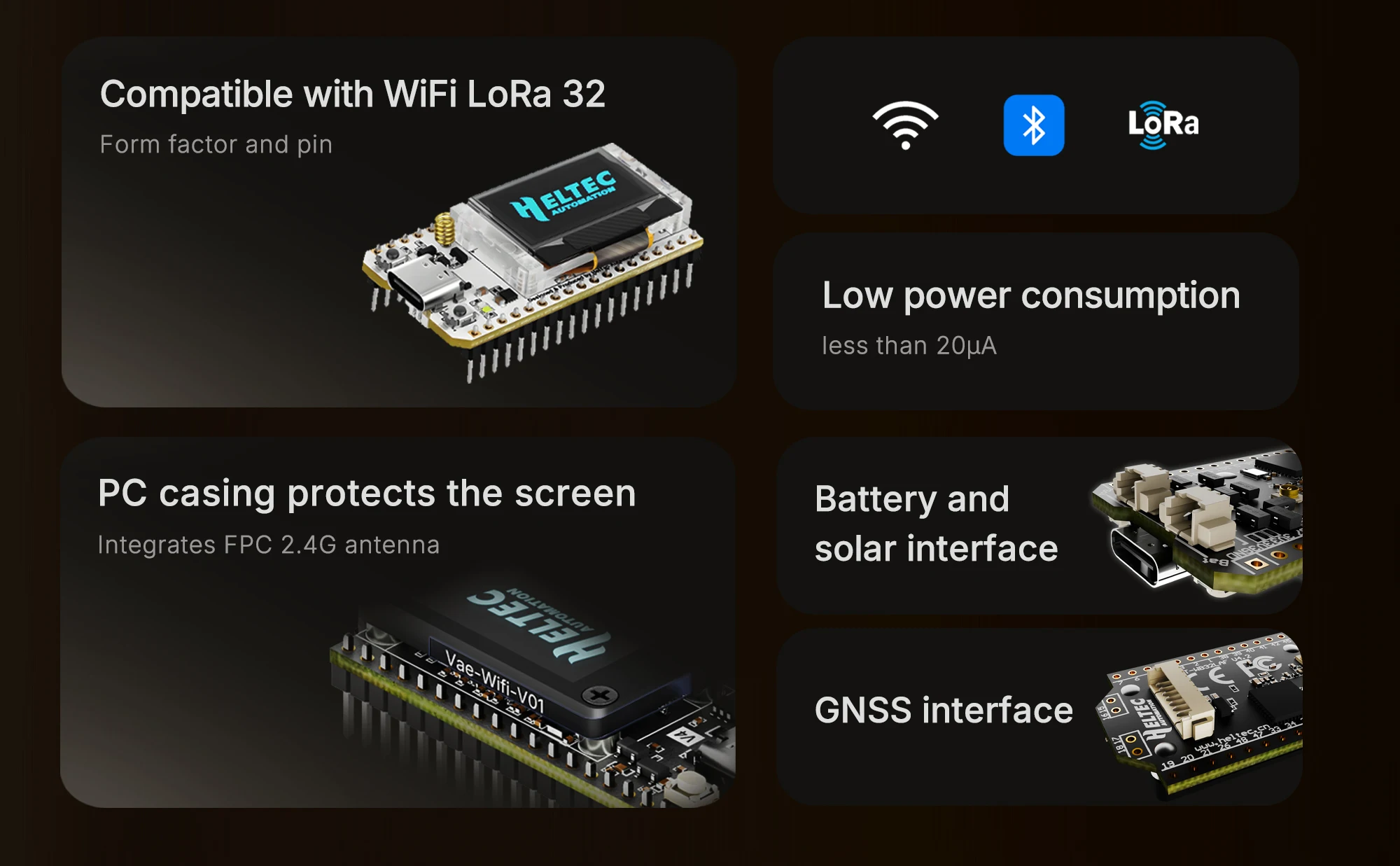

Form factor and pin compatibility with WiFi LoRa 32 V3.
PC casing protects the screen and integrates FPC 2.4G antenna.
Added SH1.25-2P solar panel interface.
Optimized lithium battery management.

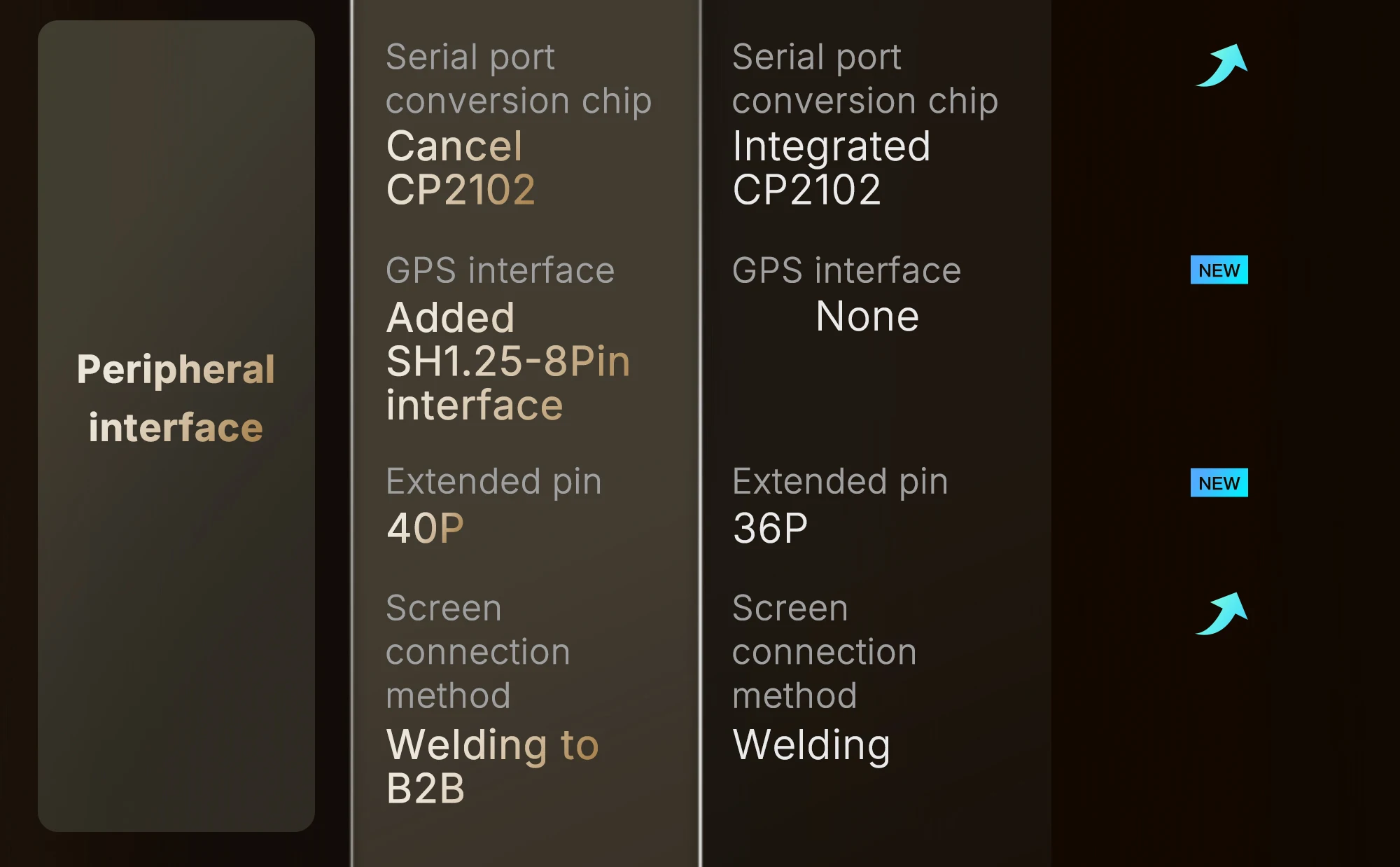

Added SH1.25-8Pin GNSS interface.

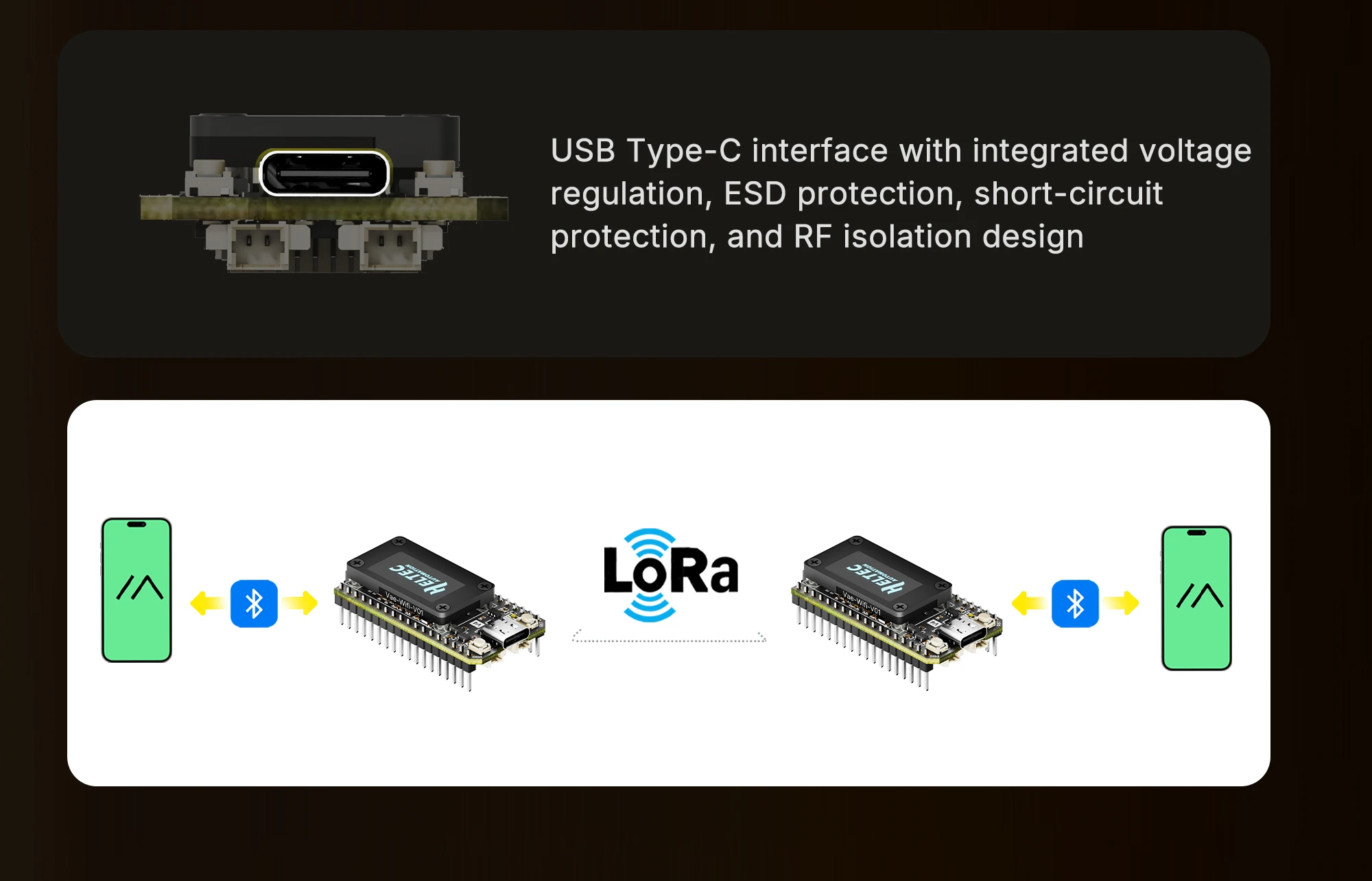

USB Type-C interface with integrated voltage regulation, ESD protection, short-circuit protection,
and RF isolation design;
Low power consumption is less than 20μA
Parameters | Description |
Master Chip | ESP32-S3R2 |
LoRa Chip | SX-1262 |
USB to Serial Chip | CP2102 |
Frequency | 470~510MHz, |
Max. TX Power | 21±1dBm, 27±1 dBm |
Max. Receiving sensitivity | -137 dBm |
Wi-Fi | 802.11 b/g/n, up to 150Mbps |
Bluetooth | Bluetooth LE, Bluetooth 5, Bluetooth mesh |
OLED | SSD1315(0.96Inch, 128*64 resolution) |
Power Supply | 5V@USB, 3.3-4.2V@Battery |
Hardware Resource | 7*ADC1 + 2*ADC2, 7*Touch, 3*UART, 2*I2C, 2*I2S 4*SPI, etc. |
Memory | 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 16MB Flash, 2MB PSRAM |
Interface | USB Type-C; SH1.25-2P lithium battery interface; SH1.25-2P solar panel interface; 2*IPEX1.0 ANT(LoRa&2.4G); 2*18*2.54 Header Pins, 2*2*2.54 Header Pins |
Operating Temperature | -40~85℃(OLED operating temperature: -40~ 70°C) |
Dimensions | 51.7 * 25.4* 10.7mm |
