Heltec 2.13 Inch E-Ink Meshtastic Display LoRaWAN Arduino ESP32S3 E-Paper Monito

Product Description

Pin Map

Vision Master E213 is an E-Ink development kit with multiple wireless drive methods. Collaborate with

the sample programs and development tools we provide, users can operate the display via Bluetooth,

Wi-Fi and LoRa.

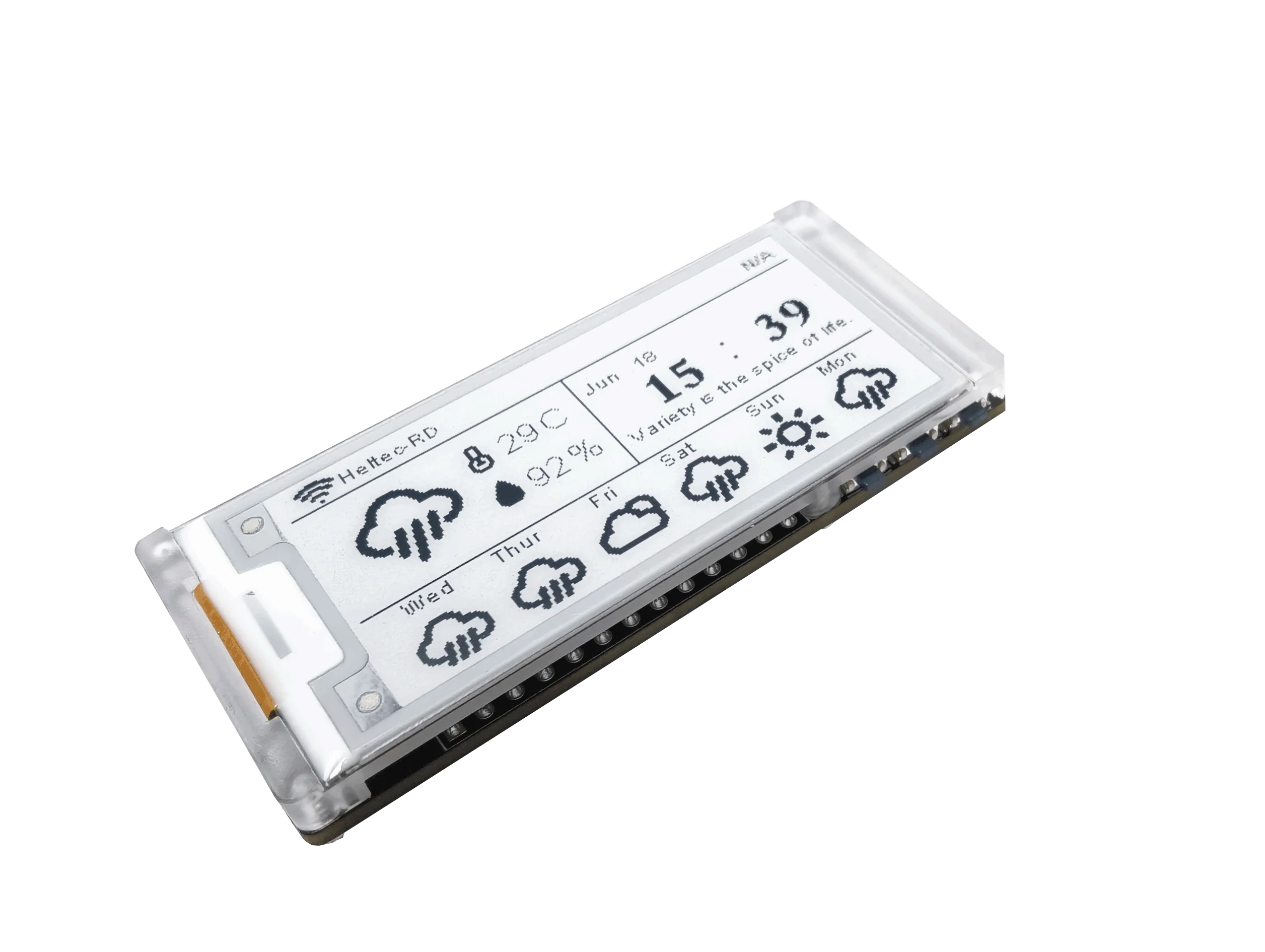

This board is equipped with a default 2.13-inch black and white E-Ink display screen, continuous display

for 180 days after power outage. It is compatible with Arduino, PlatformIO, Micpython and other

development frameworks, can be used to develop applications such as electronic tags and identity tags,

it is also possible to run open source projects like Meshtastic.

Main Features

• ESP32-S3R8 MCU, support Wi-Fi and BLE.

• LoRa module is optional, compatible with Mashtastic.

• Low power consumption, 20uA in deep sleep, continuous display for 180 days after power outage.

•


• Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and

discharge management, overcharge protection, battery power detection, USB / battery power

automatic switching).

• Onboard 2.13 inch 250 x 122 pixels display, support for partial refresh.

• Storage condition: -25 ~ 70℃, ≤45%RH.

• Optimal operating condition：0~50℃, 55±10%RH.

• 2*SH2.0-4P sensor interface is perfectly compatible with QuickLink series sensors.

• Compatible with Arduino, we provide development frameworks and libraries.

• ESP32 Paxcounter

• Disaster Radio

• Meshtastic

• Tiny GS

We also provide a standard ESP32 Arduino LoRaWAN library:

• Heltec ESP32 LoRaWAN

This library is already included in the Heltec ESP32 Arduino Framework by default.

The default packing list without selecting any accessories is as follows:

• Heltec ESP (ESP32&ESP8266) framework (Include LoRaWAN library)

• Heltec ESP32 special library

• Schematic diagram

• Datasheet

• E-Ink Datasheet

• User manual and related documents

• Downloadable Resources

1. Can the onboard 2.4GHz antenna be replaced?

The 2.4GHz antenna is a spring antenna, and there is no additional interface on the board for 2.4GHz wireless

signals.

2. Can ESP32’s WiFi and Bluetooth be used at the same time?

No, the WiFi LoRa 32 don’t have an external PSRAM, if your application need use Bluetooth and Wi-Fi at the

same time, you can look into this product: Heltec Wireless Bridge.

3. What development methods does it support?

Arduino

Micro Python

PlatformIO

Espressif IDE

We strongly recommend using Arduino. We have complete technical support and provide complete LoRaWAN

code for ESP32 Arduino

4.What’s the battery socket type?
