Product Description
2PCS Heltec T114 V2 Meshtastic Tracker Nordic NRF52840 SX1262 BLE LoRaWAN LoRa Arduino Positioning Devboard Green Blue Case 2Pc
2PCS Heltec T114 V2 Meshtastic Tracker Nordic NRF52840 SX1262 BLE LoRaWAN LoRa Arduino Positioning Devboard Green Blue Case 2Pc
Docs & Resource
Heltec Mesh Node T114 Rev 2.0
Mesh Node T114 has been upgraded to ReV2.0 version with the following changes made
1.The circuit board was changed from 4 layers to 6 layers so the RF part and the crystal oscillator part can obtain a more complete ground.2.The circuit was changed from lead-free to immersion gold process, which is more friendly to signal transmission.3.The position of some components was adjusted.4.The RF path was optimized according to the six-layer board structure.5.The direction of the 2.4GHz Bluetooth antenna and IPEX LoRa antenna interface was changed to make them farther away.6.The data transmission can sent long data packets on meshtastic.
Summary
Mesh Node T114 is a Low Power Consumption development board based on nRF52840 and SX1262, supports LoRa and Bluetooth 5.0 . which integrated various power interfaces (5V USB, lithium battery and solar panel) optional 1.14 inch TFT display and GPS module as accessories, and has powerful long-distance communication capabilities, scalability, and low power design.With Heltec nRF52 development environment and libraries. you can use it for LoRa/LoRaWAN development work, and also use it to run some open source projects, such as Meshtastic.
Main Features
MCU nRF52840 (Bluetooth), LoRa chipset SX1262.
Powerful display function (optional), onboard 1.14 inch TFT-LCD display contains 135(H)RGB
x240(V) dots and can display up to 262k colors.
Low power consumption, 11 uA in deep sleep.
Powerful display function, onboard 1.9-inch TFT-LCD display contains 170 (RGB)X320 dots and can
display up to 262k colors.
Operation condition: -20 ~ 70℃, 90%RH(No condensing).
Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF
shielding, and other protection measures.
Compatible with Arduino, we provide development frameworks and libraries.
Various Interfaces: 1.25*2P LiPo connector, 1.25*2P Solar panel connector, 1.25*8P GNSS module
connector, which greatly increase the extensibility of the board.
Parameters | Description |
MCU | nRF52840 |
LoRa Node Chip | SX1262 |
Frequency |
|
Max. TX Power | 21±1dBm |
Max. Receiving sensitivity | -135dBm@SF12 BW=125KHz |
Bluetooth | Bluetooth LE: Bluetooth 5, Bluetooth mesh |
Hardware Resource | USB 2.0, 4 * SPI, 2 * TWI, 2 * UART, 4 * PWM, QPSI, 12S, PDM, QDEC Etc. |
Memory | 1M ROM |
Interface | Type-C USB |
Battery | 3~4.2V battery power supply and charge. |
Operating Temperature | -20 ~ 70 ℃ |
Dimensions | 50.80*22.86mm |
Low Power Consumption in Deep Sleep | 11uA |
Display | onboard 1.14 inch TFT-LCD display |

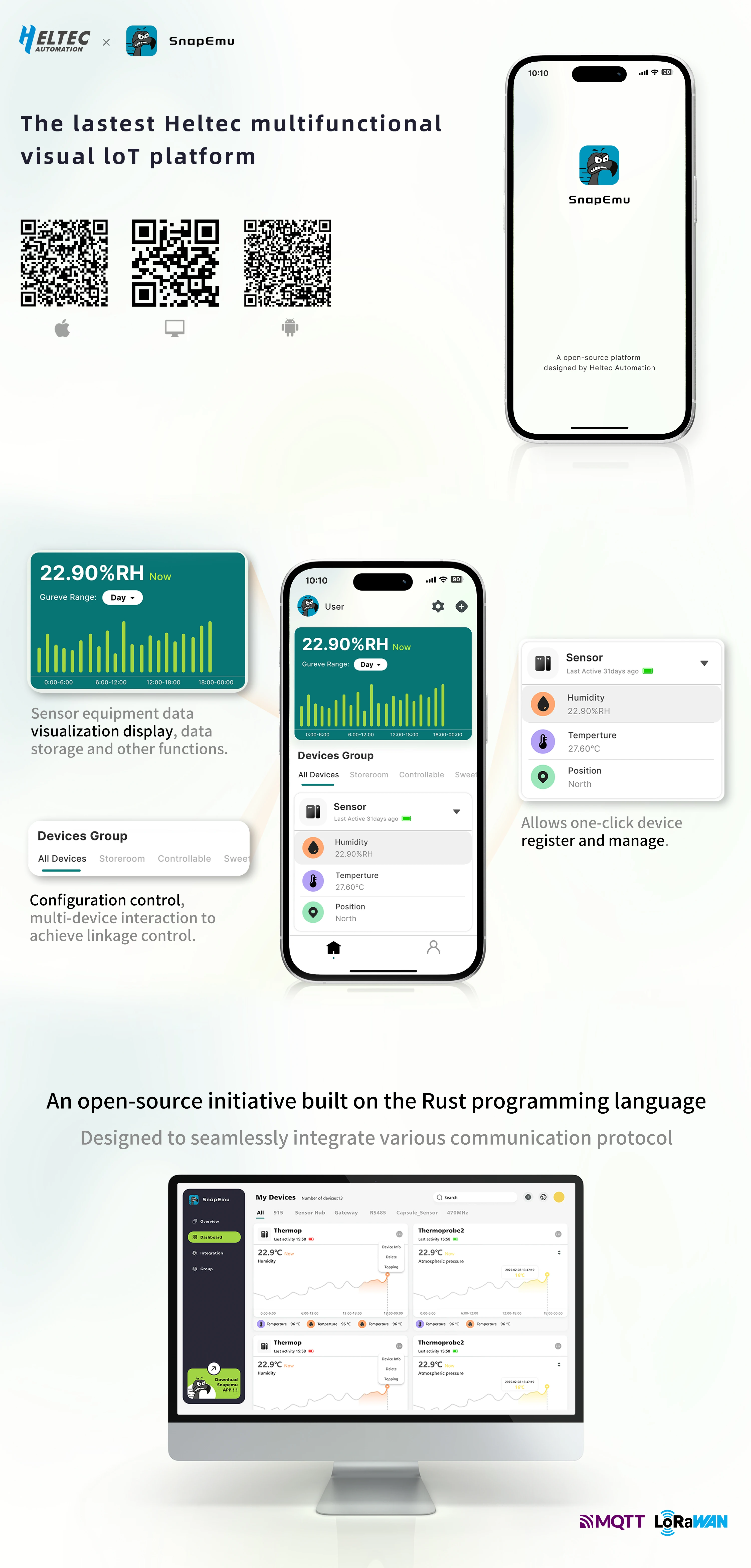

Heltec provides a comprehensive app and cloud platform that enables efficient and effective device registration, management, data storage, and graphing.

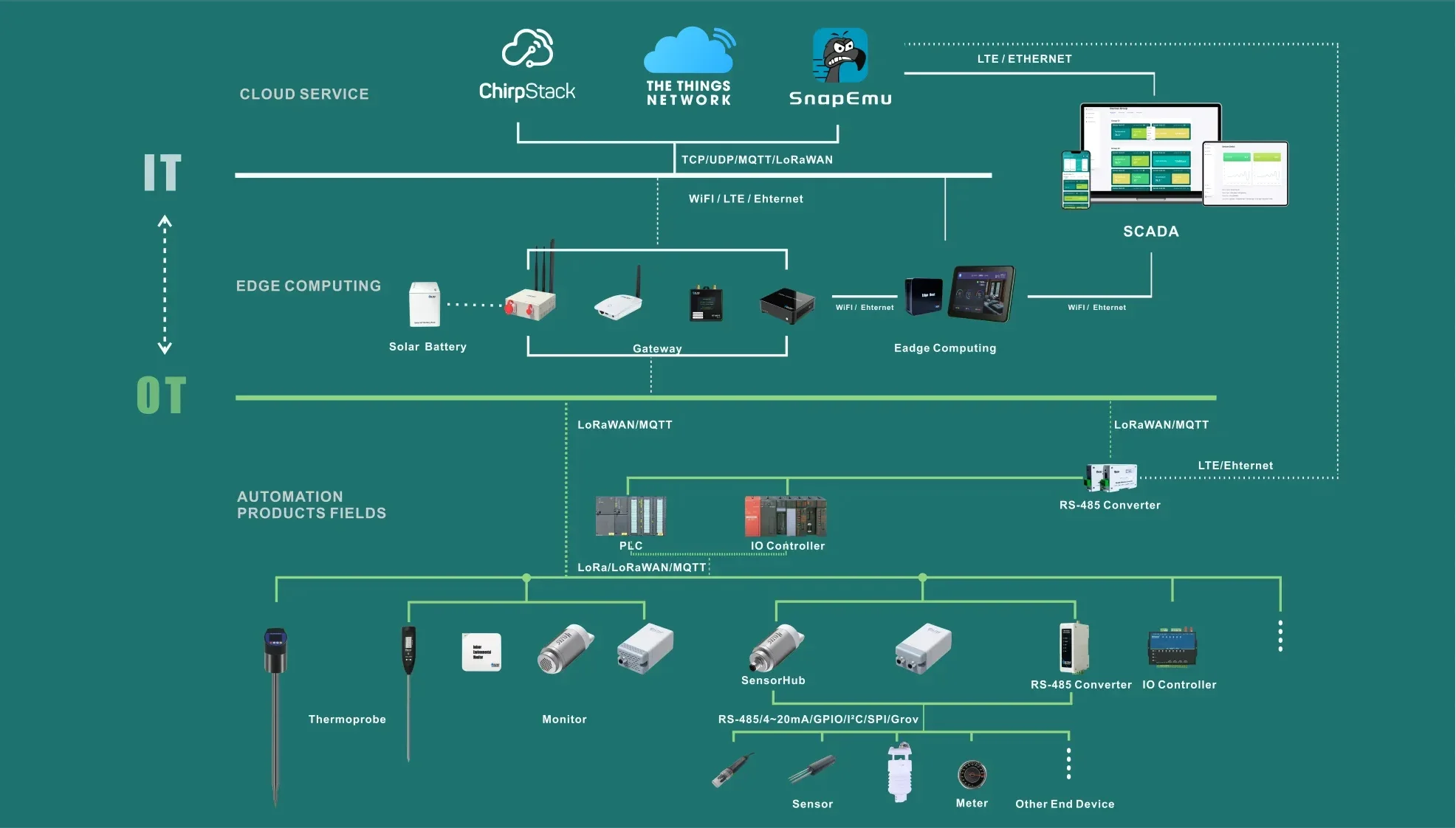

Help Achive Comprehensive System Architecture
