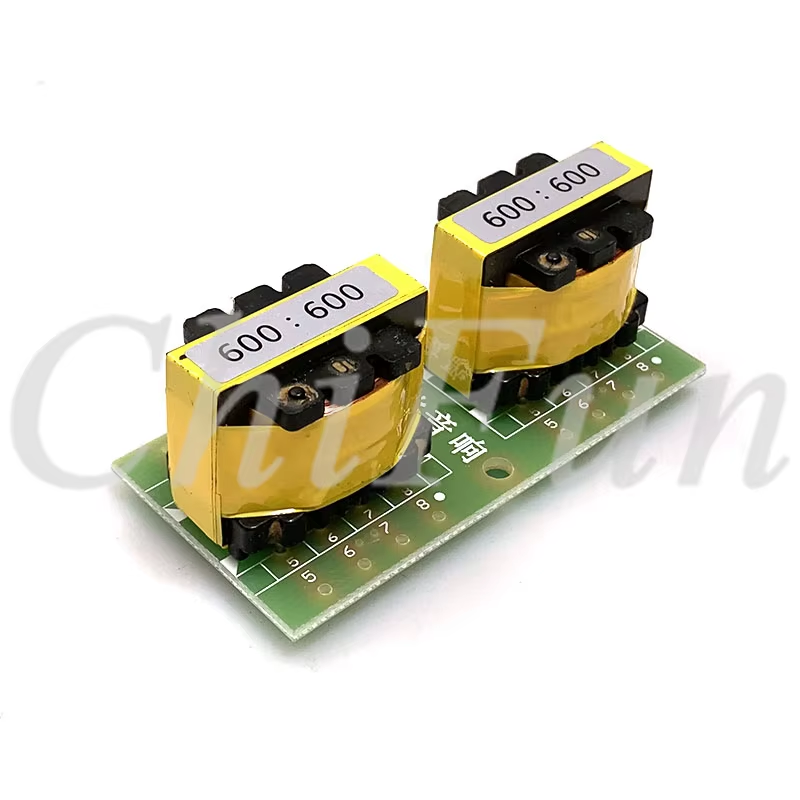

2PCS / 600 Europe: 600 European audio signal isolation transformer, Z11 annealin

Product Description

Z11annealingSand steel sheet 600 ou: 600 Euro audio signal isolation transformer:Frequency response 40Hz ~ 50KHz -0.8DB,High quality audio isolation transformer.Pair sale!

Z11annealingThe sand steel sheet and the oxygen free copper enameled wire can eliminate the digital smell and can filter out the AC noise interference caused by the equipment in common. For all kinds of high-end professional HIFI front stage, audio signal isolation use.

This transformerbysingleAt the end of RCAInput,balanceorRCAsingleendThe utility model has the advantages of good isolation effect, obvious touch effect on the tone color, elimination of digital taste, and more taste.

This transformer is made by itself,MiningusebranchlayerAroundmethod.Copper shield,Pair sale!

When used:Transformerfirstsecondlevelbytwo sets(150Europe+150Europe)Four ends, two groups2 and 3 feetSeries connection1.4 feetfootby600Europe1.footbyletterNumberAt the end of 4footbylandLine.

balanceoutputWhen using;secondLevel 6, 7 feet connectedbyinheartlandLine8 feetbyheatEnd (+) 5footbycoldheatEnd (-).

Out-off-balanceRCAWhen using;secondLevel 6, 7 feet connected8 feetbyletterNumberAt the end of 5footbylandLine.

High quality EI Z11 high permeanceannealingSand steel sheet. Iron core size: 24mm * 18mm * 0.35mm, 7mm, E, I pieces, one piece of nylon nylon wire frame, high purity oxygen free copper enameled wire,Performance is good, pure and delicate, oily gloss, join the line transformer, field depth increase Naiting, perfect sound quality transfer.

Average measurement: input 600 Euro copper resistance about 120 ou, inductance about 2.8H or so. Output 600 ohm copper, about 120 ohm, inductance about 3.3To 3.5Enjoy.ironcorestayYesbetweengap,Can be over 10mA DC signal, DC withstand voltage 1000V.

The signal generator, oscilloscope and voltmeter are measured,

20Hz -1.4DB, 40Hz -0.8DB, 100Hz -0.4DB,20KHz -0.05DB, 30Hz -0.2DB, 50Hz -0.8DB.

The frequency response curve is flat.

On sale, transformers are marked for testingInductance and resistanceNumerical, select close match.Is the average reference value for reference only!

The transformer has been detected to ensure that the primary and secondary winding is normal, no open circuit, short circuit, leakage phenomenon.

ExplainError in size, inductance and resistance measurement. TransformerPairThe inductance value, I choose only the inductance value is similar to sell.

core Transformer The CD player can improve the sound, its principle is simple, when the core into the digital audio transformer and insulation wire, the electric field, magnetic field, electric field conversion after the audio by filtering correction, the burr digital audio in pulse (signal) isolation, resulting in a "clean" function, the voice output becomes pure. In addition from the square wave, square wave through the transformer, 90 degree bend angle blunt round, make digital audio become coherent, more supple, more warm, more close to the sound simulation of LPS, the humane and full of emotion.
