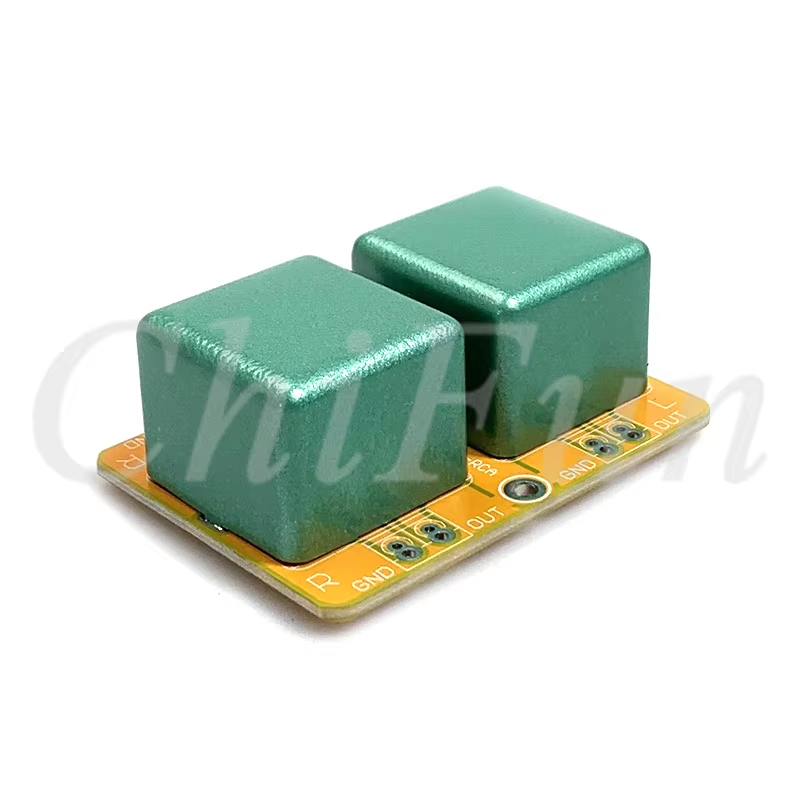

600:60K audio signal transformer Passive ten times signal boost amplification,Si

Product Description

Measured parameters:

Impedance: 600 ohms: 60K

Primary DC resistance: 770-785 ohms

Secondary DC resistance: 7.7-7.9K

Primary inductance: 1-3H or so 100HZ measurement

Secondary inductance: 95-120H or so 100HZ measurement

Frequency response: 45HZ～19KHZ -3db

Can pass 10mA AC signal

600 ohm: 60K ten times boosted and amplified audio signal transformer and finished machine made of German Siemens permalloy material.

High-quality German Siemens Permalloy iron core winding assembly. 600 ohms: 60K single-ended signal isolation transformer, passive ten times signal step-up amplification. The transformer was disassembled from Germany's Siemens Permalloy transformer and re-wound and assembled. The input is 600 ohms, the output is 60KΩ, the signal is 1 to 10, and the impedance is 10K to 90K ten times the voltage gain, which is suitable for the line use of almost all audio equipment.

How to use: After being used for CD, mobile phone, MP3, decoder, computer and other audio sources, there is a logo on the machine, two-channel signal input, after the internal transformer, output to the power amplifier, simple operation and convenient use, small size.

This 10 times boost amplifier can replace the active pre-amplifier and is used to amplify the sound source to promote the use of the post-amplifier.

Transformer layered and segmented winding technology. The high-purity oxygen-free copper enameled wire is wound in layers, which can filter out the AC noise interference caused by the common ground of the equipment. It has a good isolation effect.

The German Siemens Permalloy iron core is composed of a large E piece and a small E piece. The iron core is white and shiny, and the laminations are neat, showing its outstanding craftsmanship and quality. The iron core is 25mm long, 25mm wide and 7mm thick, and the sheet is very thin with a thickness of only 0.18mm. Winding of high-quality oxygen-free copper enameled wire.
