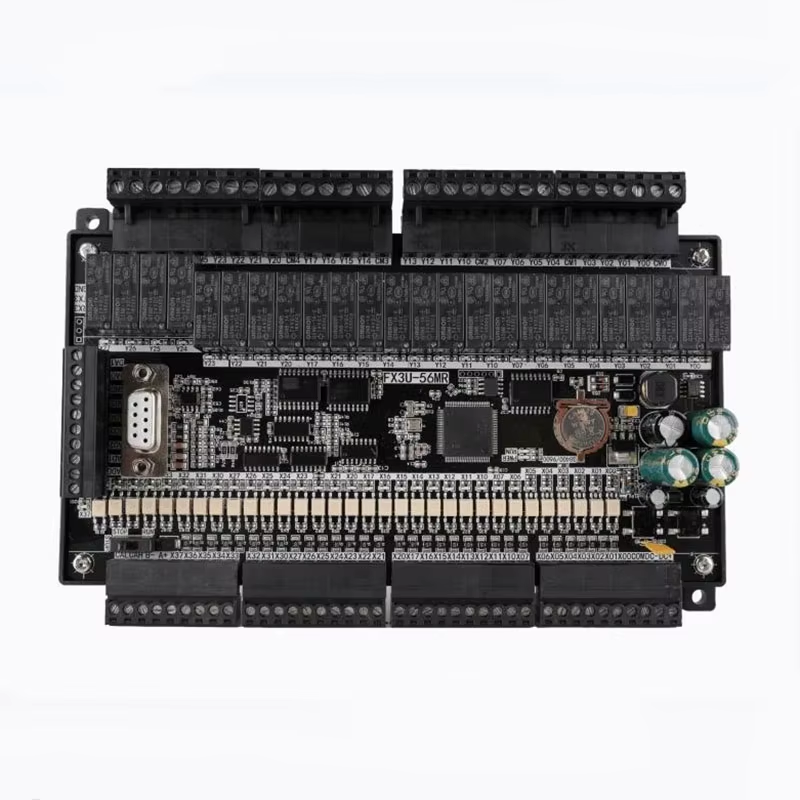

Name: High speed FX3U-56MR 6AD 2DA 32 input 24 relay output PLC industrial controller
Brand: Prime Living
SKU: H-168205212307
Price: 331.99 CAD
Availability: InStock

Product Description

High speed FX3U-56MR 6AD 2DA 32 input 24 relay output PLC industrial controller with RTC

High speed FX3U-56MR PLC Description: 3000 only 1ms implementation procedures, 3 AB input, 6 analog input 2 analog output, 1N, 2N, 3U support command, 8000 step program, download speed 38400, support input interrupt, touch screen text screen etc.. Dual communication port (232+485) 485 support for the 4 communication protocols, special encryption, power down can be maintained

Input Power	DC24
Number of steps	8000 steps; 2 communication ports: 1 RS232 (DB9 serial port is communication port for the FX3u protocol 38400,7，E，1； 1 RS485 (485 selection) communication protocol can be set D8120).
X input element	X0-X27 DC24 input，Low level,X0-5 is a high-speed count input port (the Default is 12K )
Y output element	Y0-Y27 for optimal relay output,relay output current 5A. 4 continuation electric apparatus 1 common end, altogether 3 common ends
Analog input	6 analog input, 12 bit precision, 3 channel analog input 0-10V, 3 channel analog input 0-20MA; read analog RD3A instruction
Analog output	2 analog output, 12 bit precision, output voltage: 0-10V. output analog voltage with WR3A instruction
Intermediate relay	M0-M3071, power-down save range can be set M0-M1023, the default M500-M1023
Step point	S0-1023, power-down save range can be set S0-S1023, the default S500-S9999
100Ms timer	T0-T199 Accumulated power-down saving T184-T199
10Ms timer	T200-T249 Accumulated power-down saving T246-T249
1Ms timer	T250-T383, where T250-255 is the cumulative type
16-bit counter	C0-C199, power-down save C100-C199
32-bit counter	C200-C219, save the power-down C220-C234
32-bit high-speed counter	C235-255; C235-C240 for the single-phase counter, not multiplier; C241-240 for the single-phase calculator, 2 octave; C2470249 for the dual-phase counter, not multiplier; C250-252 for dual-phase counter, ; C253-C255 for the dual-phase counter, 4 octave
Register D	D0-D7999, power-down save the range can be set D0-7999
Indirect addressing pointer V, Z	V0-7, Z0-7
P The subroutine jump number	P0-63
I interrupt	X0-5 external interrupt, timer interrupt (1MS unit) counter interrupt
Special M components	M8000 run-time normally closed, M8002 power pulse, M8011 is 10Ms pulse, M8012 is 100Ms pulse, M8013 is 1s pulse, M8014 is minute pulse

Intermediate relay M M0-M3071,The power saving range can be set to M0-M1023 by default: M500-M1023Stepping point SS0-1023, the power saving range can be set to S0-S1023 by default: S500-S999100Ms timer T0-T199, cumulative power down to save T184-T19910Ms timer T200-T249, cumulative power down to save T246-T2491Ms timer T250-T383, where T250-255 is cumulative16 bit counter C0-C199, power off to save C100-19932 bit counter C200-C219, power off to save C220-C234The 32 bit high speed counter C235-255; C235-240 is a single-phase counter.No frequency doubling; C241-240 is a single phase counter,2 frequency doubling; C247-249 is a biphasic counter without frequency doubling; C250-252 is a biphasic counter.2 frequency doubling; C253-255 is dual phase counter, 4 frequency doubling;Register D D0-D7999, the power saving range can be set D0-7999, default D200-D7999.

Indirect addressing pointer V, ZV0-7, Z0-7P subroutine jump number P0-63I interrupt X0-5 external interrupt. Timer interrupt (1MS unit). The counter is interrupted. The special M component M8000 operates frequently, the M8002 is electrically pulsed, M8011 is 10Ms pulse, M8012 is 100Ms pulse, M8013 is 1s pulse, M8014 is minute pulse.When setting the clock, the M8015 should be set to resume running M8015 reset. D8018 for the year, D8017 for the month, D8016 for the day, D8019 for the week, D8015 for the hour, D8014 for the minute, and D8013 for the second. You can use the clock data to read the instructions, TRD to read the clock data to the general register, or to use the clock to write instructions TWR, modify the clock, with this instruction do not set the M8015.

High speed FX3U-56MR 6AD 2DA 32 input 24 relay output PLC industrial controller
