TZ16000MZGP 60W Electroplated Metal 16 in 1 Mini lathe with Bow Arm/60W,12000rpm

Product Description

Features:

Motor case and headstock are jointed.

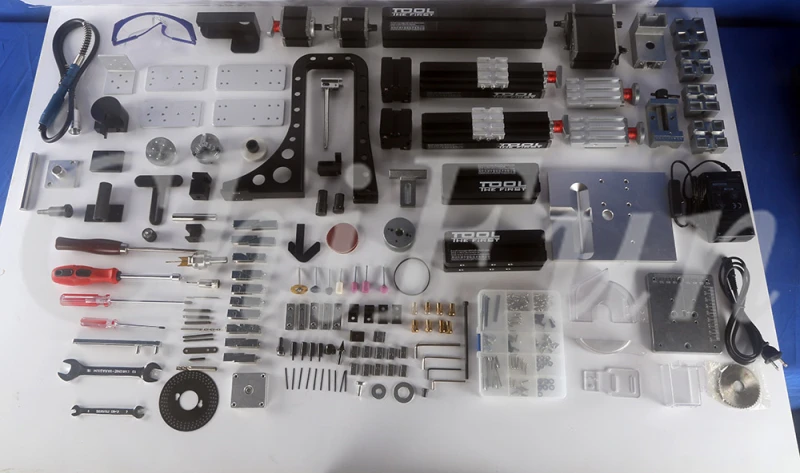

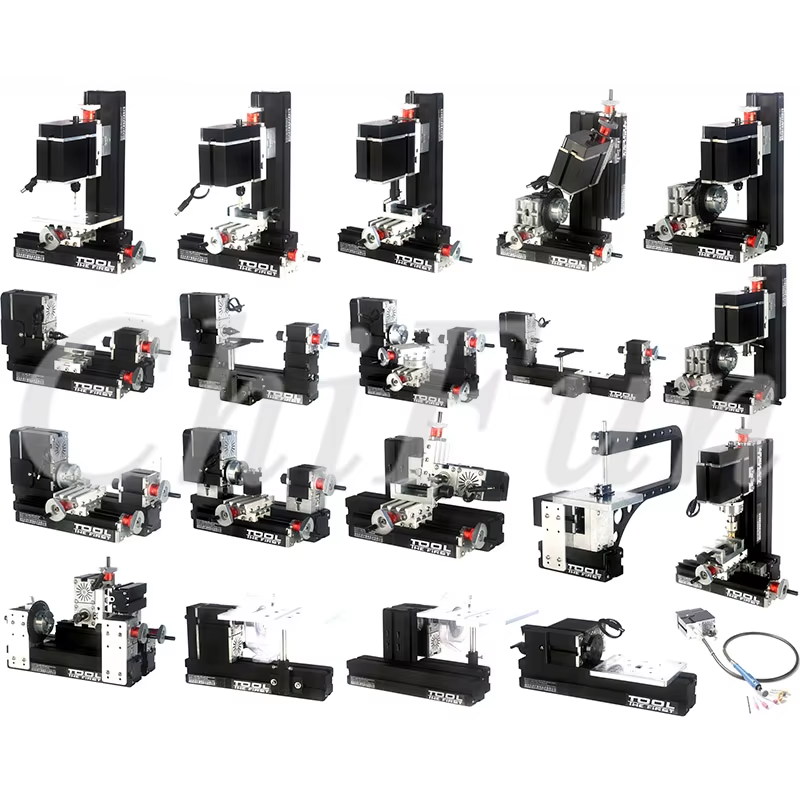

This machine kit can be assembled into different kind of lathe,drill,mill,saw and sand machine.

Only one kind of machine can be assembled at the same time.

Technical parameters:

1. Motor speed: 12,000rpm/min

2. Input voltage/current/power: 12VDC/5A/60W,

Switching power input:110V—240V

3. Jigsaw table: 120mm*100mm

4.Maximum diameter for woodturning lathe: 50mm

5.Length for metal lathe and woodturning lathe: 135mm

6.Center height of metal lathe:75mm

7.Slider travel: Axis X=145, Axis Y=32, Axis Z=32(mm)

8.Collets:1-6mm

9.Working table for drilling: 123*100mm

10. Maximum size of machine vice: 50mm

11. Maximum diameter of beads machine: 20mm

12.Maximum diameter of three-jaw chuck: 50mm

13. There are three circles of holes on the dividing plate with numbers of the holes 36, 40 and 48.

14.Maximum diameter for Big wood-lathe: 150mm

15.Length for Big wood-lathe: 280mm

16.Tools for circular milling machine: 4*4 mm

17.Blade for circular saw: 63-80 mm

18.Tools for 2 position tool post L: 4*4mm-8*8mm

19.Rotary table: Spindle 360 angle, resolution: 0.15

20.Apart from the Milling machine, every machine is designed with hurt-free feather. The max cutting capacity of Jigsaw is 4mm for Hard Wood, 7mm for Plywood, 18mm for Soft Wood, 0.5mm forAluminumand 2mm forAcrylic. The bow-arm will help thedurabilityof the blade.

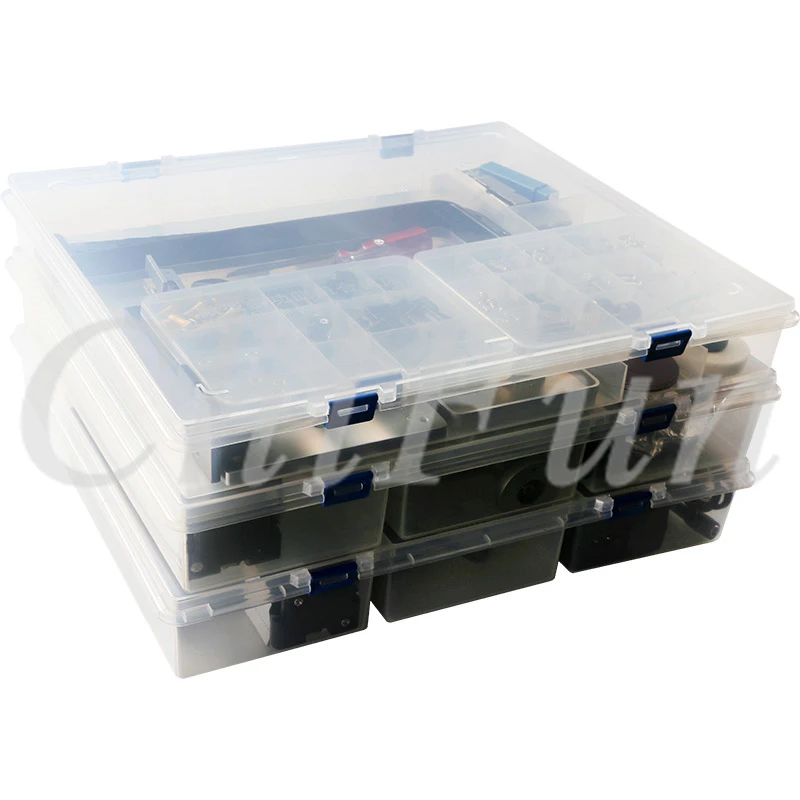

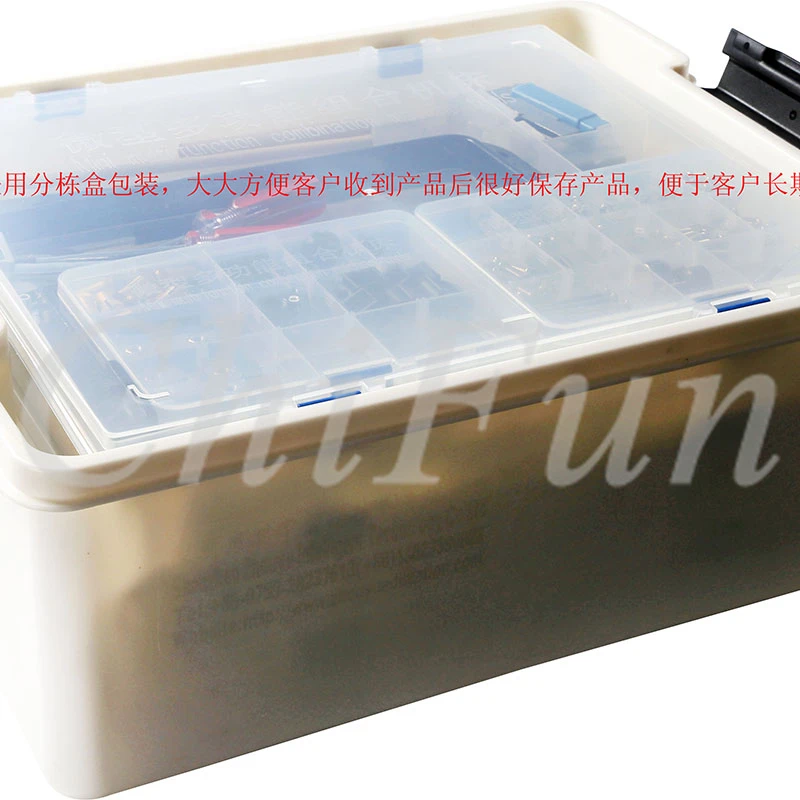

21. The storage box is special designed, every parts could be save properly when it is not used.
