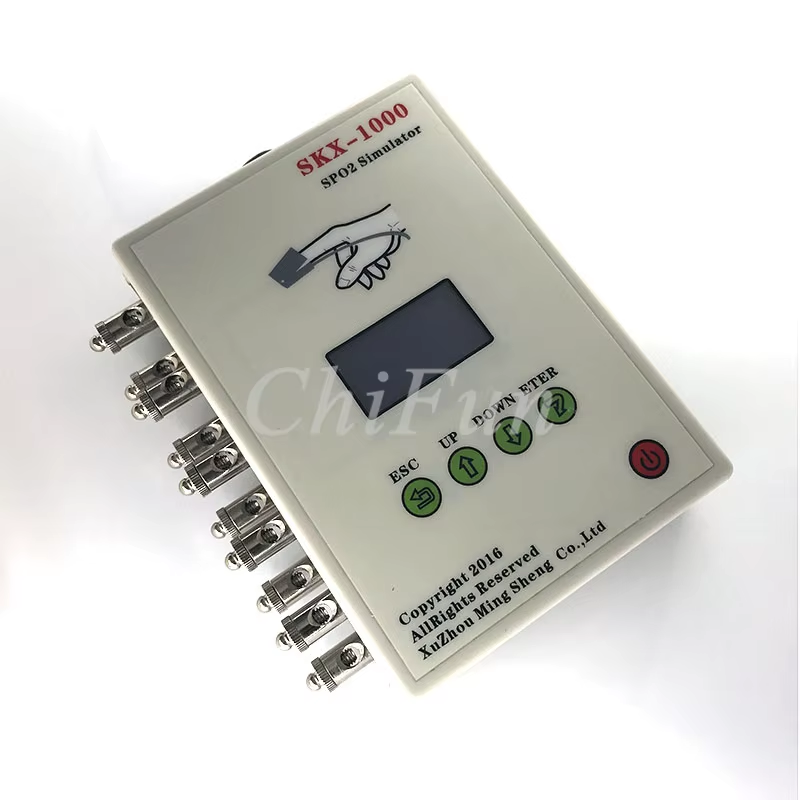

Oxygen ECG integrated simulator SKX-1000E+ oxygen saturation detector

Product Description

Chapter one: introduction to the features and functions of the instrument

SKX-1000+A series of oxygen saturation simuLation instrument is Xuzhou Ming Sheng company speciaLizing in the development of a signal for measuring oxygen saturation product development and testing simulation tools, because the analog optical signal which can generate different curves and different pulse amplitude, is a necessary tool of choice for the development of measurement of oxygen products, it has a wide range of signal amplitude, can simulation of signal intensity and frequency of various oxygen, is an important tool for the development of measurement of oxygen products. At the same time, the simulation instrument has the function of detecting blood oxygen measuring products, and can be used to detect the parameters of blood oxygen products to meet the requirements of national standards. The following sections will detail the settings in the testing process.

SKX-1000D+ Features are as follows:

1,Built-in18650The utility model relates to a large capacity lithium battery and a power supply management module. Selection criteria

Micro USBUniversal interface power charger.

2The use of menu operation, the parameters change is simple, convenient, fast, user-friendly settings.

3UseOLEDDisplay menu content.

4Simple button operation, menu management, easy to use,

5Built in Chinese and English waveform description, easy to understand the waveform settings and parameter selection.

6This simulator is a transmission type optical simulation instrument.

7Can set the oxygen saturation and pulse rate periodic automatic adjustment, automatic adjustment of the cycle can be set, the cycle is set to zero

To adjust the value of the self used for aging.

Oxygen partial performance introduction:

lExternal analog fingers, can be easily connected to any kind of blood oxygen detection equipment;

lIs a transmission type multi-function optical simulator, built-in commonly usedBCI,Nellcor,Minary,MasimoFour kinds of waveform;

lOxygen saturation simulation range:

80%,85%,90%,98%,

4Point value calibration<=1%;

60%,65%,70%,75%,

4Point value calibration<2%;

lPulse rate simulation range:

30,60,80,100,120,160,180,240bpm

common8One test point<=1bpm;

-Pulse intensity range:

1%,2%,4%,5%,10%,20%

Please note: This product is only suitable for the production of medical equipment manufacturers of blood oxygen detection! If it is the development of oxygen products, please consult customer service after the purchase, the model does not provide product changes and product customization, please understand the purchase!

Note:Blood products market above common large manufacturers, most of the NELLCOR curve is a curve, a small amount of BCI, MINDRAY products select the corresponding Minary curve; if the instrument has MASIMO brand monitor annotation marks, please use the corresponding MASIMO curve. Because the product database does not necessarily cover all the instruments at home and abroad, so may some instrument not to oxygen numerical detection or detection of the gap, welcome feedback to my company product improvement and upgrade!

SKX-1000E +Features are as follows:

1,staySKX-1000D+On the basis of an increase of ECGECG(breathing)RespFunction).

2,Have10ECG products of all kinds of connectors, easy to connect to detect the performance of various ECG products.

ECG part performance introduction:

lNormal ECG waveform, can output different amplitude and type12Synchronous waveform,II,III,AvR,AvL,AvF,V1,V2,V3,V4,V5,V6;

lPositive and negative direction of heart rate detection waveform,Heart rate range;

lFang Bo, using square wave to measure the scanning speed;

lSine wave, amplitude frequency measurement;

lMay changeTAmplitude, heart rate,RVolatility,RSimulation of wave widthQRSWaveform by changingRThe width of the wave is used to simulate the ECG waveform of adults or children;

ladoptRA-LLstandardIIThe output waveform of the lead, and the baseline impedance1KThe impedance change is approximately2Impedance respiratory waveform, and can change the value of respiratory rate;

lECG signal amplitude can be set;

lPulse pacing signal with pulse width can be adjusted continuouslyECGPulse pacing ability;
