101-IOTLITE IoT gateway, MQTT gateway and Internet of Things gateway support Mod

Product Description

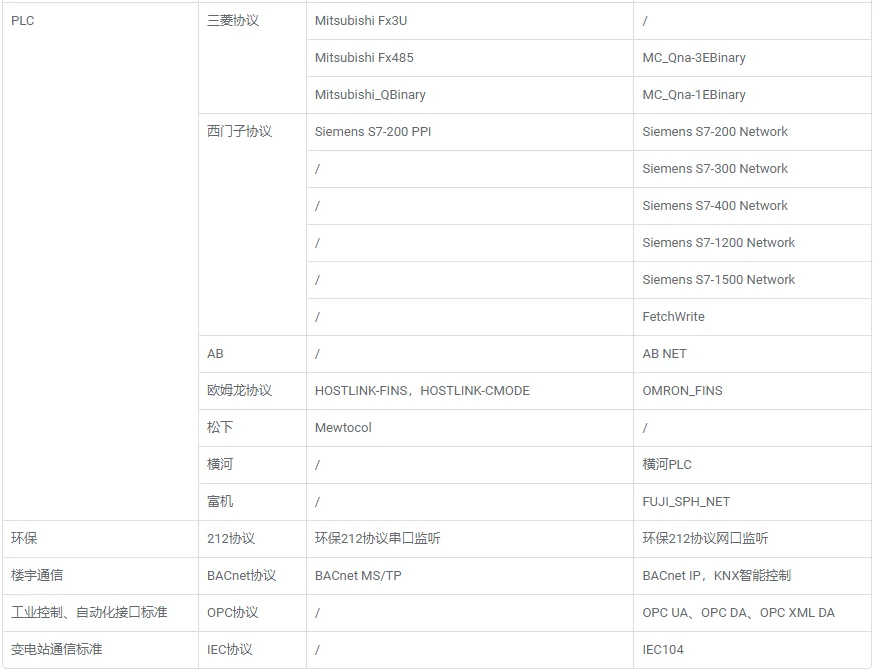

Gateway101-IoTlite data collection gateway, providing one RS-485 serial port and one 10/100 Mbps Ethernet port. BACnet gateway embedded Modbus, OPCUA, DLT645, Siemens PLC data acquisition drive, such as the gateway can be used as the Modbus RTU, Modbus TCP server provides the data, The gateway and the cloud platform adopt the instant messaging protocol MQTT to transmit data. The gateway can be used as the MQTT client to connect to Alink (Ali Cloud) Tlink, etc. The data points of the gateway are pushed to the cloud through the mechanism of subscription and release, and the cloud can read and write the collected devices through the gateway and support disconnection storage.

CPU:ARM926EJ, main frequency is 300MHz

Memory :64MB DDR2 high performance memory

Nand Flash SLC Nand Flash The onboard SLC Flash is 128MByte

Serial port: One fully isolated RS485 port

Network port 1: One 100M/10M Ethernet port

WIFI Optional USB wireless card

Power supply :DC9V ~ 48V, support anti-reverse connection, anti-lightning, overcurrent protection

Machine weight: 280g

Shell protection class: IP51

Installation size: 98.5mm×96mm×27mm(L×W×H) including mounting ears

Mechanical installation: DIN guide card slot fixed

Power consumption: Maximum power consumption of the mainboard ≤2W

Operating temperature :-40 ~ 85℃

Operating relative humidity :20 ~ 90% no condensation
