Dragino PS-LB-D PS-LS-D LoRaWAN Differential Pressure Sensor for Indoor Air Cont

Product Description

Sometimes it is not necessary to monitor the absolute air pressure but we need to know the difference of pressures in different points. One example may be before and after a valve in a pipe. If the valve is fully open, the pressure on both sides should be the same. If there's a difference in the pressure, it could be the valve isn't fully open or there's a blockage.

Differential Pressure Sensor has two air pressure inputs. It monitors the pressure difference between these two inputs and put the value.

Differential Pressure Sensors can be used in home and industrial environments for applications such as offshore and subsea gas processing, and remote heating systems.

Dragino's Wireless Differential Pressure Sensor includes various model to cover LoRaWAN, NB-IoT wireless transmission and different range of pressure measurement.

Features:

• NB-IoT Bands: B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B28/B66/B70/B85 @H-FDD

• Ultra-low power consumption

• Measure the Differential Pressure of two input

• Different pressure ranges available ( from 100Pa to 10KPa )

• Monitor Battery Level

• Multiply Sampling and one uplink

• Support Bluetooth v5.1 remote configure and update firmware

• Uplink on periodically or Alarm Input

• Downlink to change configure

• 8500mAh Battery for long term use

• IP66 Waterproof Enclosure

• Uplink via MQTT, MQTTs, TCP, or UDP

• Nano SIM card slot for NB-IoT SIM

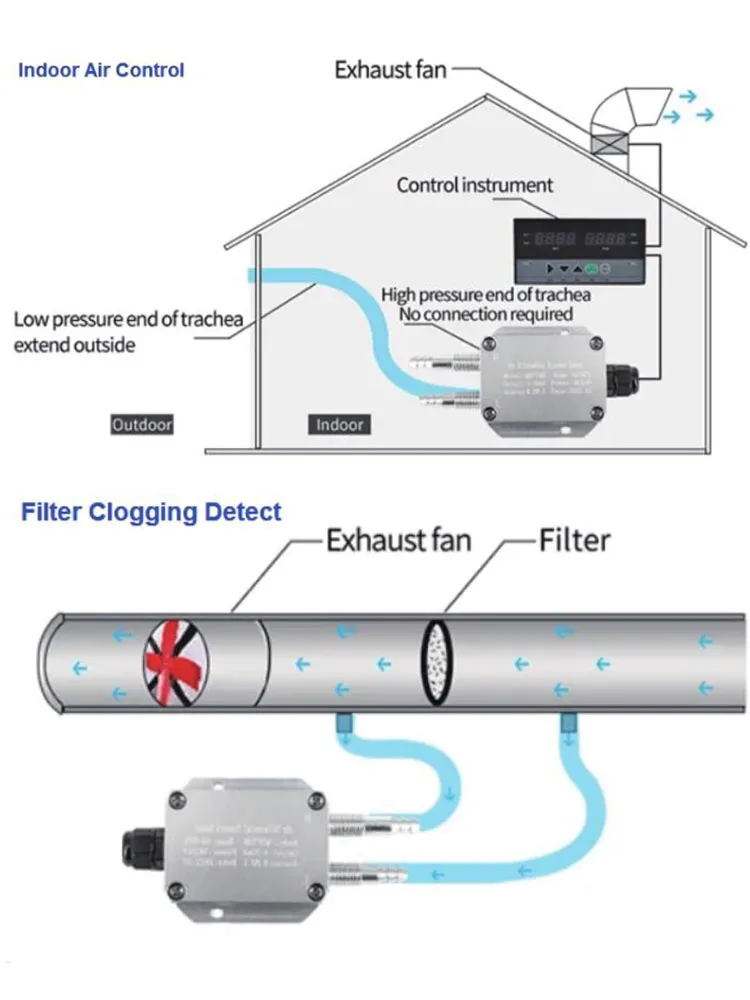

Applications:

• Indoor Air Control

• Filter Clogging Detect

Specifications:

Micro Controller:

• • MCU: 48Mhz ARM

  • Flash: 256KB

  • RAM: 64KB

Common DC Characteristics:

• • Supply Voltage: Built-in Battery , 2.5v ~ 3.6v

  • Operating Temperature: -40 ~ 85°C

LoRa Spec:

• • Frequency Range, Band 1 (HF): 862 ~ 1020 Mhz

  • Max +22 dBm constant RF output vs.

  • RX sensitivity: down to -139 dBm.

  • Excellent blocking immunity

Current Input Measuring :

• • Range: 0 ~ 20mA

  • Accuracy: 0.02mA

  • Resolution: 0.001mA

Voltage Input Measuring:

• • Range: 0 ~ 30v

  • Accuracy: 0.02v

  • Resolution: 0.001v

Battery:

• • Li/SOCI2 un-chargeable battery

  • Capacity: 8500mAh

  • Self-Discharge: <1% / Year @ 25°C

  • Max continuously current: 130mA

  • Max boost current: 2A, 1 second

Power Consumption:

• • Sleep Mode: 5uA @ 3.3v

  • LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm

Part Number:PS-LB-Dxx-YYor PS-LS-Dxx-YY

XX: Pressure Range and Thread Type

YY: The default frequency band

• AS923: LoRaWAN AS923 band

• AU915: LoRaWAN AU915 band

• EU433: LoRaWAN EU433 band

• EU868: LoRaWAN EU868 band

• KR920: LoRaWAN KR920 band

• US915: LoRaWAN US915 band

• IN865: LoRaWAN IN865 band

• CN470: LoRaWAN CN470 band
