Product Description
XINJE XD series XD-E6TC-P-H thermocouple temperature acquisition and independent PID parameters
XINJE XD series XD-E6TC-P-H thermocouple temperature acquisition and independent PID parametersProduct features
XD series PLC adapts to the right expansion module of temperature input, including 2-point, 4-point and 6-point input specifications.
XD series PLC can generally expand 10 ~ 16 modules.
Power specification: DC24V
PT100 platinum thermistor and various thermocouple types are supported.
The accuracy is 0.1 ℃.
Built in cold end compensation circuit.
Set the PID parameter value of each temperature channel independently and have a separate register address space.
Support PID real-time self-tuning function. Allow the equipment to carry out PID self-tuning under various states (cold state, heating state, transition state, etc.) to obtain appropriate PID setting value.
Support the command FROM and TO, which can exchange data from expansion module and PLC CPU, increase the flexibility of product application, save the amount of interactive data and expand the data storage space.
XD-E6TC-P-H can sample multiple channels at the same time, and the sampling rate is faster.

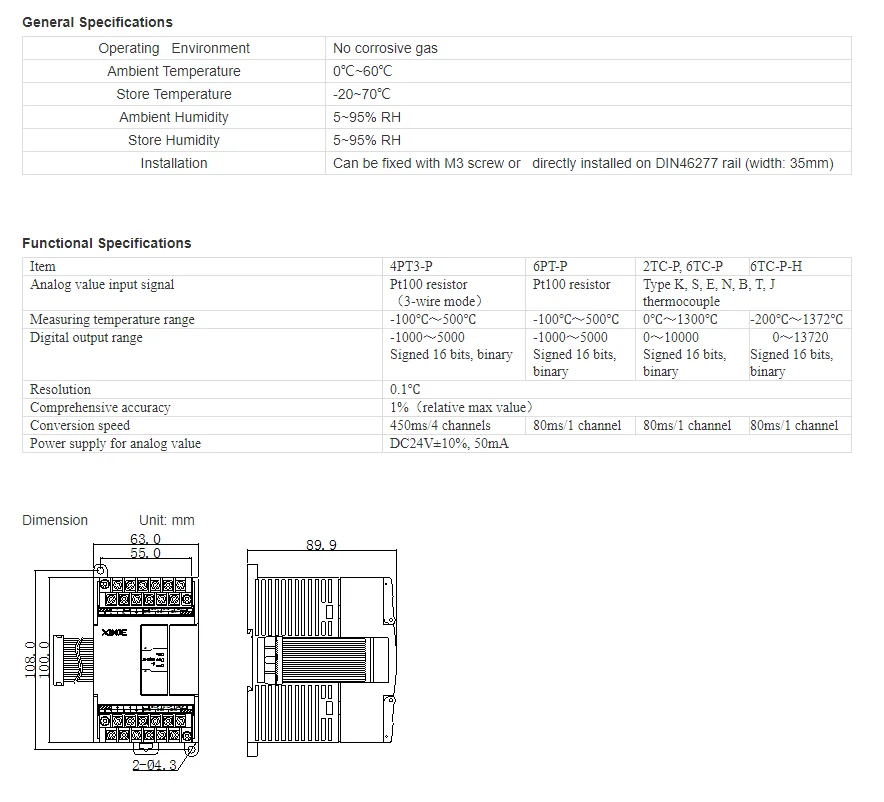

Model list
Model | Function |
XD-E2TC-P | 0 ~ 1300℃, 2-channel thermocouple temperature acquisition module, accuracy 0.1 degrees, 2-channel independent PID parameters |
XD-E4PT3-P | -100 ~ 500℃, 4-channel PT100 temperature acquisition module, accuracy 0.1 degree, PID output |
XD-E6TC-P | 0 ~ 1300℃, 6-channel thermocouple temperature acquisition module, accuracy 0.1 degrees, 6-channel independent PID parameters |
XD-E6PT-P | -100 ~ 500℃, 6-channel PT100 temperature acquisition module, accuracy 0.1 degree, PID output |
XD-E6TC-P-H | -200℃~ 1372℃, 6-channel thermocouple temperature acquisition module, accuracy 0.1 degree, 6-channel independent PID parameters |
Note: the temperature range of the above thermocouple temperature module is K-type thermocouple as an example. For other thermocouples, please refer to the user manual of XD series PLC expansion module.
