Product Description

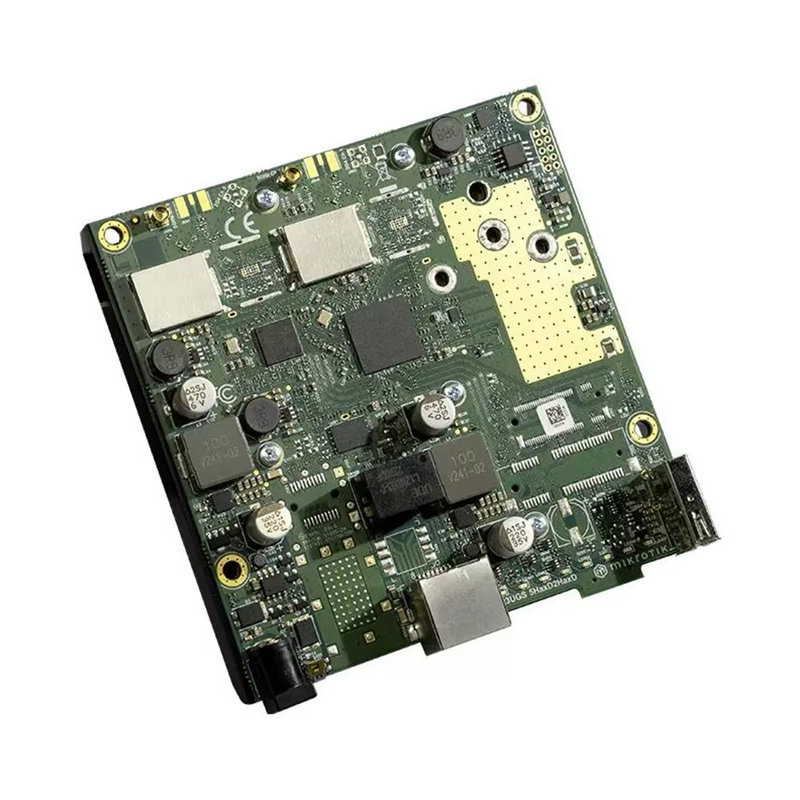

MikroTik L11UG-5HaxD 5GHz CPE with Wi-Fi 6 Port motherboard Gigabit wireless bridge motherboard
MikroTik L11UG-5HaxD 5GHz CPE with Wi-Fi 6 Port motherboard Gigabit wireless bridge motherboardRemember the thrill of crafting your custom solutions with our RouterBoard series? Get ready for even more DIY achievements: we’re refreshing the RB product line with Wi-Fi 6! Like the trusty RB911, our brand new L11UG-5HaxD is going to be your best friend when it comes to building low-cost indoor/outdoor CPE’s! This tiny board features a modern Qualcomm Maple CPU based on the ARM architecture, 256 MB of RAM, a USB port for extra storage or other needs, and a Gigabit Ethernet port with PoE-in.
The powerful Wi-Fi 6 radio with MMCX connectors enables further customization: add a HGO-antenna-OUT and you’ve got yourself an excellent omnidirectional AP… or try the mANT30 PA antenna to create a powerful long-range point-to-point link!
You can integrate L11UG-5HaxD in a variety of setups, such as vending machines, ATM’s, ticket stations, and more, but for a standalone build you might want to order one of our aluminum indoor cases. The same ones you would use for RB411, 911, 912 and 922, so they are reusable. You can save the planet and your wallet at the same time!
If you’ve read this far, here’s a little bonus feature: we’ve kept the good old beeper for various alarms or creative outputs.
Specifications
Details | |
Product code | L11UG-5HaxD |
Architecture | ARM |
CPU | IPQ-5010 |
CPU core count | 2 |
CPU nominal frequency | 800 MHz |
RouterOS license | 4 |
Operating System | RouterOS v7 |
Size of RAM | 256 MB |
Storage size | 128 MB |
Storage type | NAND |
MTBF | Approximately 100'000 hours at 25C |
Tested ambient temperature | -40°C to 70°C |
Suggested price |
Powering
Details | |
Number of DC inputs | 2 (PoE-IN, DC jack) |
DC jack input Voltage | 12-28 V |
Max power consumption | 15 W |
Max power consumption without attachments | 6 W |
Cooling type | Passive |
PoE in | Passive PoE |
PoE in input Voltage | 18-28 V |
Wireless specifications
Details | |
Wireless 5 GHz Max data rate | 2400 Mbit/s |
Wireless 5 GHz number of chains | 2 |
Wireless 5 GHz standards | 802.11a/n/ac/ax |
Wireless 5 GHz chip model | QCN-6102 |
Wireless 5 GHz generation | Wi-Fi 6 |
Ethernet
Details | |
10/100/1000 Ethernet ports | 1 |
Peripherals
Details | |
Number of USB ports | 1 |
USB Power Reset | Yes |
USB slot type | USB type A |
Max USB current (A) | 1.5 |
Other
Details | |
PCB temperature monitor | Yes |
Voltage Monitor | Yes |
Beeper | Yes |
Certification & Approvals
Details | |
Certification | CE, FCC, IC, EAC, ROHS |
Wireless specifications
5 GHz | Transmit (dBm) | Receive Sensitivity |
6MBit/s | 28 | -96 |
54MBit/s | 26 | -80 |
MCS0 | 28 | -96 |
MCS7 | 25 | -75 |
MCS9 | 23 | -70 |
MCS11 | 20 | -67 |
