1000W Copper/Steel Pipe Cutter Electric Pipe Cutter Handheld Round Pipe Cutting

Product Description

1000WCopper/Steel Pipe Cutter Electric Pipe Cutter Handheld Round Pipe Cutting Machine 15-220MMPipe Cutter ToolZD220

Product attributes：

voltage:220-240V

Rated power:1000W

With English manual:yes

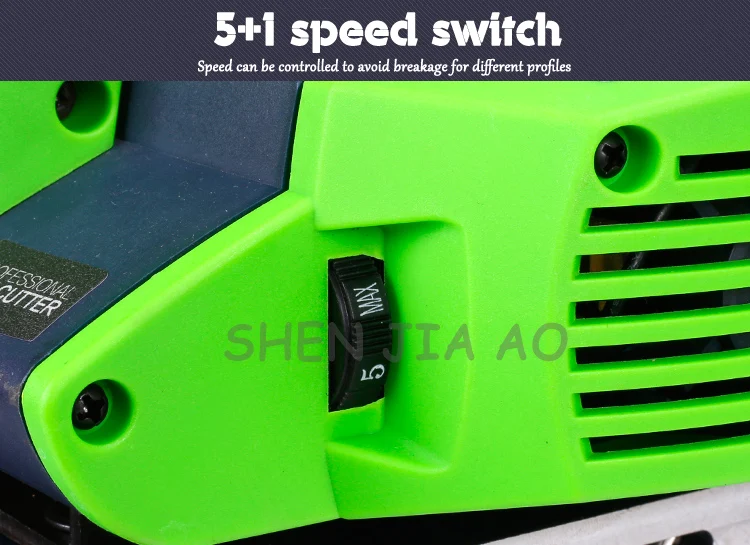

Speed:1600-3500rpm

Saw blade center hole:62 mm

Cutting range:15-220 mm

Weight:7.2 KG

Steel tube wall:8 mm

product number:FL1275

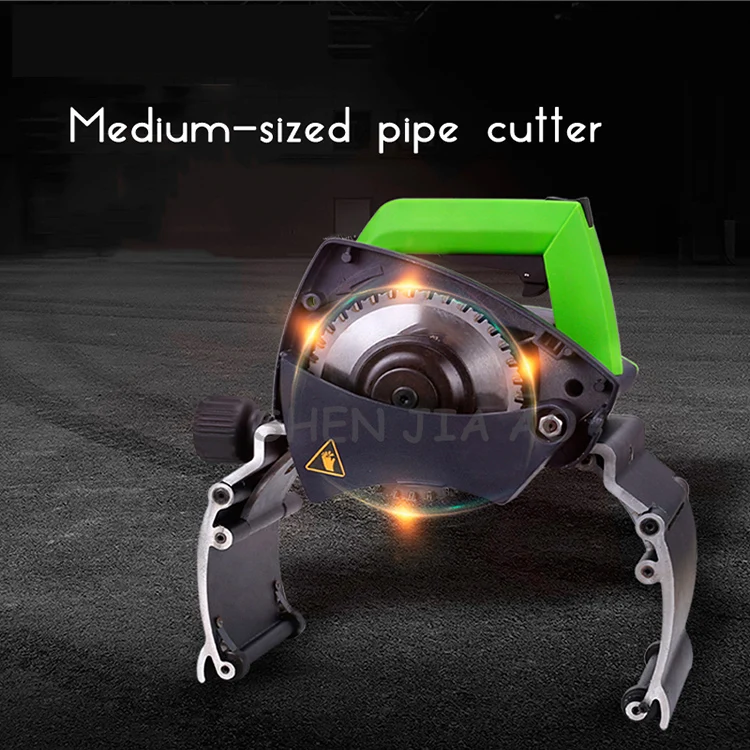

It is lightweight, easy to carry and easy to operate on-site. You can use it to cut steel, plastic, copper, cast iron,stainless steel and multi-layer tubes.

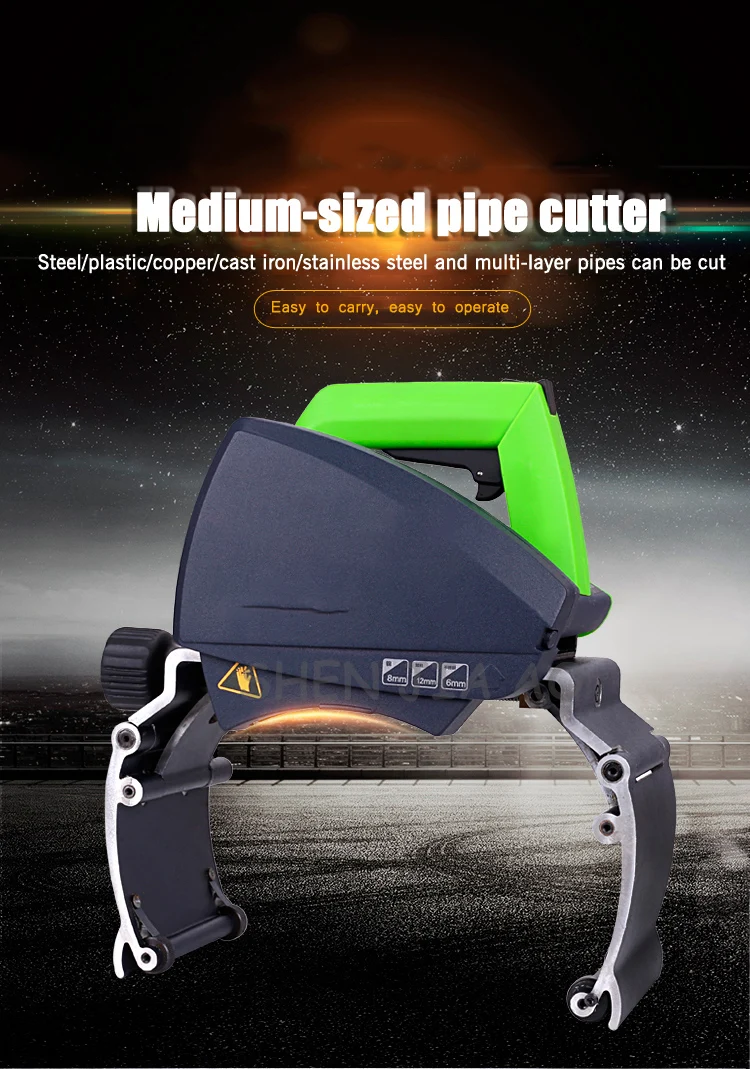

Cutting materials: steel, plastic, copper, cast iron, stainless steel and multilayer tube.

Use:

1, turn on the power switch, in the saw blade after the high-speed operation to press down;

2, the right hand to hold the machine to push forward and then with the left hand gently turn round tube,

left and right hand to coordinate with, until the saw tube;

3, each cutting before the need to check whether the blade wear and tear, the blade is damaged or white

when the need to timely grinding saw blade; cut hard or thick pipe is recommended to cut once a time;

4, saw blade wear and tear when the timely replacement;

5, is not allowed to run the machine for a long time overload

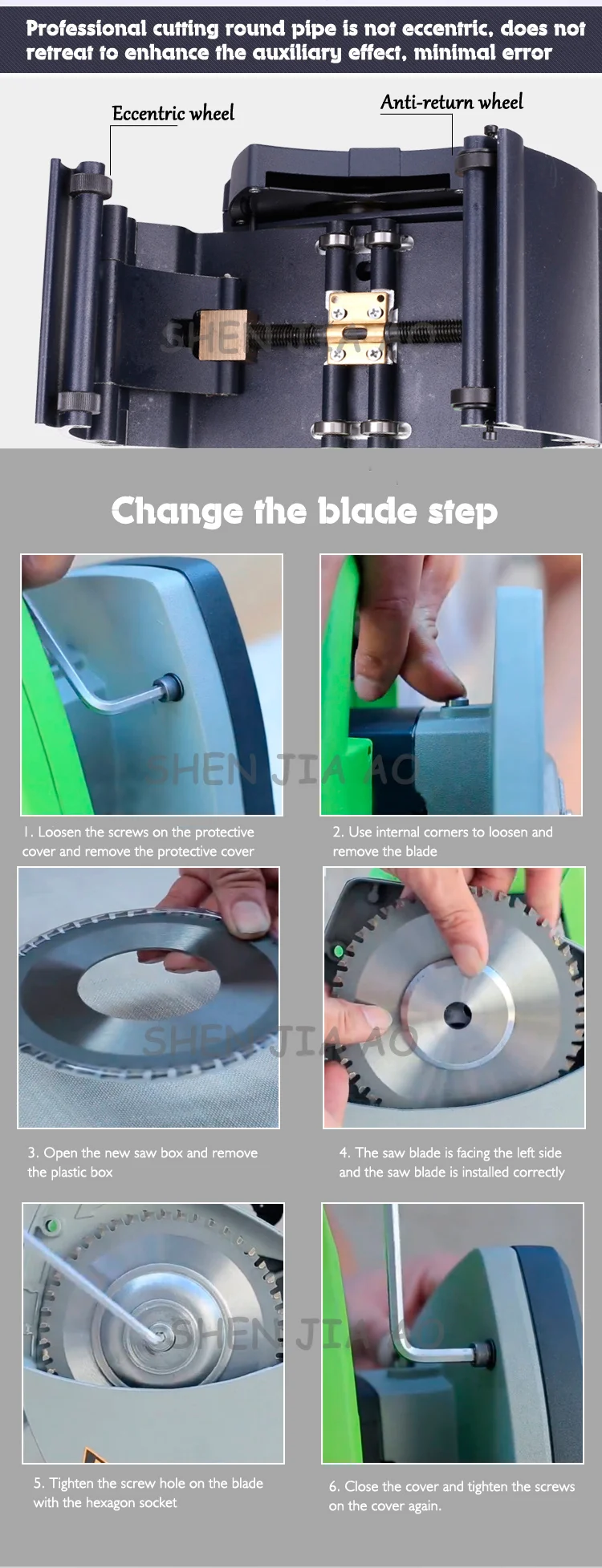

Instructions for use:

1, release the blade protection cover screws;

2, the machine is on its own, saw blade sawtooth direction towards the left;

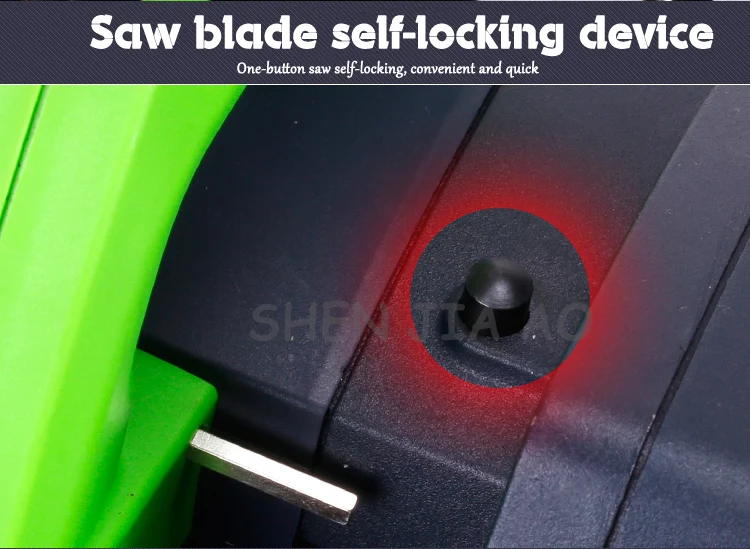

3, fitted with saw blade, pressure on the self-locking pin, tighten the hexagonal screws,

fitted with protective cover;

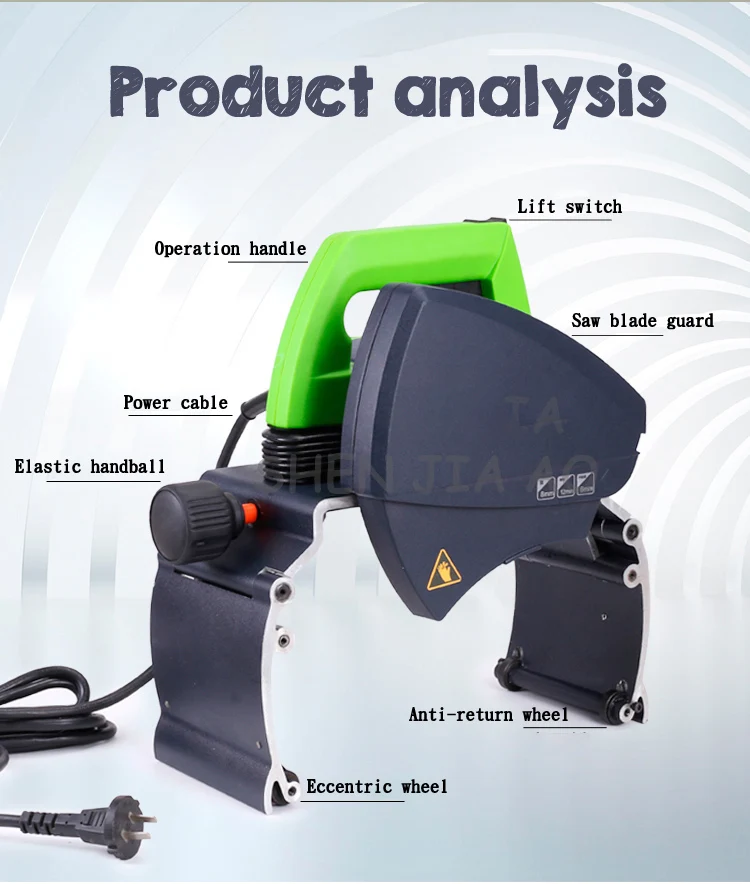

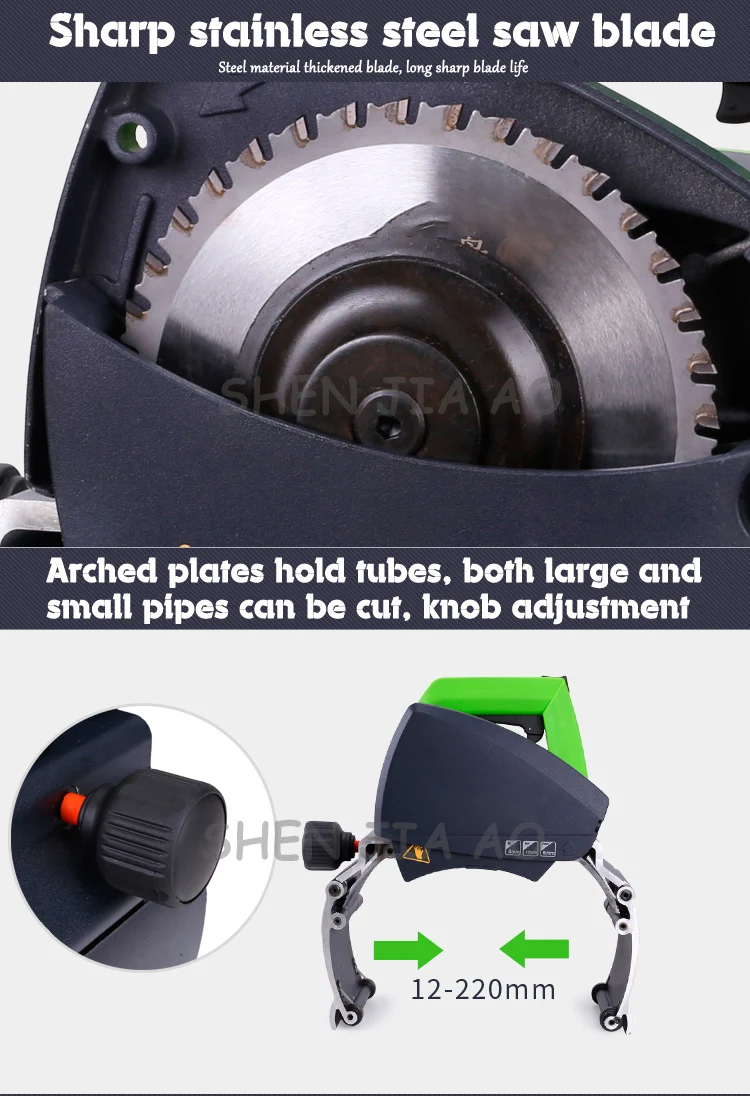

4, release the elastic plastic handball, open the size of the arch plate, adjust the size of the

tube to the size, and then tighten the plastic handball, semi-closed size arch board (Note: can not screw too tight);

5, to ensure that the big support on the four bearings and for the plate on the two eccentric

wheel and two anti-round wheel close contact with the tube;

6, plug in the power;

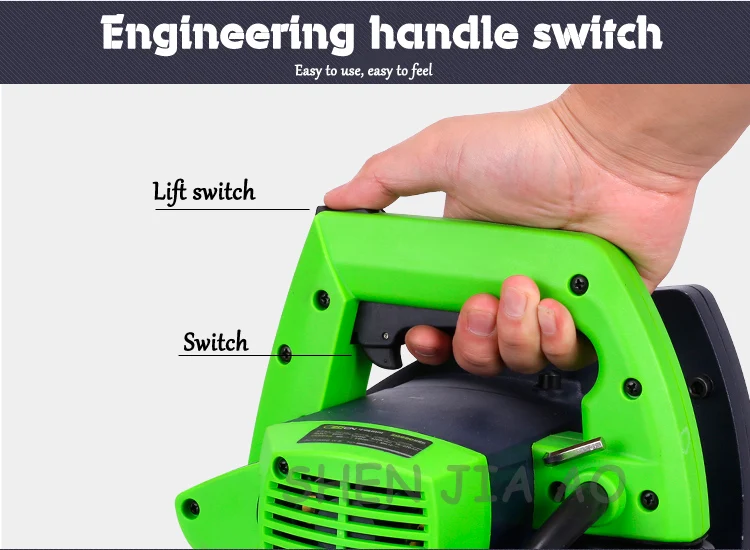

7, press the switch, press the machine, to ensure that the lock from the lock lock the machine until the tube cut to complete;

8, release the self-pin switch, release the loose plastic handball to remove the machine.

Advantages and innovations:

1 greatly improve and ease installation safety and fire safety;

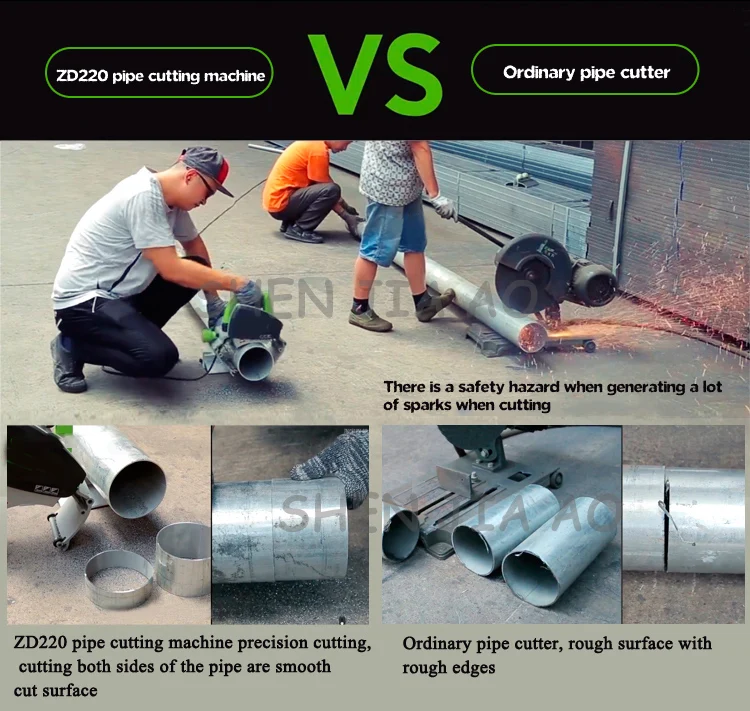

2 precision cutting, cutting on both sides of the tube are flat, easy to connect;

3 cutting method is simple, fast, save a lot of working hours;

4 to provide a convenient way to work, according to the workplace (on-site) to design their own cutting program;

5 high safety, work without moving the tube;

6 cutting will not produce sparks and dust to the outside world;

7 full-function, you can cut the power system built a variety of pipes;

8 cutting pipe material, such as: steel, stainless steel, cast iron, copper, plastic, multi-layer pipe can be cut;

9 No specific requirements for pipe diameter and work platform;

10 inexpensive, cost-effective.

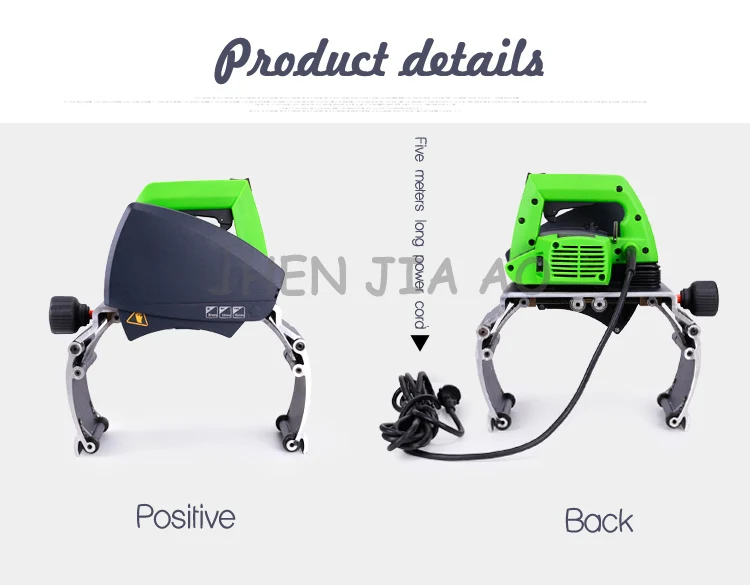

details：
