2800w ZVS Induction Heater Induction Heating Machine Metal Casting Furnace Equip

Product Description

2800w ZVSInduction Heater Induction Heating Machine Metal Casting Furnace Equipment + Crucible Coil Heating 110V 220V

1.Net weight of host:6KG

2.Dimensions:380*140*210mm

3.Heating ring size:70*60*73 (inner diameter * outer diameter * height)

4.Input voltage:110V-220V (The power is halved when 110V is input)

5.DC working voltage:53.5V or 48V (internal power supply voltage is the display voltage)

6.Maximum DC working current:58A

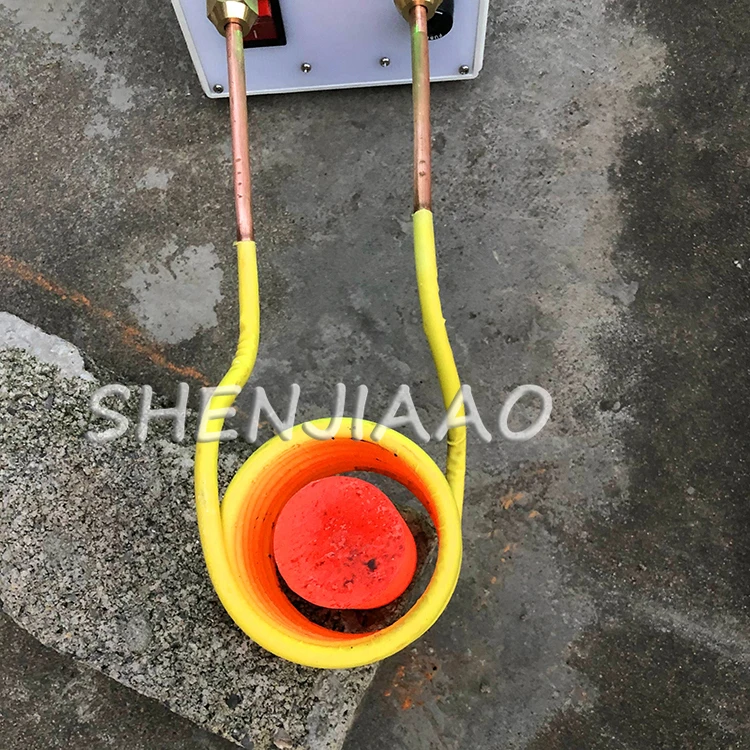

7.The maximum temperature of direct heating of metal iron with a diameter of 20mm is 1200 degrees Celsius, and the maximum temperature of heating iron with a standard 60mm diameter heating ring is about 1000 degrees Celsius;

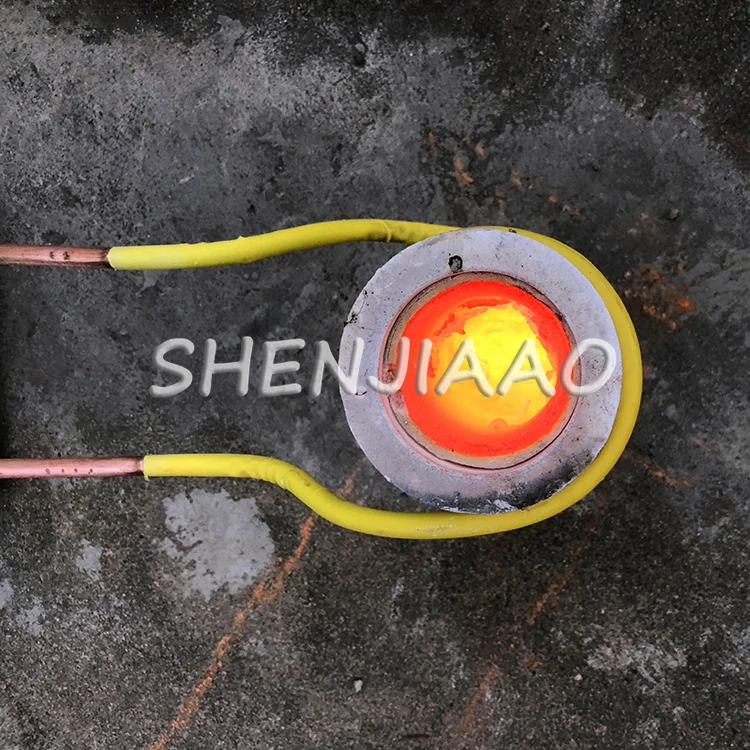

8.The maximum temperature of the crucible is 1600 degrees Celsius, which can melt iron, gold, silver, aluminum, copper and other metals;

Product features and functions

1. Adopt an integrated metal shell design, which is convenient to use and carry, and has good heat dissipation;

2. Integrated power supply to avoid complicated wiring;

3. The heating ring is wrapped with high-temperature heat insulation material to prevent short circuits during the heating process, and the heating ring can be detached and replaced to customize a specific heating ring;

4. Integrated internal water cooling circulation system to prevent overheating of the heating ring; (water cooling through the water pipe)

5. Two high-power fans on the top for heat dissipation;

6. Add a digital current overload protection switch, once overloaded, trip the protection circuit in time;

7. The large LCD color screen displays the various working parameters of the system, including voltage, current, power, motherboard temperature, etc., and can be easily switched between Chinese and English with one key. The maximum working power can be set by the power meter, and the maximum working current is exceeded during work. Enter the overload protection mode immediately.

8. Provide 0-600 degrees or 0-1000 degrees infrared temperature controllable version.

9. Metal button switch and foot control are added, which is convenient to use in different scenes.

10. The water cooling system is protected against water shortage.

Preparation before use:

1. The heating ring is not installed for the first use, and the user needs to install the 17mm wrench by himself;

2. After the installation is complete, prepare a basin of water and insert both heat sinks into the water. If conditions permit, it is recommended to use cold water to enter the hot water and directly drain the waste to dissipate heat;

3. Before powering on, make sure that the main power switch is in the off position, and insert the input power cord into the 110~250VAC input interface; (when 110V input, the rated power is halved)

4. Push the main power switch on the back to supply power to the internal power supply, wait about 5-10 seconds for the main display to light up, and the water pump and fan start

5. Observe whether there is water leakage near the detachable heating ring connector. If there is water leakage, turn off the power, use a tool to tighten the connector screws until there is no water leakage (the water tightness test has been carried out at the factory)

6. Set the alarm power according to the actual use requirements, the factory default alarm power is 3200W (for detailed settings, refer to the instructions for the power meter)

Steps for usage:

1. Make sure that the main power switch on the back is off;

2. Turn on the main power switch and wait for about 5 seconds. After the power supply is stable, you will see the fan and water pump running, and the main display will show 48V or 53.5V;

3. First press the "M" button of the power meter to reset the power meter, then press the heating on, the green heating indicator light is on, or use the foot switch, the heating indicator light is on after the pedal is stepped on, and it goes out when it is released; if it is in use If the red light is on and the heating stops, first check whether the power meter has a voltage or power alarm. If there is no alarm, the water cooling is abnormal. Check whether the water cooling part is lack of water or the water pump is damaged. If the water cooling of the water pump is normal, the water cooling water temperature exceeds 50 degrees Celsius ( The solution to the excessively high water temperature is to use the cold water to enter the hot water and directly discard it, and the cooling water is not recycled);

4. Press the reset switch at the end of use, wait for about 20 seconds, and then turn off the main power switch.

Precautions for use:

1. In any case, you must turn on the main power switch and wait for the fan and water pump to work before turning on the heating, otherwise there is a risk of burning the motherboard (this item must be absolutely observed)

2. When shutting down, press the reset switch first, wait 20 seconds before turning off the main power switch. The purpose of this operation is to cool the system;

3. If possible, you can change the water circulating cooling to non-circulating water cooling where cold water enters and hot water is directly discharged, which is beneficial to reduce the system temperature (the maximum temperature of the water cooling factory is 50 degrees Celsius, and the system alarms to stop heating if it exceeds 50)

4. The multi-function display can display the power of the system and the temperature of the main board in real time. When the power is continuously greater than 2800W or the main board is greater than 75 ℃, the system should be shut down. It may be that the heated object overloads the system. This item can be set to the machine by setting the alarm current. Set alarm protection to automatically cut off heating;

5. When any one of the cooling fan and the water circulation system is not working, the main power must be turned off and not continue to work, contact the manufacturer to solve the problem;

6. The top cooling fan port and power supply cooling air inlet must not be blocked, otherwise it will affect the heat dissipation of the system;

7. The rated working voltage is AC220V, and the power of AC110V will be halved;

8. If you need to change the heating coil by yourself due to actual use requirements, you must ensure that the no-load current of the heating coil is not greater than 12A.

9. Before each heating is turned on or when the alarm is released, press the "M" button of the power meter, and then press the reset button of the machine to release the alarm of the red warning light.

Common problem solving:

1. The electric fan and water pump are not working on the system. The power meter has no display and cannot be heated. The fuse may be blown or caused by overload. You only need to replace the fuse. The fuse parameter is 6*30/15A;

2. The red warning light is on when the machine is powered on. The power supply voltage rises slowly when it is turned on for the first time. You can press reset to clear the alarm after the voltage is stable. The minimum voltage of the power meter alarm can also be set to be lower.

3. The red warning light is on during use. First, check whether the power meter displays a power alarm. The default alarm power is 3200W. If the current does not alarm, check whether the water cooling system fails or the cooling water temperature exceeds 50 degrees Celsius.

4. Press the reset button and the red warning light can not be eliminated, first press the "M" button of the power meter to try to solve it;

Annex 1 Instructions for use of the thermostat

The thermostat can realize temperature control, (usually set as upper limit alarm). Long press the SET button, enter the password 3000 and press SET, AL2 is the upper limit temperature, HAL2 is the offline start temperature difference, d2 is the action delay, and set to 0. Yes. After the setting is completed, long press SET to the main interface (the parameter ending in 1 is ignored during the entire setting process);

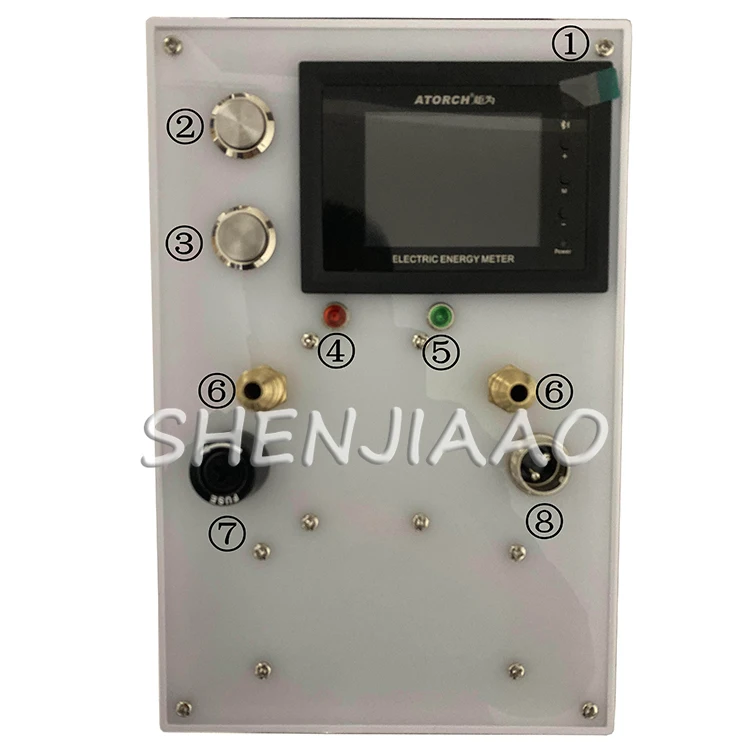

Panel description

①Power meter

②Heating on

③Reset

④Alarm signal light

⑤ Heating indicator

⑥Heating ring interface

⑦Fuse

⑧Foot switch interface

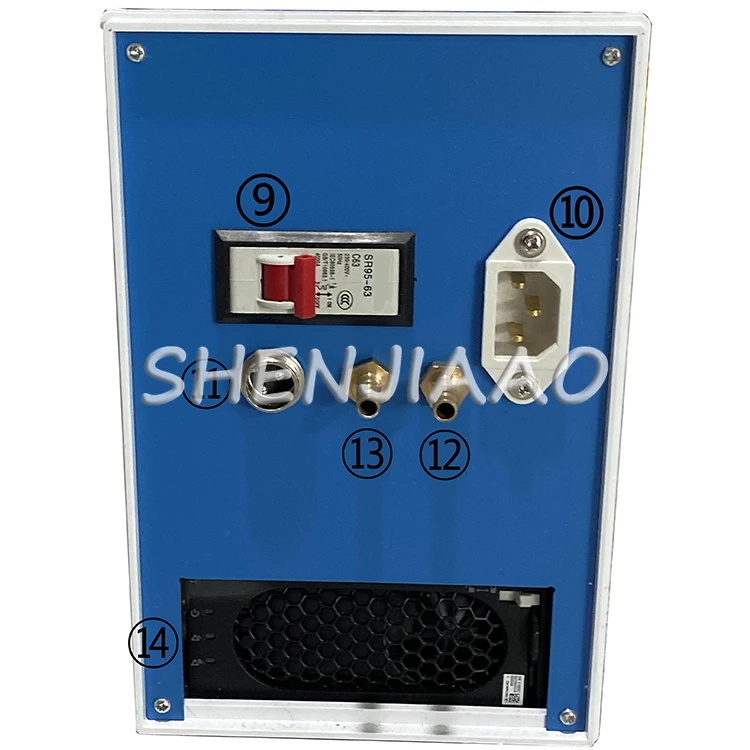

⑨Main power switch

⑩AC1100V-220V input interface

⑪Infrared temperature sensor interface

⑫Water cooling input

⑬Water cooling output

⑭DC48V50A power supply

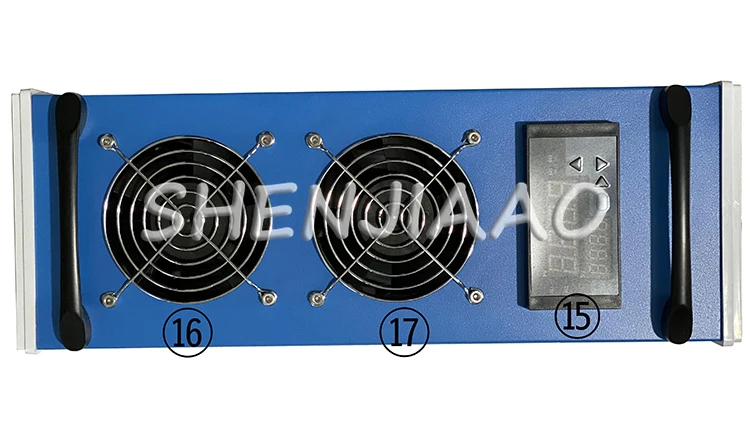

⑮ Thermostat

⑯ Cooling fan
