XY-Axis Slide Module T-type screw Tr1804 lifting platform self-locking hand-cran

Product Description

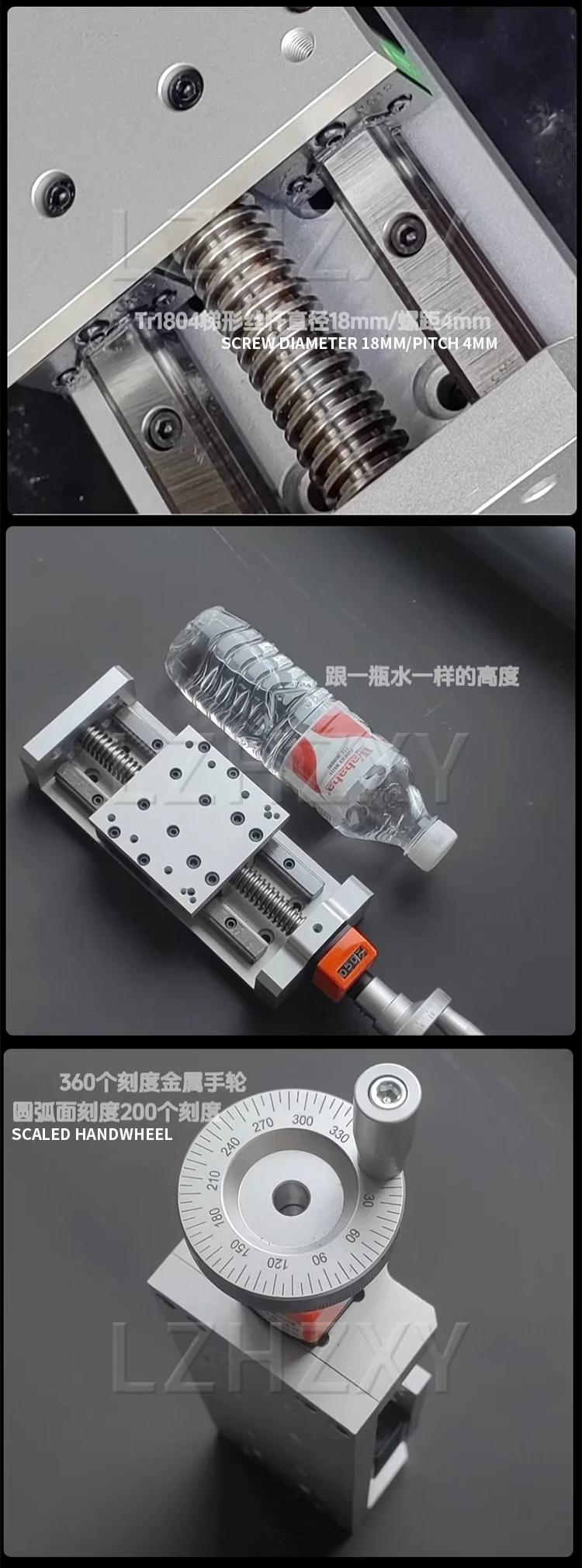

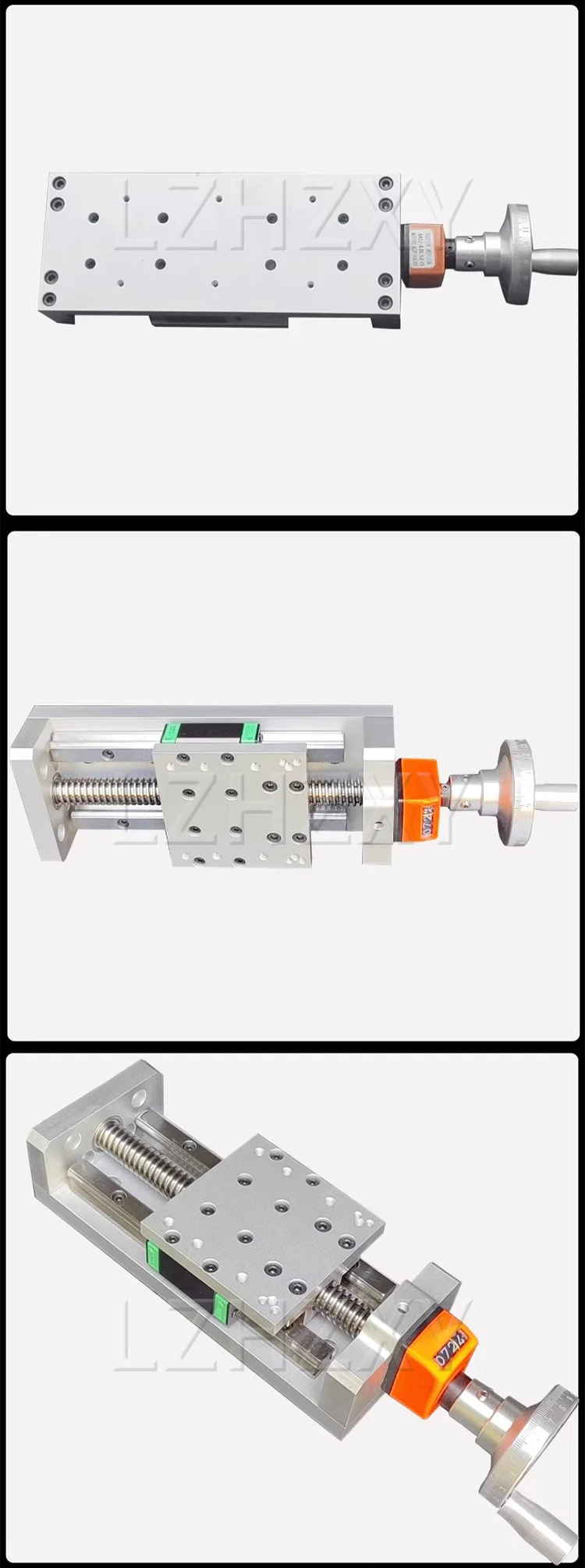

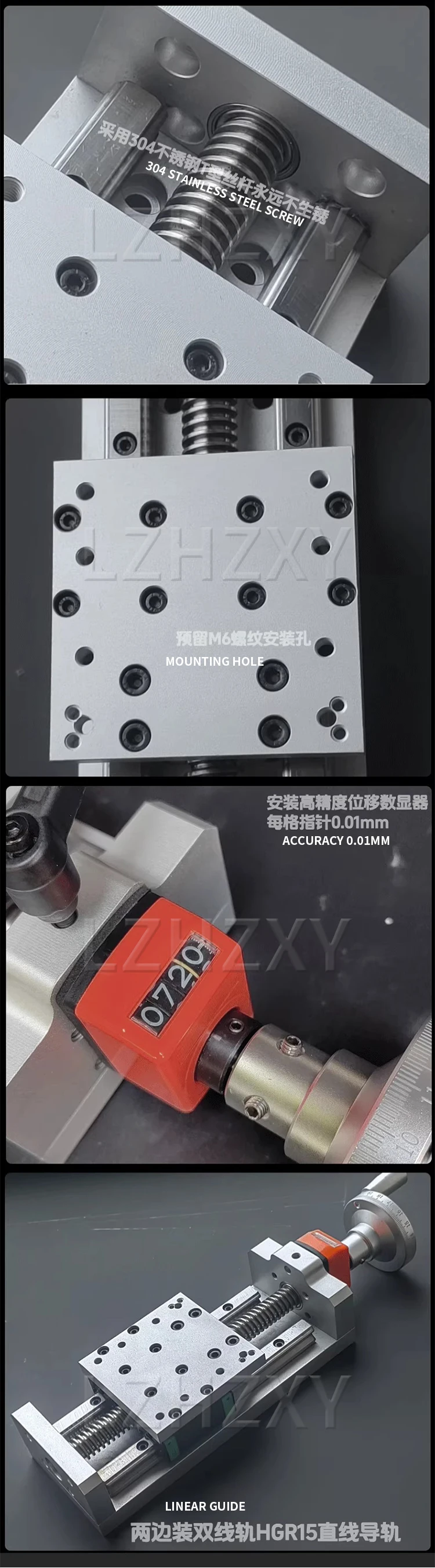

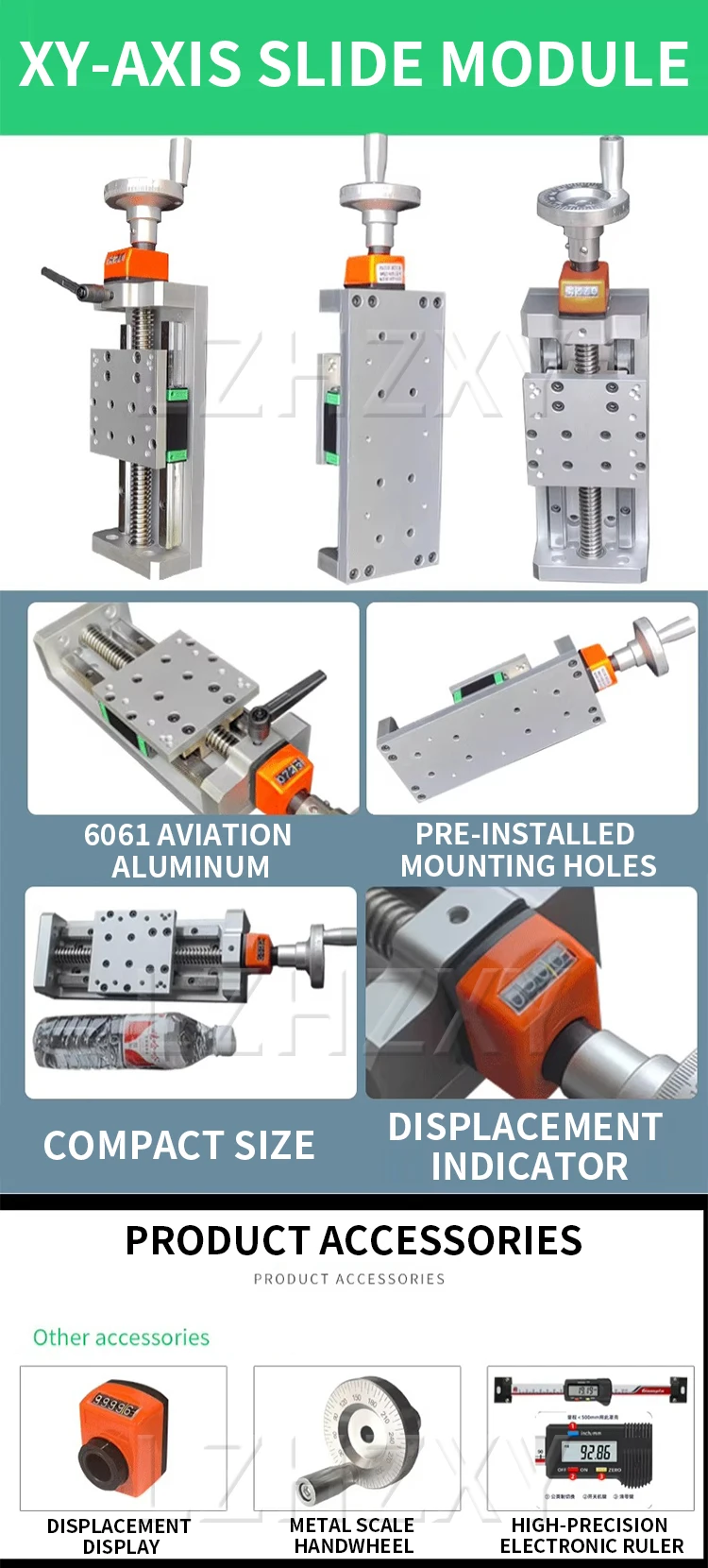

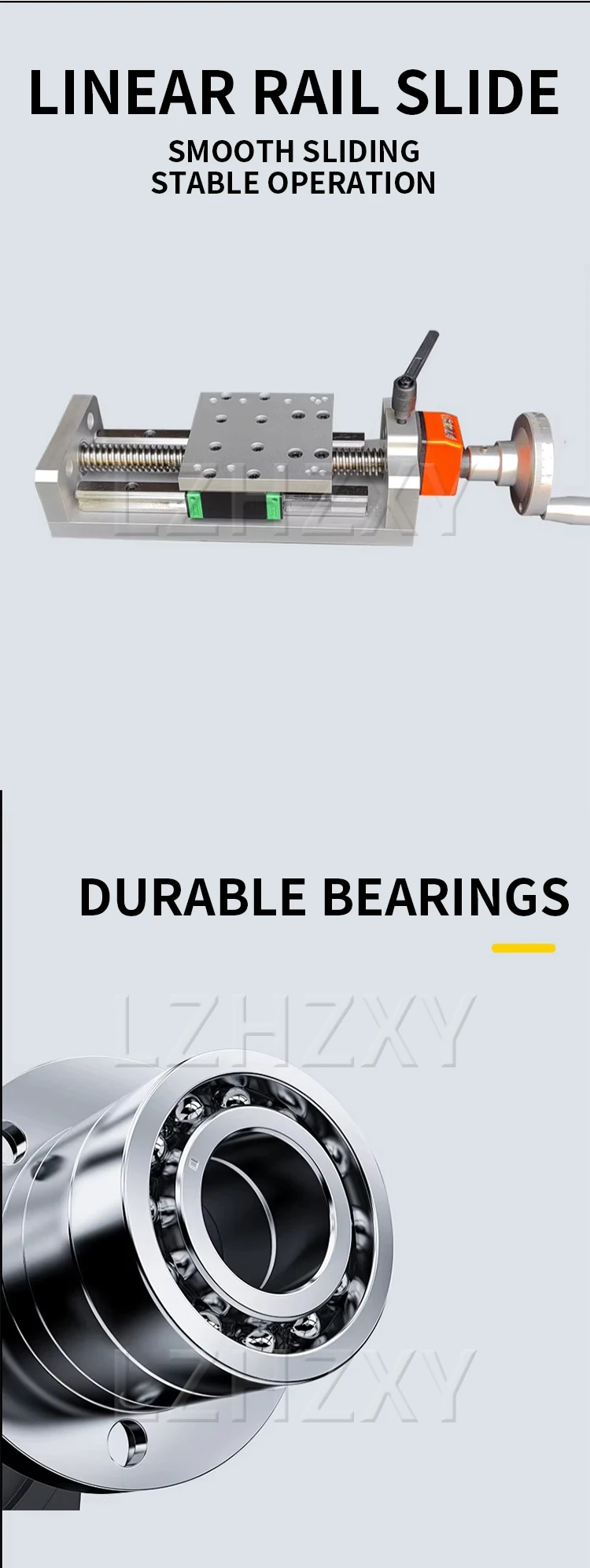

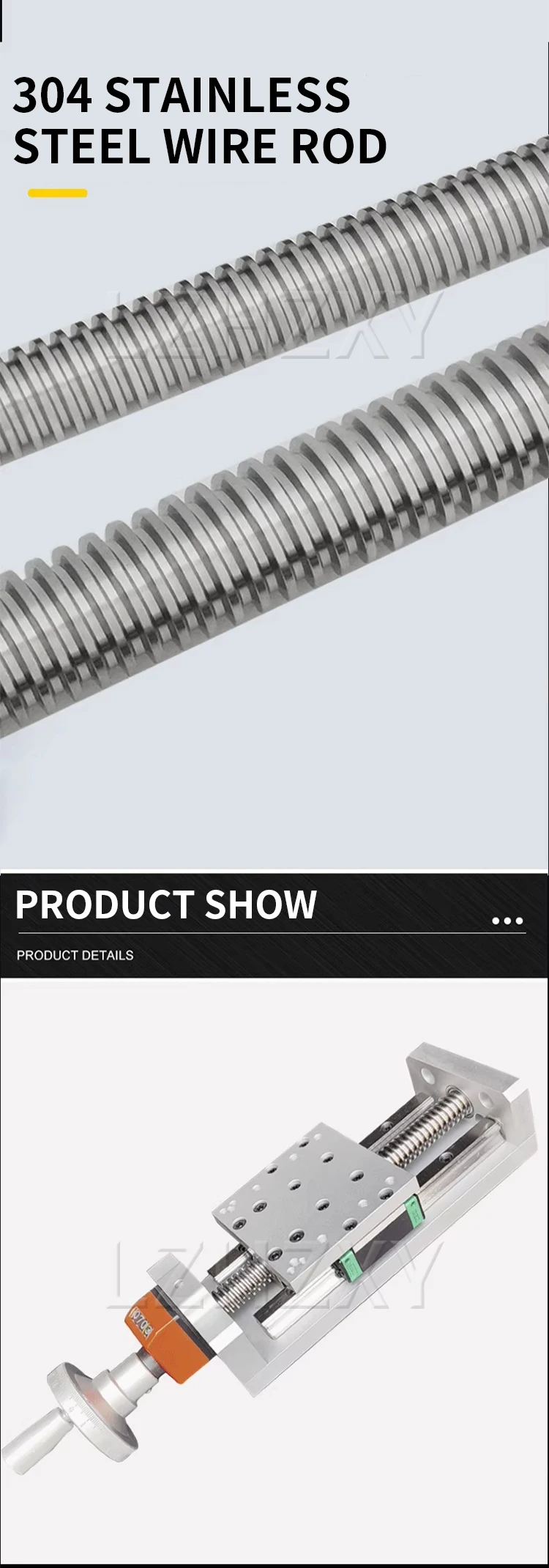

XY-Axis Slide Module T-type screw Tr1804 lifting platform self-locking hand-cranked micro precision linear guide XY axis slide module

Name: XY-Axis Slide Module
Model: ETH90-L150MM
Table Dimensions: 90*90MM
Stroke: 150MM
Screw Diameter: Φ18MM
Lead: 4MM
Guide Rail Specifications: 15*15MM
Slide Specifications: HGH15CA
Load Capacity: 150-50KG
Weight: 3.45KG

Model: ETH90-L200MM
Table Dimensions: 90*90MM
Stroke: 200MM
Screw Diameter:Φ18MM
Lead: 4mm
Guide Rail Specifications: 15*15mm
Slider Specifications: HGH15CA
Load: 150-40kg
Weight: 4.05kg

Model: ETH90-L250mm
Table Dimensions: 90*90mm
Stroke: 250mm
Screw Diameter: Φ18mm
Lead: 4mm
Guide Rail Specifications: 15*15mm
Slider Specifications: HGH15CA
Load: 150-40kg
Weight : 4.65KG

Model: ETH90-L300MM
Table Dimensions: 90*90MM
Stroke: 300MM
Screw Diameter: Φ18MM
Lead: 4MM
Guide Rail Specifications: 15*15MM
Slide Specifications: HGH15CA
Load: 150-50KG
Weight: 5.25KG

Model: ETH90-L350MM
Table Dimensions: 90*90MM
Stroke: 350MM
Screw Diameter: Φ18MM
Lead: 4mm
Guide Rail Specifications: 15*15mm
Slide Specifications: HGH15CA
Load: 150-40kg
Weight: 5.85kg

Model: ETH90-L400MM
Table Dimensions: 90*90mm
Stroke: 400mm
Screw Diameter: Φ18MM
Lead: 4mm
Guide Rail Specifications: 15*15mm
Slide Specifications: HGH15CA
Load: 150-40kg
Weight: 6.45kg
