Conductive glass cutter, ITO / FTO / AZO / quartz glass cutting table for labora

Product Description

Conductive glass cutter, ITO / FTO / AZO / quartz glass cutting table for laboratory 350*250MM/500*470MM

Name: Conductive glass cutter
Model: GL-912535
Cutting range: 170*350MM
Size: 350*250MM
Packing size: 420*310*140MM
Weight: 3-4KG
Model: GL-913545
Cutting range: 400*500MM
Size: 500*470MM
Packing size: 580*550*170MM
Weight: 8-9KG
Scope of application: Suitable for ITO conductive glass, FTO conductive glass, AZO conductive glass, thin glass substrate, quartz glass, silicon wafer glass and other glass materials.
1. Install the cutter head
1. Before installing the cutter head, ensure that the cutting tool handle moves smoothly on the bearing;
2. Place the glass to be cut on the cutting table and align the top with the scale;
3. Install the cutting head with the place where the wire is wrapped on the cutter head facing outward;

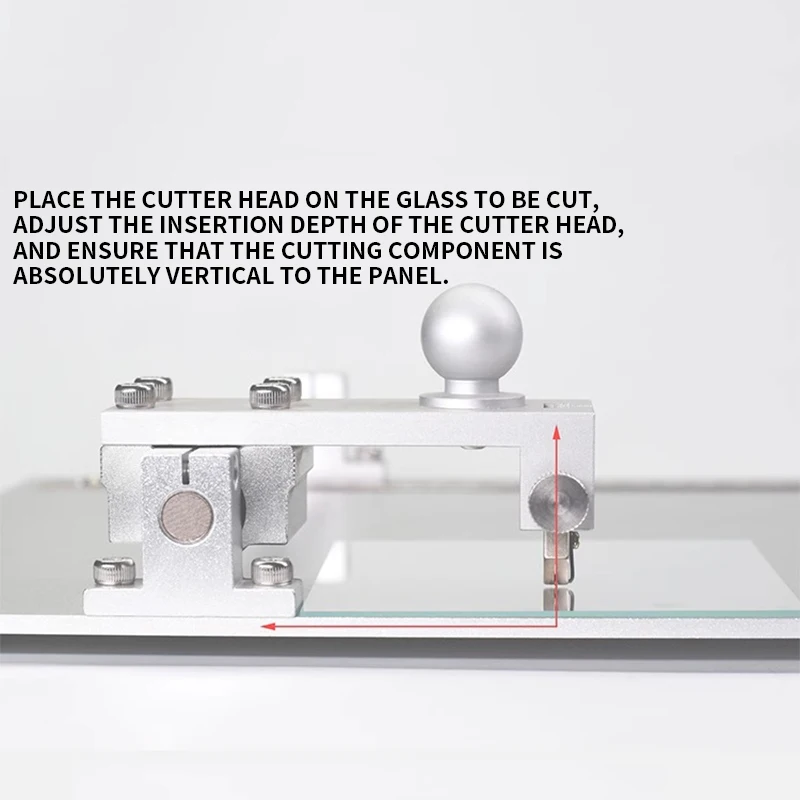

4. Place the cutter head on the glass to be cut, and adjust the depth of the cutter head to ensure that the cutting component is absolutely vertical to the panel. You can use a right-angle ruler to measure.
2. Cutting glass
1. Place a piece of clean A4 printing paper on the countertop to prevent glass and cutting of the worktop panel.
scratch;
2. Place the glass to be cut on the cutting workbench and align the top with the scale;
3. Install a suitable cutter head and adjust the cutting head to be 90 degrees perpendicular to the cutting table;
4. Align the left or right end to the size scale that needs to be cut. The red 0 scale is the cutting line. When cutting glass, the strength of the knife is very important. It is best to do it in one go. Put it down and gently press the glass to be cut, and press the glass from top to bottom. Mark the cutting line on top. Do not have scratched joints, otherwise the glass will split and break;
5. Cut the long and short sides in sequence according to the required size;
6. After the cutting is completed, you can choose to remove the cutting head and place it alone, or not remove it. Lift the cutting head perpendicularly to the cutting table to avoid extrusion damage between the cutting head and the table and protect the cutting panel surface. Not damaged by scratches;
7. When finished, place it in a safe place.
