Product Description
288P HDMI AV Video Capture Card 1080P Recording Loop Analog To Digital Video Recorder Save To USB Flash Disk Mic in Line In
288P HDMI AV Video Capture Card 1080P Recording Loop Analog To Digital Video Recorder Save To USB Flash Disk Mic in Line InProduct Introduction:Genuine original,brand new and high quality,buy with confidence!

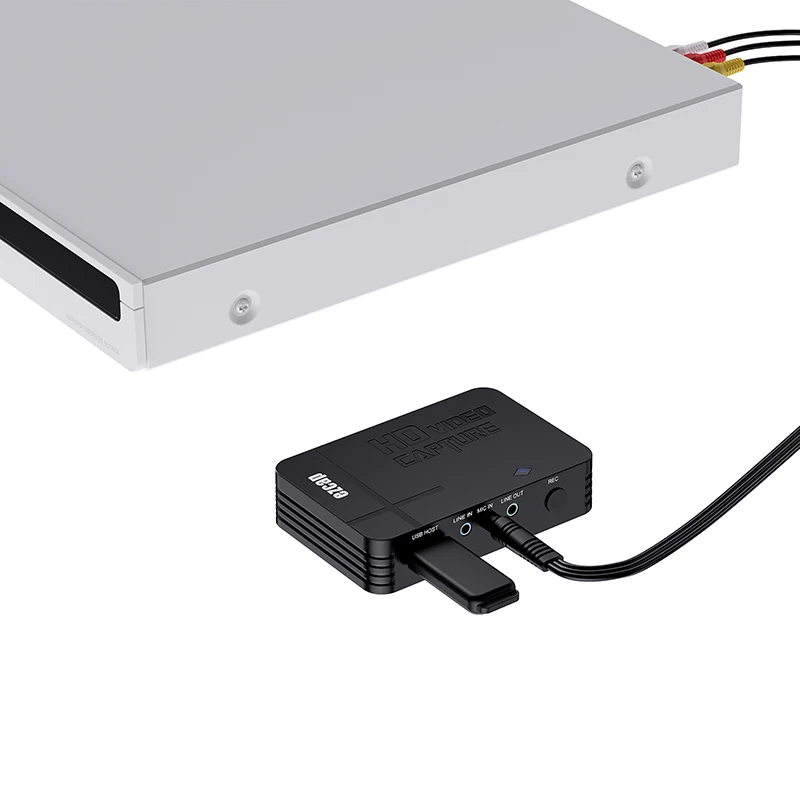

This ezcap288P HDMI AV capture card supports HDMI or Composite Video input. It allows you can connect the game console or set-top box to record the high defenithion video up to 1080p30fps resolution, also can connect the old VHS player or camcorder to digitizer the old tape video to digital video. And save the digital video files into USB flash drive or USB HDD. ezcap288P HDMI AV capture card includes the HDMI input and loop-through up to 1080p60fps full HD resoluiton. You still can connect microphone or mixer to mix your sound with the video togeter. And connect the headphone or speaker to Line Out port.
SPECIFICATIONS:
- Host Interface: USB 2.0
- Video Input: HDMI, Composite Video (3.5mm 4-pole)
- Audio Input: HDMl, Analog L/R audio(3.5mm 4-pole),3.5mmTRS microphone input,
3.5mm TRS audio line input.
- Video Output: HDMI
- Audio Output: HDMI, 3.5mm TRS audio Line Out
- User Interface: RECORD/STOP button, Power and status indicator
- Storage Media: USB flash drive and USB HDD.Supports FAT32 and NTFS,
and exFAT is not supported.
- Power Supply: USB-C power jack (5V2A USB power adapter is notincluded)
- Resolution for Input / Pass-through:
720x480(60p)720x576(50p),1280x720p(50p)1280x720p(60p)1920x1080(50i)
1920x1080(60i)1920x1080(24p),1920x1080(25p),1920x1080(30p) 1920x1080(50p),1920x1080(60p)
Resolution for recording: 720x480(60p),720x576(50p),1280x720p(50p) 1280x720p(60p),1920x1080(24p)1920x1080(25p)1920x1080(30p),1920x1080(25p),1920x1080(30p)
* Upscaling is not supported.
- Record format: .mp4.
-Record file: max 16Mbps@1080p30fps, Max 1.95G per file.About 130MB/Minute
8GB/Hour for 1080p recording.
- Dimensions / Weight: approx. 112(L) × 75(W) × 27(H) mm, 135g

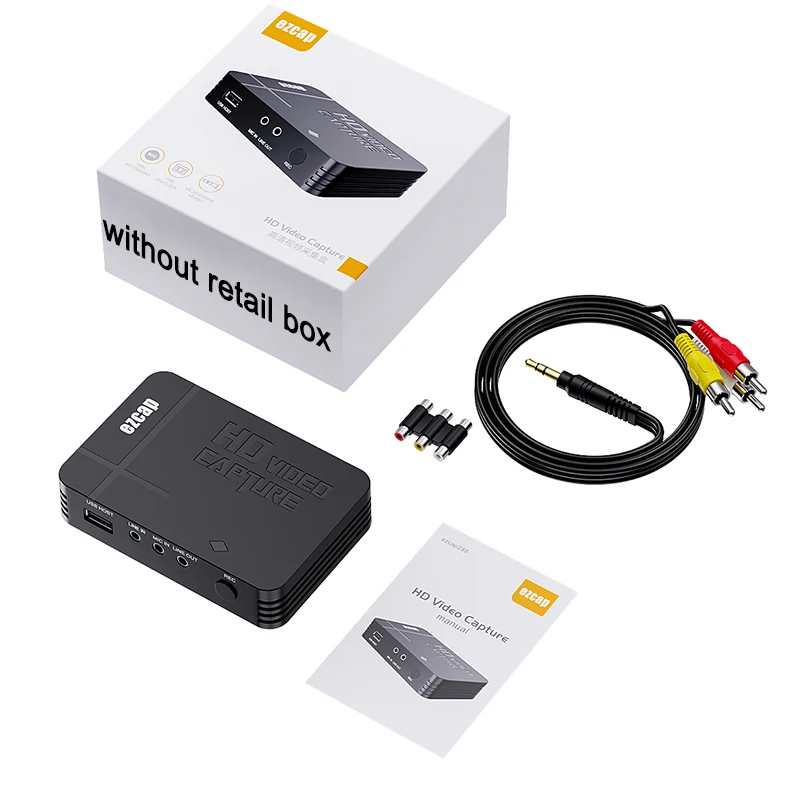

Package Contents:
ezcap288P HD AV Capture Card x1
USB power cable x1
3RCA adapter x1
Manual x1
Without retail box and other accessories,if any need,pls contact us before purchase.

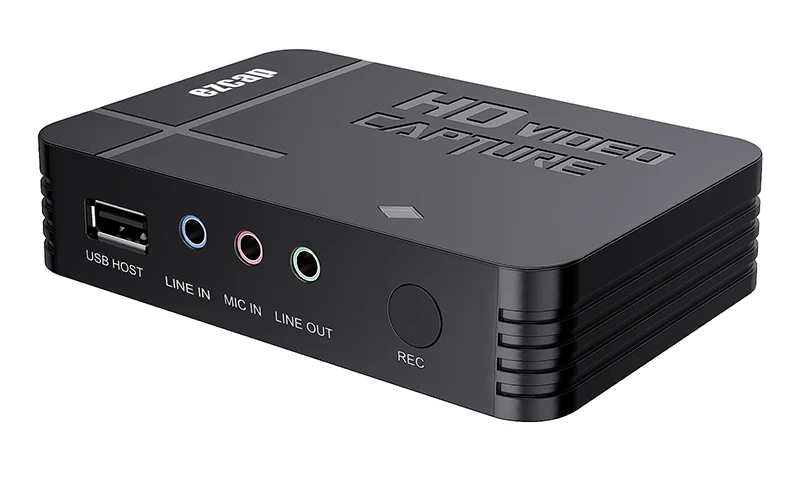

Audio Input and Output
TRS microphone input and line input to mix your sound and mixer with video together for game commentary
or video narration. Connect headphone or speaker to TRS audio line out.

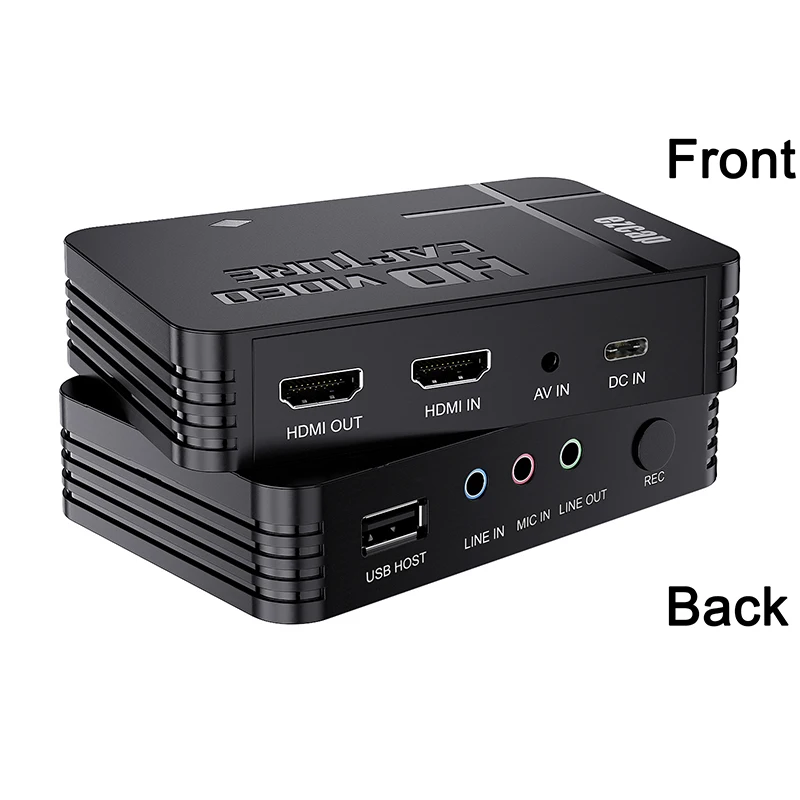

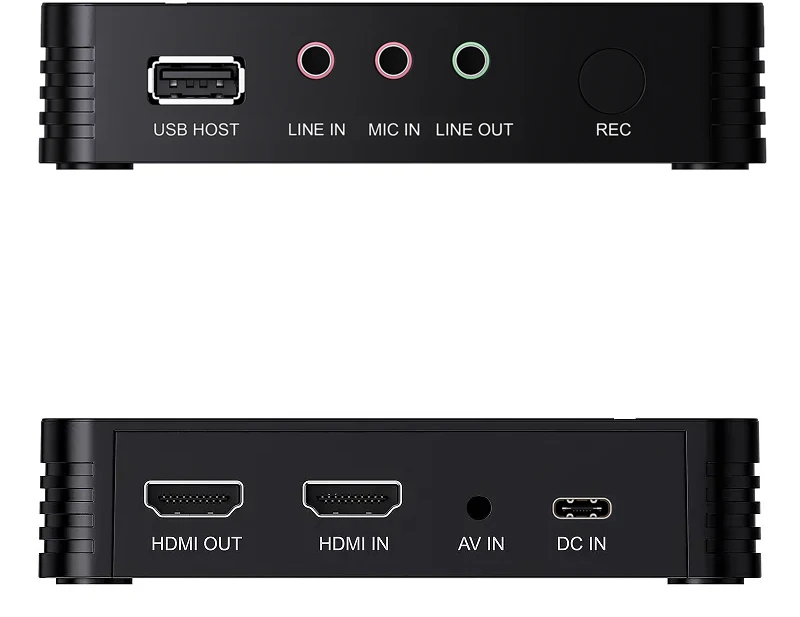

Video Input and Output
HDMI input and HDMI output up to 1080p60 full HD, Analog Composite video - CVBS input with AV adapter cable

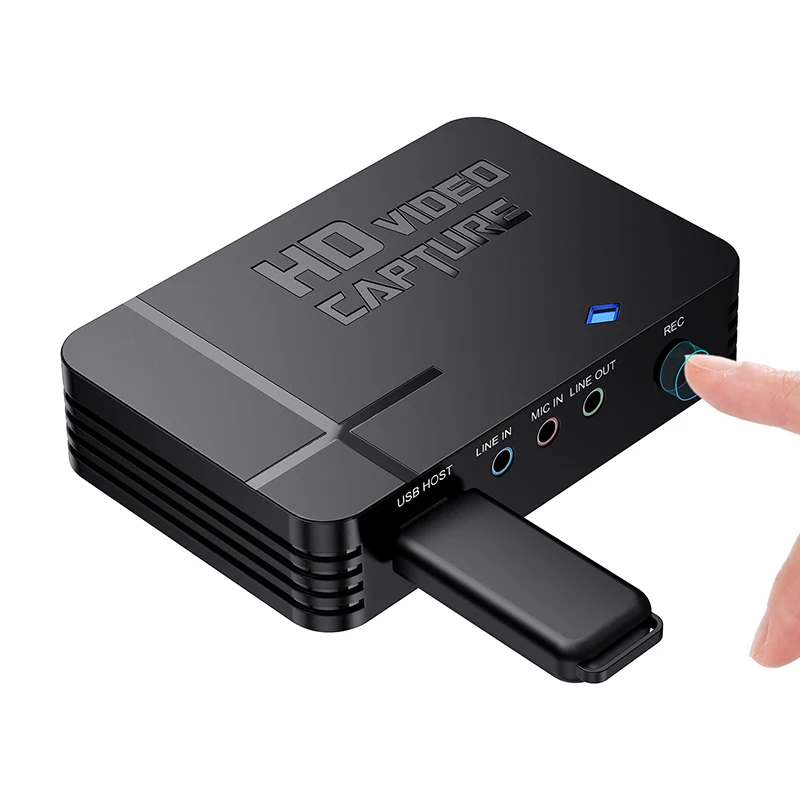

Simple Recording - Only One Click
Connect video source to input, HDMI output to TV, insert USB drive in, power on, then one click to start recording, and click again to save video file in USB drive. No computer, no driver installation, no software, no any settings, only one click, then all is ok.

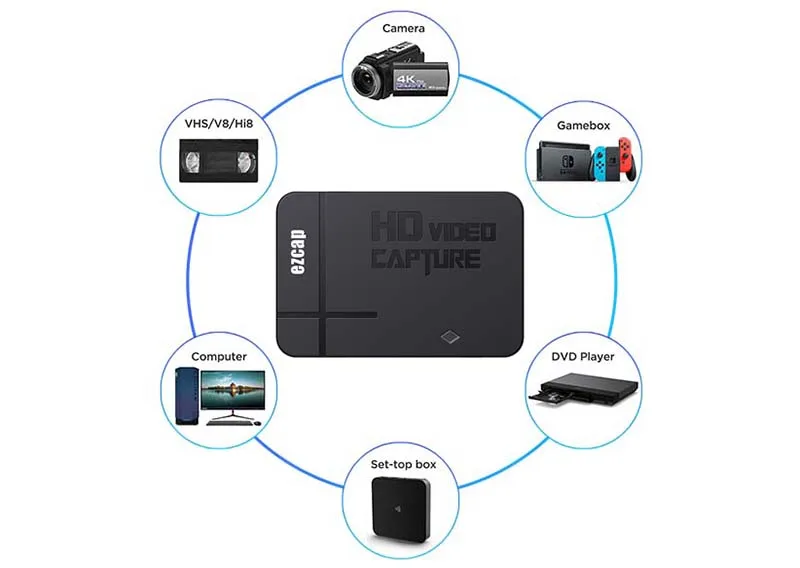

HDMI/Composite Video Input - Supports Various 1080P Devices

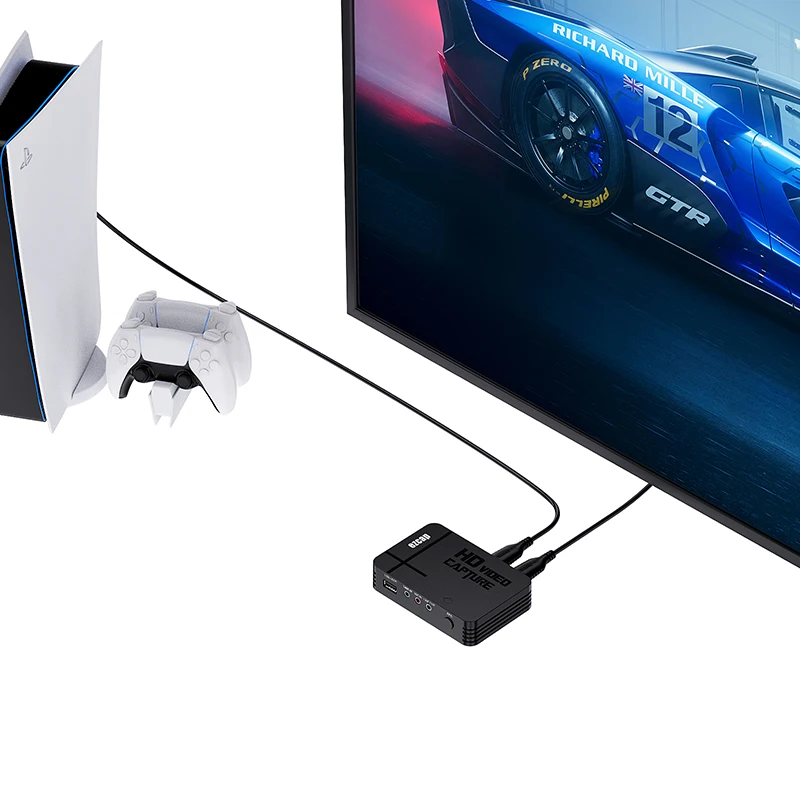

with HDMI local output,you can watch while recording
