Product Description
Battery Tester 100A Battery Load Tester, Car Battery Load Tester 6V 12V with Voltmeter and Alligator Clips
- Battery Test: This handy tool helps you test battery condition and load, check starter motor consumption and complete charging system diagnostics. Ideal for efficient discharging and determining good or bad battery condition.
- Technical specifications: 100 A fixed load current, 100 AMP load test for 12V batteries, 50 AMP load test for 6V batteries. Voltage accuracy is ±0.2V.
- Test method: Copper clip connector with red positive and black negative rubber grips, can easily clip the battery terminals on the test position, test the load on the switch (hold the load for up to 10 seconds) to consume battery current to simulate the starter motor consumption, so accurate and easy to read to determine the battery condition.
- Wide range of uses: The battery load tester is portable and DIY testing of 6 V and 12 V batteries for cars, pickup trucks, SUVs, motorcycles, RVs, boats and beach bikes and other vehicles.

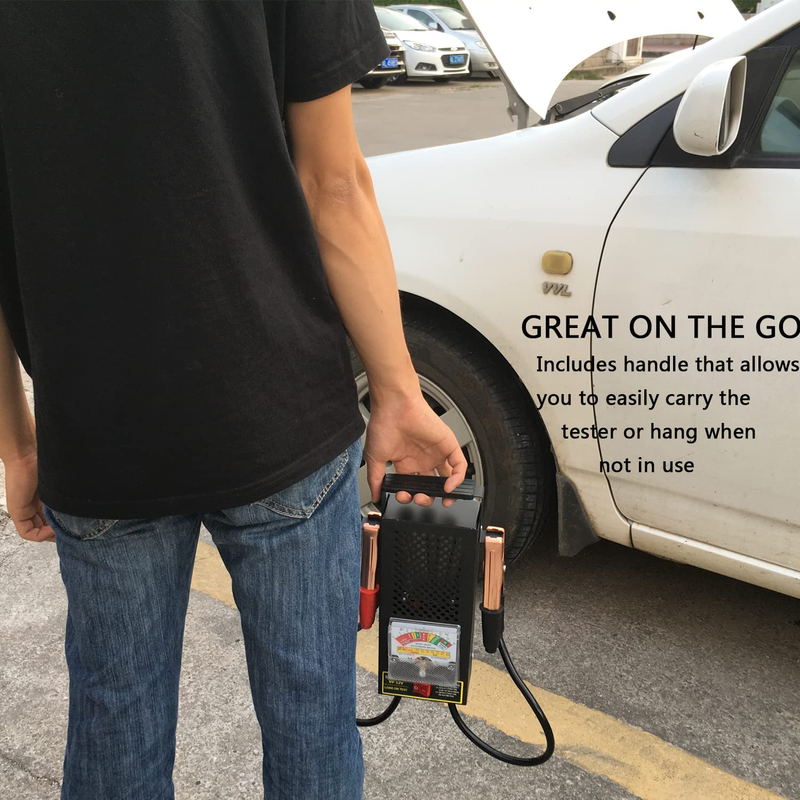

- Safety features: An insulated carry handle on top for safe and comfortable carrying. Copper clip with red positive and black negative rubber grip, can effectively specify the placement of the test clip on the battery terminals, portable and can be quickly operated at home or in the garage, no need to go to the store to read the battery level.
Product Description
Look at the voltage value of the display to determine whether the battery is good or bad
Test DC12V battery:
Good condition: the 12 Volt charging system test is greater than 13V, and the battery is in good condition.
Normal: the 12V charging system test is between 9V-13V, the battery status is normal.
Defective or need to be charged: the 12 Volt charging system test is less than 9V under load, and the battery status is unqualified.
Test DC6V battery:
Good condition: When the display voltage is greater than 7V, it means the battery is in good condition.
Normal: When the display voltage is between 4.6V-7V, it means the battery is normal.
Defective or need to be charged: When the display voltage is low than 4.6V, and the battery status is unqualified.
This battery load tester is to provide with reference advice, these value ranges are not absolute, should depend on the battery situation(Battery usage time and whether is full charged test, etc.) Some batteries that are not fully charged, or used for a longer period of time, will be a little low on voltage under load and it is normal. It is enough for daily use to test battery and determine good or bad battery condition.
Note
When it is used, the coil will be hot and red, due to the protective coating, the first use may have an odor or smoke, this is normal.
Testing the health of the battery, state of charge. This battery tester can test batteries for cars, motorbikes, trucks, RVs, ATVs, SUVs, boats, yachts, lawnmowers, etc.
1. Question: Why has an odor or smoke on first use?
Answer: Don’ t worry about it. When it is used, the coil will be hot and red, due to the protective coating, the first use may have an odor or smoke, this is normal.
2. Question:Are the clamps to be removed and attached directly to the battery posts?
Answer: It is recommended that it can be attached directly to the battery for best results.
3. Question: Will I be able to use it to load test individual lithium cells?
Answer: yes, can try it.
4. Question: The battery voltage is slightly over 13 volts. Is it possible to test it with this device?
Answer: It works. Good batteries usually have a higher open circuit voltage. Most fully charged 12v will show 13v. It's a great small test.
Besides, this battery tester's manual is different from the previous one, it's easier to refer to it for operation.
6V 12V Battery Load Tester Alternator Analyzer Test Preparation
When testing batteries, operate in a well-ventilated area and operators are not allowed to smoke around them and check the battery casing for rupture damage.
Battery Analysis：
See the surface of the pointer in the Green Zone as well, the red zone, yellow zone is weak. Discharge test, read voltage to see negative detail.

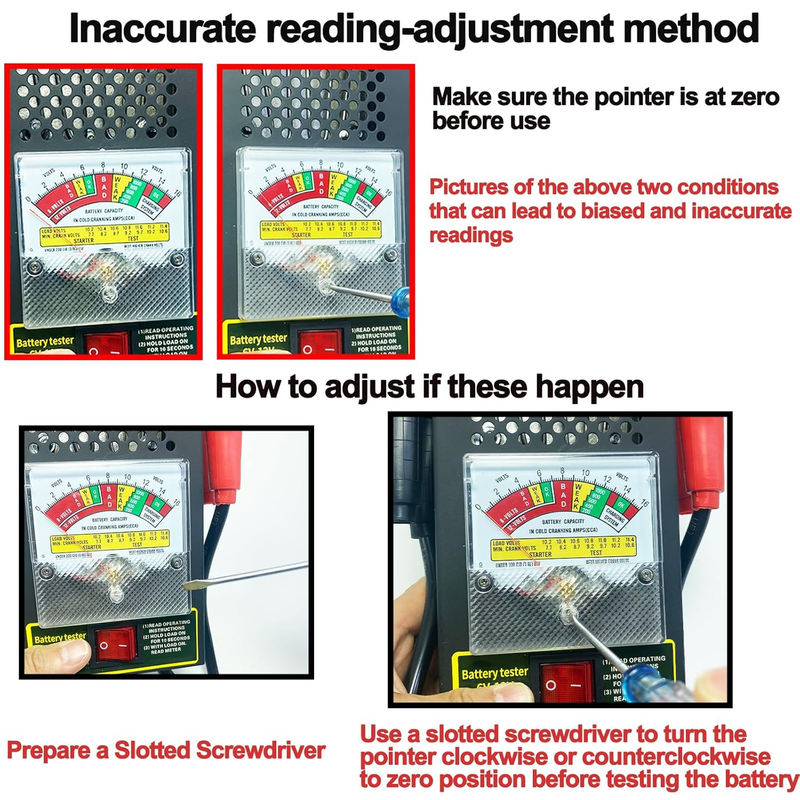

Pointer meter display
Pointer display tables
Battery voltage
stick out a mile
Copper plated alligator clip
Copper plated alligator clip
Spring
Not easy to connect
Regardless of positive and negative poles
Circular cooling hole
Multiple circular cooling holes
Faster heat dissipation
Better detection effect
Rubber body
Rubber housing
Durable and impact resistant
Shielding interference source
More accurate detection
Rubber handle
Rubber handle
Easy to use
Thickened copper wire
Use thickened pure copper wire
Cold resistance and heat resistance
Not easy to age
