Product Description

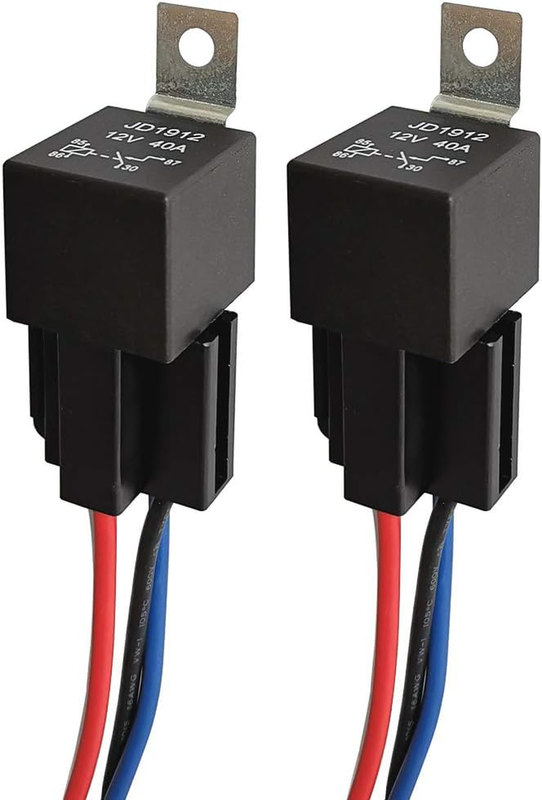

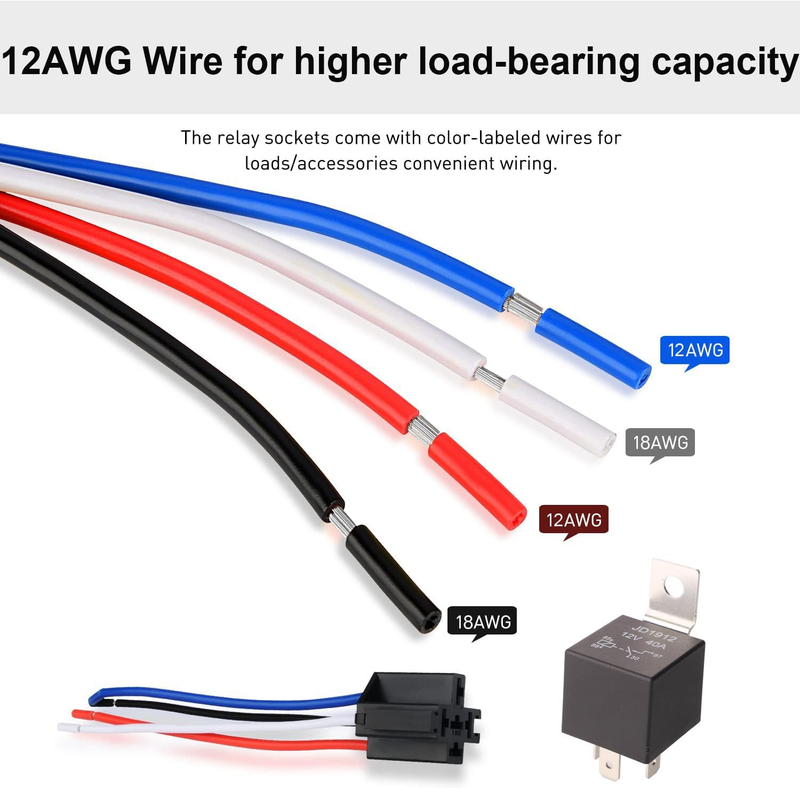

2pcs JD1912 Car Relay Harness 12V 40A 4 Pin SPST 12AWG Harness Sockets with Built-in Diode for Automotive Truck Van Motorcycle Boat
- Integrated Diode: Each relay includes a built-in diode that suppresses induced voltage during switching, safeguarding your electrical components from potential damage.
- Minimum operating voltage 8V, corresponding minimum operating current is 100mA; Standard operating voltage 12V, corresponding standard operating current is 150mA.
- Small size/Low power consumption/High contact voltage/ High sensitivity
- Contact Material: Ag Alloy / Contact Resistance: ≤ 100MΩ
- Life Expectancy Electrical: 100,000 Operation, Life Expectancy Mechanical: 10,000,000 Operation.
Interchangeable/Compatible with:
All automobiles and devices equipped with a 12 Volt DC power source.
Relay technical specification:
Relay load: 40A/12VDC
Contact Resistance: ≤ 100MΩ
Contact Material: Ag Alloy
Life Expectancy Electrical: 100,000 Operation
Life Expectancy Mechanical: 10,000,000 Operationss (at 300 Operations/min)
Coil power:1.8W
Operate Time: ≤15ms
Release Time: ≤10ms
Initial withstand voltage of Contact and Contact: 1000VAC/1min
Initial withstand voltage of Contact and Coil: 1500VAC/1min
Insulation Resistance: 100MΩ/( 500VDC)
Temperature Range: -55°C ~+70°C
Humidity Range:35%-80%
Atmospheric Pressure:86-106KPa
