Product Description

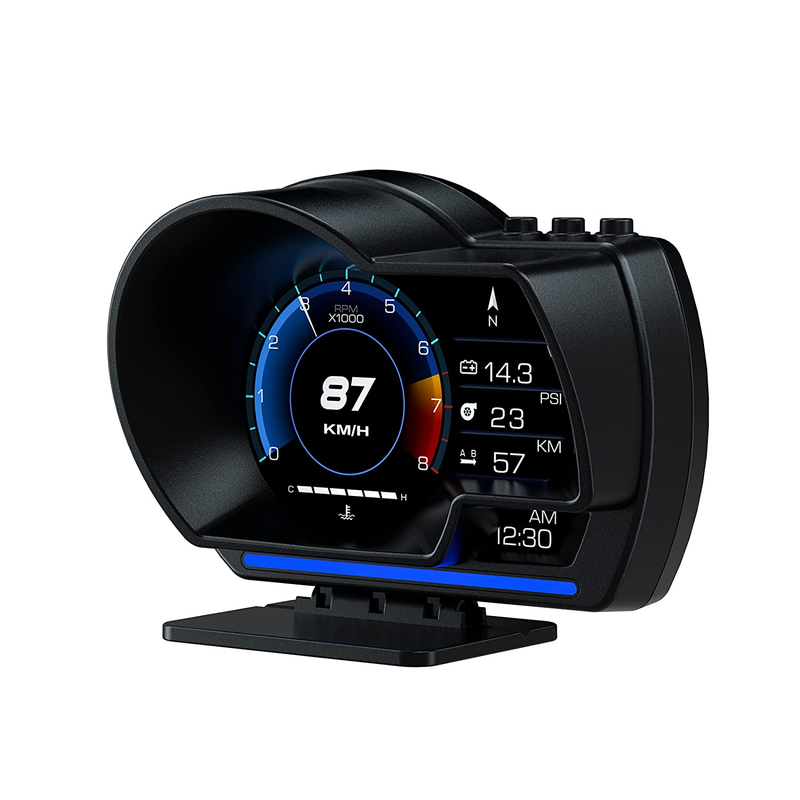

Car HUD Head Up Display P6, OBD+GPS Smart Gauge, Works Great for Most Cars (Black)
- MORE SMOOTH & STABLE---Common meter only has OBD mode, but ours is dual mode: OBD+GPS 2-in-1, and data display is more abundant. OBD system, can read more than 100 kinds of data in the car. If the vehicle doesn't have OBD2 protocol, only displays GPS function.
- SAFE IS THE FIRST---Just focus on your driving, could read speed at a glance with the digital numbers but without having to look down; This unit simply displays directly to you at whatever angle you set it up, no need to make effort to have a look, which may lead to make distractions or even cause accident.
- NEW DRIVING EXPERIENCE---10 kinds interface, free switch, LCD meter, clear fault code, read data stream; 2 install way with adjustable bracket, put on dashboard or stick to windshield, easy operation, non-destructive installation.
- A MUST HAVE---If you don't want your driving record to have points on it or pat hundreds of dollars in speeding tickets; If on a major highway, you really want to know how fast you are going; If your wife get worried and want to see you're not driving so fast as she feels; Or if you would like to solve your problem of never knowing how fast you are going, this speedometer perfectly matches your need.
- DRIVING MORE COMFORTABLE---When driving normally, the ambient light is blue color(automatically adjusts the brightness according to the environment ); when driving abnormally, such as speeding, the ambient light will be changed to Red color for alarming.
Product Description
To customers,
Hi! Thanks for purchasing this wiiyii head up display P6, this product is suitable for all cars.
When you receive the product, please connect the OBD cable to your car's OBD port (OBD port is 7-pin, please check your car's OBD port).
This product is an OBD+GPS dual system, the OBD system is suitable for most gasoline vehicles after 2008, and the GPS system is suitable for all vehicles.
Plug and play, automatically enter the OBD system after the connection is powered on, and you can use the product. If it says "Your car is not compatible with the product", don't worry, you need to switch to a GPS system. Please unplug the power and reconnect, power on (within 5 seconds) and press the '>' button to select the GPS system, your car can still use this product.
Please note that GPS system is a general term for HUD functions, such as vehicle speed, altitude, number of satellites, etc. It is not a navigation function, and this product does not have a navigation function.
More about this product is how to use it, you can contact me through the Amazon platform, we will reply in time, or you can read the FAQ in the manual in detail, thank you!
2 SYSTEM OBD+GPS
- OBD mode function:speed, water temperature, voltage, fuel consumption, rotation speed, single mileage, total mileage, driving time, driving direction, number of stars searched, altitude, time, oil temperature, acceleration test, brake test, clear fault code, read data stream, etc.
- OBD mode alarm: overspeed alarm, speed alarm, water temperature alarm, voltage alarm
- GPS mode function : vehicle speed voltage satellite time altitude number of satellites driving direction single mileage driving time acceleration test brake test.
- GPS mode alarm: overspeed alarm, low voltage alarm
OBD system incompatibility:
- Not compatible with automotive protocols: JOBD and OBDI
- Incompatible car types: hybrid electric vehicle, diesel car, pickup truck, RV, computer modified car
- Incompatible car brands: Renault / Peugeot /Citroen /Fiat /DS /Lamborghini /Jeep /SIMCA /Suzuki
PLEASE NOTICE:
- This product just available for cars with OBD2 agreement and EU-OBD agreement(European region: after 03 years, Other region: after 07 years).
- If you are not sure, please consult the merchant, Contact information available on our seller page. We will reply in time.
Thank you for purchasing ourproduct，this product reads the driving data of the car through the OBD2 interface of the car ECU line computer, such as vehicle speed,RPM, fuel consumption, water temperature and voltage, etc. To keep the driver eyes always on road to avoid the dangerous of lowering down head to read the dashboard.
- This product does not rewrite any data in the ECU.
Multi-function trip computer
1.size:3.4inx4.2in
2.Key Description:
“ key “OK” key “>” key Time Display Atmosphere Light Bracket
90% of cars in 2009-2021 can use OBD2 system
Please use GPS system for cars before 2008
Please use GPS system for all signs, all Lada series, hybrid cars, electric cars, trucks, vans, and buses
3.Accessories description:
- P6-HUD
- Rotary suction cup bracket
- Manual
- OBD cable
- 3M tape
- Crowbar
Interface 1
Interface 2
Interface 3
Interface 4
Interface 5
Interface 6
Interface 7
Interface 8

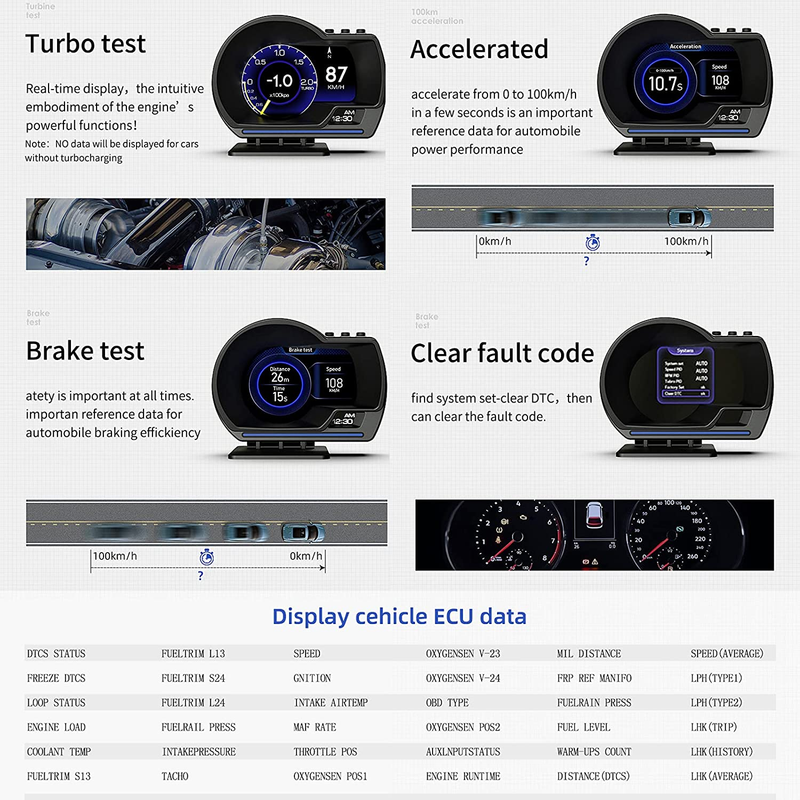

Turbo test
Real-time display, the intuitive embodiment of the engine's powerful functions!
Note: NO date will be dispalyed for cars without turbocharging
Brake test
atety is important at all times. importan referencr data for automobile braking effickiency
Clear fault code
find system set-clear DTC, then can clear the fauit code.
Accelerated
accelerate from 0 to 100km/h in a few seconds is an important referece data for automobile power performance
OBD2 FAQs:
1.display on the screen, no power
Check whether the OBD line is tight, pull it down and plug it repeatedly several times. If the recommended test, the OBD diagnosis interface is broken. If the OBD diagnosis is bad, it is recommended to repair the OBD interface and connect the machine again.
2. Power ized, but only the screen, automatically off after 30 seconds
This product is the only only available for OBDII and EOBD in OBD2 mode. Year of vehicle production (08 years after, OBDII and EOBD were started). OBD I and JOBD are not supported in this product OBD2 mode
Switch to GPS system (press> to select GPS system)
3. There is an error between the vehicle speed and the instrument panel display
Check the correct km KM / mile MPH (speed unit switching reference settings)
After the normal display, press 'OK' for 2 seconds to enter the system setting, press '>' to switch to the system Settings, select "speed error adjustment" for fine-tuning (such as the instrument shows 100 Km/h equipment shows 105 Km/h, and dial the parameter value to 102).
4. Unable to shut down
After the car stops off, the machine cannot be turned down. Select "Shutdown voltage Settings" to 13.2V or 13.6V, and the car will automatically shut down for 3 minutes.
The GPS displays the FAQs:
1. Enter the GPS system
Press '>' button within 5 seconds to select the GPS system, short press M to confirm, and automatically enter the last use system after 5 seconds without operation
2.No speed
After power on, GPS is the star search state, please move the car to the open road, GPS shows above 5 means that more than 5 satellites can be used normally
If you still want to know more about the details of the product, please consult us through the Amazon platform, we will answer within 24 hours, Contact information available on our seller page.thank you!
