Product Description

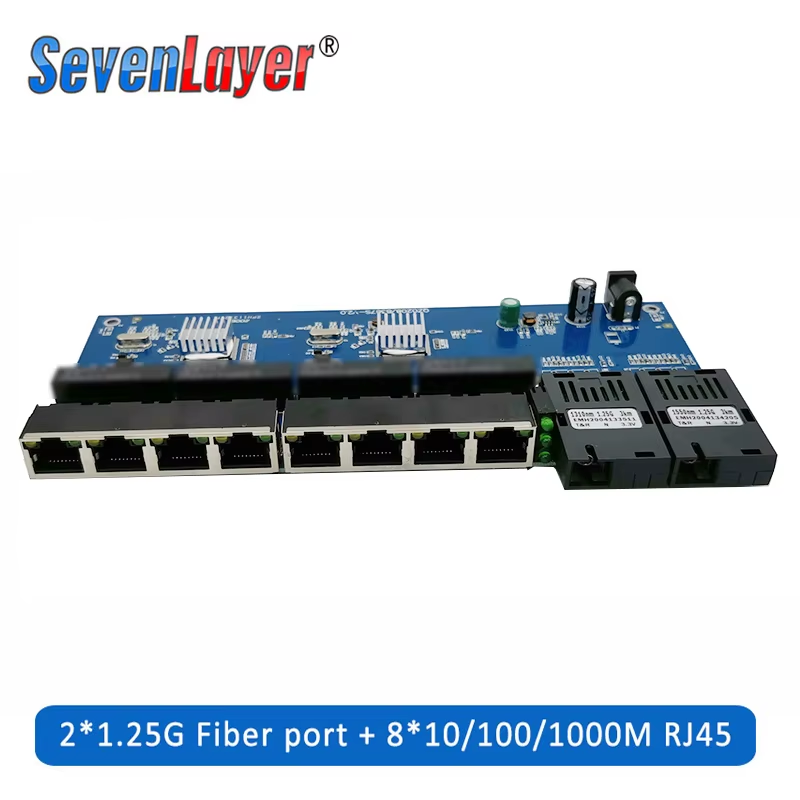

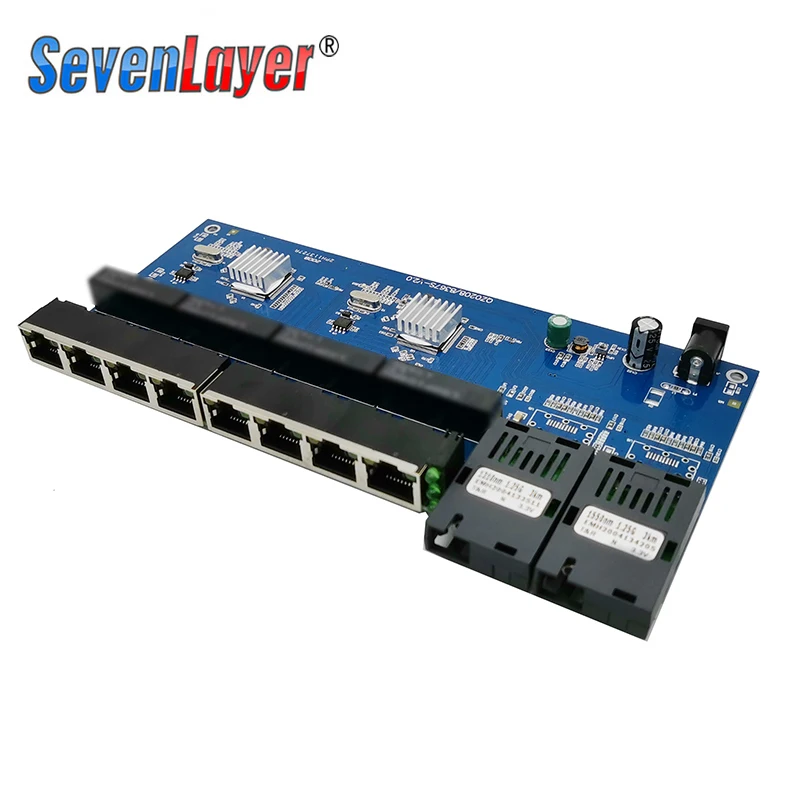

10/100/1000M Gigabit Ethernet switch Fiber Optical Media Converter PCBA 8 RJ45 UTP and 2 SC fiber Port Board PCB

10/100/1000M Gigabit Ethernet switch Fiber Optical Media Converter PCBA 8 RJ45 UTP and 2 SC fiber Port Board PCBplease note:

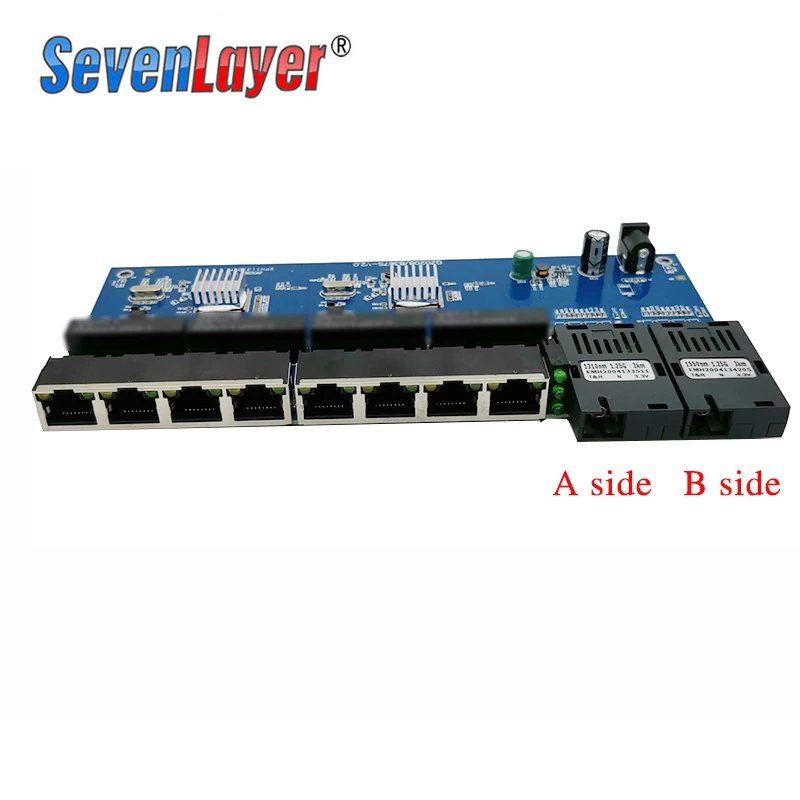

Default with 1pcs 1310nm A side Fiber module and 1pcs 1550nmB side, 2pcs 1550nm B Side or 2pcs 1310nm A side can be provided as request.Two kinds of boards are shipped randomly

10/100/1000M Gigabit Ethernet switch Fiber Optical Media Converter PCBA 8 RJ45 U

Gigabit Ethernet Switch 2G8FE Series Fiber SwitchThe Gigabit 2G8FE is an Ethernet Fiber Switch which is specially designed for network monitoring. Ithas eight 10/100/1000Mbps Ethernet ports and two 1.25Gbps fiber ports. It adopts Marvell chips to ensurelow power consumption and high stability. It extends the transmission distance of a network from100m to 120km via copper cables. It can extend the transmission distance; there are also many otheradvantages such as isolation protection, good data security, working stability and easy maintenance.Main Features:1.Support the switch between 10/100/1000Base-TX and 1000Base-SX/LX2.2*1.25Gbps full-duplex fiber ports and 8*1000M Ethernet ports with auto-negotiation function3.Support 1000M speed rate, MDI/MDIX and half/full-duplex with auto-negotiation function4.Each port has the complete LED Indicator light5.Support single mode single fiber,single mode dual fiber ,multi-mode dual fiber and SFP slot6.Support IEEE802.1d Spanning Tree7.Support high performance QoS function on each port8.Support 5-16V voltage input9.Support IEEE 802.3x flow control and back pressure control10.Require no configuration and will instantly operate as soon as you power it up11.Low power consumption chip with heat sink built in to ensure longtime efficient operation

Specifications:

Standards	IEEE802.3 10Base-T IEEE802.3u 100Base-TX/FX IEEE802.3z 1000Base-SX/LX IEEE802.3x Flow control IEEE802.1p QoS IEEE802.1d Spanning Tree
Ethernet Port	Connector: RJ45 Data Rate: 10/100M/1000M Distance: 100m UTP Type: UTP-5E or higher level
Fiber Port	Connector: SC/FC/ST/SFP slot Data Rate: 1.25Gbps Optical Wavelength: 850nm/1310nm/1490nm/1550nm Distance: 550m～120km
Performance	Processing Type: Store and Forward MAC Table Size: 8K Buffer Space: 1Mbit Jumbo Packet: 1518 bytes Back bandwidth: 5.6G Time Delay: ＜150μs
Power	Power type: external power supply Input Voltage: AC100V～240V 50/60Hz Connector: DC Socket Working Voltage: 12V Power Consumption: 2.2W～3.5W
Transmissin Distance	Twisted Pair: 100m (CAT5e, CAT6 cables) Muti-mode: 2km Single-mode: 20/40/60/80/100km
MTBF	100, 000 hours
Warranty	1 year
Environment	Storage Temperature: -40～70℃ Operating Temperature: -10～55℃ Relative Humidity: 5-90% ( no condensation)
Mechanical Structures	Dimension: 215×107×26mm Weight: 0.15 PCB main board
OEM&ODM	Supportive
