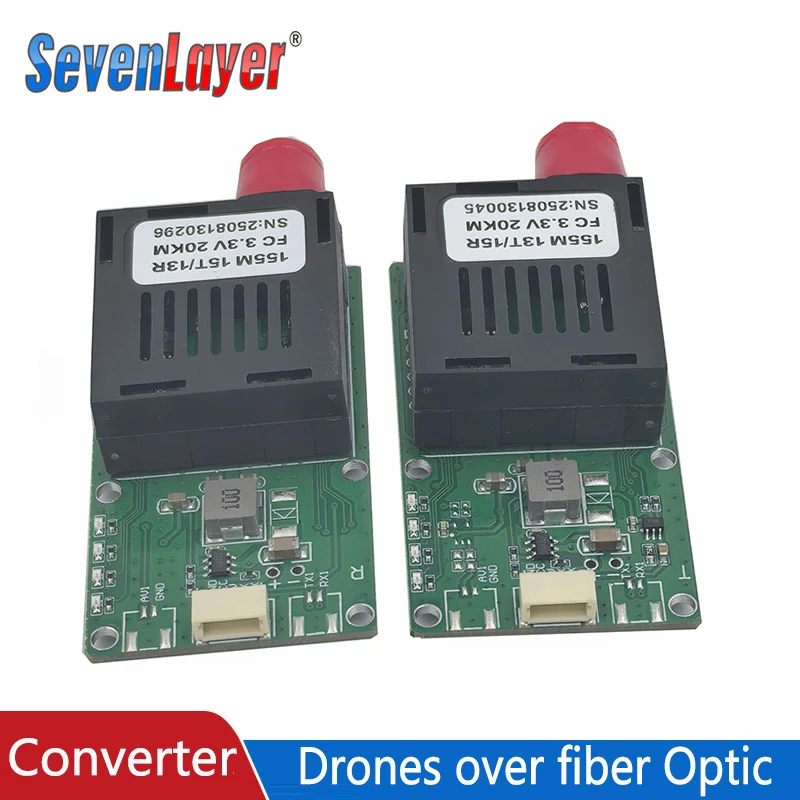

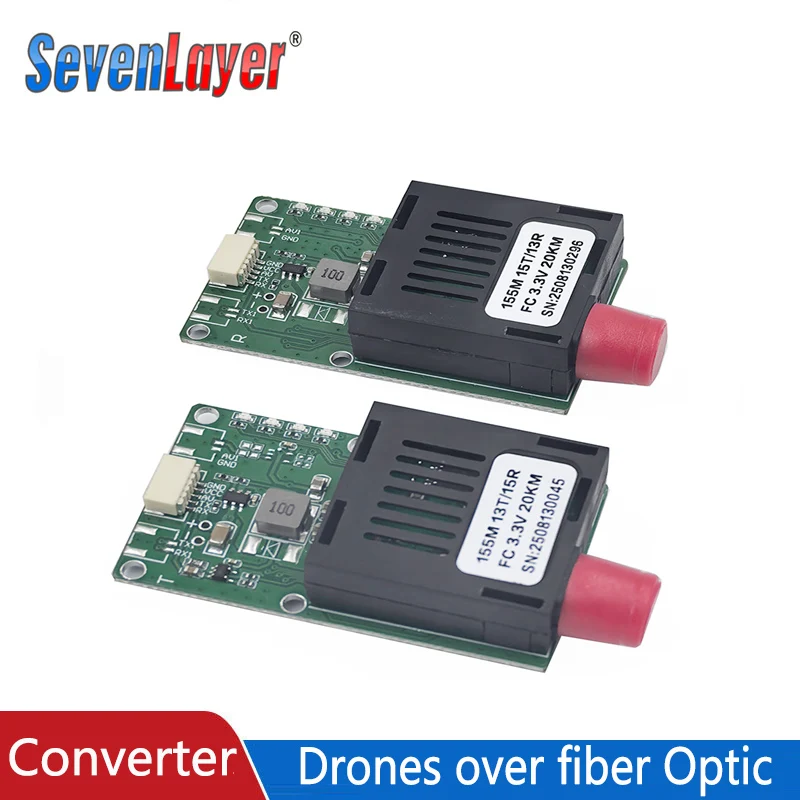

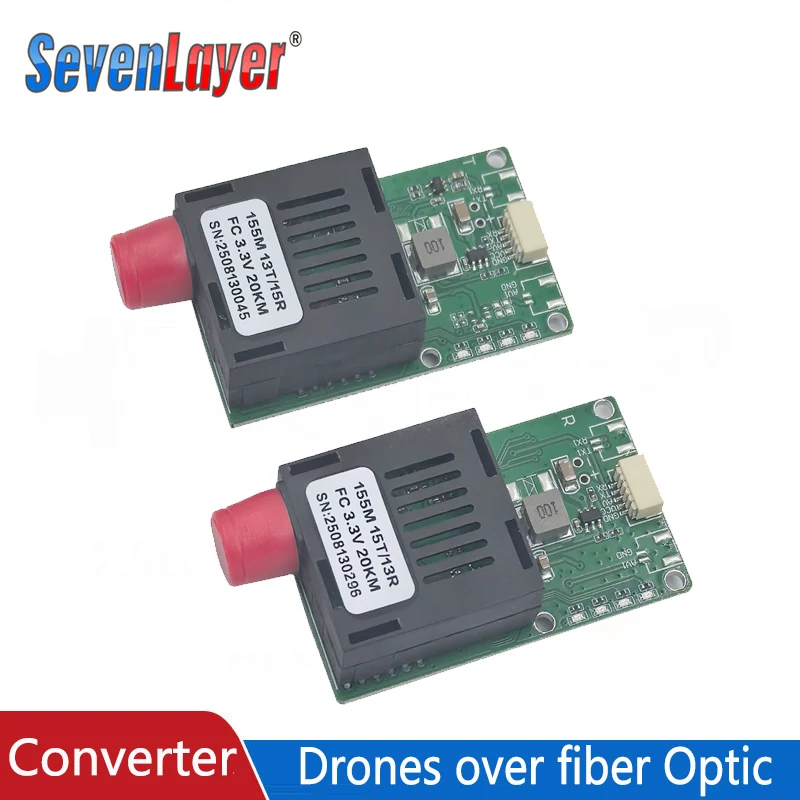

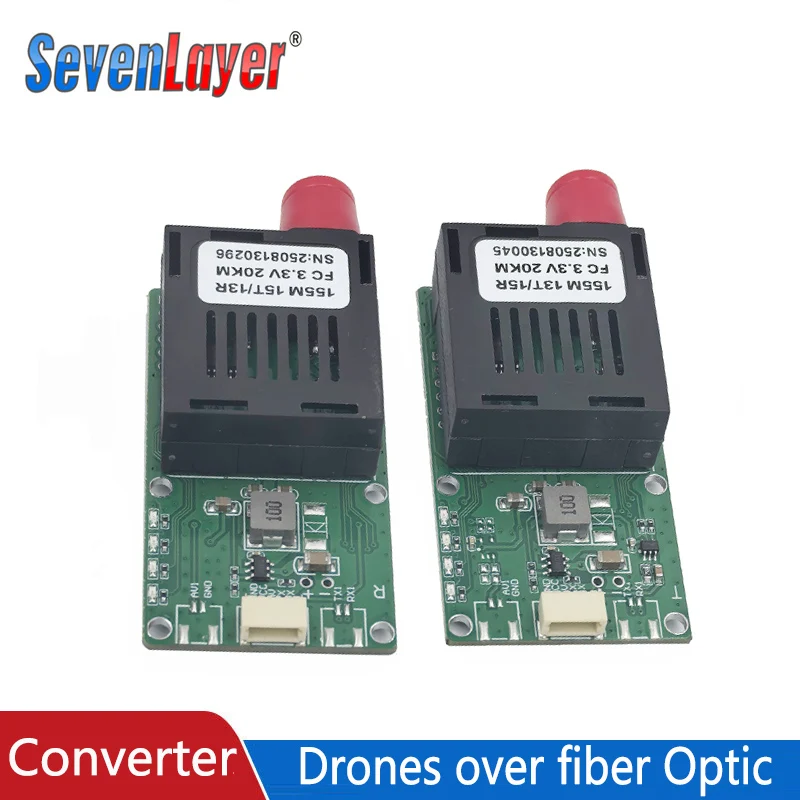

Analog Video TTL over Fiber optic Optical fiber transmitters dedicated to drones

Product Description

Feature:

1. This video over fiber system is used to send cvbs analog Video signals to remote display devices, Using a single FC/FC Fiber Optic cable.

2. Long Transmission distance, singlemode fiber 0~20Km, and compatible with multimode fiber 0~300 meters

3. Support camera type: cvbs analog camera.

4. Video format compatible for PAL, NTSC, SECAM

5. Mean Time between failures, More than 100,000 hours

6. Plug and play, no need to set up.

Purpose:

The main purpose is to convert video signals into optical signals and transmit them through optical fibers. It can encode and convert the collected images or video signals into optoelectronic signals, transmit them to a remote decoder through optical fibers, and then present high-definition video images after decoding and processing

Widely used in various scenarios that require long-distance, high-quality video transmission, such as telecommunications, power, monitoring, industrial control, and other fields

Application environment

1.Broadcasting and television

2.Surveillance system

3.Distance education,support remote interactive teaching and real-time video communication

4.Industrial control and More

Optical index:

Optical Interface : FC

Optical wavelength 1310nm /1550nm

Fiber optic: Single-mode (9/125μm), Multimode 50/125um ,62.5/125μm

Applicable fiber optic: singlemode, and compatible with multimode fiber.

Transmission distance: single-mode fiber 0-20KM, Multi mode fiber 0~200meters

Video Index:

Video : 1 channel

Video Interface: BNC

Video Input / Output Impedance : 75ohm ( unbalanced ) ;

Video Bandwidth 100MHz;

Video format compatible PAL, NTSC, SECAM;

The sender input level: > 500mVp-p

The receiver output level: 1Vp-p

Input and output impedance: 75 ohm

The receiver rise and fall times:<0.8ns

The receiver maximum jitter:<0.2 UI

TTL speed:Up to 460.8Kb/s, backward compatible with 420Kb/s, 230.4Kb/s,115.2Kb/s and more

Product weight:about 25g/pcs

Package Include:

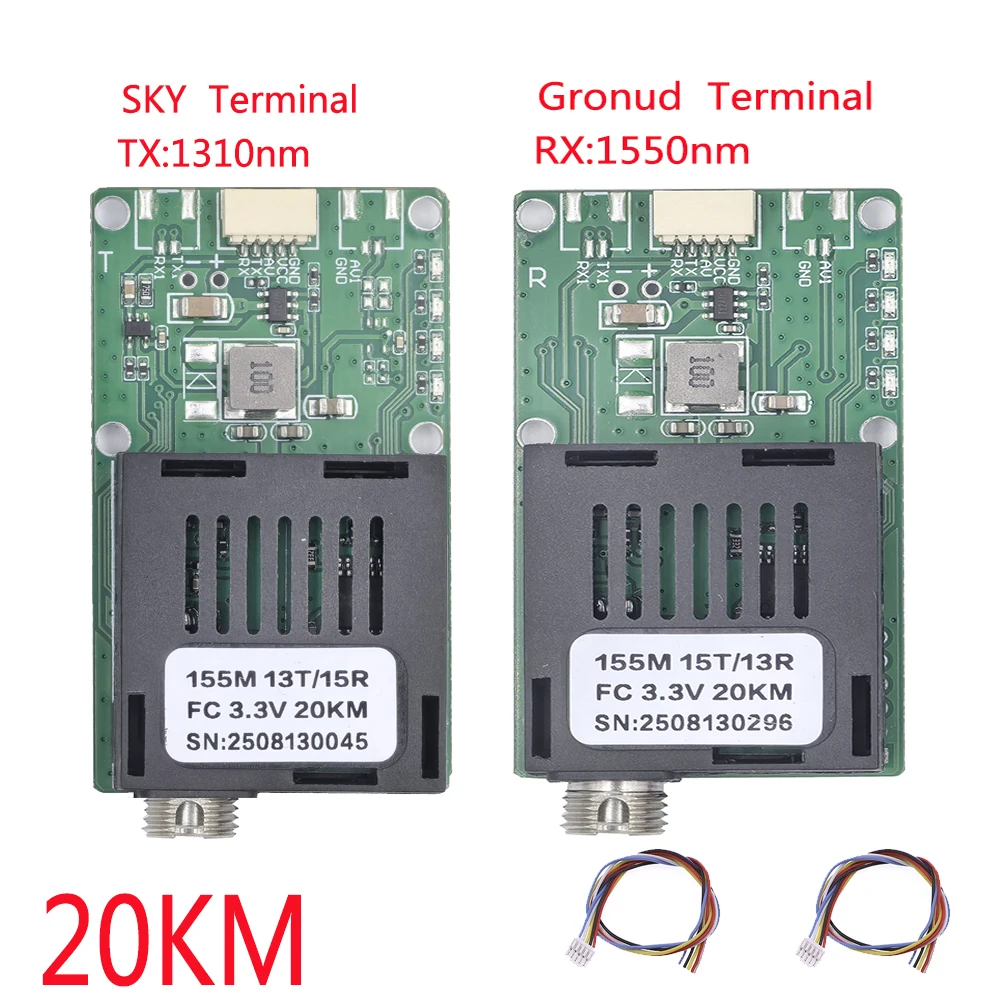

1 x TX PC Board

1 x RX PC Board
