Product Description

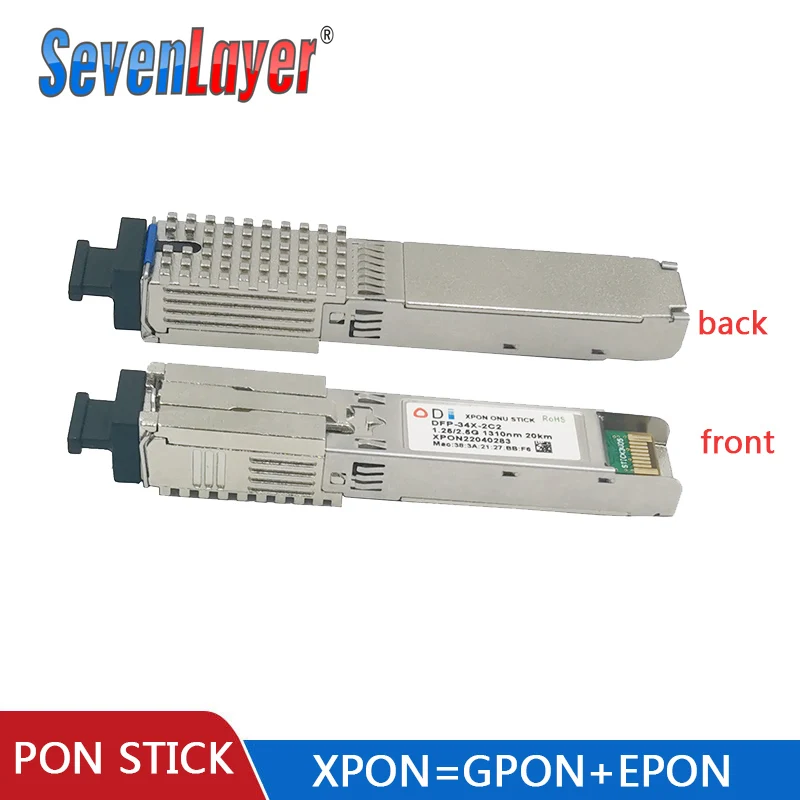

PON STICK EPON GPON XPON SFP ONU Stick With MAC SC Connector pon module HGU 1490/1330nm PPPoE IPoE 1.25Gbps 802.3ah
PON STICK EPON GPON XPON SFP ONU Stick With MAC SC Connector pon module HGU 1490/1330nm PPPoE IPoE 1.25Gbps 802.3ah1GE ONT software version is SFU default,You dont need to do any configuration via ont web.Support port mode of VLAN configuration and u could configure port vlan of ont via olt.After reset ont,there is no wan connection.

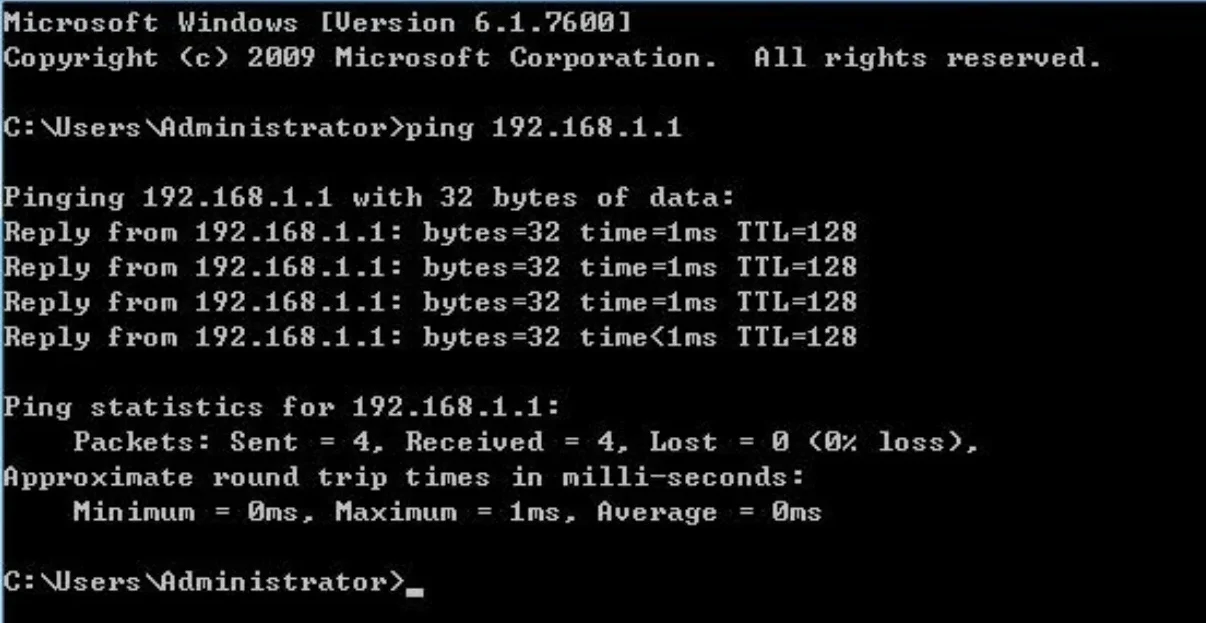

1. Prepare for login the ONT webmanagementBefore you login the ONT,You should confirm the connect between the ONT and your PC is normal.And stick module is connected the OLT equipment by fiber.Step 1Configuring the IP address of your PC to 192.168.1.x(2~254) subnet mask is 255.255.255.0Step 2Ping IP address of the ONT (Default address is 192.168.1.1).If the PC can get right reply from Ping command,it is mean the connecting between the PC and ONT is normal.
Note：Please don’t power off the ONT in the process of manage the ONT by the WEB interface.
2 Login ONT
Step 1Open the explore browser and input the IP address:1. (ONT defaultIP)
Step 2You need the user name and password for login.The default username and password are on the label of the ONT bottom.Default administrator user name and password is “admin” and “admin”
After you login the ONT as the administrator,you can check,configure and change the configuration of the ONT.Some of configuring and changing will take effect only after restart the ONT.
Login success,a “Device Status” windows will show as bellow.

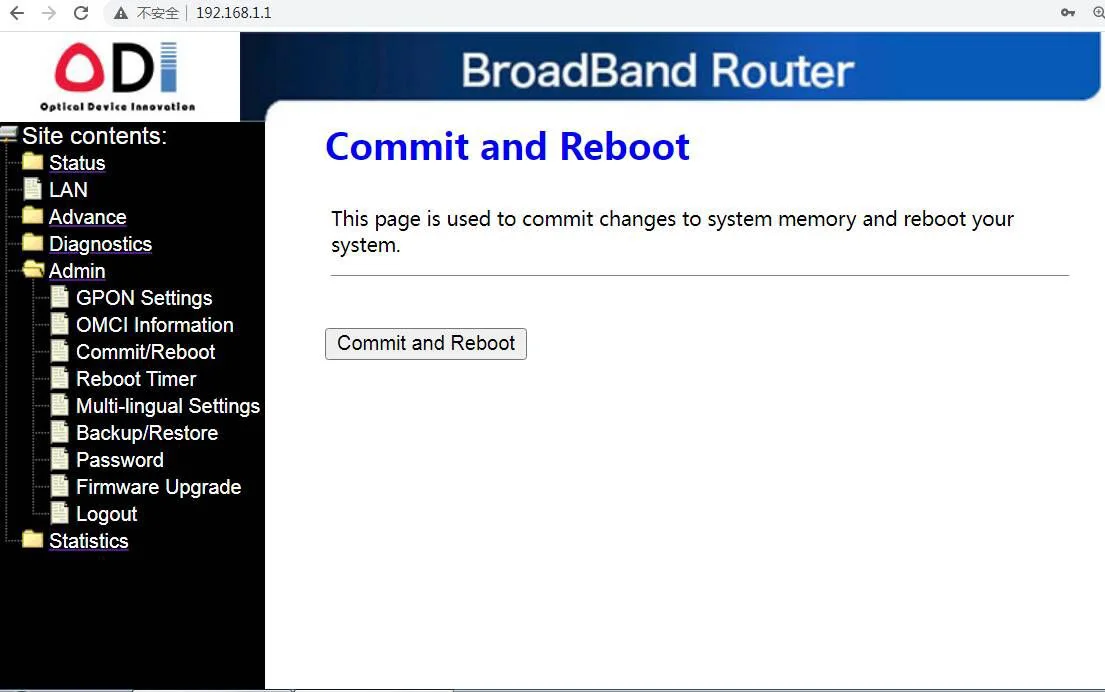

Click Apply to apply the configuration
Note: Suggest you use the Chrome Internet Explorer to avoid display problem.
You can modify:
1.MAC address via LLID index 0 after inserting EPON optical fiber
2.GPON SN via Serial Number after inserting GPON optical fiber
3.PLOAM password/LOID/LOID password after inserting GPON optical fiber
Once reset , these settings will be restore to default
There is another way to modify via commands in telnet:
1.enable telnet service in windows system
2.telnet 192.168.1.1
3.login account: admin/admin
4.flash set ELAN_MAC_ADDR XXXX //Modify MAC address
flash set GPON_SN XXXX //Modify GPON SN
flash set LOID XXXX
flash set LOID_OLD XXXX //Modify Loid
flash set LOID_PASSWD XXXX
flash set LOID_PASSWD_OLD XXXX //Modify Loid password
flash set GPON_PLOAM_PASSWD XXXX //Modify ploam
flash default cs //reset
reboot
4 LANConfiguration
In the navigation tree on the left,choose Advanced Setup>LAN Port Work Mode.In the pane on the right,determine whether the LAN port worksmode.
More configuration references
PON stick ：https://youtu.be/ufzR8e4mubg?si=MIGPi23Pt-yx1dKk
https://www.ozon.ru/product/ftth-gpon-onu-sfp-stick-modul-gpon-epon-ddm-most-volokonno-opticheskiy-priemoperedatchik-1034522105/?reviewsVariantMode=1&sh=6UIUQZLPqQ&start_page_id=ee99006bd703a824674a538b1c651d8a

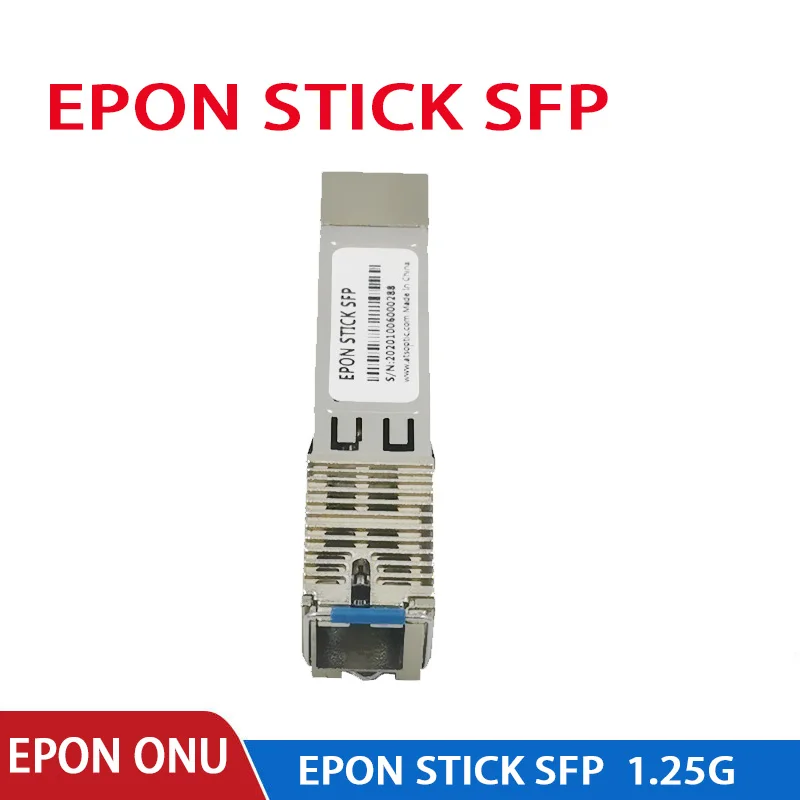

EPON/GPON SFP ONU Stick With MAC SC Connector DDM pon module
EPON=EPON1.25Gbps GPON=GPON 2.5G XPON=XPON 1.25G/2.5G
application with EPON MAC
function.
• SC/UPC receptacle SFP with EPON ONU MAC inside, "Plug-and-play" via auto-discovery and configuration
• 1310nm DFB burst mode transmitter, 1490nm TIA continuous mode receiver
• Single 3.3V power supply
• Digital diagnostic monitor interface compatible with SFF-8472
• SFP MSA compliance
• Low EMI and excellent ESD protection
• Class I laser safety standard IEC-60825 compliant
• RoHS compliance
• EPON ONU compatible
• Complies with SFP Multi-Source Agreement (MSA) SFF-8074i
• Complies with ITUT-T G.984.2, G.984.2 Amendment 1
• Complies with ITUT G.988 ONU management and control interface (OMCI) specification
Main parameters and technical indicators
The main parameters of the xPON network are as follows:
● Multi-service support capability: Full-service (including ATM, Ethernet, TDM) support capabilities with strict QoS guarantees, optimized for services, and support for downlink cable TV transmission through WDM;
● Automatic identification and management of EPON access cards;
● Support branching capability of 1:32;
● Transmission distance is not more than 20 kilometers;
● The uplink and downlink symmetric line rate is 1.244Gbit/s. It supports port traffic statistics.
● Support dynamic and static bandwidth allocation.
● Support multicast and multicast functions
The main technical indicators of xPON network:
(1) System capacity: The system has a large-capacity IP switching core (30G) to provide 10G Ethernet network interfaces, and each OLT can support 36 PON networks.
(2) Multi-service interface: Support TDM, ATM, Ethernet, CATV, and provide strict QoS guarantee, which can fully cover existing services. Really support the smooth upgrade of the business.
(3) High reliability and availability requirements of the system: The system provides an optional 1+1 protection switching mechanism to fully meet the network reliability requirements of the telecommunication network, and the switching time is less than 50ms.
(4) Network range: configurable 10,20Km network path, fully meet the requirements of the access network.
(5) Unified system management software platform: a unified network management platform for different access methods
