Product Description

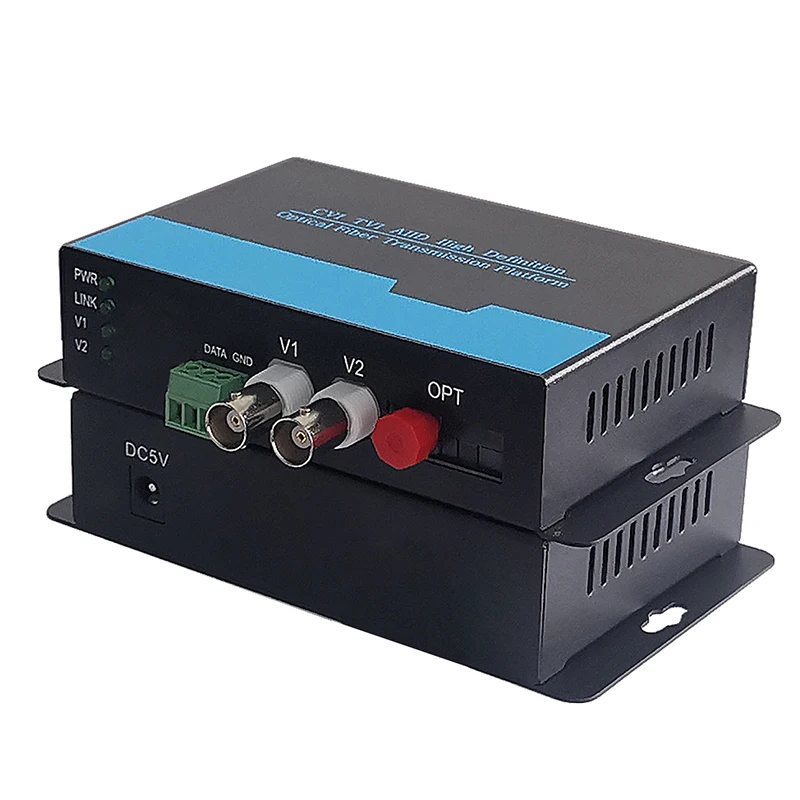

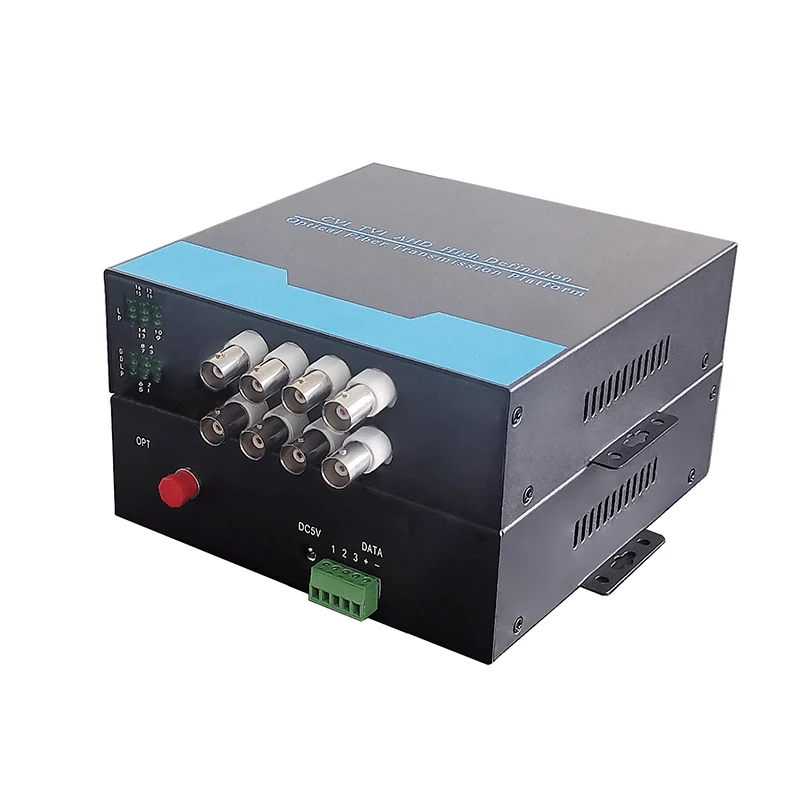

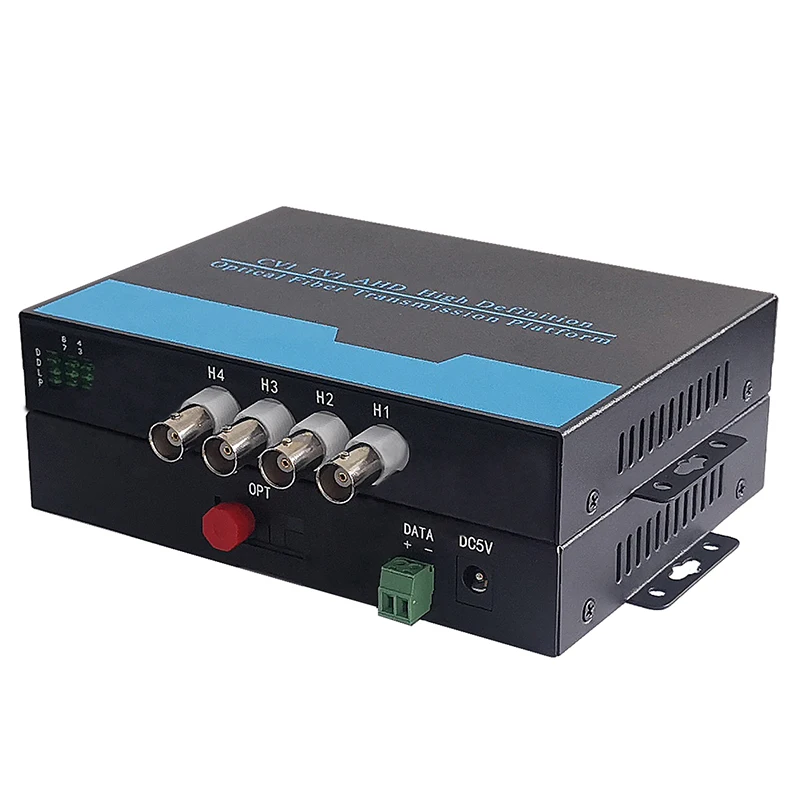

CVI TVI AHD Video optical transceiver CCTV System1CH 2CH 4CH 8CH 1080P coaxial HD fiber optic converter
CVI TVI AHD Video optical transceiver CCTV System1CH 2CH 4CH 8CH 1080P coaxial HD fiber optic converter
4ch,8ch TIV optical transceiver 720P1080Px2pcs (pure video)
Note: This product is mandatory for use.
Product size:
Product weight: 1-1.5KG / pair
Product type desktop
Support camera: support 2 million /720P/ 1080P Dahua CVI / AHD Haikang TVI coaxial camera
Video format: 1080p/25 1080P / 30 1080P/50 1080P / 60
Video interface BCN connector
Number of video interfaces: 1-8
Sampling: 15MHZ
Video bandwidth: 60M
Video bit width: 15bit
Differential gain: 10--90- APL DG-1- (typical)
Differential phase: 10--90- APL DP-1- (typical)
Video signal to noise ratio: S/N-70DB (when optical link loss occurs)
Video input impedance; 75Ω (unbalanced)
Video input / output voltage: typical 1Vpp (peak-to-peak) 1.2Vpp
Cable type: single multimode cable
Fiber interface: FC interface(SC optional)
Transmission distance: single mode transmission 20KM multimode transmission 300 meters
Working wavelength: 1310dB/1550dB
Ambient temperature: -45°C～-85°C
Storage temperature: -50 ° C - -95 ° C
AC power supply: AC 90-220V
Equipment working voltage: DC 5V
Lightning protection: automatic lightning protection circuit please make grounding
