Product Description
VSOL 2.5Gb XPON ONT V2801Q EPON GPON ONU SC Connector pon module HGU PPPoE IPoE 802.3ah gigabit OLT
VSOL 2.5Gb XPON ONT V2801Q EPON GPON ONU SC Connector pon module HGU PPPoE IPoE 802.3ah gigabit OLTSuperuser:admin Password:stdONUi0i
○Hardware Parameter | |

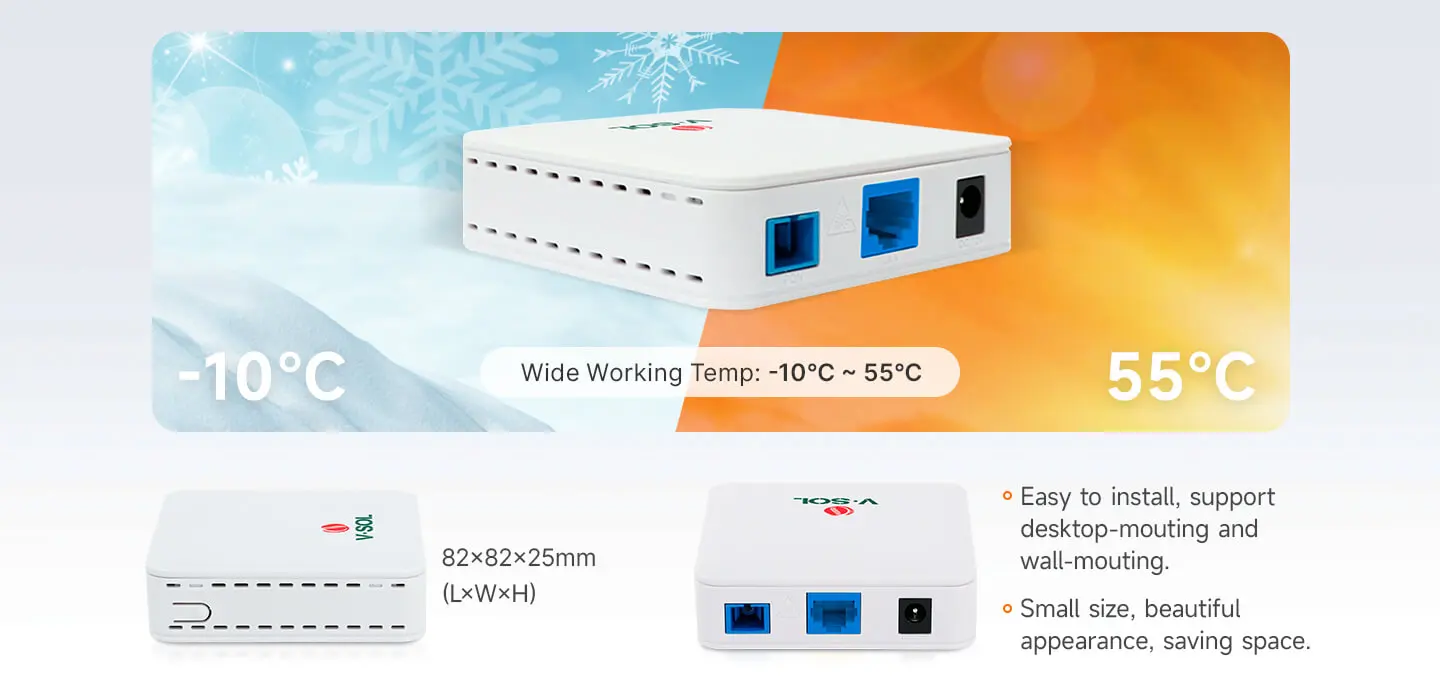

Dimension | 82mm×82mm×25mm(L×W×H) |
Net weight | NA |
Operating condition | Operating temp: -10 ~ +55°C Operating humidity: 5 ~ 95% (non-condensing) |
Storing condition | Storing temp: -40 ~ +70°C Storing humidity: 5~ 95% (non-condensing) |
Power adapter | DC 12V, 0.5A, external AC-DC power adaptor |
Power supply | ≤4W |
Interfaces | 2.5GbE |
Indicators | SYS, LINK/ACT, REG |
○Interface parameter | |
PON interface | 1 XPON port(EPON PX20+ & GPON Class B+) SC single mode, SC/UPC connector TX optical power: 0～+4dBm RX sensitivity: -27dBm Overload optical power: -3dBm(EPON) or -8dBm(GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX1490nm |

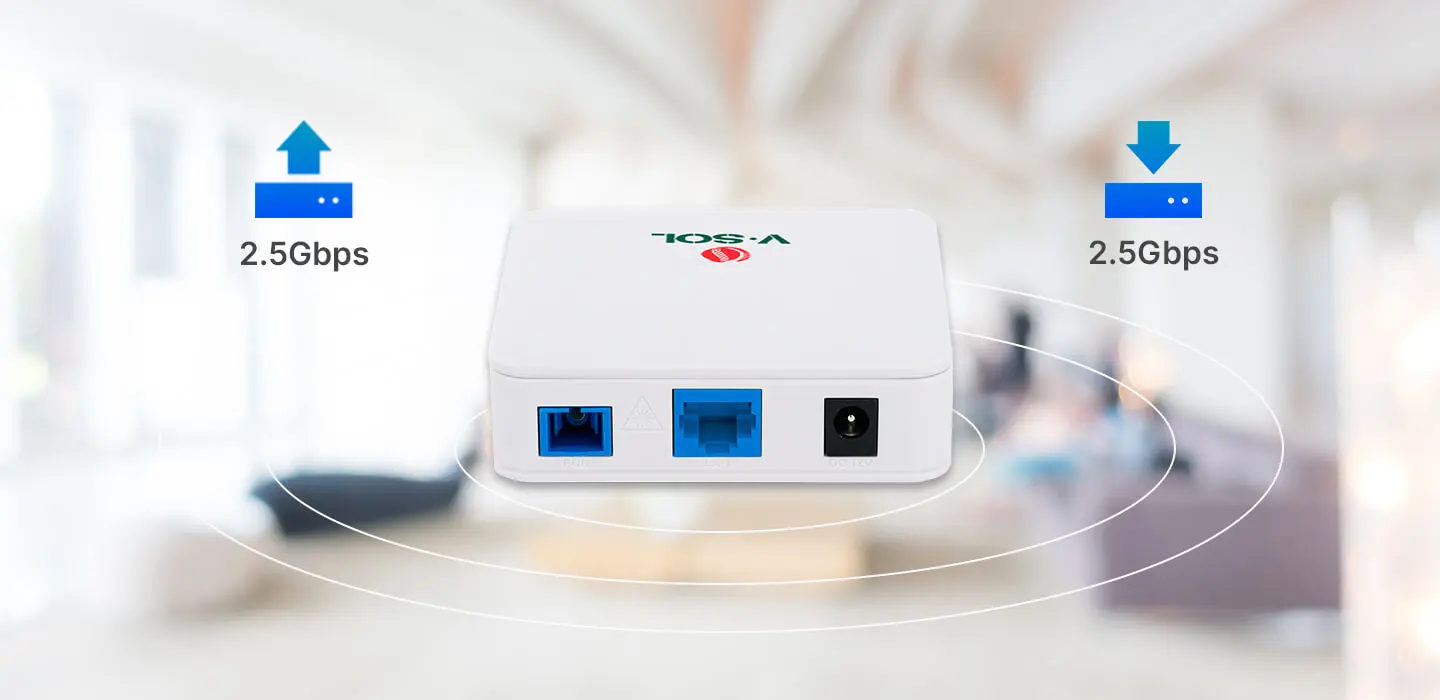

LAN interface | 1*2.5GbE, Auto-negotiation RJ45 connectors |
○Function Data | |

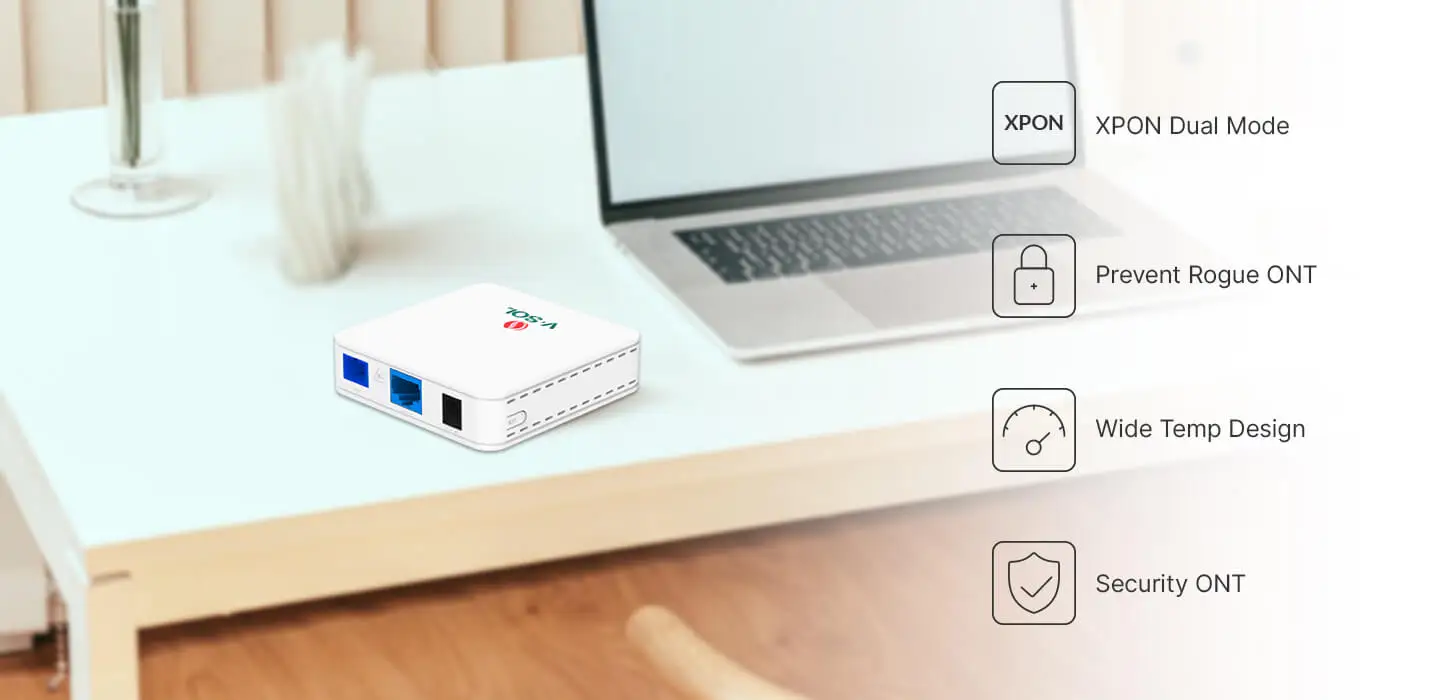

XPON Mode | Dual mode,Auto-access to EPON/GPON OLT |
Uplink Mode | Bridging and Routing Mode |
Abnormal protection | Detecting Rogue ONU, Hardware Dying Gasp |

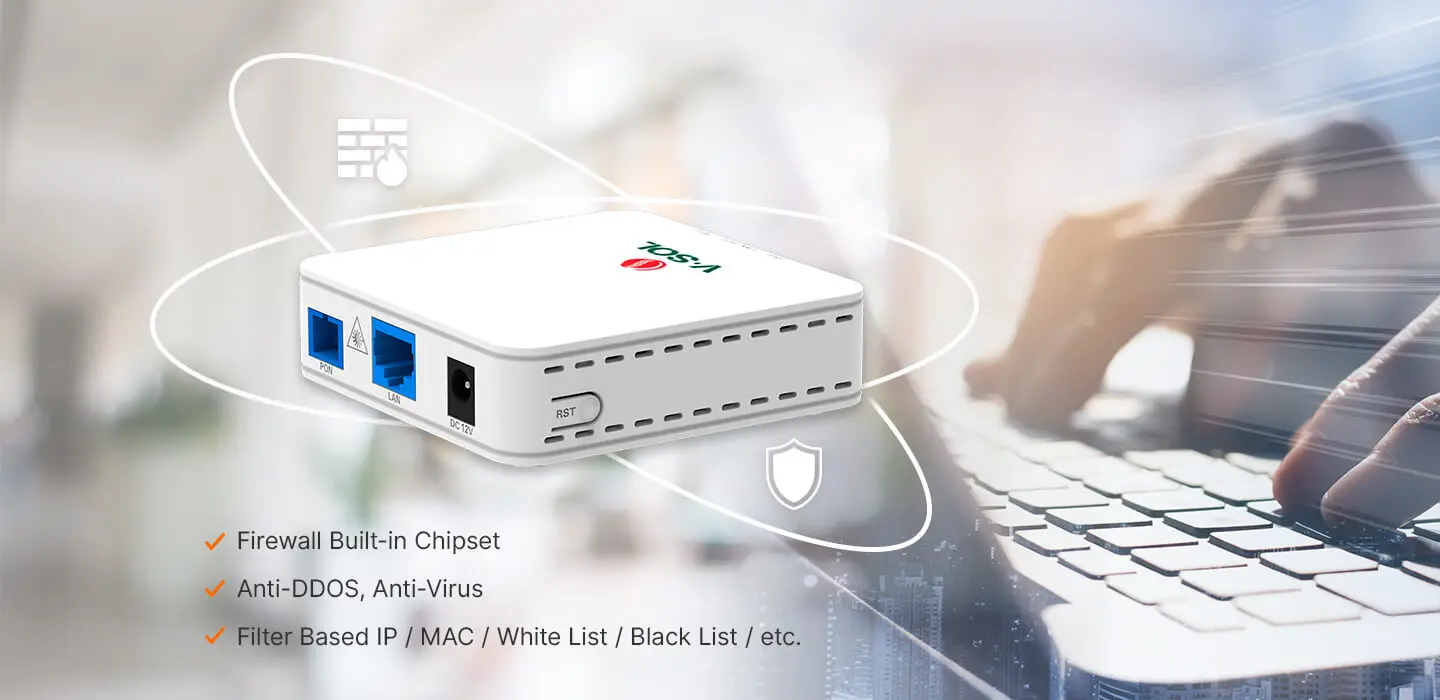

Firewall | DDOS, Filtering Based on ACL/MAC/URL |
○Product Feature | |
Basic | Support MPCP discover®ister Support authentication Mac/Loid/Mac+Loid Support Triple Churning Support DBA bandwidth Support auto-detecting, auto-configuration, and auto firmware upgrade Support SN/Psw/Loid/Loid+Psw authentication |
Alarm | Support Dying Gasp Support Port Loop Detect Support Eth Port Los |
LAN | Support Port rate limiting Support Loop detection Support Flow control Support Storm control |
VLAN | Support VLAN tag mode Support VLAN transparent mode Support VLAN trunk mode(max 8 vlans) Support VLAN 1:1 translation mode(≤8 vlans) |
Multicast | Support IGMPv1/v2/Snooping Max Multicast vlan 8 Max Multicast Group 64 |
QOS | Support 4 queues Support SP and WRR Support 802.1P |
L3 | Support IPv4/IPv6 Support DHCP/PPPOE/Static IP Support Static route Support NAT |
Management | Support CTC OAM 2.0 and 2.1 Support ITUT984.x OMCI Support WEB Support TR069 Support TELNET Support CLI |
