Product Description

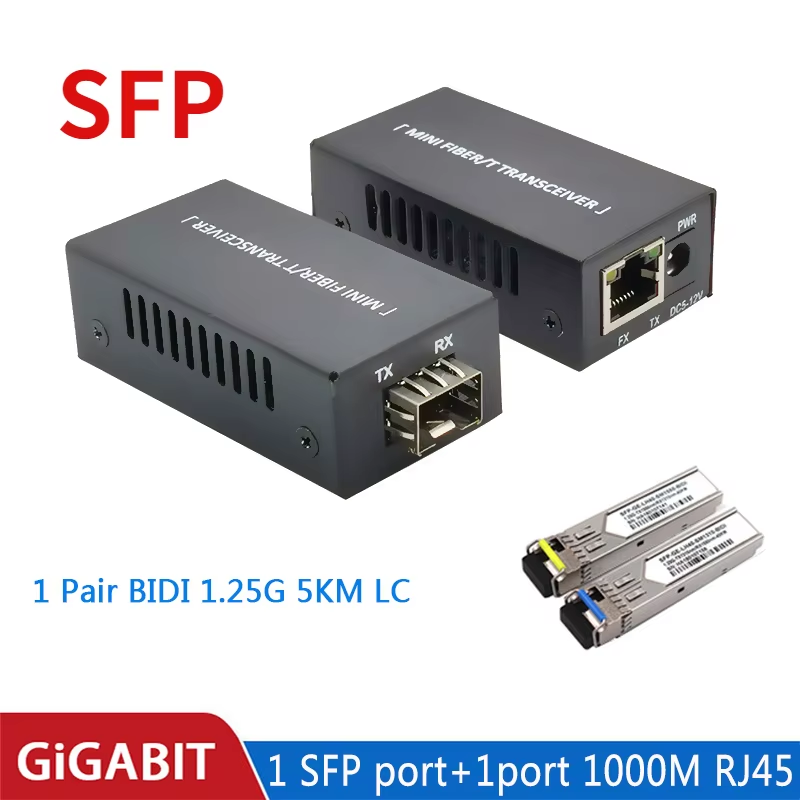

Sfp Media Converter Gigabit Mini10/100/1000Mbps Fiber Optical Ethernet Switch 1SFP1E 1F1E
Sfp Media Converter Gigabit Mini10/100/1000Mbps Fiber Optical Ethernet Switch 1SFP1E 1F1E
High quality 10/100/1000M Single mode fiber media converter with sc
Description
The Sevnlayer Ethernet media converters are designed to transmit and receive 10/100 /1000Mbps data over single
mode optical fiber. The electrical interface will Auto-Negotiate to a 10 Mbps, 100 Mbps ,1000MEthernet rate
without any adjustments. The optical interface operates at a 1000Mbps Ethernet rate. LED indicators are provided
for rapidly ascertaining equipment operating status.
Features
1. Plug and play, high performance, Low power consumption
2. Compliant with IEEE802.3, IEEE802.3u, IEEE8.3ab,IEEE802.3z
3. Complies with IEEE802.3 (10BASE-T) and IEEE802.3u (100BASE-TX/FX),IEEE 802.3z/AB
10/100/1000Base-T 1000Base-SX/LX standards
4. Electrical port supports Auto-Negotiation for 10 Mbps or 100 Mbps, full duplex or half duplex data.
5. Automatic MDI/MDI-X crossover
6. Distances up to: Depend on SFP
8. LC optical connectors.
9. DC powered
10.Status LED's for TX,FX LINK/ACT, POWER,100M,1000M to easily monitor network statu
Technical Specification
Product Name | 10/100/1000M Single Fiber ,Single Mode, Fiber Media Converter |
Model | JYD-2110SB-GE |
Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.1af DTE Power via MDI |
Wavelength | Single Mode: 1310nm,1550nm |
Port | One RJ45 port, One Fiber(SC) |
Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter) |
Forward Mode | Store and forward |
LED Indicator | PWR: Green Illuminated to indicate unit is operating under normal operation copper device and flashes when data being sent / received fiber deviceand flashes when data being sent / received are being transmitted at 1000 Mbps |
Power Supply | DC5V1A |
Environmental requirements | Operating Temperature: 0°C~+70°C |
Transmission Distance | Fiber: Single Mode,20km; UTP: Cat.5/6, 100m |
Diemension | 11cm*7cm*2.5cm |
