Product Description

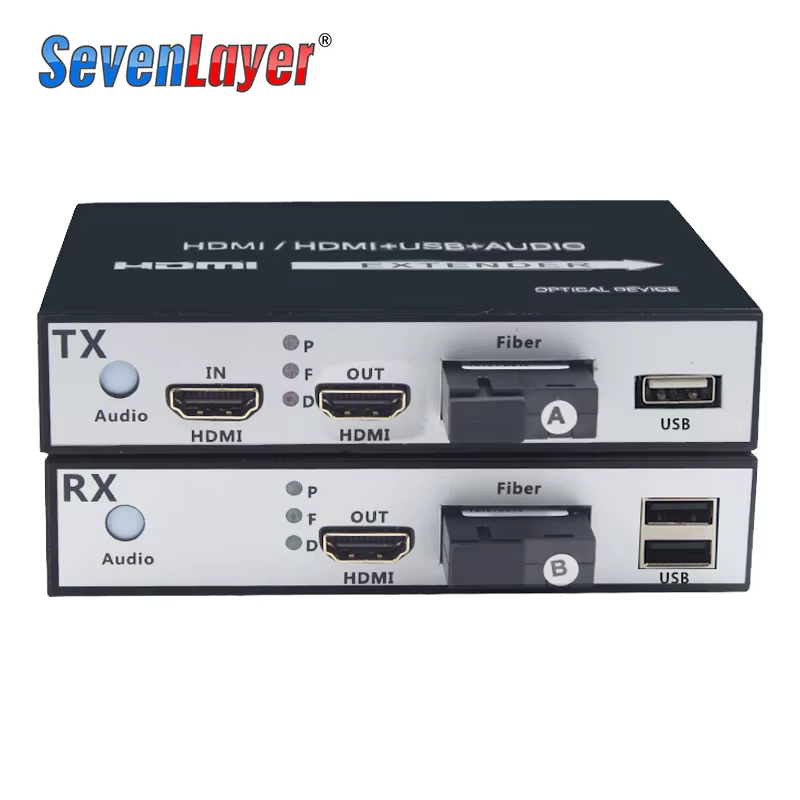

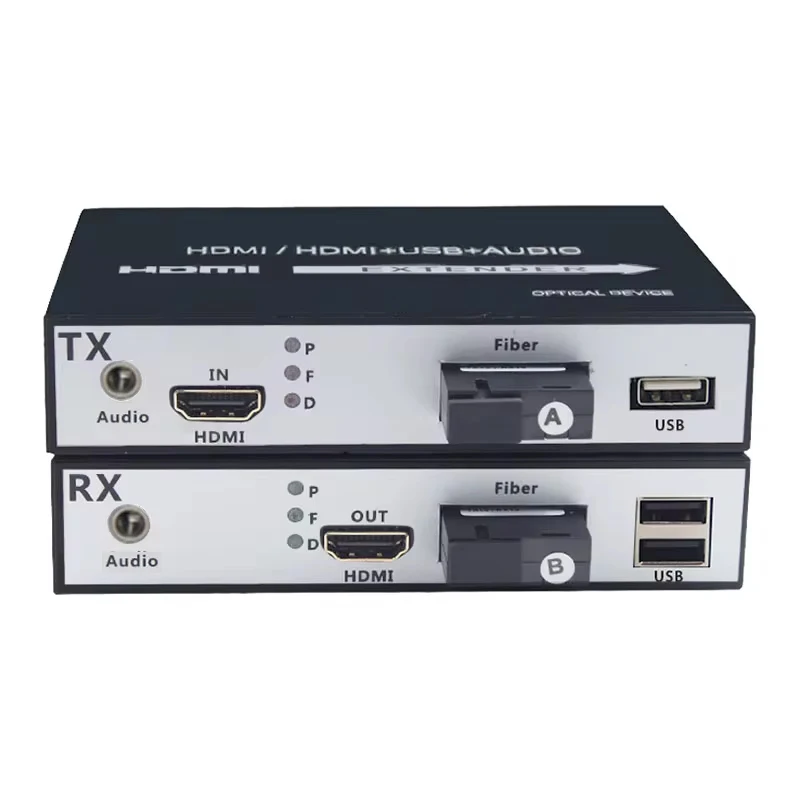

Converter HDMI-compatible to Fiber Optic Video Extender KVM(HDMI-compatible+USB)To Fiber Mouse and keyboard compressed 1080P
Converter HDMI-compatible to Fiber Optic Video Extender KVM(HDMI-compatible+USB)To Fiber Mouse and keyboard compressed 1080Pplease note:1. Default with SC module,FC can be provided as request.
2.This device is compressed with a little delay, please choose non-compressed if you have high requirements for video real-time.
1-channel HDMI Optical Converter 1080P HDMI Fiber Optic Video Extender HDMI Video Fiber Transceiver 1Pair
HDMI Optical Converter
The pair of optical HDMI extenders ATD-HDMI-WT transmitter and ATD-HDMI-WR receiver offers extraordinary long-distance, lossless extension for HDMI 1.3b video and audio signals. After long but real-time marches range from 2Km to 40Km on optical fiber, the 10-bit full HDMI video would not lose a tiny bit of its original 1080P (1920x1080) high definition charm and the stereo audio remain in its perfect tune. The full fiber optic transmission with exclusive 3G videoOptical Transceivertransceiver, which is hot-pluggable and utmost flexible in application, adds profound brilliance to the HD splendor.
Applications

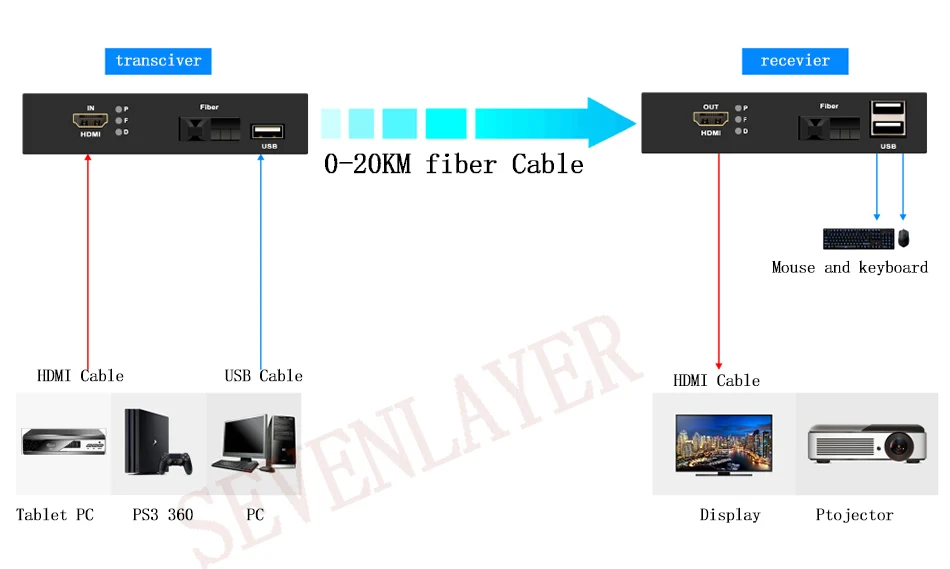

Extends HDMI video and embedded audio signals to
very long distances over a single fiber via 3G videoOptical TransceiverComplies with HDMI 1.3b and earlier standards
Real-time status LED indicators for troubleshooting and monitoring
Hot-Swappable
Available with DVI, VGA interfaces and features
Features
Robust metal casing
Thunder-proof solution
Low optical link loss – max 30dB
Without EMI, RFI and ground loop
Bi-di transmission on 1 fiber with WDM
Hot plug-and-play with switch power supply
Available in standalone and cabinet system
Technical Specification
Optical | |
Wavelength | 1310nm/1550nm |
Output Power | -5 ~-10dBm |
Fiber Type and Distance | multimode (50/125um) 5Km, ( 62.5/125um) 2Km |
Receiving Sensitivity | -18dBm |
Return Loss | > 12dB |
Interface | SC |
Video | |
Number / Signal Type | 1ch HDMI |
Channel | 1-channel |
Input / Output Voltage | 1Vp-p / 1Vp-p |
Bandwidth(-3 dB) | 300MHz |
Color Depth | 10 Bit |
Resolution | at 50/60Hz , 1920x1080 (HDMI) |
640 x 480 (VGA), 800 X 600 (SVA), 1024 X 768 (XGA) | |
1280 X 1024 (SXVGA), 1600 X 1200 (UXGA) | |
Interface | HD-15(VGA, DVI optional) |
Electrical. Environmental. Mechanical | |
Voltage / Power Consumption | 220VAC to 12VDC/1A, 5W |
Operating Temperature | 0°C to +50°C |
Storage Temperature | -40°C to +85°C |
Humidity | <95% non-condensing |
Dimension | 184L x 140W x 45H mm |
Weight | 0.8KG |
