Product Description

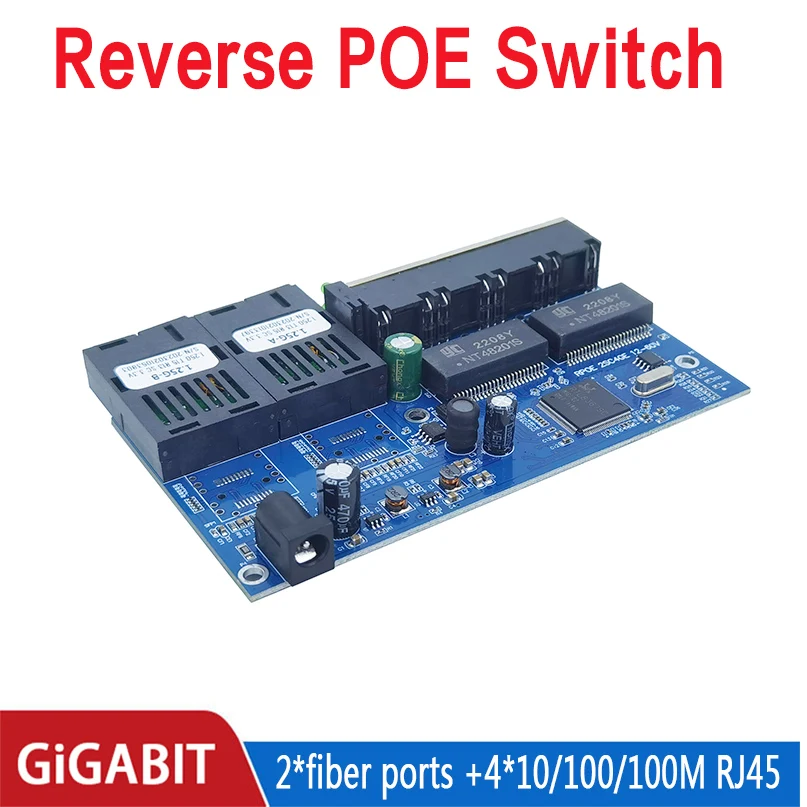

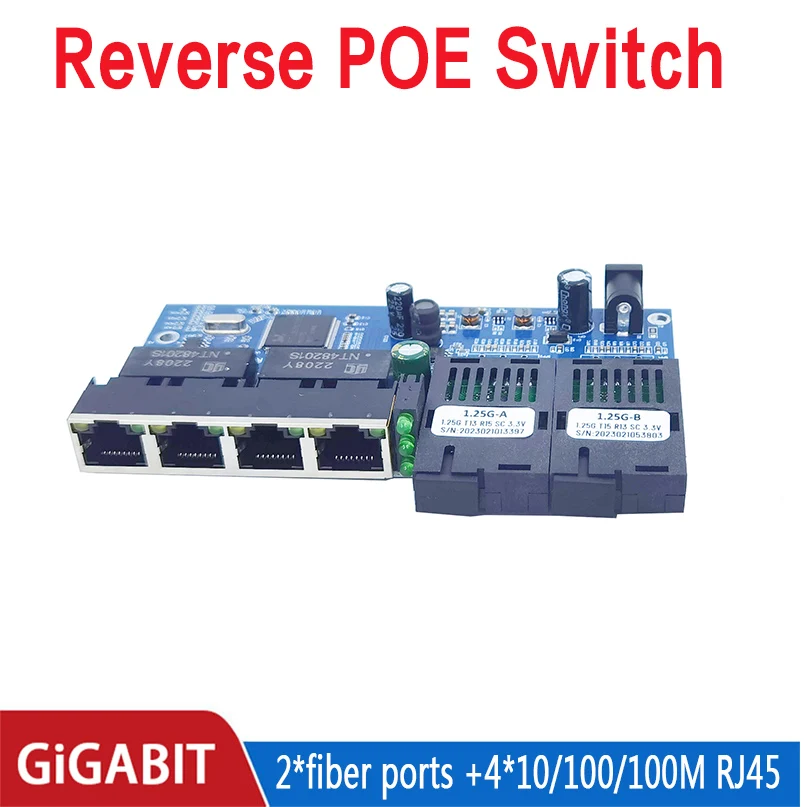

Reverse POE switch 4RJ45 2 fiber 2F4GE Gigabit Ethernet switch media converter Fiber Optical UTP Port 10/100/1000M PCBA
Reverse POE switch 4RJ45 2 fiber 2F4GE Gigabit Ethernet switch media converter Fiber Optical UTP Port 10/100/1000M PCBAPlease note:1、Default with 1pcs 1310nm A side Fiber module and 1pcs 1550nmB side, 2pcs 1550nm B Side or 2pcs 1310nm A side can be provided as request.
2、1 PCS 2 SC fiber 4 ports 10/100/1000M RJ45 Reverse POE
POE Reverse switch board fiber media converter with 2SC + 4 10/100/1000Mbps RJ45 Ethernet ports POE

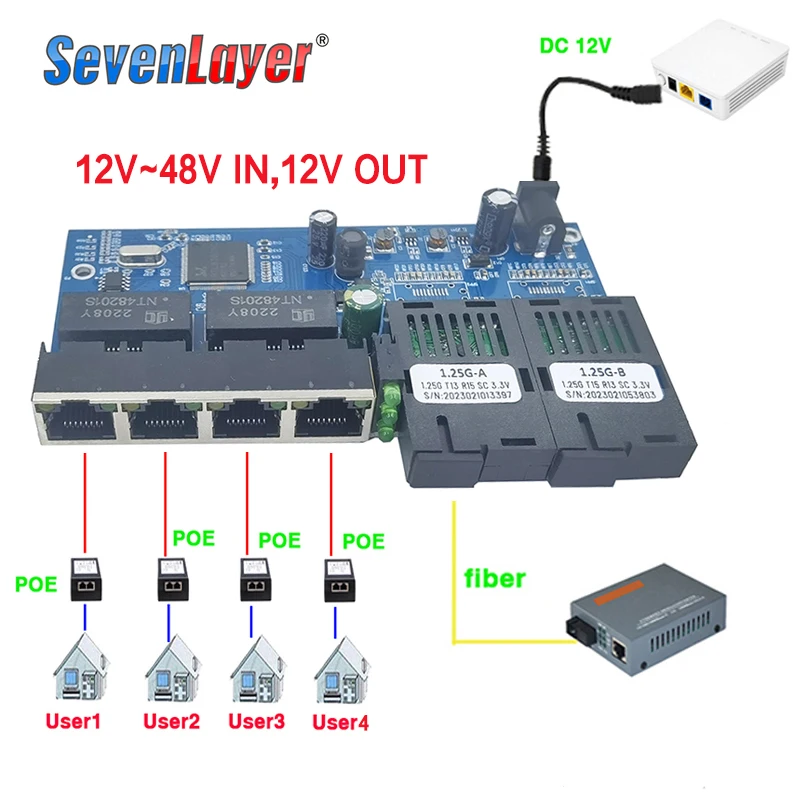

reverse fiber optical switchFast power supply for your ending equipment!2F4GE Fiber SwitchJYD-2F4E series fiber switch is a reverse power supply Ethernet switch, power can be offered with the special POE power supply module through network cable. At the same time it can also provide 12VDC power supply to other ending equipments. It effectively solves the problem of power supply of equipments far away from the power source. What’s more, the power can be shut down when the equipment is not needed, which is energy-saving and environmental. There are 2 SC ports and 8 10/100/1000Mbps Ethernert RJ45 ports. Transmission distance can be prolonged from 100M with twisted pair to 120KM.Main Features:Ø Support the switch between 10/100/1000Base-T and 1000Base-SX/LXØ 2*1.25Gbps full-duplex fiber ports and 4*1000M Ethernet ports with auto-negotiation functionØ Support 1000M speed rate,MDI/MDIX and half/full-duplex with auto-negotiation functionØ Each port has the complete LED Indicator lightØ There are 3 mode available. They are single mode single fiber, single mode dual fiber and multi mode dual fiber.Ø Support IEEE802.1d Spanning TreeØ Support high performance QoS function on each port,support broadcasting storm controlØ Support 15-48V voltage input through network cables from ending equipment.Ø 4/5+,7/8- are for power supply.Ø 12V DC voltage output.Ø Internal 4K MAC Address EntitiesØ Support 9216 bytes Jumbo packetØ Support IEEE 802.3x flow control and back pressure controlØ Require no configuration and will instantly operate as soon as you power it upØ Low power consumption chip with heat sink built in to ensure longtime efficient operation.SpecificationsStandardsIEEE802.3 10Base-TIEEE802.3u 100Base-TX/FXIEEE802.3z 1000Base-SX/LXIEEE802.3x Flow controlIEEE802.1p QoSIEEE802.1d Spanning TreeIEEE802.3q VLANEthernet PortConnector: RJ45Data Rate: 10/100/1000MDistance: 100mUTP Type: UTP-5E or higher levelFiber PortConnector: SCData Rate: 1.25GbpsOptical Wavelength: 1310nm/1550nmDistance: 550m～120kmPerformanceProcessing Type: Store and ForwardMAC Table Size: 4KBuffer Space: 1MbitMaximum Packet Length: 9216 bytesBack bandwidth: 20GTime Delay:＜20μsPowerPower type: POE network power supplyCable core: 4/5+,7/8-Input Voltage: DC15V～48VOutput Voltage: 12VPower Consumption: 2.2W～4.5WCertificationsCCC, CE, FCC, RoHSMTBF 100, 000 hours
Warranty 1 year
EnvironmentStorage Temperature: -40～70℃Operating Temperature: -10～55℃Relative Humidity: 5-90% ( no condensation)Mechanical StructuresDimension: 215×107×26mmWeight: 0.1kgOEM&ODM
