1 Pair Gigabit 100/1000M A/B SC Ethernet Fiber Switch Media Converter Rj45 Optic

Product Description

Default with 1pcs 1310nm A side Fiber module and 1pcs 1550nmB side

10/100/1000M SFP slot Mini ethernet fiber media converter PCBA board 10/100/1000Base-TX to 1000Base-X high performance Realtek media converter IC chip (FMC-GE8213-MIN)

GE-MIN media Converter complies with IEEE802.3z, IEEE802.3ab Standards It is designed to convert data signal between 10/100/1000 Base-Tx and 1000Base-X Gigabit Ethernet.

It supports 10/100/1000Base-Tx and 1000Base-X applications. The data signal converted by such high performance media converter can be transmitted up to 100km maximum by single-mode 9/125um fiber-optical cable from RJ45 Cooper Cat.5 network cable (depend on optical module).

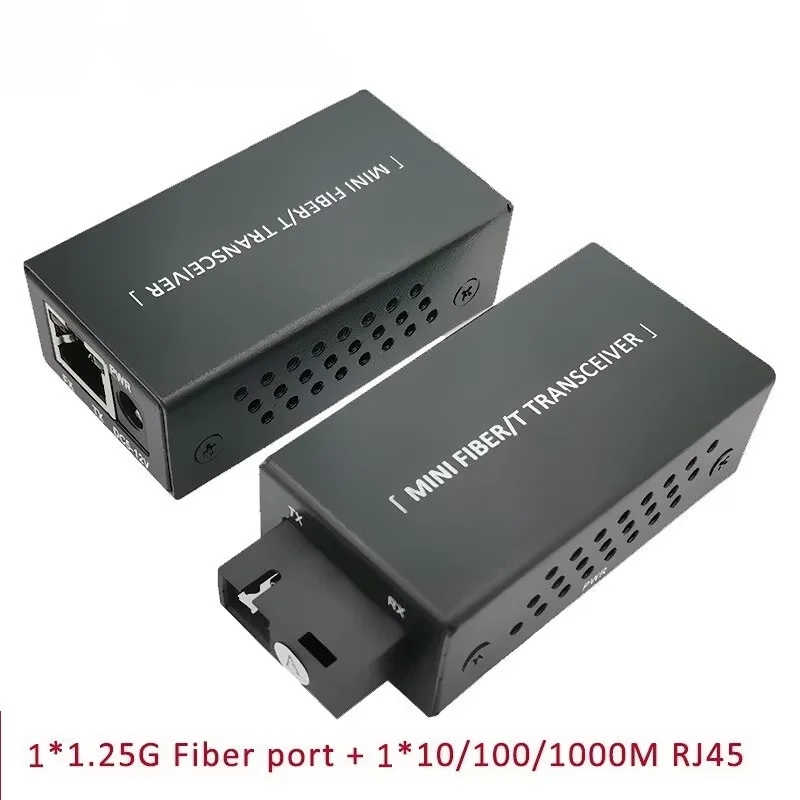

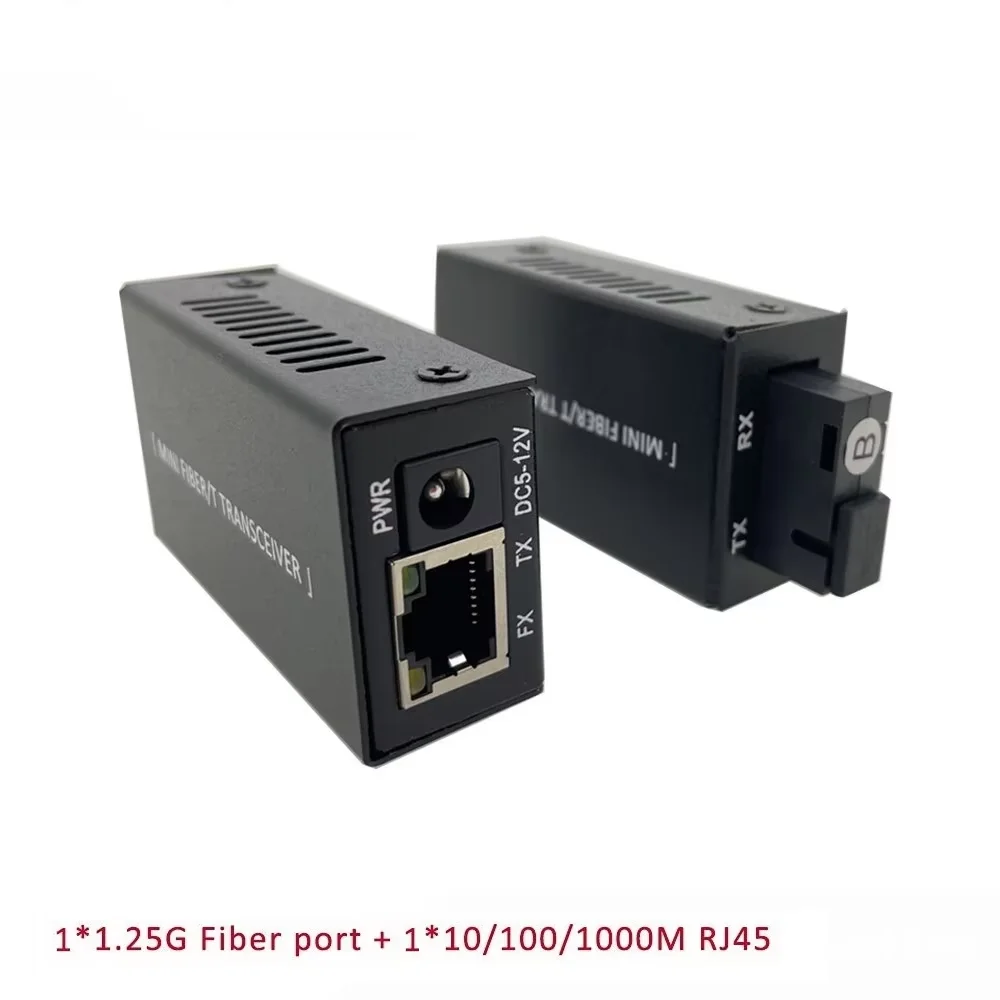

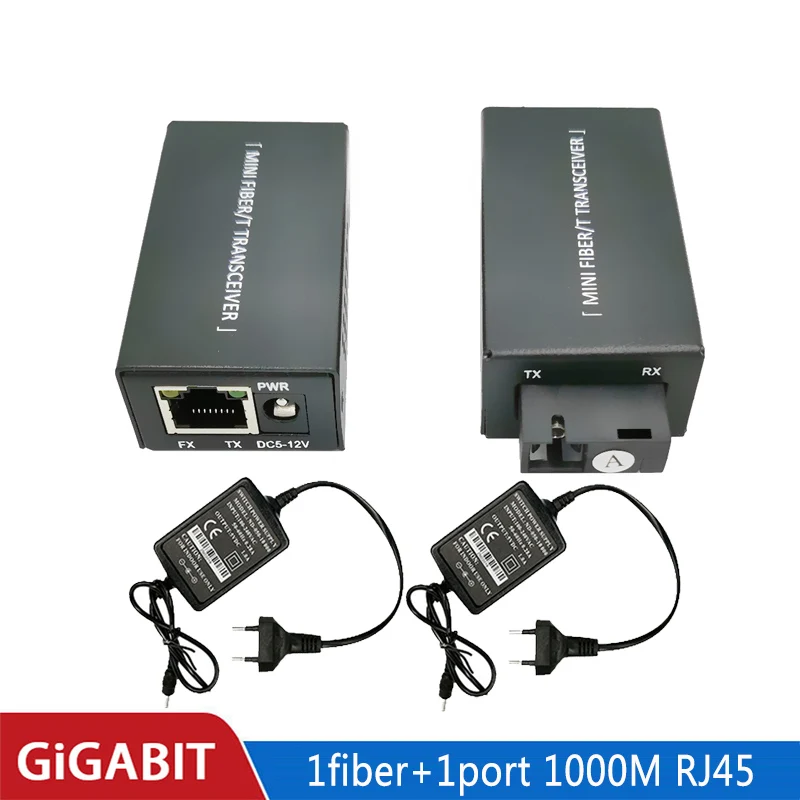

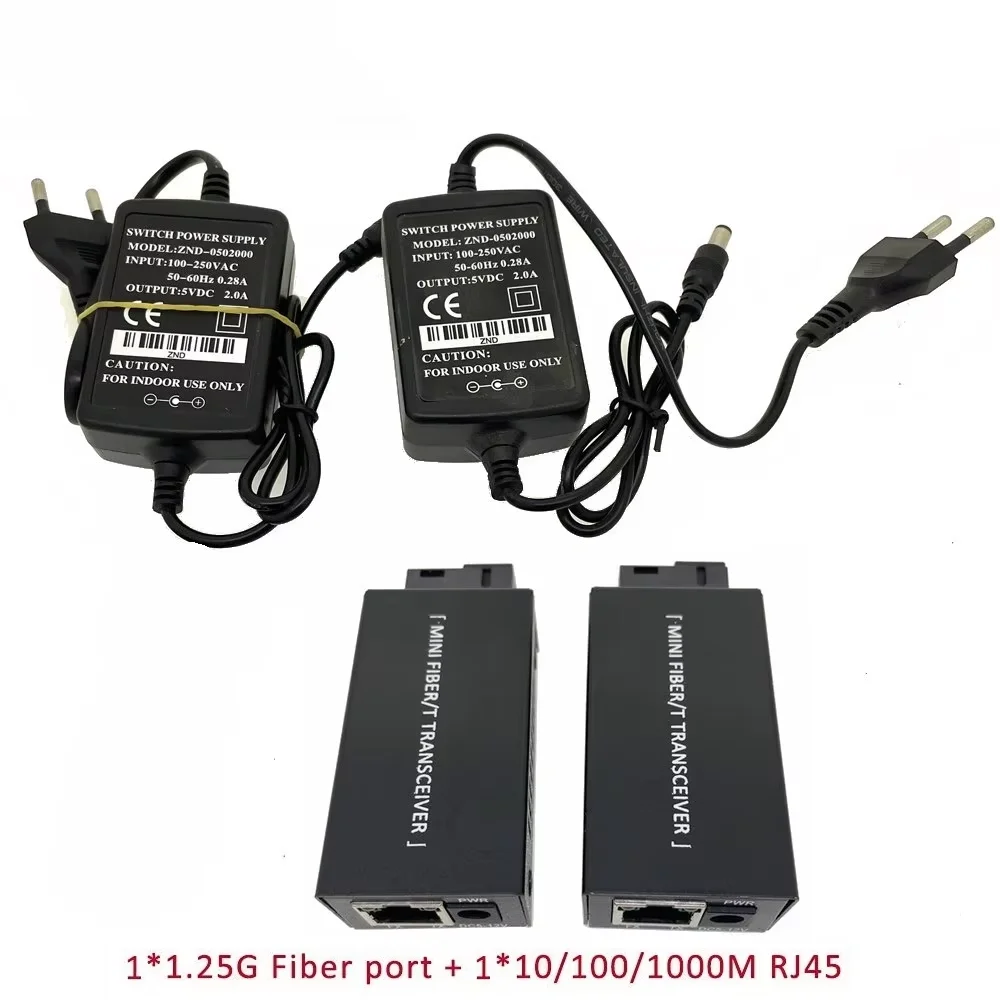

The Converter has 1x fiber port, 1x RJ45 jacks and one power supply receptacle. Six LED indicators are built-in for easy diagnosing and monitoring the status of power(PWR), Unshielded Twisted Paired Link/ UTP Activity(TP/ACT), Fiber Link/ Fiber Activity(FX/ACT), Full/Half duplex (FDX) and data rates(1000M) and (100M). It can be configured automatically for Full Duplex or Half Duplex operation.

It is compact, cost-effective, low dissipative, high reliable and stable. it is 5VDC input.

Features:

◆ Support the IEEE802.3 fast Ethernet standard (10Mbps)

◆ Support the IEEE802.3u Fast Ethernet standard(100Mbps)

◆ Support the IEEE802.3ab and IEEE802.3z Gigabit Ethernet standard (1000Mbps)

◆ Support the IEEE802.3x full-duplexes flow control

◆ Support install 1.25Gb/s SFP, CWDM SFP, DWDM SFP, WDM bi-di SFP

◆ Full-duplexes, half-duplex auto negotiation

◆ 10M/100M/1000M bit rate auto negotiation

◆ 5VDC input.

◆ Automatic identification of MDI/MDI-X cross line.

◆ Max.9000 bytes packet at cut-through mode, Max.2046bytes packet at store-and-forward mode.

◆ low power consumption low heat, standalone type with special communication power supply.

◆ Support LFP function.

◆ Very lower BER rate, <1/1000000000

◆ Time Delay:
Store-and-forward mode:9.6us,
Cut-through mode: 0.9us

◆ Life time>100,000 hours

◆ In conformity to safety code of FCC, CE certification.
