Name: 10/100/1000M 4 RJ45 1 SC Fast Ethernet switch Converter Ethernet Fiber Optical M
Brand: Prime Living
SKU: H-168139576391
Price: 46.99 CAD
Availability: InStock

Product Description

10/100/1000M 4 RJ45 1 SC Fast Ethernet switch Converter Ethernet Fiber Optical Media Converter fiber Port PCBA 1.25G

10/100/1000M 4 RJ45 1 SC Fast Ethernet switch Converter Ethernet Fiber Optical Media Converter fiber Port PCBA 1.25Gplease note
Gigabit Ethernet Switch 1G4E Series Fiber Switch

10/100/1000M 4 RJ45 1 SC Fast Ethernet switch Converter Ethernet Fiber Optical M

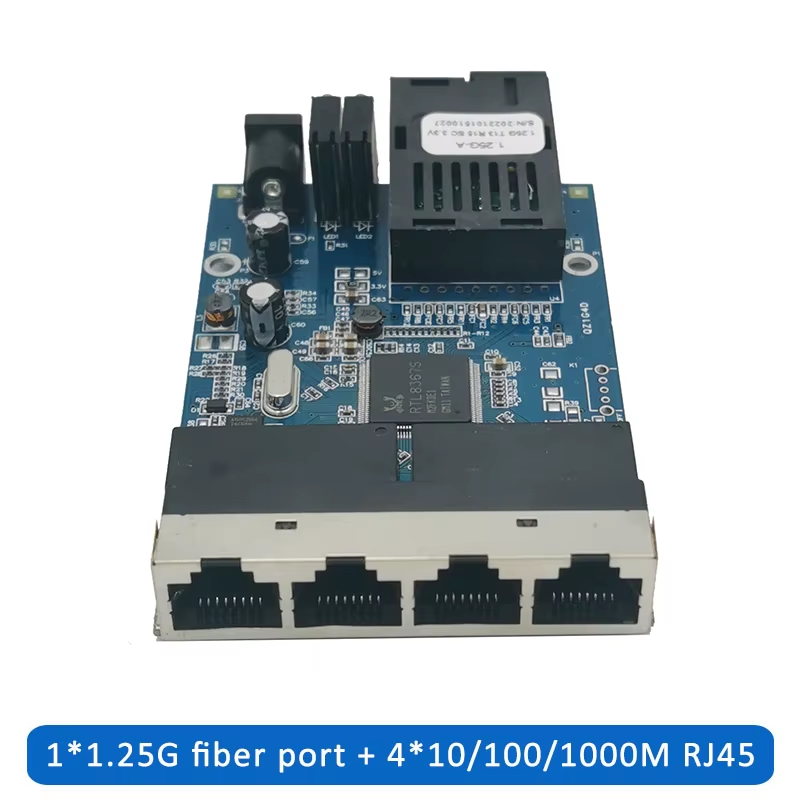

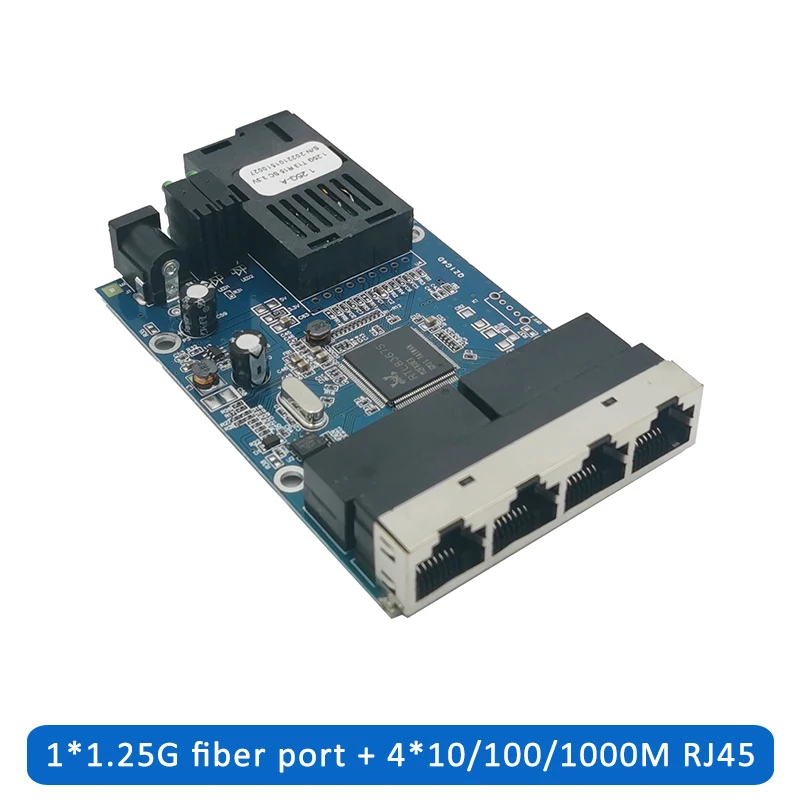

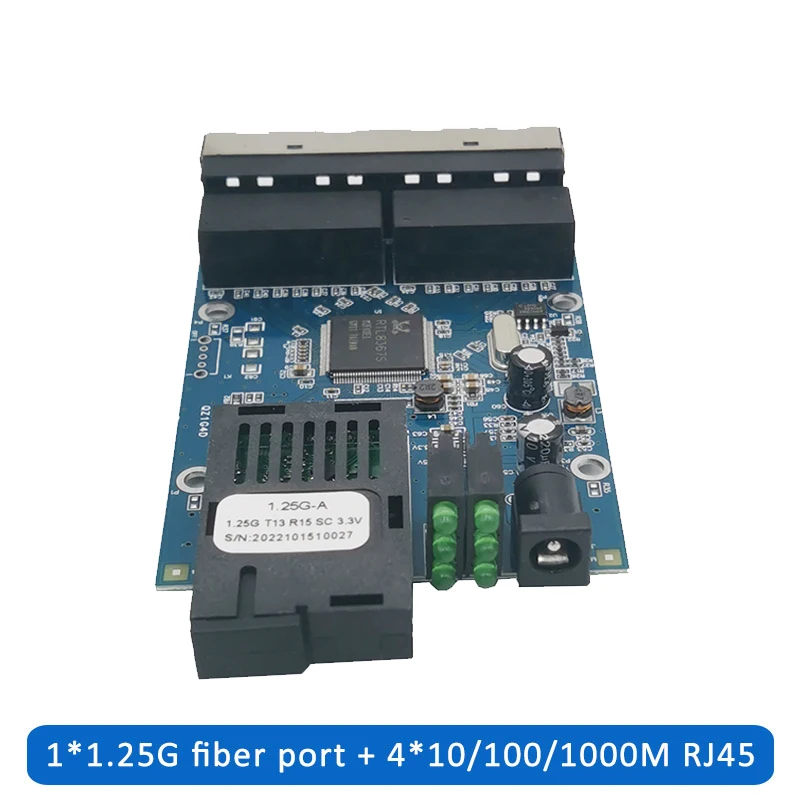

The Gigabit 1G4E is an Ethernet Fiber Switch which is specially designed for network monitoring. Ithas 4 10/100/1000Mbps Ethernet ports and 1 1.25Gbps fiber ports. It adopts REALTEK chips to ensurelow power consumption and high stability. It extends the transmission distance of a network from100m to 120km via copper cables. It can extend the transmission distance; there are also many otheradvantages such as isolation protection, good data security, working stability and easy maintenance.Main Features:1.Support the switch between 10/100/1000Base-TX and 1000Base-SX/LX2.1*1.25Gbps full-duplex fiber ports and 4*1000M Ethernet ports with auto-negotiation function3.Support 1000M speed rate, MDI/MDIX and half/full-duplex with auto-negotiation function4.Each port has the complete LED Indicator light5.Support single mode single fiber,single mode dual fiber ,multi-mode dual fiber and SFP slot6.Support IEEE802.1d Spanning Tree7.Support high performance QoS function on each port8.Support 5-16V voltage input9.Support IEEE 802.3x flow control and back pressure control10.Require no configuration and will instantly operate as soon as you power it up11.Low power consumption chip with heat sink built in to ensure longtime efficient operationSpecifications:

Standards	IEEE802.3 10Base-T IEEE802.3u 100Base-TX/FX IEEE802.3z 1000Base-SX/LX IEEE802.3x Flow control IEEE802.1p QoS IEEE802.1d Spanning Tree
Ethernet Port	Connector: RJ45 Data Rate:10/100M or 10/100/1000M Distance: 100m UTP Type: UTP-5E or higher level
Fiber Port	Connector: SC/FC/ST/SFP slot Data Rate: 155M or 1.25Gbps Optical Wavelength: 850nm/1310nm/1490nm/1550nm Distance: 550m～120km
Performance	Processing Type: Store and Forward MAC Table Size:4K/6K/8K Buffer Space: 500kbs/1Mbit/2Mbit Jumbo Packet: 1518 bytes Back bandwidth: 3.8G/5.6G/7.2G Time Delay: ＜150μs
Power	Power type: external power supply Input Voltage: AC100V～240V 50/60Hz Connector: DC Socket Working Voltage: 5V Power Consumption: 2.2W～3.5W
Transmissin Distance	Twisted Pair: 100m (CAT5e, CAT6 cables) Muti-mode: 2km Single-mode: 3/20/40/60/80/100km
MTBF	100, 000 hours
Warranty	1 year
Environment	Storage Temperature: -40～70℃ Operating Temperature: -10～55℃ Relative Humidity: 5-90% ( no condensation)
Mechanical Structures	Dimension: 215×107×26mm Weight: 0.15 PCB main board
OEM&ODM	Supportive
