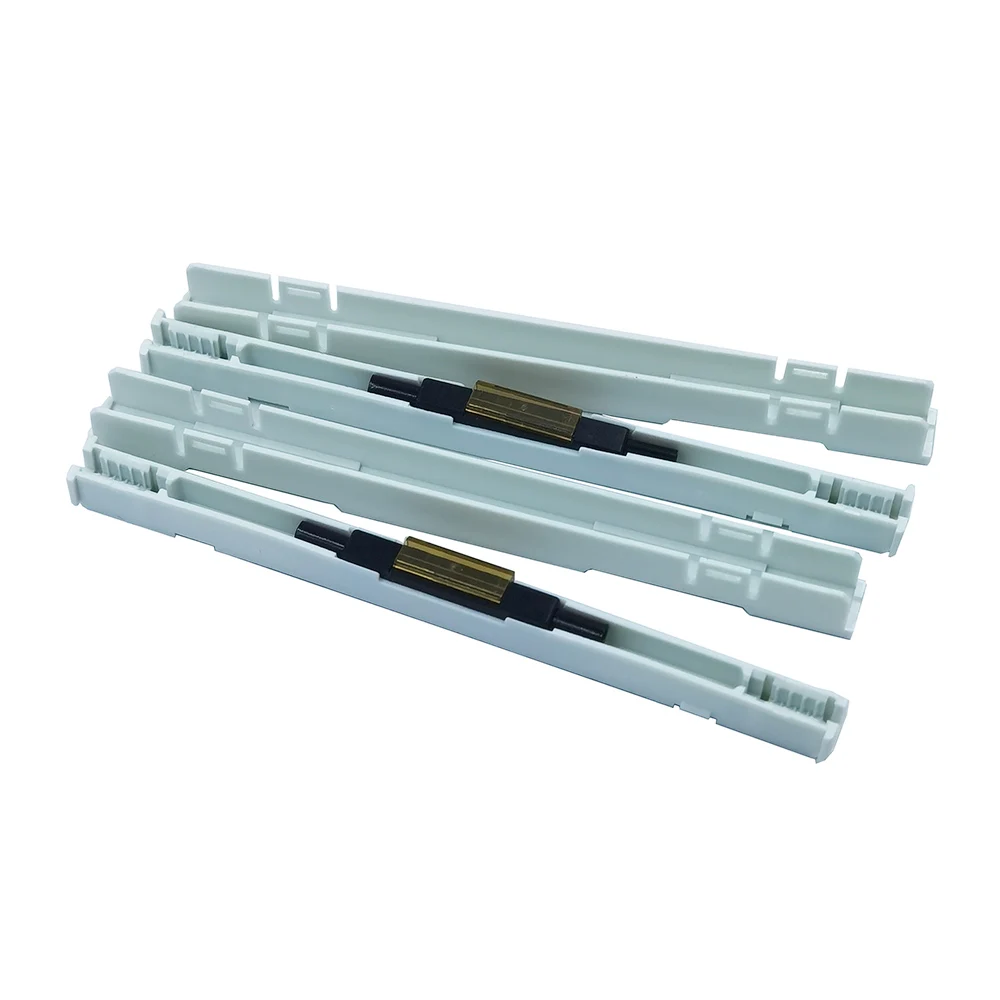

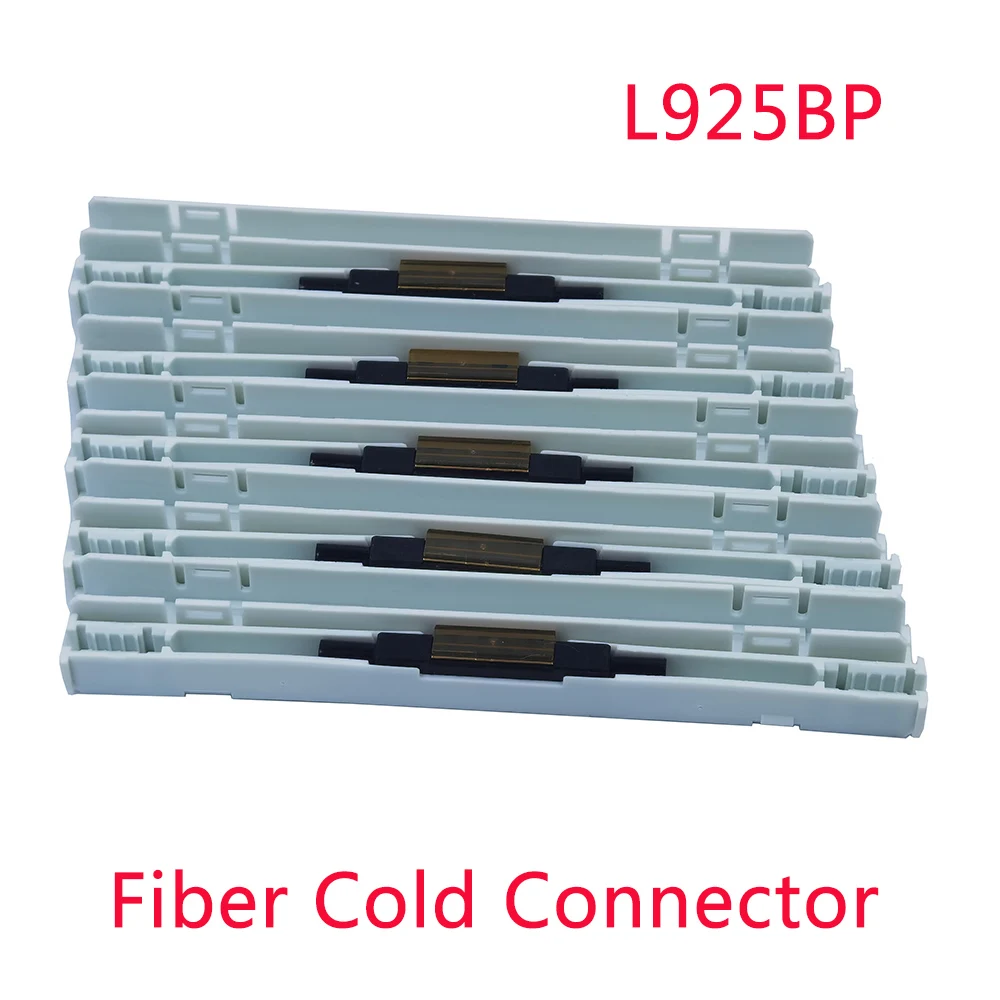

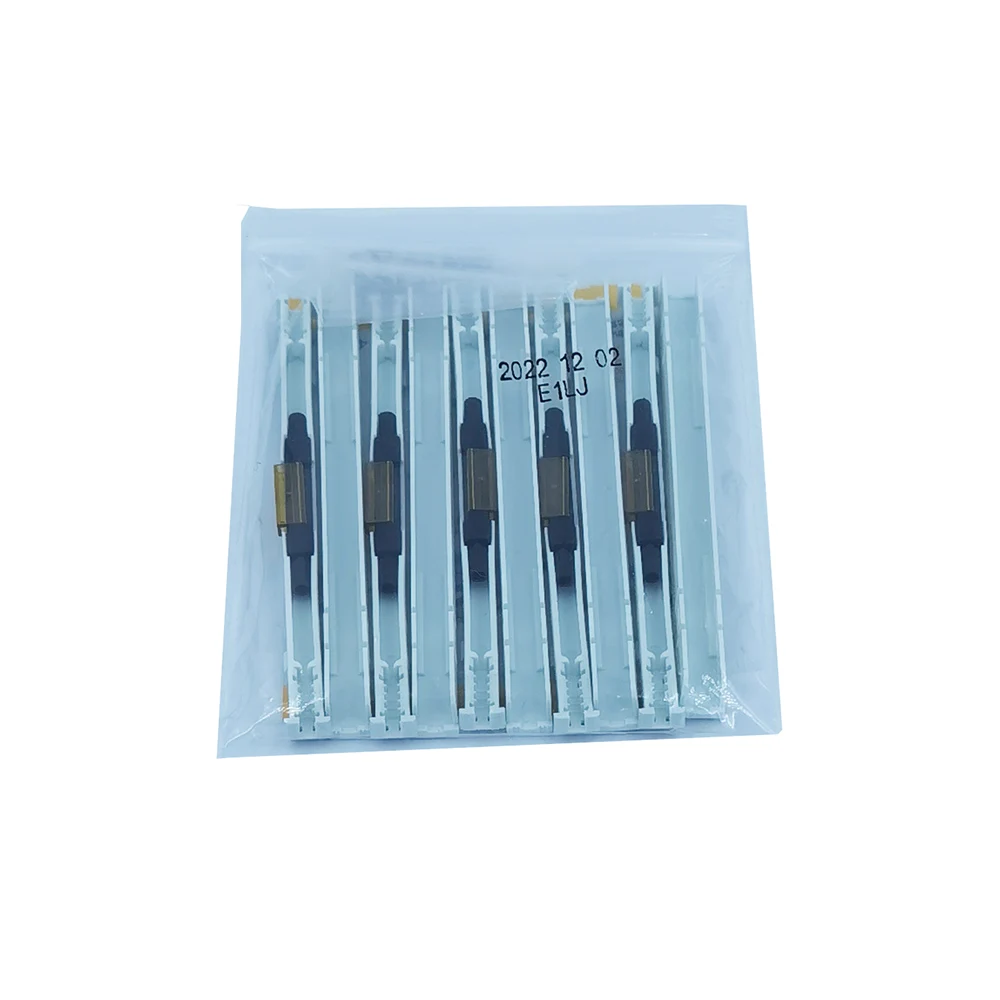

L925BP Fiber Optic Mechanical Splice Drop Cable Splice Bare Fiber Cold Connector

Product Description

L925BP Drop Cable FTTH Splice Fiber

Product description

Applicable to home butterfly cable and any type Flexer pigtail connection, cost saving; using V slot docking technology is mature, suitable for multimode fiber connection; free fixture design, operation time is less than a minute.

Flex cable households into the end of direct access to the ONU, tension is greater than 5KG. The utility model has the advantages of wide application range, and is especially suitable for the network upgrade of the existing residential areas and the reconstruction of the optical fiber network. The utility model reduces the use of a panel box and a supporting flange, not only reduces the cost of the optical fiber access, but also the operation is simple and convenient.

All kinds of collocation can be combined (SC, FC, fiber LC, ST etc.)

technical standard

Scope of application: 3.1 x 2.0mm dish optical cable

Fiber diameter: 125 m (657A657B)

Tight cladding diameter: 250 M900 M

Application mode: single mode and multimode

Operating time: About 30s (no fiber processing)

The insertion loss is less than 0.15dB (1310nm1550nm):

The return loss is less than -45dB.

Continued success rate: > 98%

Assembly times: > 10 times

Bare tightening force: more than 5N

Tight wrap clamping force: > 8N

Tensile strength: > 50N

Use temperature: -40 ~ +85

Online anti pull test (30N): IL = 0.2dB

Mechanical durability (500): IL = 0.2dB

Drop test: (4m from the cement floor in each direction 1 times, a total of 3 times) IL = 0.2dB
