Product Description

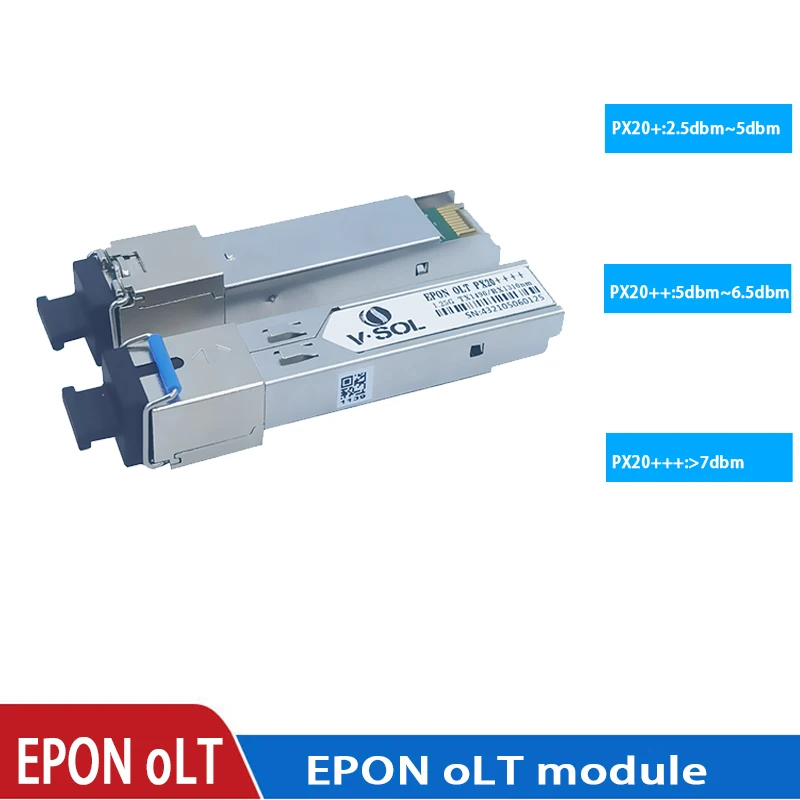

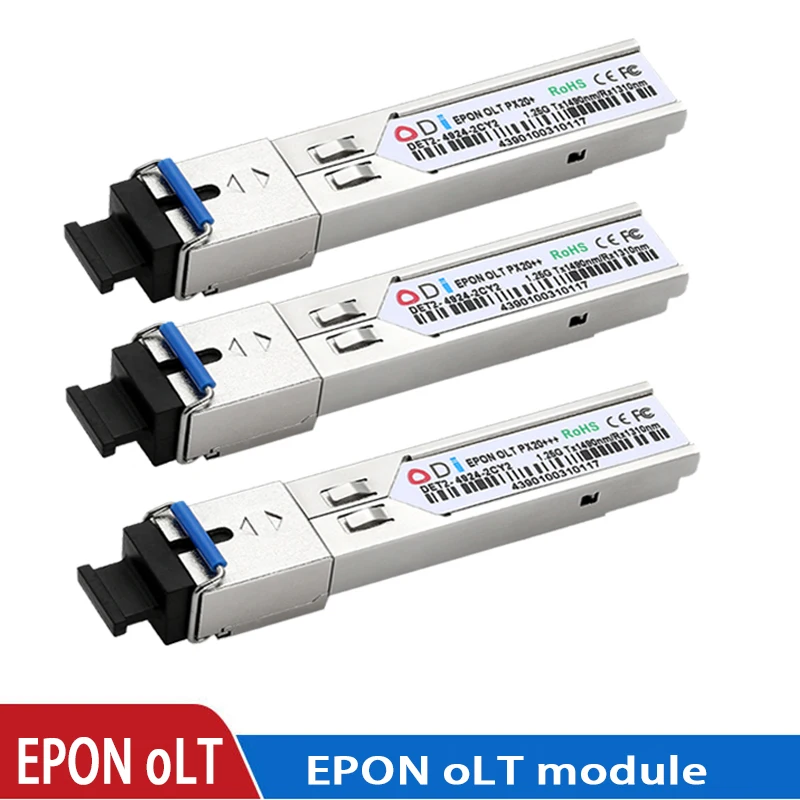

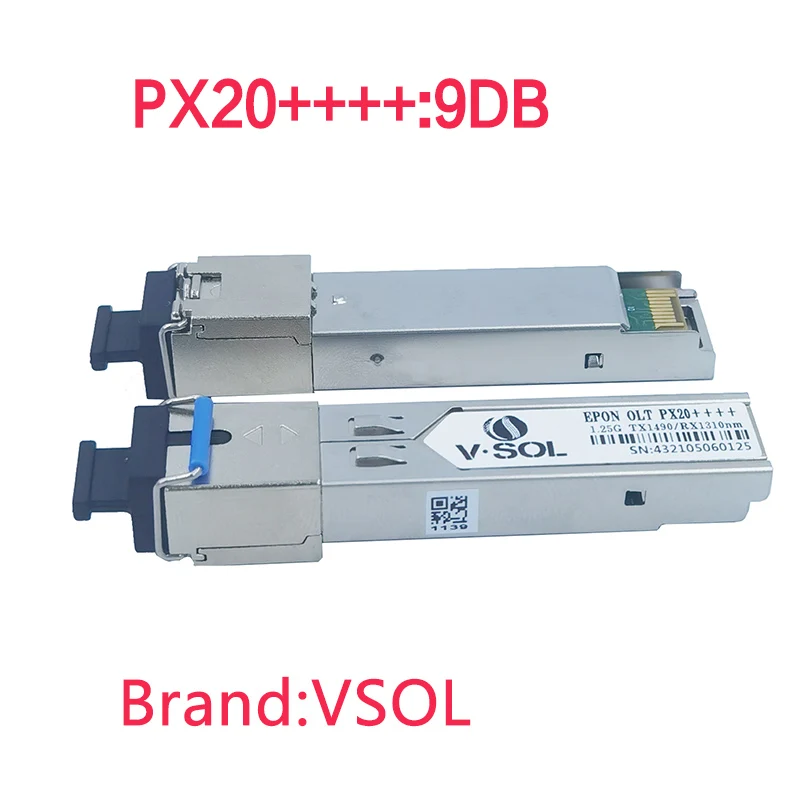

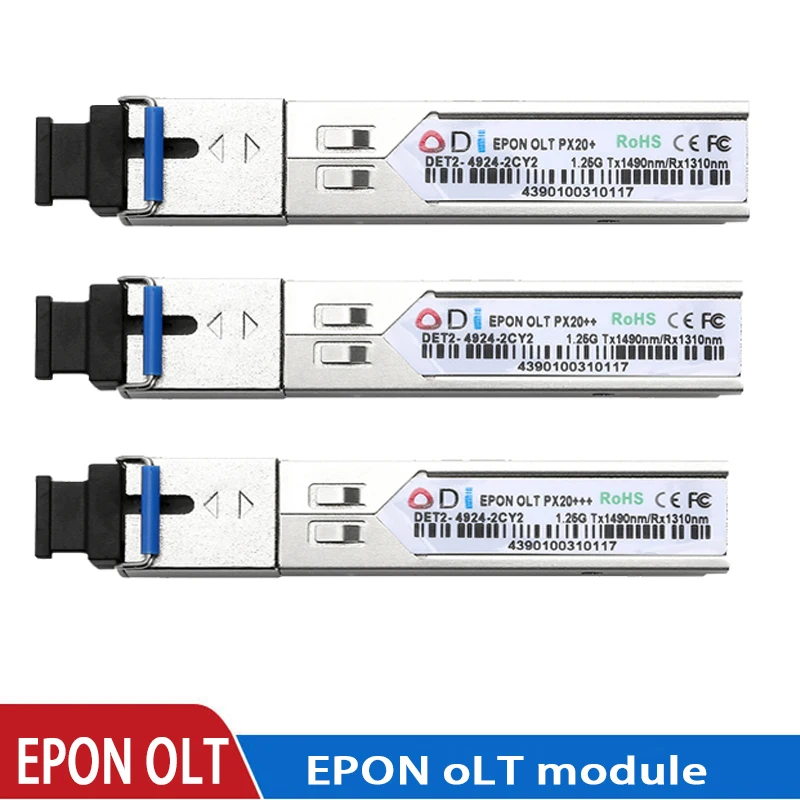

EPON OLT PX20+ SFP Modules Transceiver SC Connector Compatible With HW ZTE PX20++
EPON OLT PX20+ SFP Modules Transceiver SC Connector Compatible With HW ZTE PX20++EPON SFP EPON1.25G PX20+PX20++PX20+++ PX20++++
Product Features:EPON 1.25Gb serial optical interface compliant to802.3AH specifications small form factorpluggable module "SFP"1490 nm DFB transmitter, 1310 nm APD photodetector BURST receiver2-wire interface for management specificationscompliant with SFF 8472 digital diagnostic monitoringinterface for optical transceiversOperating case temperature: 0 to 70 °C or-40 to 85 °CAll-metal housing for superior EMI performanceLow power consumptionCost effective OLT solution,RoHS compliantProduct DescriptionAbsolute Maximum Ratings
| Parameter | Unit | Min | Typical | Max |
| Power Supply Voltage | V | 0 | 3.6 | |
| Storage Temperature | ℃ | -40 | 85 | |
Operating Case Temperature | ℃ | -40 | 85 | |
Operating Relative Humidity | % | 5 | 95 | |
| RX Input Average Power | dBm | 0 | -7 |
| Parameters | Symbol | Min. | Typical | Max | Unit |
| Power Supply Voltage | VCC | 3.135 | 3.3 | 3.465 | V |
| Power Supply Current | Icc | 350 | mA | ||
| Operating CaseTemperature | TI | -40 | 25 | 85 | ℃ |
| Parameters | Symbol | Min | Max | Unit |
| Power Supply Voltage | VCC | 0 | 3.6 | V |
| Storage Temperature | Tc | -40 | 85 | ℃ |
| Operating Case Temperature | TI | -40 | 85 | ℃ |
| Relative Humidity | RH | 5 | 95 | % |
| RX Input Average Power | Pmax | -7 | dBm |
nApplications
Gigabit EthernetPassive Optical Networks(EPONCLASS)–OLTside
Product DescriptionParameter | Symbol | Min. | Max. | Unit |
StorageTemperature | TS | -40 | +85 | ℃ |
OperatingTemperature | Top | 0 | +70 | ℃ |
SupplyVoltage | VCC | -0.5 | +3.6 | V |
PowerSupplyCurrent | ICC | - | 400 | mA |
Voltage at anyInputPin | VIN | 0 | Vcc | V |
