Product Description

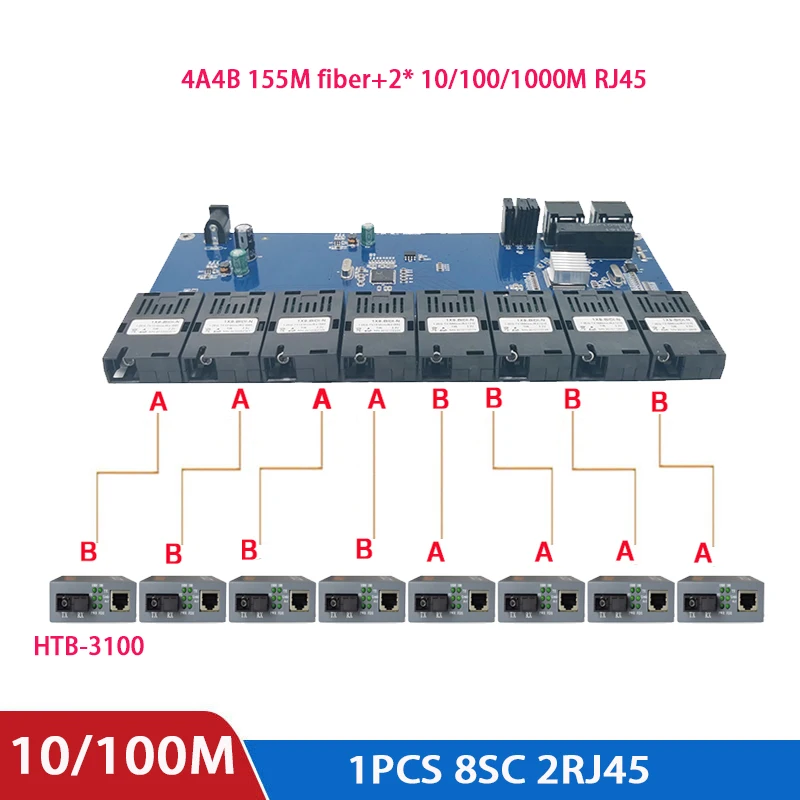

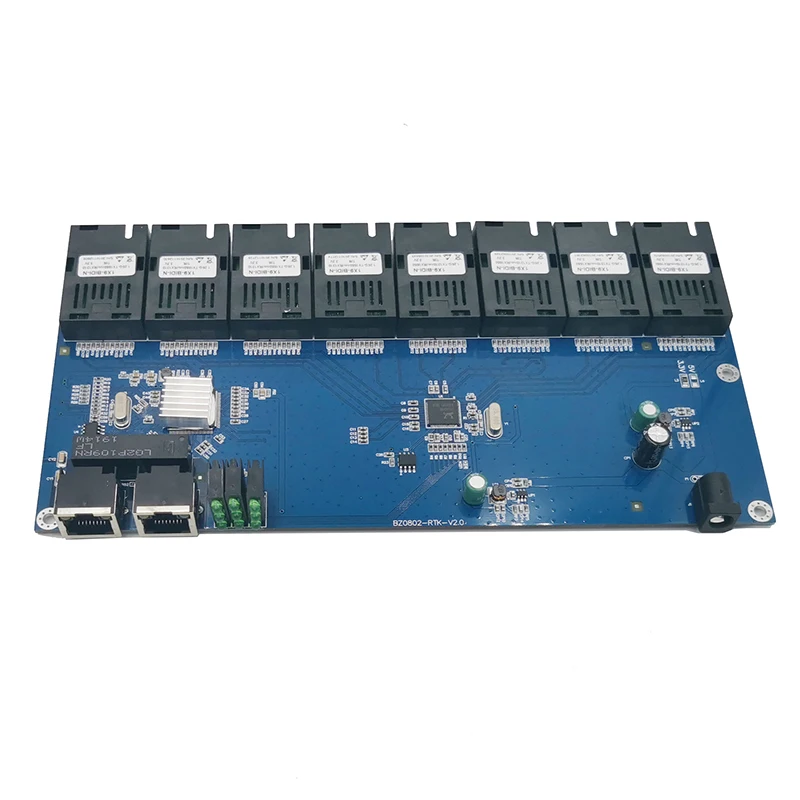

Gigabit fiber switch Fast Ethernet switch Converter 2 RJ45 and 8 SC fiber Ports 8F2E 8SC2E media converter
Gigabit fiber switch Fast Ethernet switch Converter 2 RJ45 and 8 SC fiber Ports 8F2E 8SC2E media converter
Product Description
8 port SC fiber 2 Rj45 1000M converter is our company independent research and development of green energy-saving Gigabit converged fiber switch; with simple and convenient installation and maintenance tools and rich business features to help users build a safe and reliable high-performance network. Mainly located in the industrial park, buildings, factories and mines, government agencies, community broadband and other user network core or convergence layer; can be widely used in small and medium enterprises, Internet cafes, hotels, schools and other Ethernet access scenarios.
Features
1. Supports 8*155Mbps SC ports,2*1000Mbps Ethernet interfaces
2. Conforms to IEEE 802.3, IEEE 802.3u, IEEE 802.3ab standard
3. Flow control mode: full-duplex IEEE 802.3x standard, half-duplex using Back pressure standard
4. Support port auto flipping (Auto MDI / MDIX)
5. The use of storage and forwarding mechanism
6. All ports support wire-speed switching, support giant frame transmission
7. Panel lights to monitor the working status and help failure analysis
Specifications:
Standards | IEEE802.3 10Base-T IEEE802.3u 100Base-TX/FX IEEE802.3z 1000Base-SX/LX IEEE802.3x Flow control IEEE802.1p QoS IEEE802.1d Spanning Tree |
| Connector: RJ45 Data Rate:10/100M or 10/100/1000M Distance: 100m UTP Type: UTP-5E or higher level |
Fiber Port | Connector: SC/FC/ST/SFP slot Data Rate: 155M or 1.25Gbps Optical Wavelength: 850nm/1310nm/1490nm/1550nm Distance: 550m～120km |
Performance | Processing Type: Store and Forward MAC Table Size:4K/6K/8K Buffer Space: 500kbs/1Mbit/2Mbit Jumbo Packet: 1518 bytes Back bandwidth: 3.8G/5.6G/7.2G Time Delay: ＜150μs |
Power | Power type: external power supply Input Voltage: AC100V～240V 50/60Hz Connector: DC Socket Working Voltage: 5V Power Consumption: 2.2W～3.5W |
Transmissin Distance | Twisted Pair: 100m (CAT5e, CAT6 cables) Muti-mode: 2km Single-mode: 3/20/40/60/80/100km |
MTBF | 100, 000 hours |
Warranty | 1 year |
Environment | Storage Temperature: -40～70℃ Operating Temperature: -10～55℃ Relative Humidity: 5-90% ( no condensation) |
Mechanical Structures | Dimension: 215×107×26mm Weight: 0.15 PCB main board |
OEM&ODM | Supportive |
Packing list
1 Piece( including SC module )1 x Power supply
1 x User manual
