Product Description

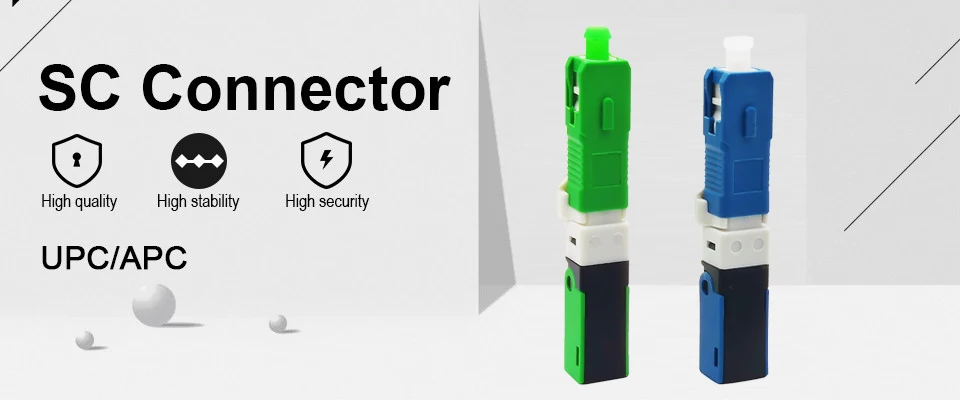

ESC250D FTTH SC UPC Optical fibe quick connector SC FTTH Fiber Optic Fast Connector Embedded ESC250P
ESC250D FTTH SC UPC Optical fibe quick connector SC FTTH Fiber Optic Fast Connector Embedded ESC250P
Product Attributes
Field Assembly S C/PC fast connectorfor FTTH can provide a quick and easy termination of fibers in the field. Options are available for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system removes any requirement for epoxy, adhesives or costly curing ovens and polishing and fibe ederface inspection.FEATURES

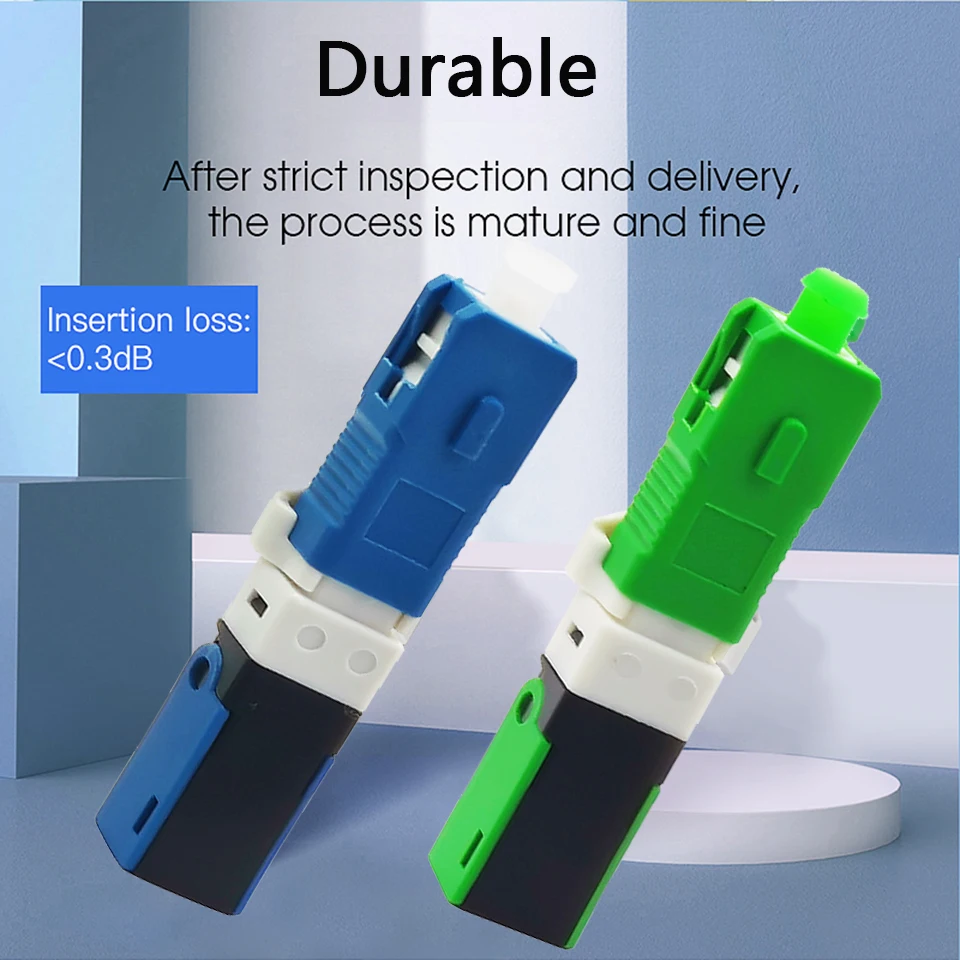

1.Low insertion loss, 0.2dB, 0.3dB, customer optional2.High return loss, 40dB, 45dB, 50dB, customer optional3.Reliable, durability over 500 times mating4.Low environmental sensitivity, adopt to complex environment5.Application: Datacom telecom measurement equipment single-mode lasers ONU FTTH projects .SPECIFICATION

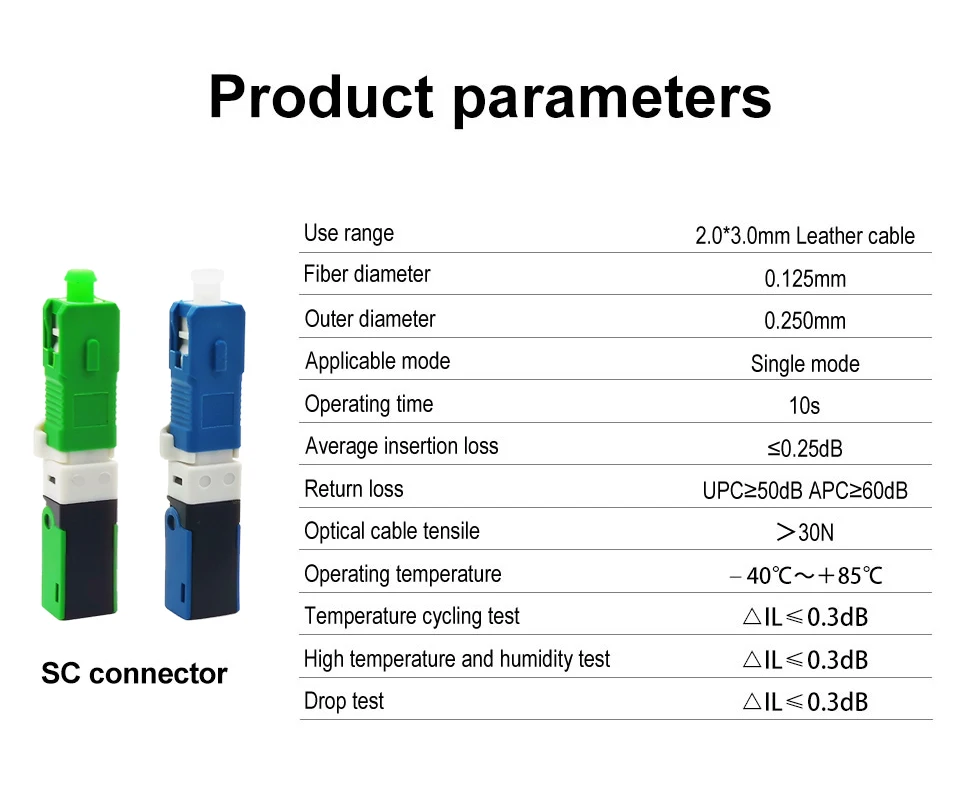

Item | Paramete |
Cable Scope | 3.0 x 2.0 mm Bow-type Drop Cable |
2.0/3.0 indoor cable | |
Fiber Diameter | 125μm ( 652 & 657 ) |
Coating Diameter | 250μm |
Mode | SM |
Operation Time | about 15s(exclude fiber presetting) |
Insertion Loss | ≤ 0.3dB(1310nm & 1550nm) |

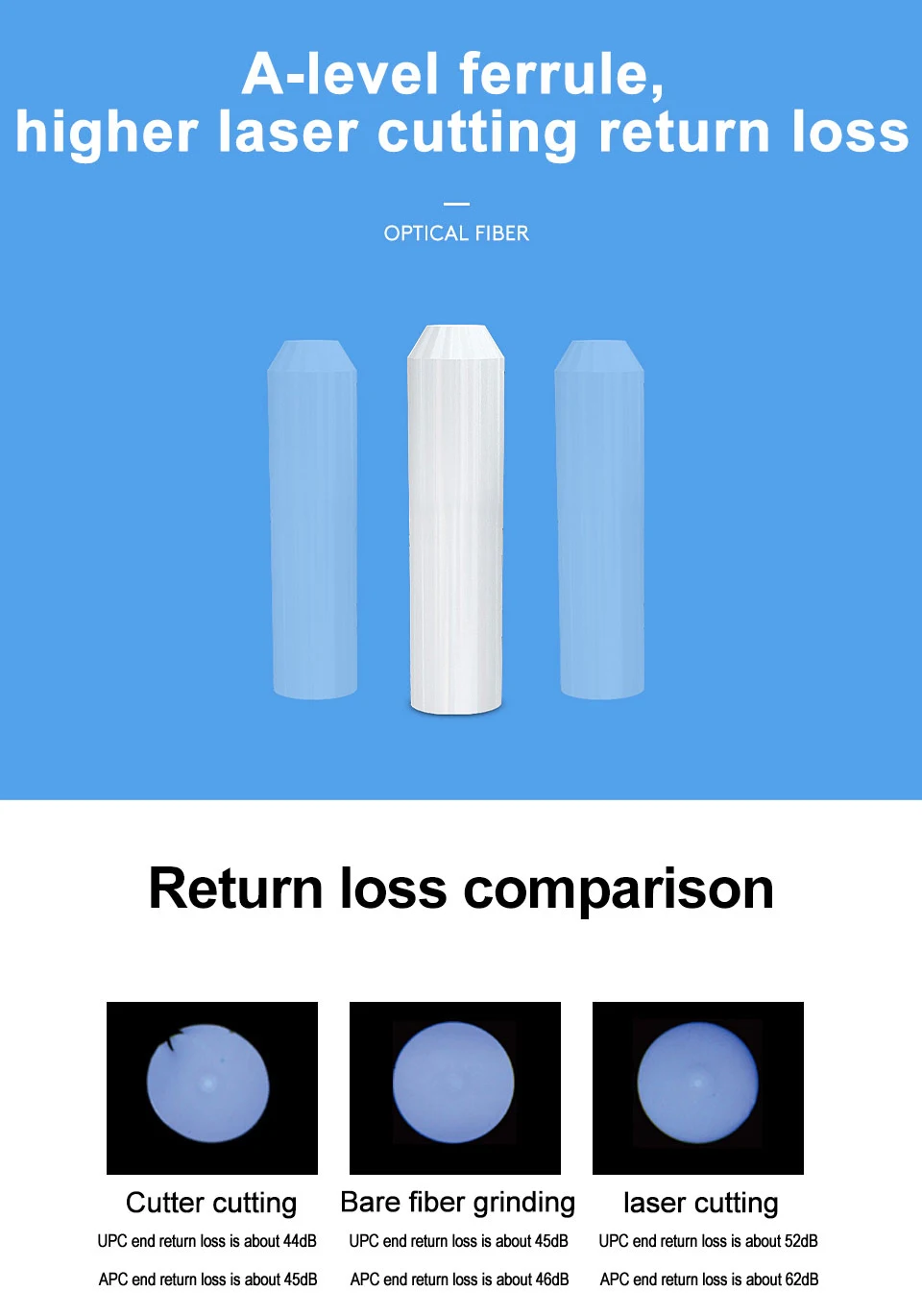

Return Loss | ≤ -40dB |
Success Rate | >98% |
Reusable Times | >10 times |
Tighten Strength of Naked Fiber | >5 N |
Tensile Strength | >50 N |
Teperature | -40~+85℃ |
On-line Tensile Strength Test (20 N) | IL ≤ 0.3dB |
Durabiltiy (500 times mating) | IL ≤ 0.3dB |
Drop Test(4m concrete floor, once each direction, three times total) | IL ≤ 0.3dB |
