Product Description

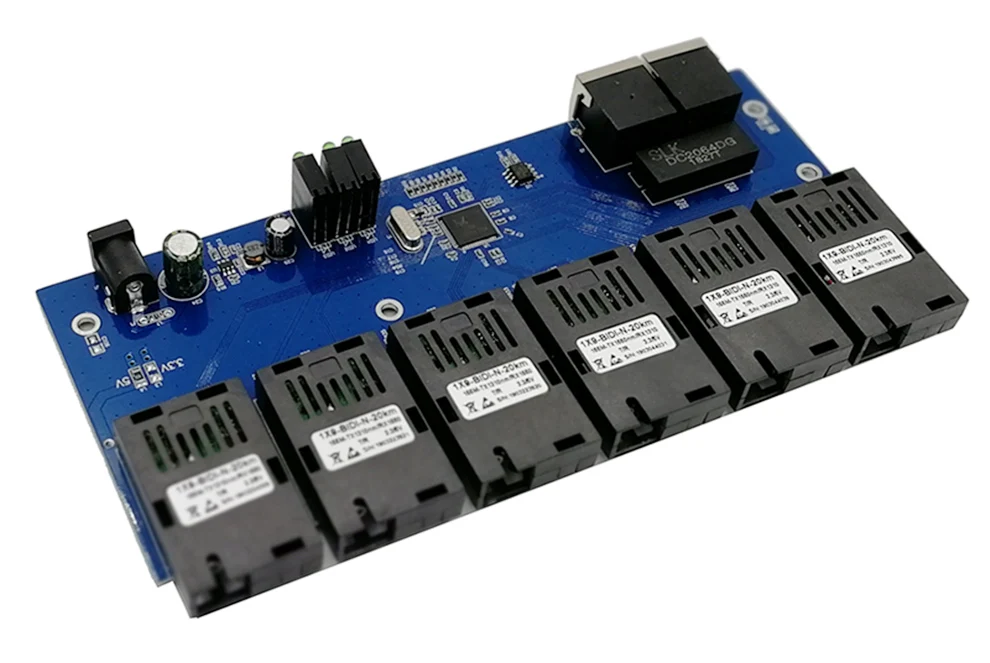

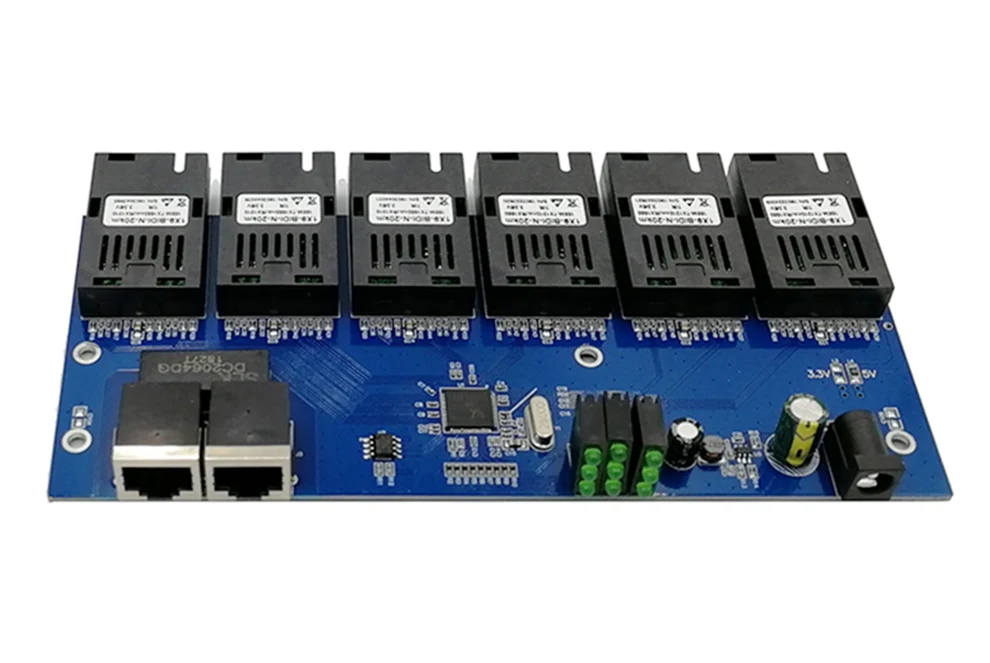

10/100M Fast Ethernet switch Converter 20KM Ethernet Fiber Optical Media Converter Single Mode 2*RJ45 and 6*SC fiber Port PCBA
10/100M Fast Ethernet switch Converter 20KM Ethernet Fiber Optical Media Converter Single Mode 2*RJ45 and 6*SC fiber Port PCBA
Fast Ethernet Switch 10/100Base-Tx to 100Base-FX Fiber SwitchThe Fast Ethernet Switch is an Ethernet Fiber Switch which is specially designed for network monitoring. Ithas 2*10/100Mbps Ethernet ports and 6*155Mbps fiber ports. It adopts RTL8309N chips to ensurelow power consumption and high stability. It extends the transmission distance of a network from100m to 120km via copper cables. It can extend the transmission distance; there are also many otheradvantages such as isolation protection, good data security, working stability and easy maintenanceMain Features:1.Support the switch between 10/100Base-TX and 100Base-FX2.6*155Mbps full-duplex fiber ports and 2*100M Ethernet ports with auto-negotiation function3.Support 100M speed rate, MDI/MDIX and half/full-duplex with auto-negotiation function4.Each port has the complete LED Indicator light5.Support single mode single fiber,single mode dual fiber ,multi-mode dual fiber and SFP slot6.Support IEEE802.1d Spanning Tree7.Support high performance QoS function on each port8.Support 12V voltage input9.Support IEEE 802.3x flow control and back pressure control10.Require no configuration and will instantly operate as soon as you power it up11.Low power consumption chip with heat sink built in to ensure longtime efficient operationSpecifications:Standards | IEEE802.3 10Base-T IEEE802.3u 100Base-TX/FX IEEE802.3z 1000Base-SX/LX IEEE802.3x Flow control IEEE802.1p QoS IEEE802.1d Spanning Tree |
| Connector: RJ45 Data Rate:10/100M or10/100/1000M Distance: 100m UTP Type: UTP-5E or higher level |
Fiber Port | Connector: SC/FC/ST/SFP slot Data Rate:155M or1.25Gbps Optical Wavelength: 850nm/1310nm/1490nm/1550nm Distance: 550m～120km |
Performance | Processing Type: Store and Forward MAC Table Size:4K/6K/8K Buffer Space:500kbs/1Mbit/2Mbit Jumbo Packet: 1518 bytes Back bandwidth:3.8G/5.6G/7.2G Time Delay: ＜150μs |
Power | Power type: external power supply Input Voltage: AC100V～240V 50/60Hz Connector: DC Socket Working Voltage: 12V Power Consumption: 2.2W～3.5W |
Transmissin Distance | Twisted Pair: 100m (CAT5e, CAT6 cables) Muti-mode: 2km Single-mode:3/20/40/60/80/100km |
MTBF | 100, 000 hours |
Warranty | 1 year |
Environment | Storage Temperature: -40～70℃ Operating Temperature: -10～55℃ Relative Humidity: 5-90% ( no condensation) |
Mechanical Structures | Dimension: 215×107×26mm Weight: 0.15 PCB main board |
OEM&ODM | Supportive |
