Product Description
Solar Inverter 5000W Low-Frequency Inverter 48V to 110V 220V Built-in 120A MPPT Solar Charge Controller Max PV Input 6400W 150V
Solar Inverter 5000W Low-Frequency Inverter 48V to 110V 220V Built-in 120A MPPT Solar Charge Controller Max PV Input 6400W 150VSolar Inverter 5000W Low-Frequency Inverter 48V to 110V 220V Built-in 120A MPPT Solar Charge Controller Max PV Input 6400W 150V
Inverter Features
5KW 110V /230VLow-Frequency Solar Inverter
220Vac/110Vac Output Voltage
120A MPPT Solar Charger+Max PV Input 150Vdc
1. The POW-RELAB series solar inverter-charger integrated machines from PowMr are suitable for most residential and commercial scenarios, ensuring higher output stability and reliability.

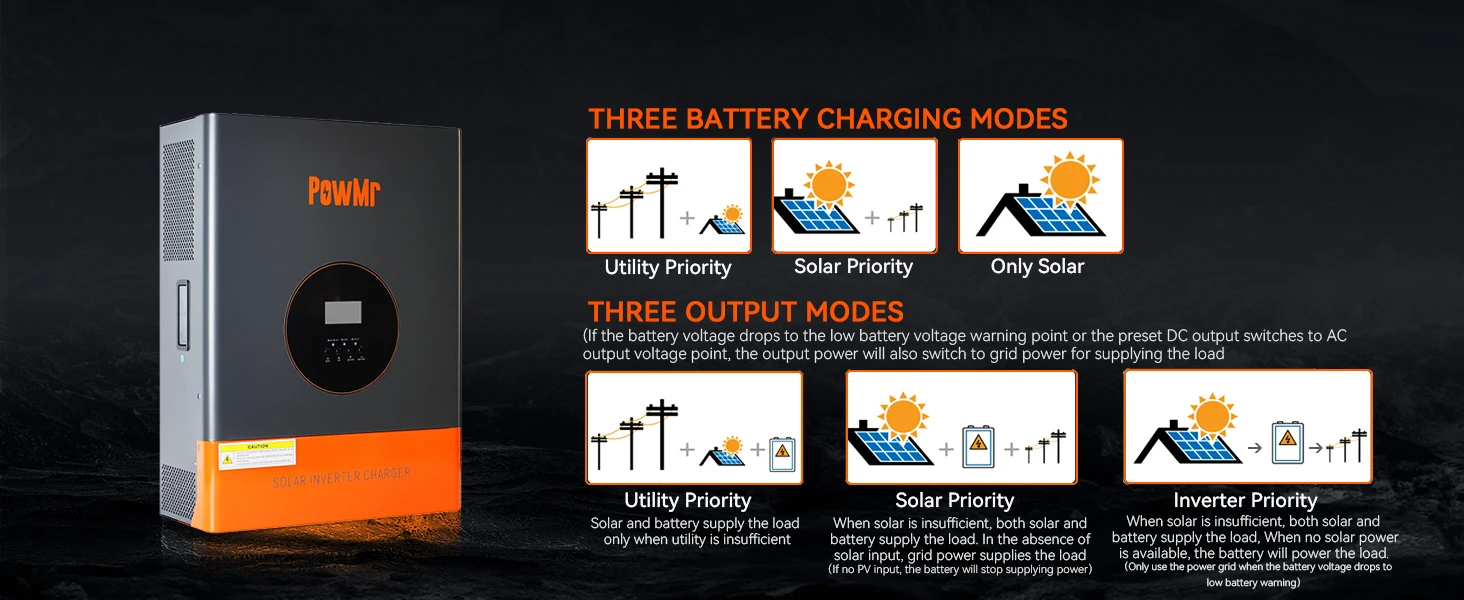

2. Flexible energy deployment is achieved through three operating modes, ensuring stable operation of loads while maximizing the utilization of solar clean energy. The energy-saving mode minimizes equipment self-consumption losses.

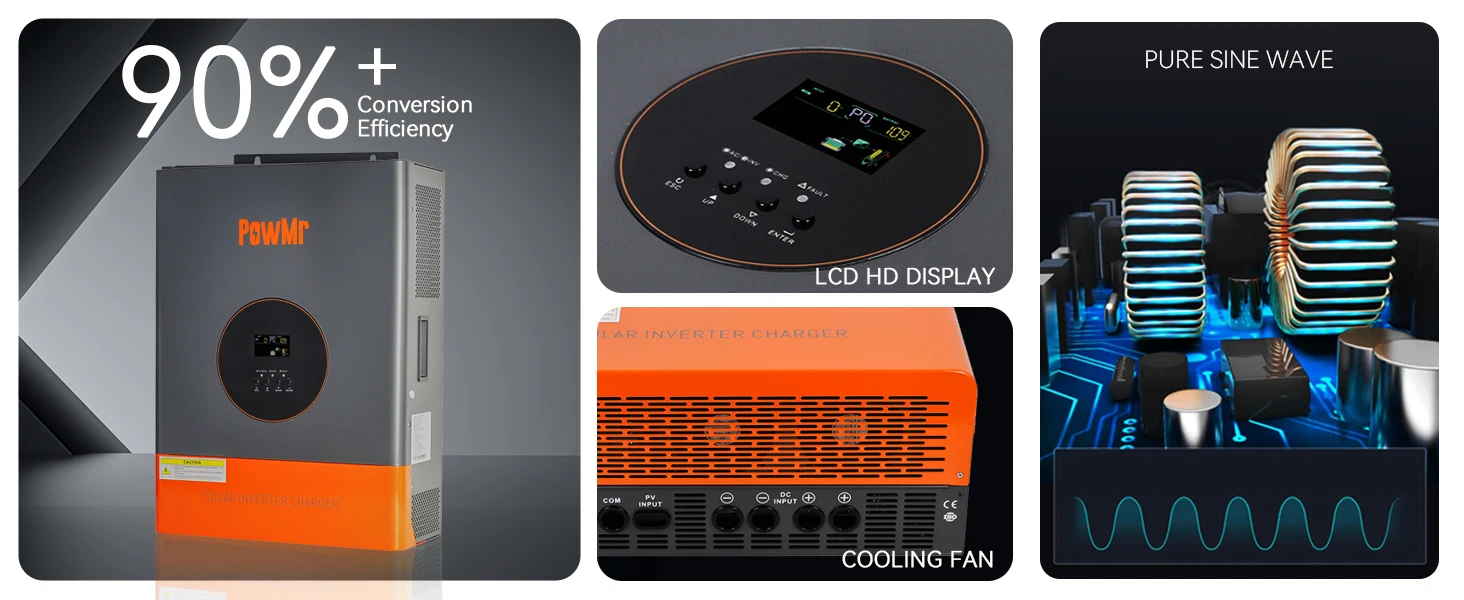

3. It combines pure sine wave inverter output with mains or generator bypass output functions, supporting solar charging and AC power charging. The output power and charging power can be prioritized according to actual application needs.

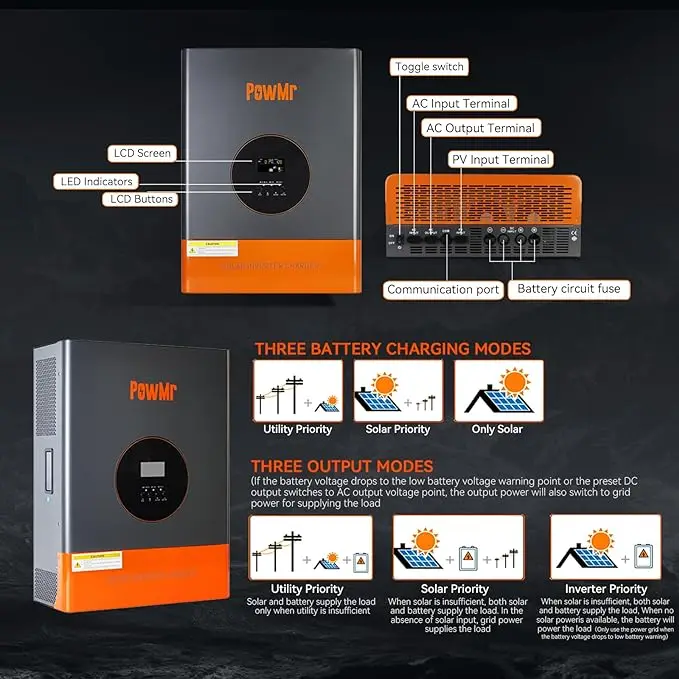

4. The bottom of the machine is equipped with battery circuit fuses to ensure circuit safety.
5. It features built-in multiple protection functions and precise alarm mechanisms, providing comprehensive protection for system safety and stability.
6. External communication is supported via RS232 or RS482. BMS communication is supported to effectively monitor battery operation, optimize battery pack operation efficiency, and extend the lifespan of the entire battery pack.

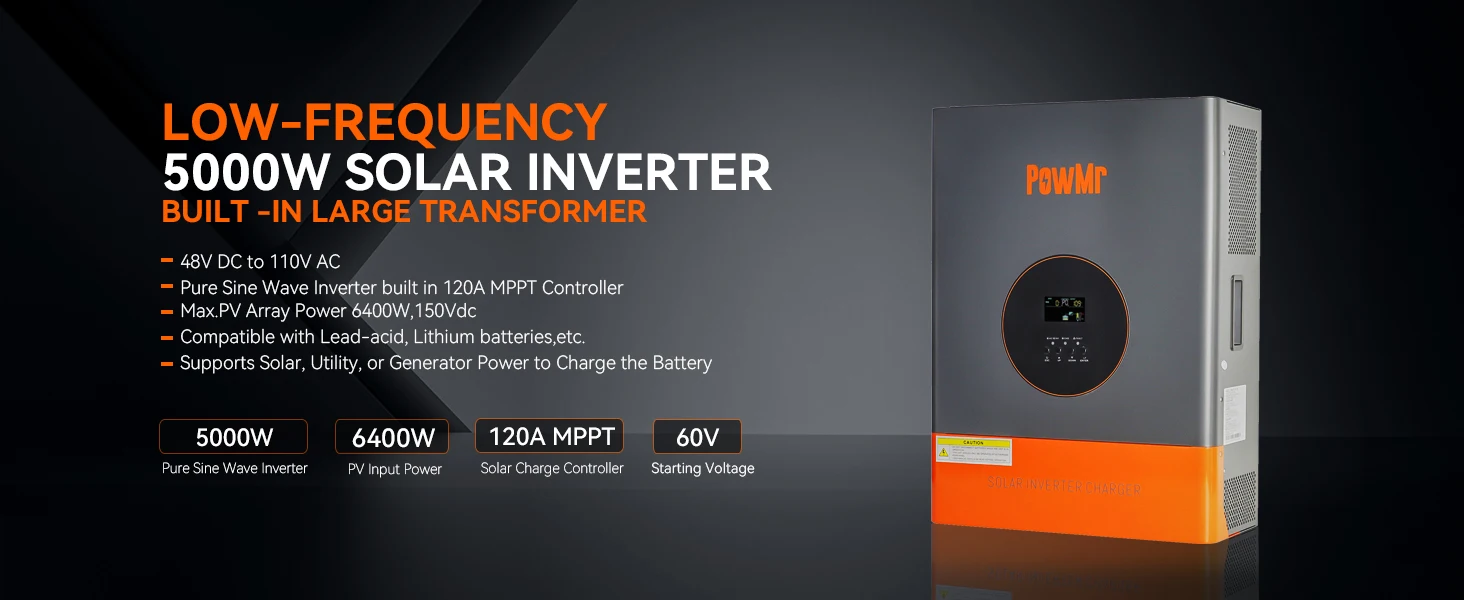

【NEW Low-Frequency Solar Inverters】It is a new 48V 5000W low-frequency pure sine wave solar inverter built-in 120A Mppt controller, and a 29A AC Charger, supporting Utility/Generator/Solar Charge. Technical Specifications: Max PV Input: 6400W, 150V; and Max.PV output current: 120A; AC output Power: 5000W; Peak Powe: 15000W; Hybrid charging Max charger current: 120A. Starting voltage greater than 60V

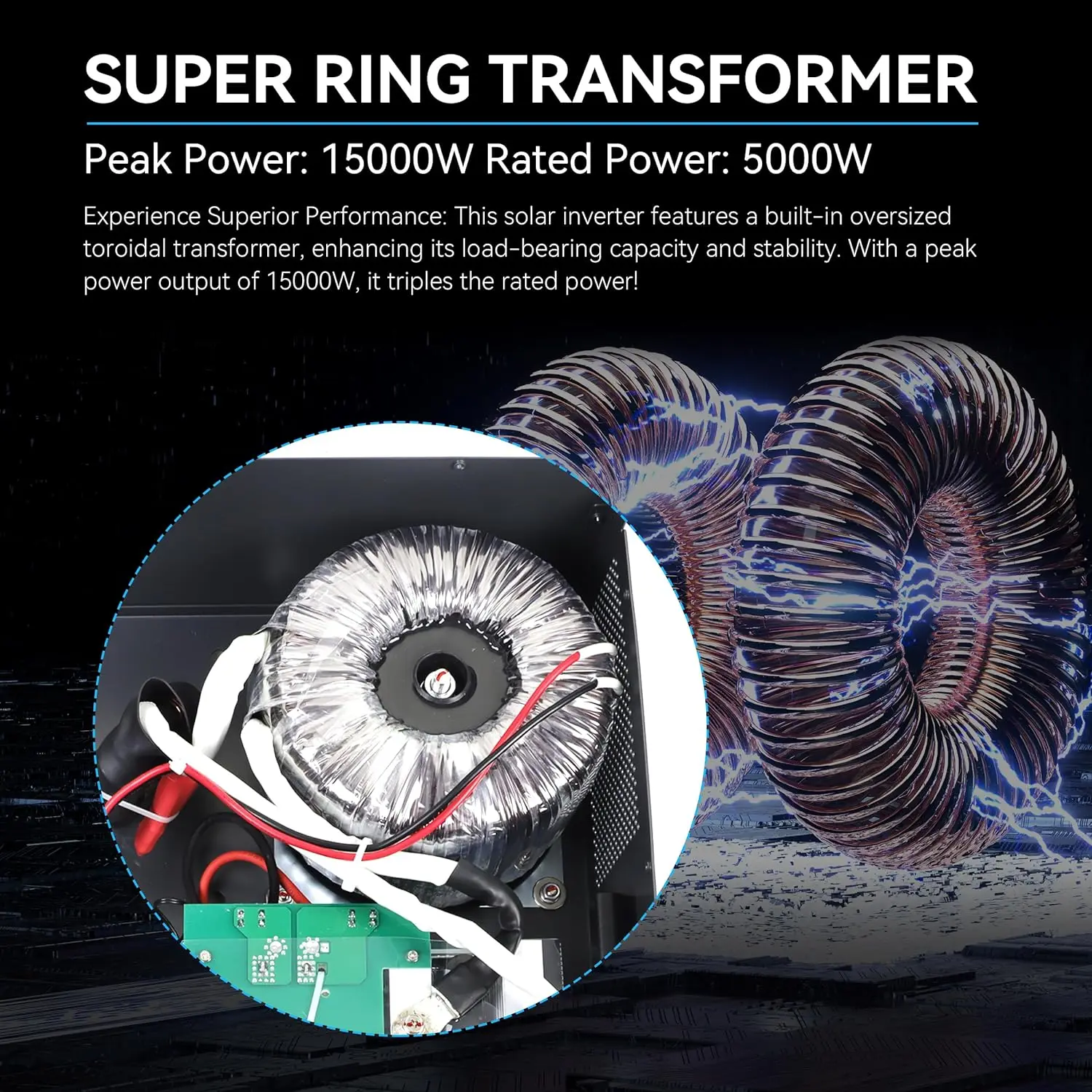

【Advantages of Low-Frequency Inverters】Unlike high-frequency inverters, low-frequency inverters have unparalleled reliability and stability, thanks to their robust design based on large ring transformers. Even in the face of power grid fluctuations and load changes, you can experience a seamless power supply, ensuring uninterrupted operation of your home or business. Lower electromagnetic interference makes them more suitable for applications that require high electromagnetic compatibility.
Specification
| Model | POW-RELAB 5KE | POW-RELAB 5KU |
| Input Voltage Waveform | Pure Sine Wave | |
| Nominal Input Voltage | 220Vac | 110Vac |
| AC Input Voltage Range | 154~265Vac | 77~135Vac |
| Nominal Input Frequency | 50Hz / 60Hz (Auto Detection) | |
| Input Protection | Circuit Breaker | |
| Rated Output Power | 5000W | 5000W |
| Output Voltage Range | 220Vac±10% | 110Vac±10% |
| Efficiency | >98% | |
| Nominal DC Input Voltage | 48Vdc | |
| Battery | ||

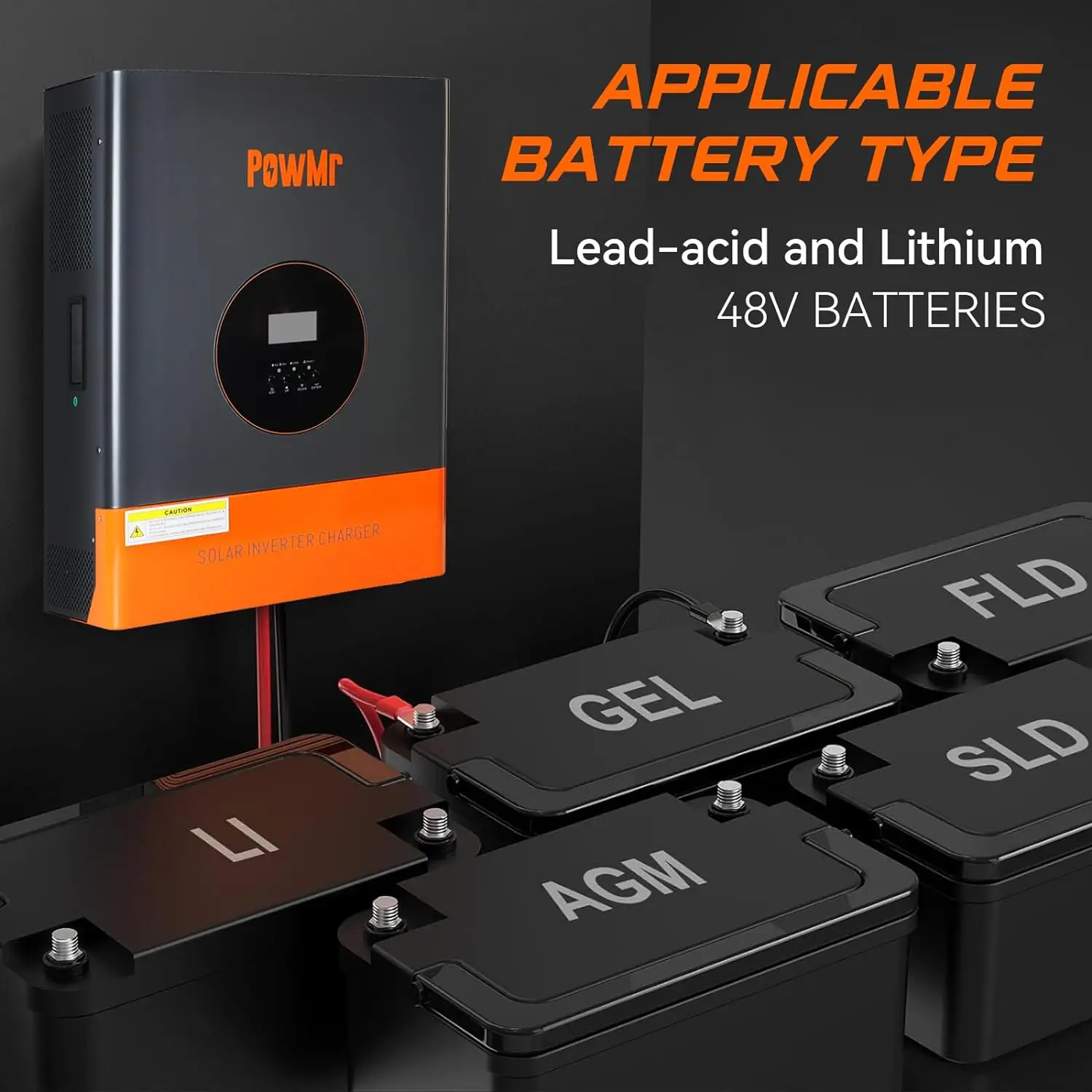

| Battery Type | AGM, FLD, GEL, Lithium battery | |
| Charging Current | 29A | |
| Battery Charging Voltage | 54.8VDC | |
Battery Undervoltage Cutoff Voltage | 40V/42V | |
| PV Input | ||
| Max. PV Array Power | 6400W | |
MPPT Input Voltage Range | 60~150Vdc | |
Max. PV Array Open Circuit Voltage | 150Vdc | |
| Charging Current | ||
Maximum AC Charging Current | 29A | |
| Max. PV Charging Current | 120A | |
| General Parameters | ||
| Operating temperature | -10°C to 50°C | |
| Storage temperature | -15°C to 50°C | |
| Humidity | Relative humidity from 5% to 95% (non-condensing) | |
| Noise | ＜45dB |
