Product Description
Solar Charger Controller 10A 20A 30A 40A 12V/24V Auto Battery Regulator Charger LCD Dual Timer Control T10A T20A T30A T40A
Solar Charger Controller 10A 20A 30A 40A 12V/24V Auto Battery Regulator Charger LCD Dual Timer Control T10A T20A T30A T40AProduct Description
This is a compatible MPPT charge controller PWM intelligent/efficient/energy saving,he not only has efficient MPPT controller charging function to automatically track the maximum power point,10%-30% higher than the ordinary controller chargingefficiency,also has standby energy saving,more than 30% energy than ordinary controller,the standby power consumption of only 10mA-15mA.
Note: It is high quality compatible MPPT + PWM Solar Controllers, not 100% Ture MPPT.
please note, T10 T20 is no USB port, if you have any questions before order, please let us know, thank you.
Features
Compared with normal PWM solar charge controller, this MPPT + PWM controller could increase efficiency by 10%-30%
1. LCD screen display
2. Easy operation interface
3.MPPT+PWM charging mode（Controller Provided MPPT Maximum power point tracking Function,charging mode is PWM)
4. Parameter user can reset
7. Battery reverse discharge protection
9. Battery under voltage protection
10. Overload, short-circuit protection
11.Automatic temperature compensation function
12. Can charge and discharge at the same time, Always keep the battery in full status
Note: Only MPPT 30A and 40A with USB Port.

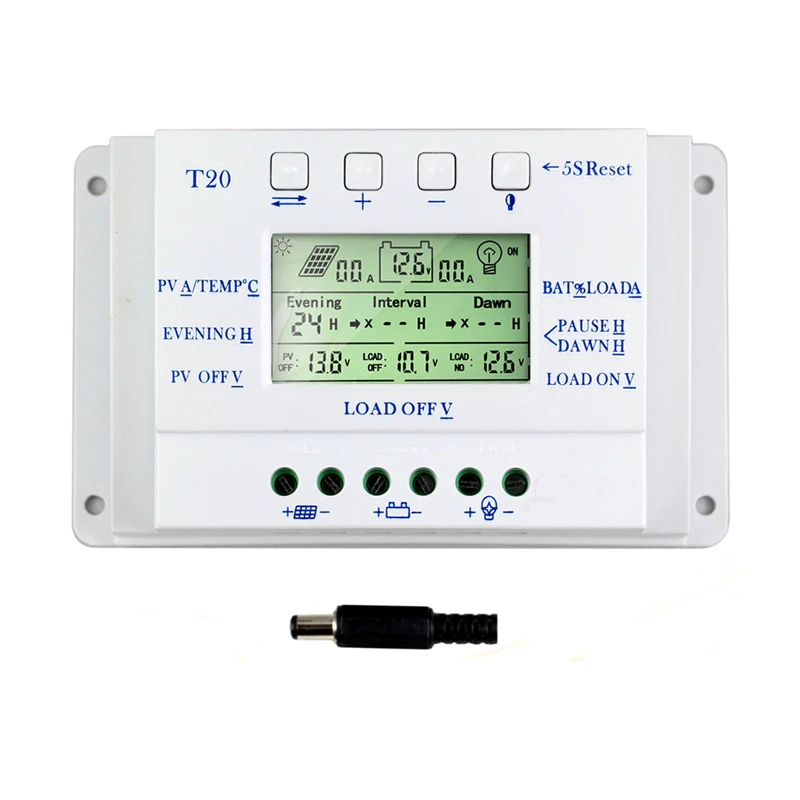

T20
20A Solar Panel Charge Controller Regulator Solar panel 260W/12V 520W/24V (Without USB Output)
Compatible with 520W(24v) solar panel with dark activated function, Max current is 20A Timer Intigrated (Lighting function)
T30
30A Solar Panel Charge Controller Regulator Solar panel 380W/12V 760W/24V
Compatible with 760W(24v) solar panel with dark activated function, Max current is 30A Timer Intigrated (Lighting function)
USB 5V charging (for 500mA) for mobile phone.
T40
40A Solar Panel Charge Controller Regulator Solar panel 500W/12V 1000W/24V
Compatible with 1000W(24v) solar panel with dark activated function, Max current is 40A Timer Intigrated (Lighting function)
USB 5V charging (for 500mA) for mobile phone.
LCD Operating interface description
Specification
Parameters/Model | T10 | T20 | T30 | T40 | |
Maximum Power Current | 10A | 20A | 30A | 40A | |
Installation Lin mm2 | 4mm2 | 8mm2 | 10mm2 | 12mm2 | |
Installation Line(AWG) | 10 (AWG) | 8(AWG) | 7(AWG) | 6(AWG) | |
Battery capacity configuration | 100AH | 200AH | 300AH | 400AH | |
Dimensions | 143×89×46 mm | 187*97*61 mm | |||
System load loss | ≤13mA | ||||
Loop Buck | ≤100mV | ||||
Battery float voltage | 13.8V 12V system /27.6V 24V system | ||||
Battery under voltage) protection | 10.6V 12V system /21.2V 24V system | ||||
Battery (under voltage) recovery voltage | 12.6V 12V system /25.2V 24V system | ||||
Charge mode | Compatible MPPT+PWM | ||||
Operating Temperature | -10~60°C | ||||
Storage Temperature | -30~70°C | ||||
Humidity requirements | ≤90%, No condensation | ||||
Temperature compensation | -4mV/Cell/°C | ||||
Temperature Probe (built components) | NTC 100K thermistats | ||||
Maximum open circuit voltage of the solar panel | 18V-24V 12V system 36V-48V 24V system) | ||||
Solar panels maximum open circuit voltage (V) | ≤48V | ||||
(Cases) 12V system standard configuration | |||||
The peak voltage of the solar cell panel | 18V-25V | 18V-25V | 18V-25V | 18V-25V | |
Peak power of solar cell panel | 50W-130W | 100W-260W | 200W-380W | ≤500W |

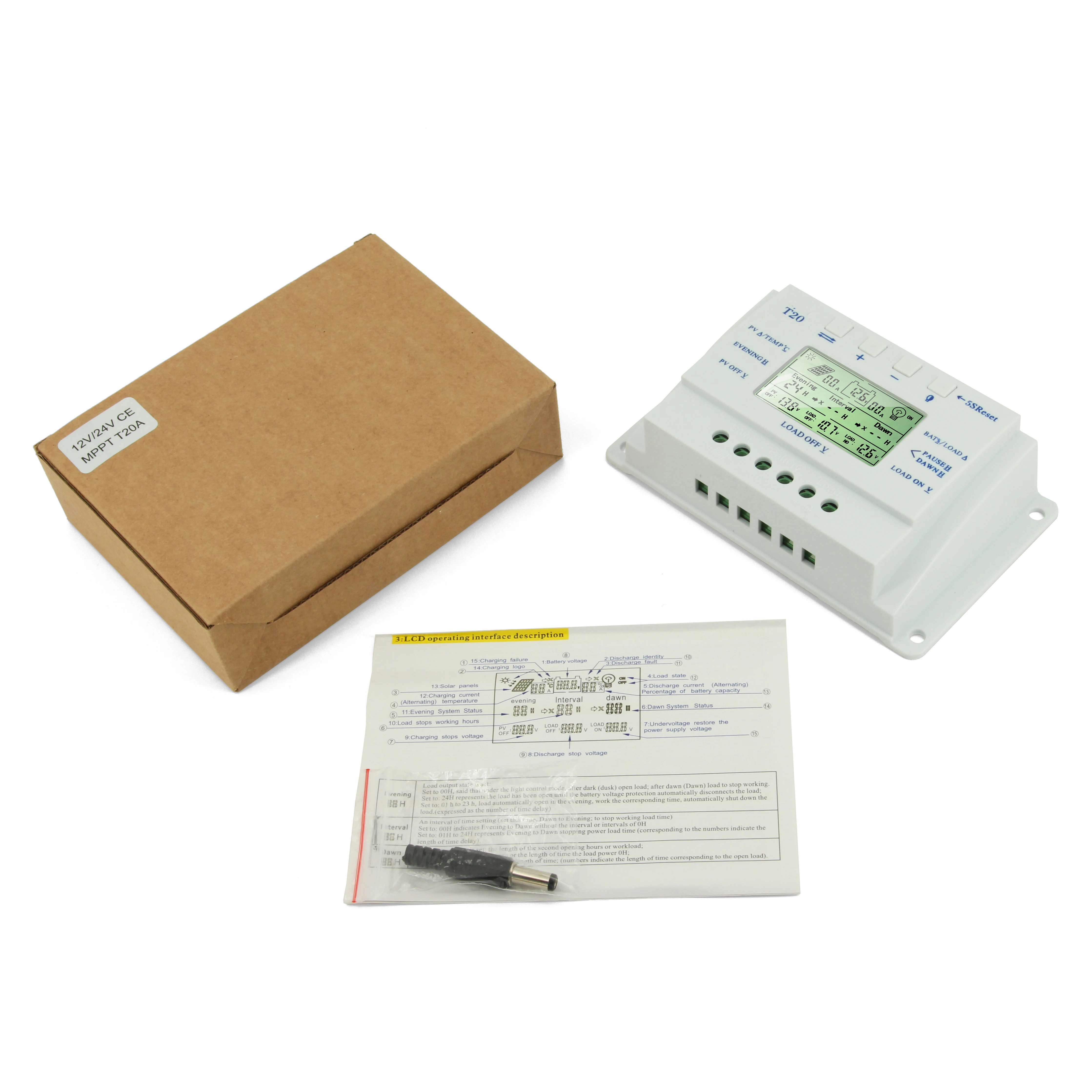

Package including
1.1PC Solar Contorller
2.1PC Temperature Sensor TS
2.1PC User Manual
