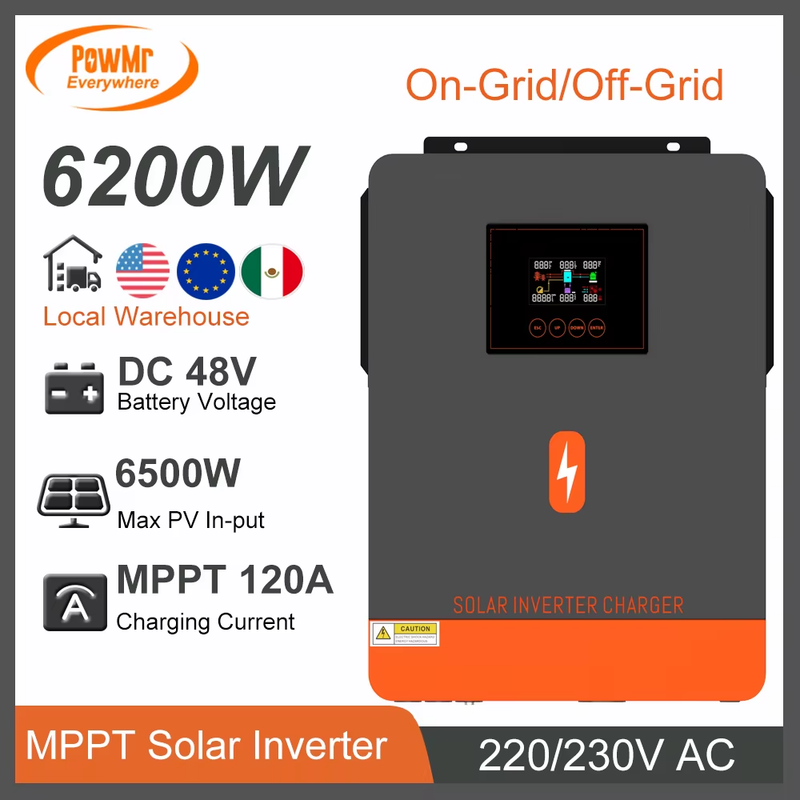

Name: 6200W On Grid/Off Grid Solar Inverter MPPT 120A Solar Charger Max PV Power 6500
Brand: Prime Living
SKU: H-168139638724
Price: 1063.99 CAD
Availability: InStock

Product Description

6200W On Grid/Off Grid Solar Inverter MPPT 120A Solar Charger Max PV Power 6500W 230V Out-put DC 48V for Battery Charger

PowMr 6200W On Grid/Off Grid Solar Inverter MPPT 120A Solar Charger Max PV Power 6500W 230V Out-put DC 48V for Battery Charger

To European Union Countries: You also can choose from China we will help you send from the EU warehouse if we have stock in the EU warehouse, that it can help you don't need to pay the additional fees. when you order before, please contact us first, thank you.

Inverter Use Note:The battery capacity of the correct matching system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation. For details, please refer to the manual recommendation or consult online customer service.

Introduction

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Features

On Grid/Off Grid 6200W 48V 220V/230V Solar inverter

1.Pure sine wave inverter

2.Configurable input voltage range for home appliances and personal computers via LCD setting

3.Configurable battery charging current based on applications via LCD setting

4.Configurable AC/Solar Charger priority via LCD setting

5.Compatible to mains voltage or generator power

6.Auto restart while AC is recovering

7.Overload/Over temperature/short circuit protection

8.Smart battery charger design for optimized battery performance

9.Cold start function

Basic System Architecture

The following illustration shows basic application for this inverter/charger.It also includes following devices to have a complete running system：

●Generator or Utility.

●PV modules

Consult with your system integrator for other possible system architectures depending on your requirements.

This inverter can power all kinds of appliances in home or office environment，including motor-type appliances such as tube light，fan，refrigerator and air conditioner.

Specification

INVERTER MODEL	6.2KW
Input Voltage Waveform	Sinusoidal(utility or generator)
Nominal Input Voltage	230Vac
Rated Output Power	6200W
output Voltage Regulation	230Vac±5%
output Frequency	50Hz
Peak Efficiency	93%
Nominal DC Input Voltage	48Vdc
Cold Start Voltage	46.0Vdc
MPPT Solar Charging Mode
Max. PV Array Power	6500W
Maximum Main Load	6200W
Maximum Second Load(battery model)	2066W
Main Load Cut Off Voltage	44VDC
Main Load Return Voltage	52VDC
Nominal PV Voltage	360Vdc
PV Array MPPT Voltage Range	90Vdc~450Vdc
Max. PV Array Open Circuit Voltage	500Vdc
Max Charging Current (AC charger plus solar charger)	120Amp
Grid-Tie Operation
Nominal Output Voltage	220/230/240VAC
Feed-in Grid Voltage Range	195~253VAC
Feed-in Grid Frequency Range	49~51±1Hz
Nominal Output Current	26.1A
Power Factor Range	>0.99
Maximum Conversion Efficiency(DC/AC)	97%
Utility Charging Mode
AC Charging Current(Max)	100Amp(@V/p=230Vac)
Floating Charging Voltage	54Vdc
General Specifications
Safety Certification	CE
Operating Temperature Range	-10℃ to 50℃
Storage Temperature	-15℃- 60℃

Product Overview

48V Built-In MPPT Solar Charge Controller

Compatible with 48V lithium, lead-acid, and user-defined batteries, the combanation of the MPPT solar charge controller and AC battery ensures the rapid and optimal performance. Maximize your battery system with a 120A charging current. Experience advanced power control in a compact design.
