12KW Three-Phase DC 48V to 230/400VAC Solar Hybrid Parallel Inverter Built-in 2

Product Description

12KW Three-Phase DC 48V to 230/400VAC Solar Hybrid Parallel Inverter Built-in 2 MPPT 260A Solar Charge Controller Dual PV Input

Product Introduction

POW-SunSmart L3 series is a new type of solar energy storage inverter control inverter integrating solar energy storage & utility charging and energy storage, AC sine wave output. It adopts DSP control and features high response speed, reliability, and industrial standard through an advanced control algorithm.

Product Features

Support Parallel Up to 6 Units

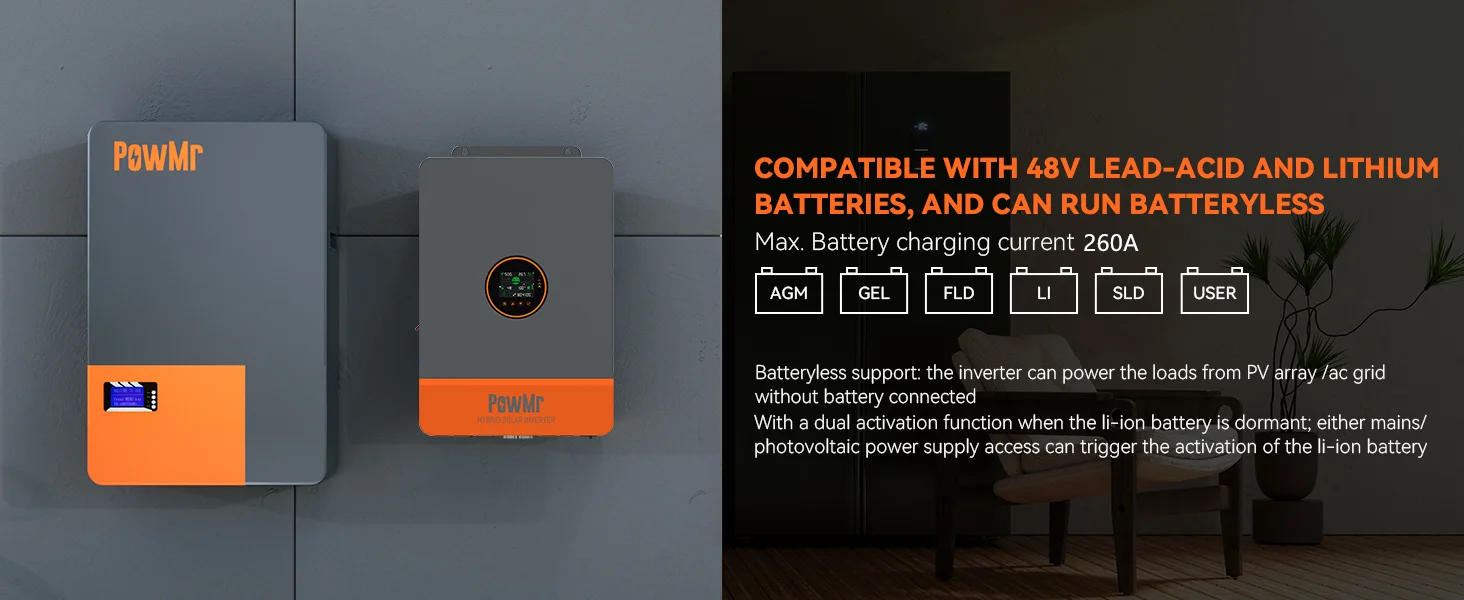

1. Supports lead-acid battery and li-ion battery connections.

2. With a dual activation function when the li-ion battery is dormant; either mains or photovoltaic
power supply access can trigger the activation of the li-ion battery.

3. Supportthree-phase pure sine wave output (350~415V).

4. Supports phase voltage adjustment in the range of200, 208, 220, 230, 240Vac.

5.Supports two PV inputs, with the function of simultaneously tracking the maximum power
charging or carryingcapacity of two MPPT.

6.Dual MPPT, efficiency up to 99.9%, single maximum current of22A, perfectly adapted to high-power modules.

7. 4 charging modes are available: solar only, mains priority, solar priority, and mixed mains and PV
charging.

8. With time-slot charging and discharging setting function, it helps users to take advantage of peak
and valley tariffs and save electricity costs.

9. Energy-saving mode function to reduce no-load energy losses.

10. With two output modes of utility bypass and inverter output, with uninterrupted power supply
function.

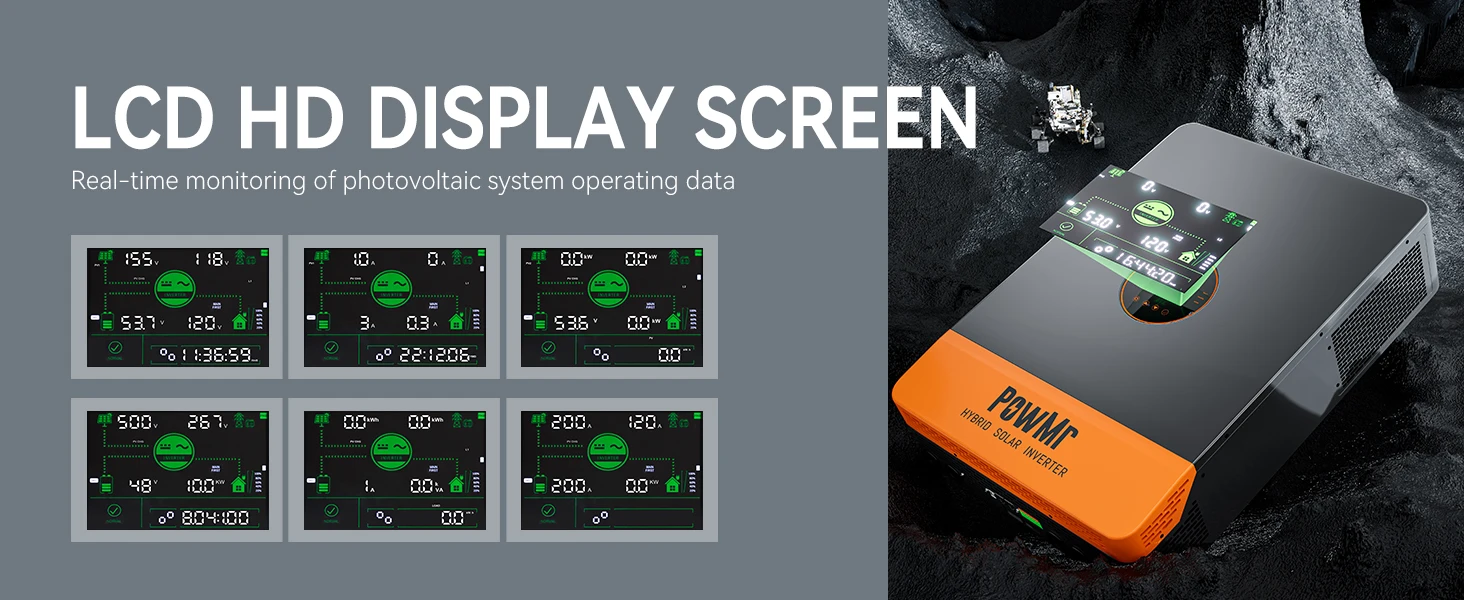

11. LCD large screen dynamic flow diagram design, easy to understand the system data and
operation status.

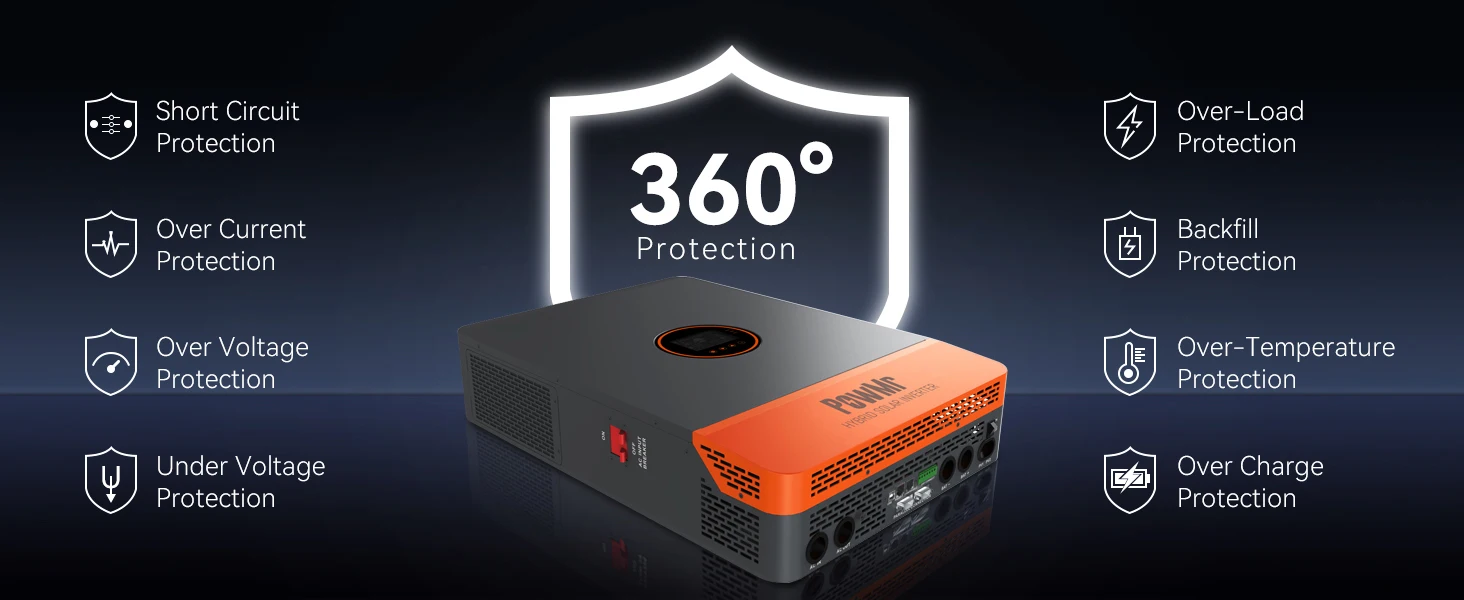

12.360° protection with complete short-circuit protection, over-current protection, over-voltage
protection, under-voltage protection, over-load protection, etc.

13. Support CAN, USB, and RS485 communication

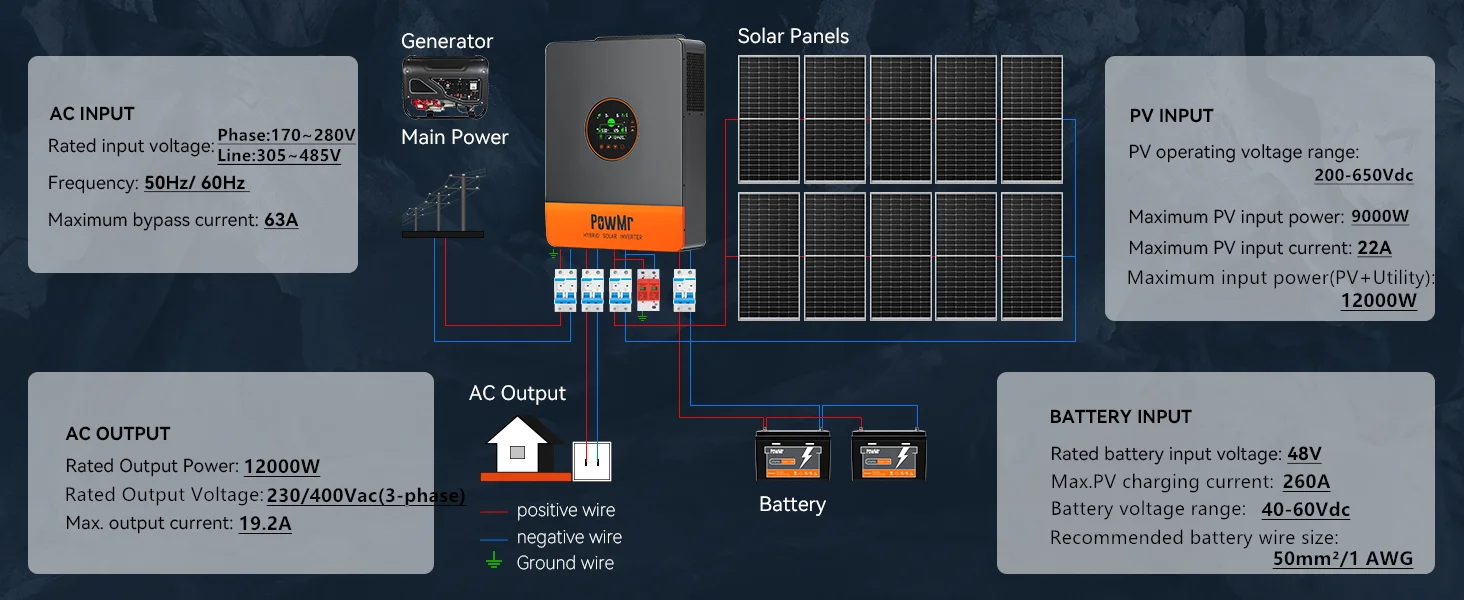

Product Specification

Dual 260Amp(12KW) MPPT Solar Charge Controllers for Higher Power

POW-SunSmart 12KL3 features 2 built-in 260Amp MPPT solar charge controllers, each with 99.9% efficiency and 22A current(Max. PV Input) in a single circuit. With support for 2 solar inputs and simultaneous tracking of 2 solar maximum power charging/carrying capacity functions, it maximizes your solar power efficiency. With up to 800V PV input voltage, this model is ideal for high power.

Dual Activation Function

With a dual activation function when the li-ion battery is dormant; either mains or photovoltaic power supply access can trigger the activation of the li-ion battery. Once accessed, it promptly ctivates, providing reliable power backup. This versatile battery seamlessly integrates into various systems, allowing users to choose their preferred power source and harness the benefits of both technologies.

Support Three-phase Pure Sine Wave Output
The 8KW/12KW 48V 220/380V three phase hybrid Inverter supports phase voltage adjustment in the range of 200, 208, 220, 230, 240Vac. It supports CAN, USB, and RS485 communication for enhanced connectivity. Experience reliable and efficient power conversion with this versatile inverter, perfect for a variety of applications.

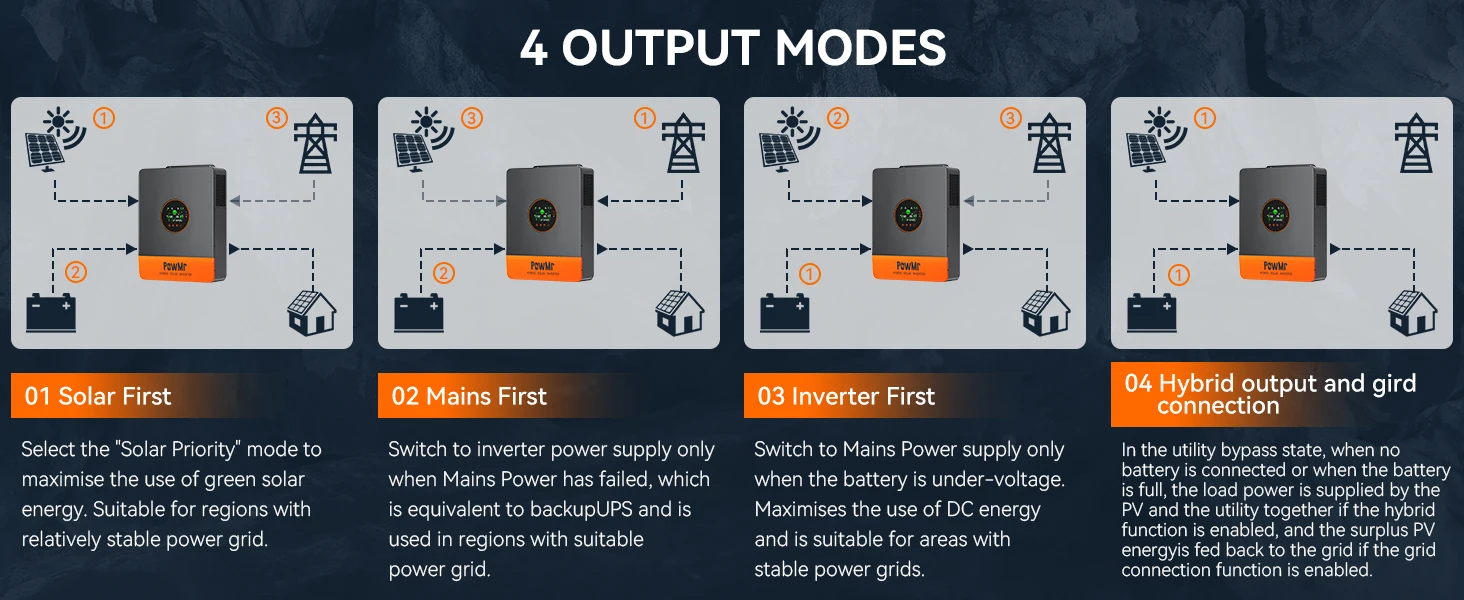

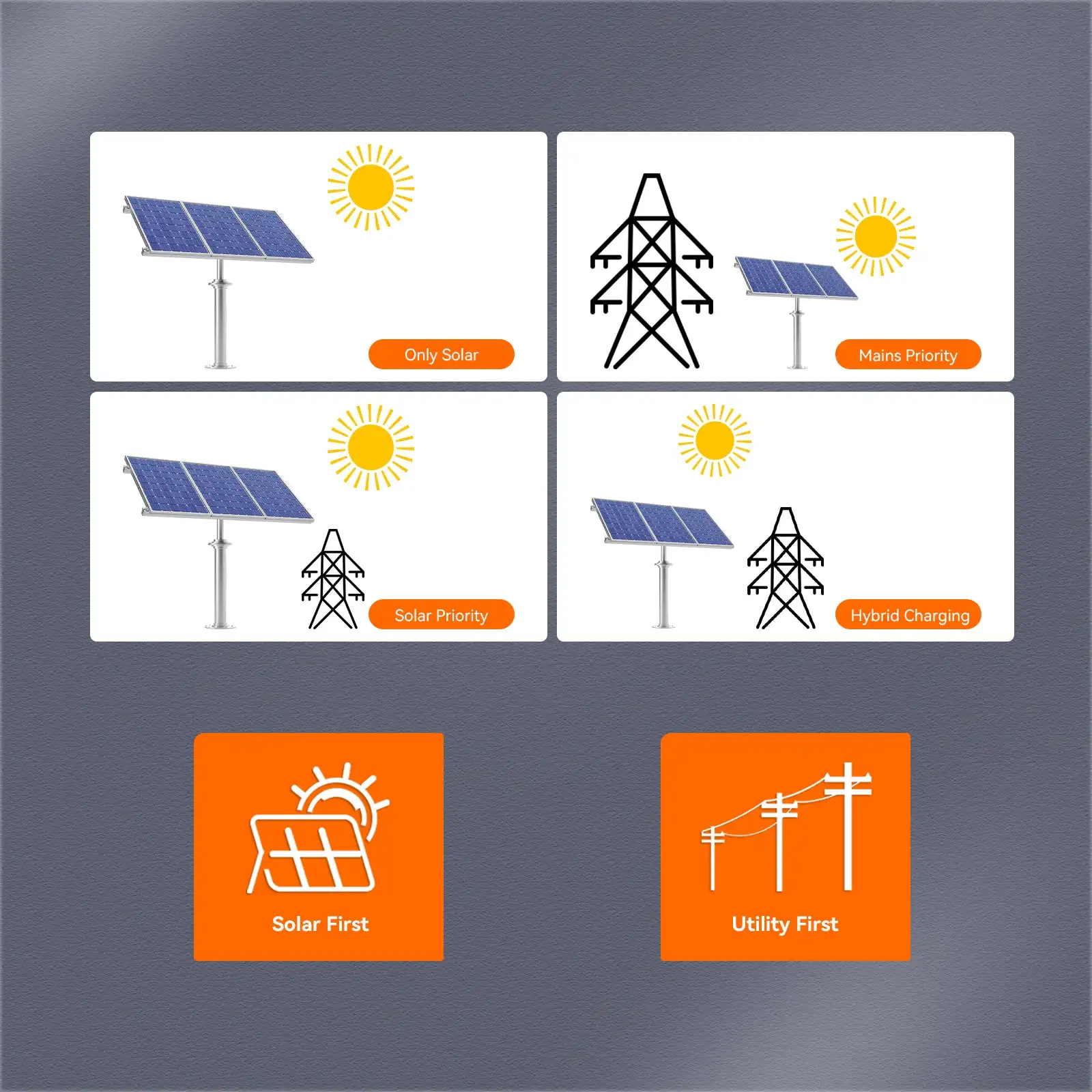

Flexible Charging & Output Modes

Versatile solar inverter that comes equipped with four charging modes (solar only, mains priority, solar priority, and mixed mains and PV charging.) and 2 output modes(Utility Bypass and Inverter Output). Also, it features 360° protection with complete short-circuit protection, over-current protection, over-voltage protection, under-voltage protection, over-load protection, etc.

Energy-saving Mode Function

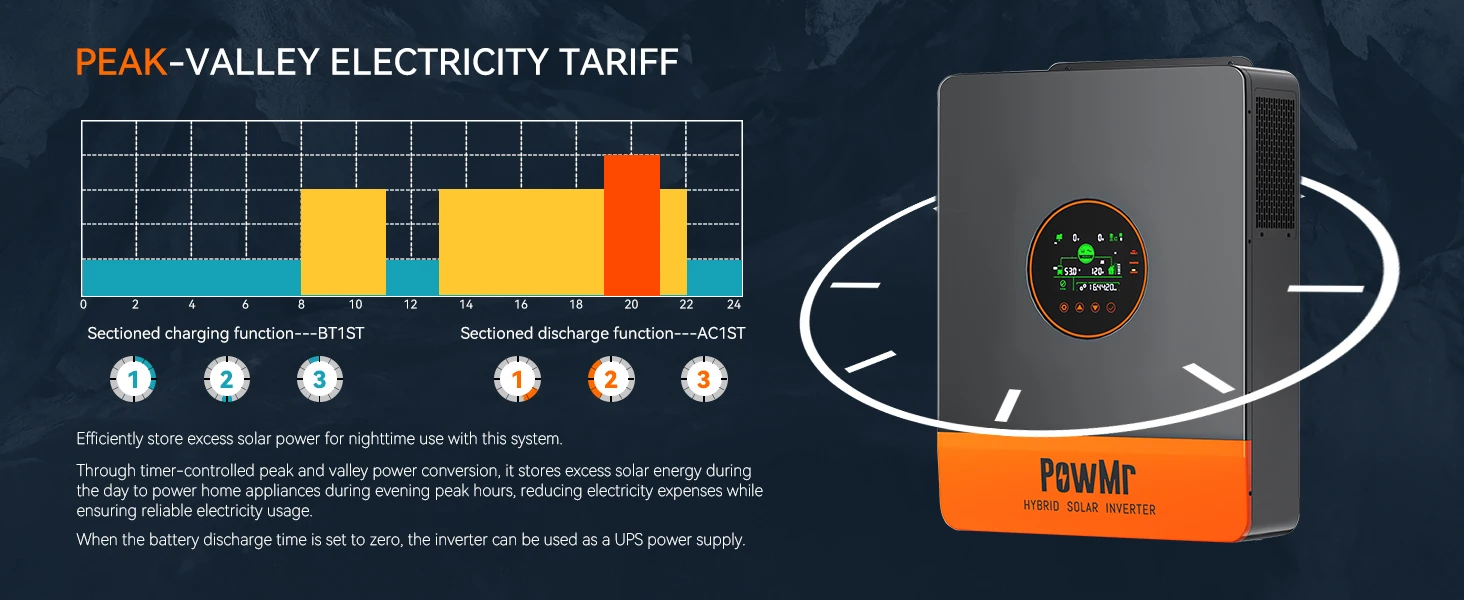

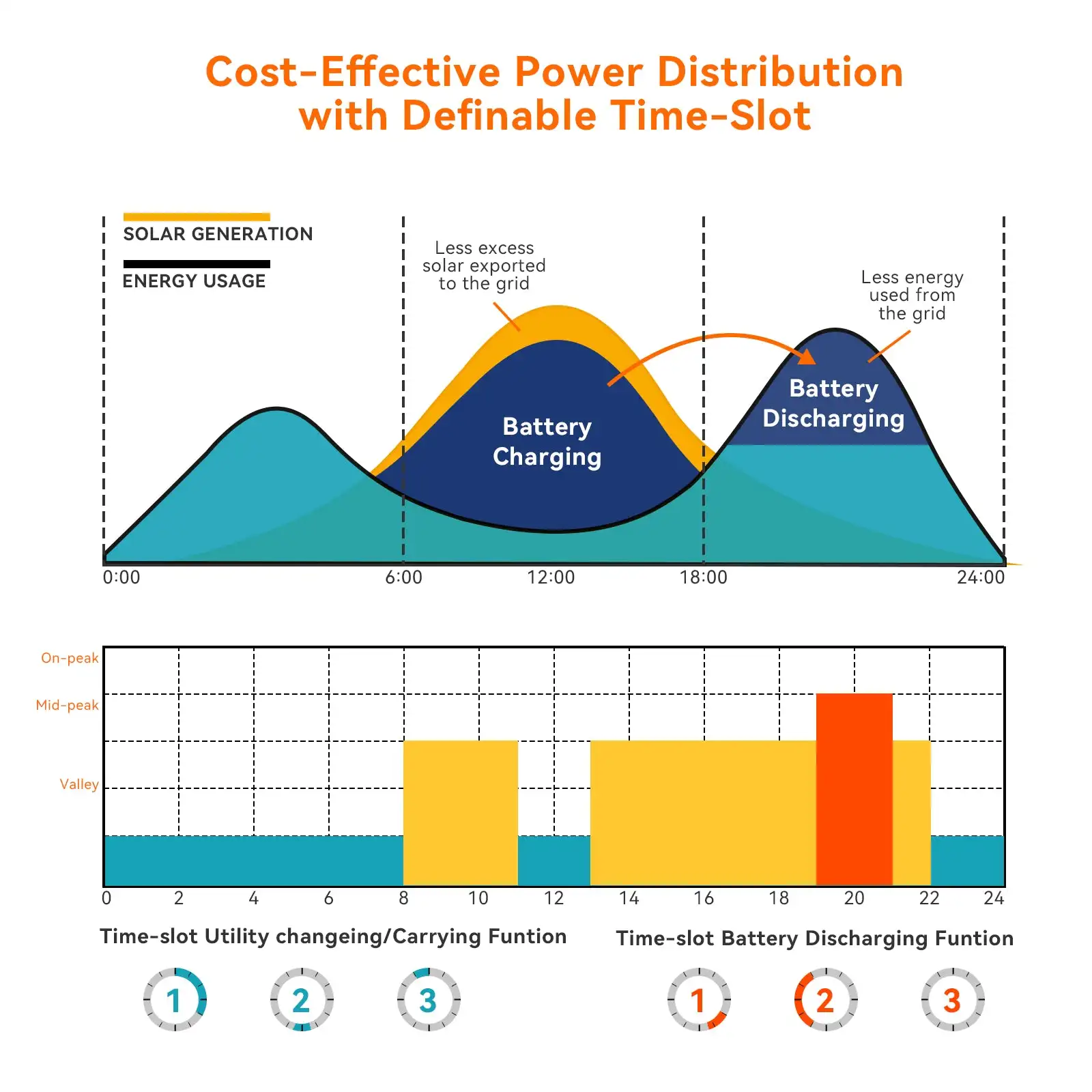

With time-slot charging and discharging setting function, it helps users to take advantage of peak and valley tariffs and save electricity costs. Excess solar energy generated during the day is intelligently stored in the battery, ready for use by home appliances during the evening peak of electricity consumption. This not only ensures reliable electricity usage but also significantly reduces energy expenses. Zero battery discharge time enables inverter as UPS power supply.

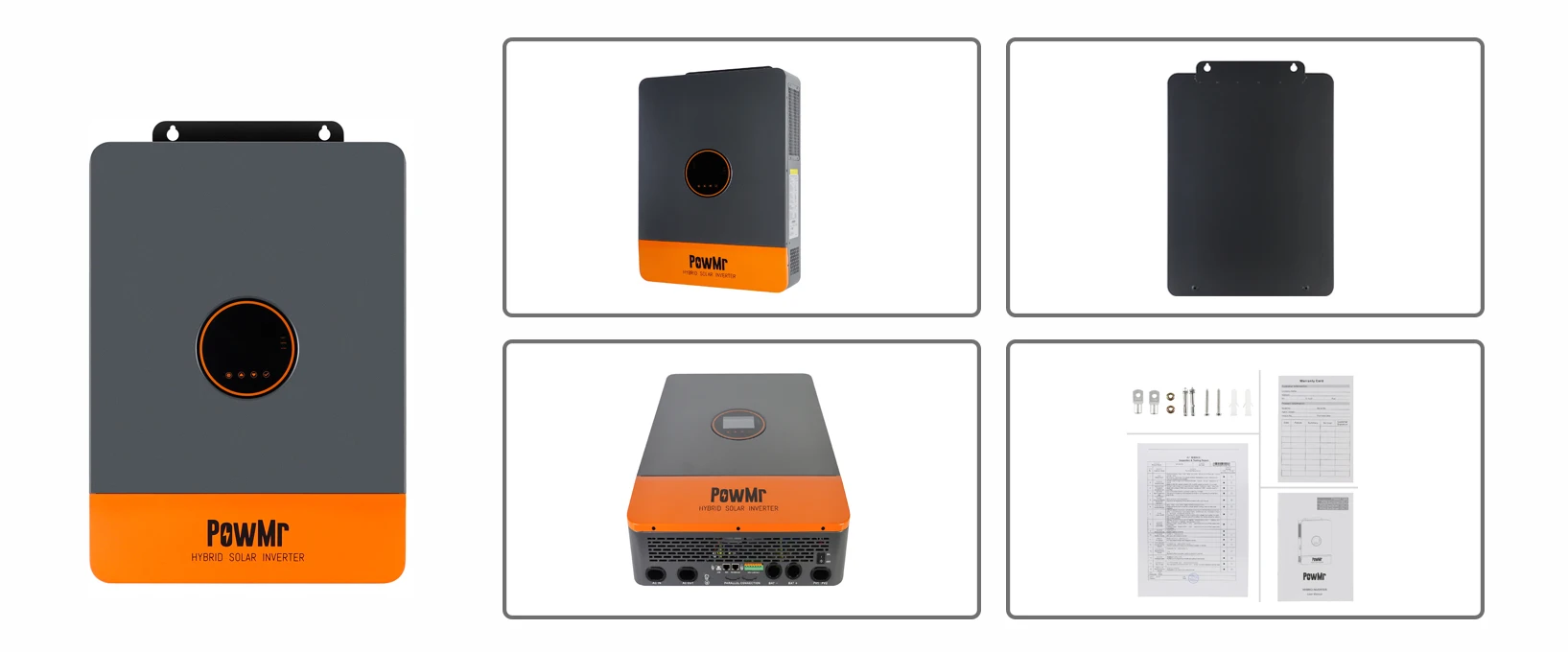

Product Display
