Product Description

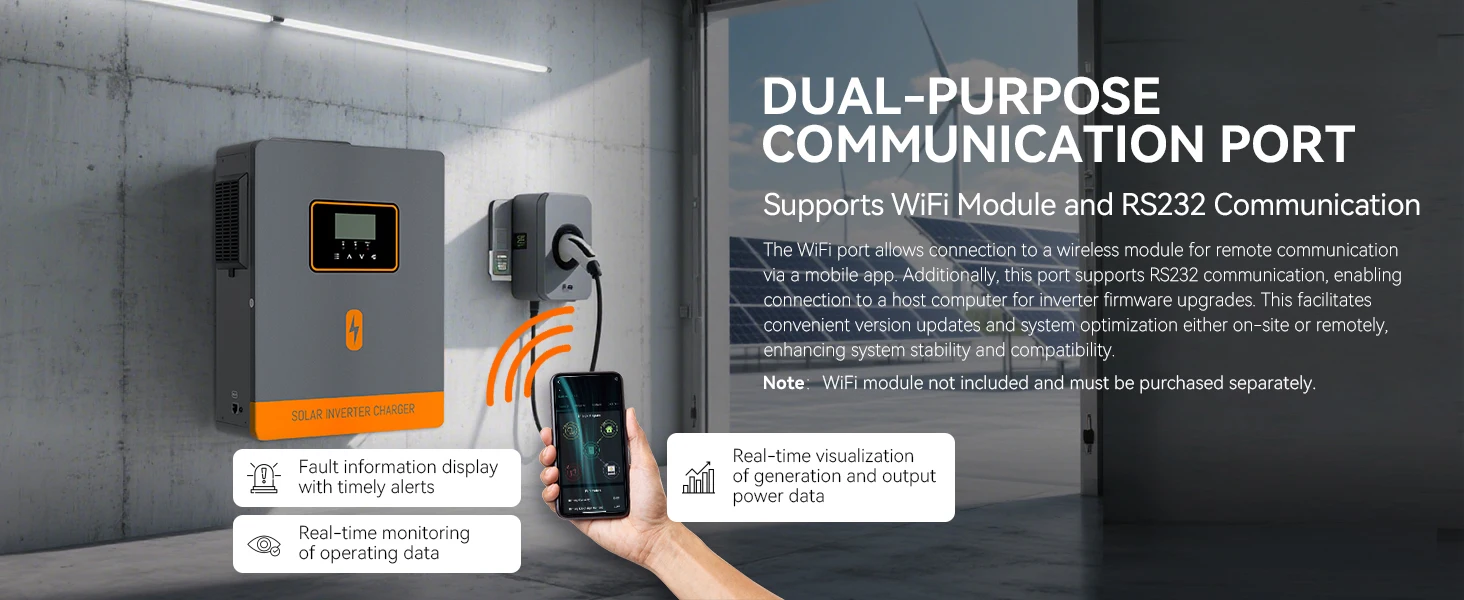

6KW Hybrid Solar PV Inverter 230VAC Dual MPPT Input LCD Display Pure Sine Wave Max PV Power 4500W*2 and RS232 Off Gird Inversor
6KW Hybrid Solar PV Inverter 230VAC Dual MPPT Input LCD Display Pure Sine Wave Max PV Power 4500W*2 and RS232 Off Gird Inversor6KW Hybrid Solar PV Inverter 230VAC Dual MPPT Input LCD Display Pure Sine Wave Max PV Power 4500W*2 and RS232 Off Gird Inversor

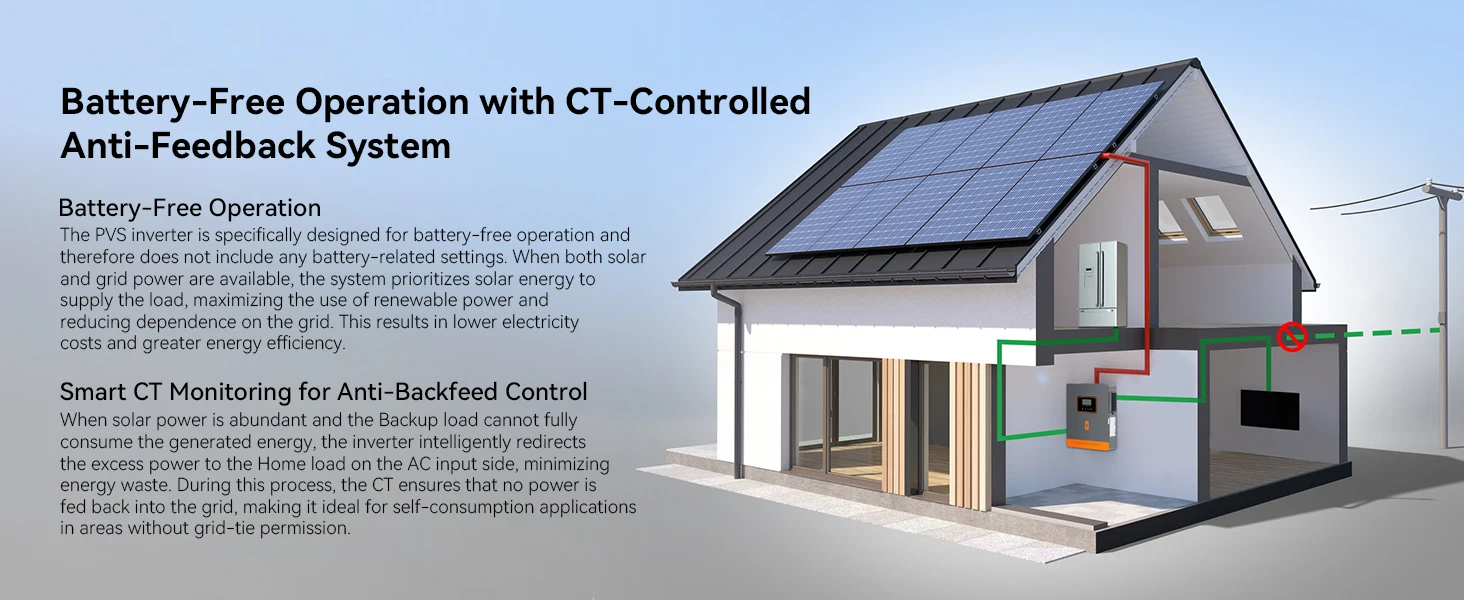

The PV model inverter does not require battery connection and cannot be used with batteries.
Features
1. Pure sine wave inverter
2. Configurable input voltage range for home appliances
3. and personal computers via LCD setting
4. Combind to the grid based on applications via LCD setting
5. Compatible to mains voltage
6. Auto restart while AC is recovering
7. Overload/ Over temperature/ short circuit protection
8. Cold start function
9. Dual mppt at 6KW, Can Running 3P motor with 6KW
10. Full load work with solar only
MODEL | FLW-PVS-6KW |
RATED POWER | 6KVA/6KW |
PHASE | 1-phase in/1-phase out |
Input Voltage Waveform | Sinusoidal (utility or generator) |
Nominal Input Voltage | 230Vac |
Low Loss Voltage | 170Vac+7V(UPS) |
Low Loss Return Voltage | 180Vac+7V(UPS) |
Nominal Input Frequency | 50Hz/60Hz(Auto detection) |
Transfer Time | 10ms typical (UPS) |

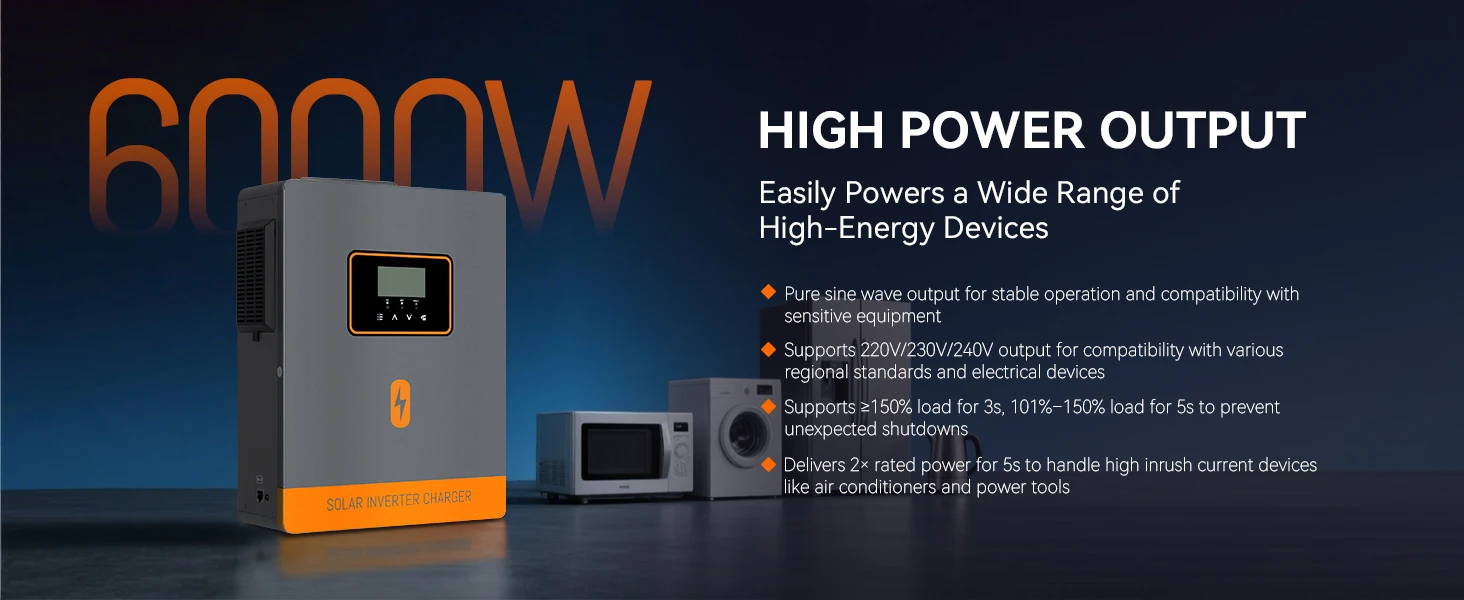

Rated Output Power | 6KW |
Output Voltage Waveform | Pure Sine Wave |
Output Voltage Regulation | 230Vac+5% |
Output Frequency | 50Hz |
Overload Protection | 3s@ >150% load; 5s@101%~150% load |
Surge Capacity | 2* rated power for 5 seconds |

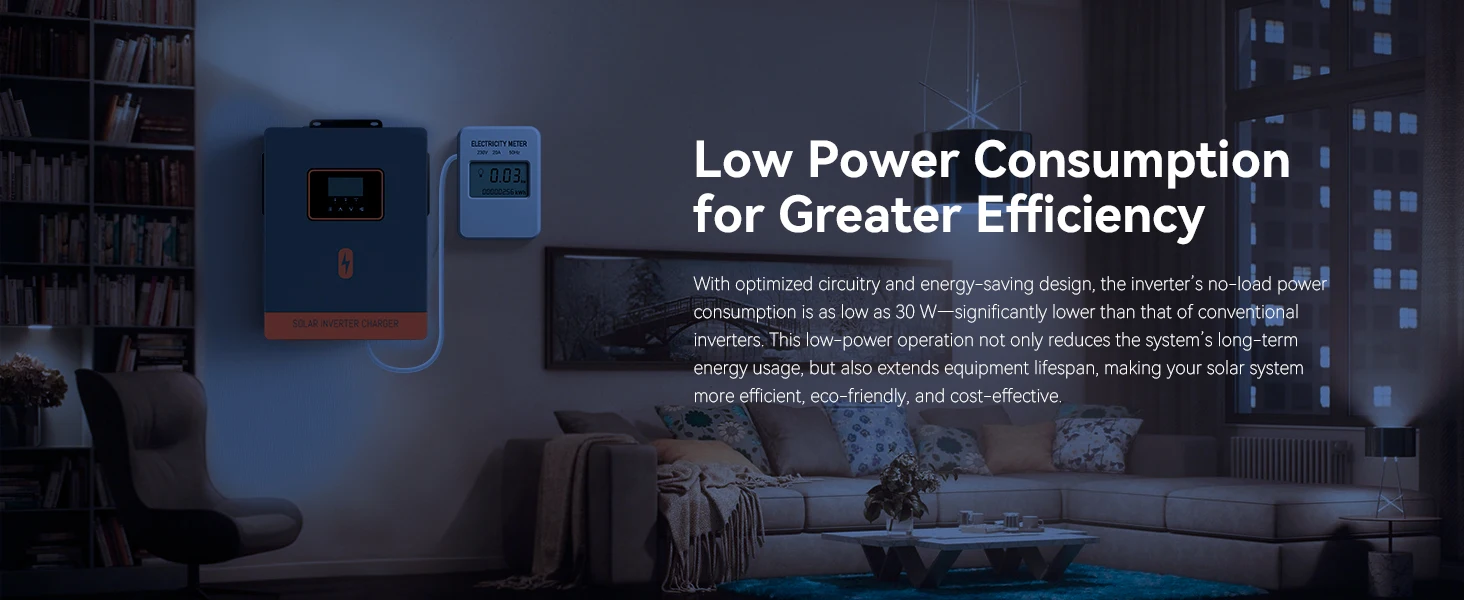

No Load Power Consumption | 30W |
MPPT Solar Mode | |
Max.PV Array Power | 4500W*2 |
Nominal PV Voltage | 250Vdc |
PV Array MPPT Voltage Range | 60Vdc~450Vdc |
Number of MPPT Trackers/Maximum Input Current | 2/18A |
Grid-Tie Operation(Optional) | |
Nominal Output Voltage | 220/230/240Vac |
Feed-in Grid Voltage Range | 195Vac~253Vac |
Feed-in Grid Frequency Range | 50Hz/60Hz |
Nominal Output Current | 26.5A |
Power Factor Range | >0.99 |
Maximum Conversion Efficiency(DC/AC) | 97% |
General | |
Safety Certification | CE |
Operating Temperature Range | -10°C ~50°C |
Storage Temperature | -15°C-60°C |
Humidity | 5% to 95% Relative Humidity(Non-condensing) |
