Product Description

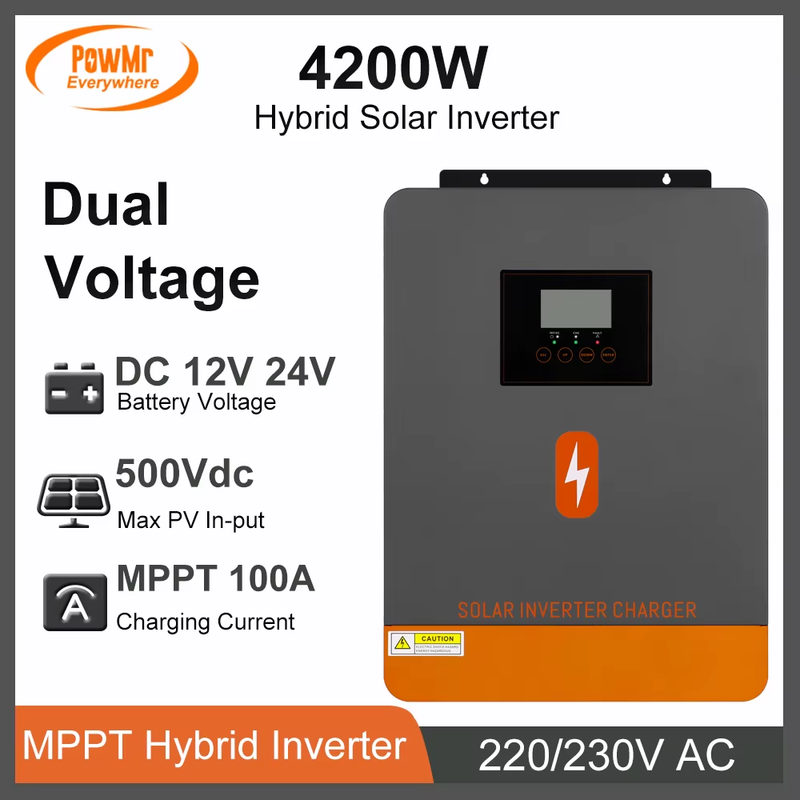

Solar Inverter 2 Voltage 12V 24V DC to 230V AC 2.3KW 4.2KW With 100A MPPT Solar Charger Support LifePo4 BMS RS485 Inversor
Solar Inverter 2 Voltage 12V 24V DC to 230V AC 2.3KW 4.2KW With 100A MPPT Solar Charger Support LifePo4 BMS RS485 InversorPowMr Solar Inverter 2 Voltage 12V 24V DC to 230V AC 2.3KW 4.2KW With 100A MPPT Solar Charger Support LifePo4 BMS RS485 Inversor
Note: The model's appearance was updated, the old version and the new version will ship randomly. hope you can understand.
and 4.2KW-WIFI Updated to Built-In WIFI, you don't need to use a extra WIFI module.
Please Note:

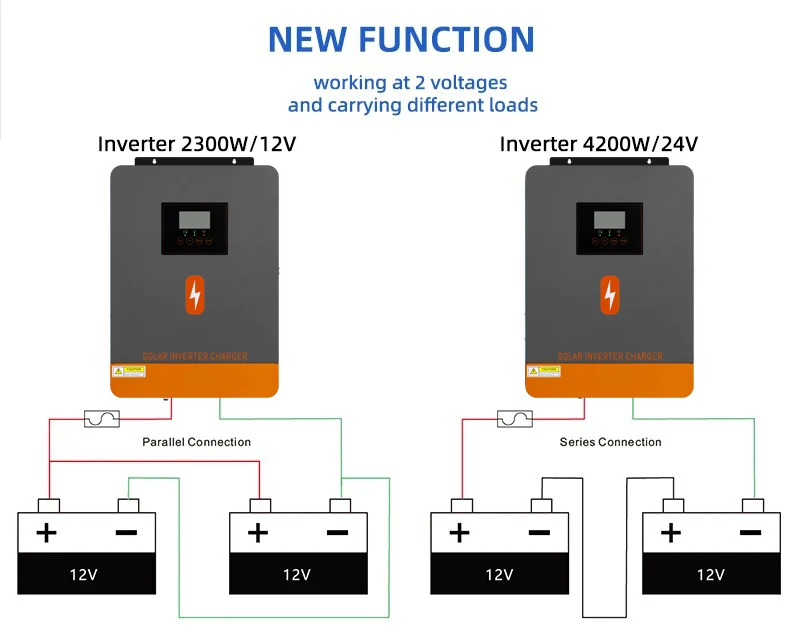

Work at 2 different voltages : 12VDC or 24VDC, Rated power is 2300W when work at 12VDC, Ratedpower is 4200W when work at 24VDC.
Inverter Features
1. The Inverter can use two battery voltage modes, with a maximum load of 2300W in 12V battery mode and 4200W in 24V battery mode
2. Pure sine wave output inverter
3. According to the requirements of load (household appliances/personal computers), the input voltage range of utility grid can be selected

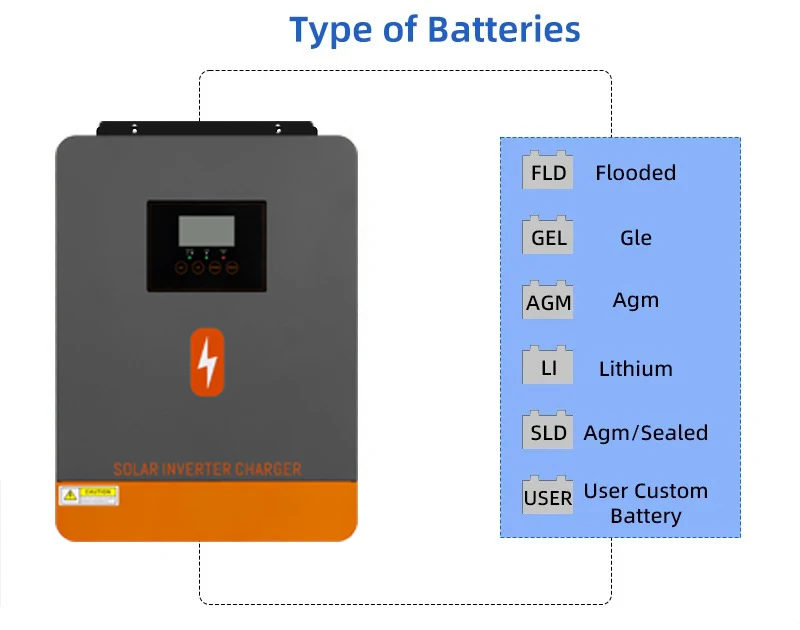

4. According to the battery requirements, the charging current can be set through LCD

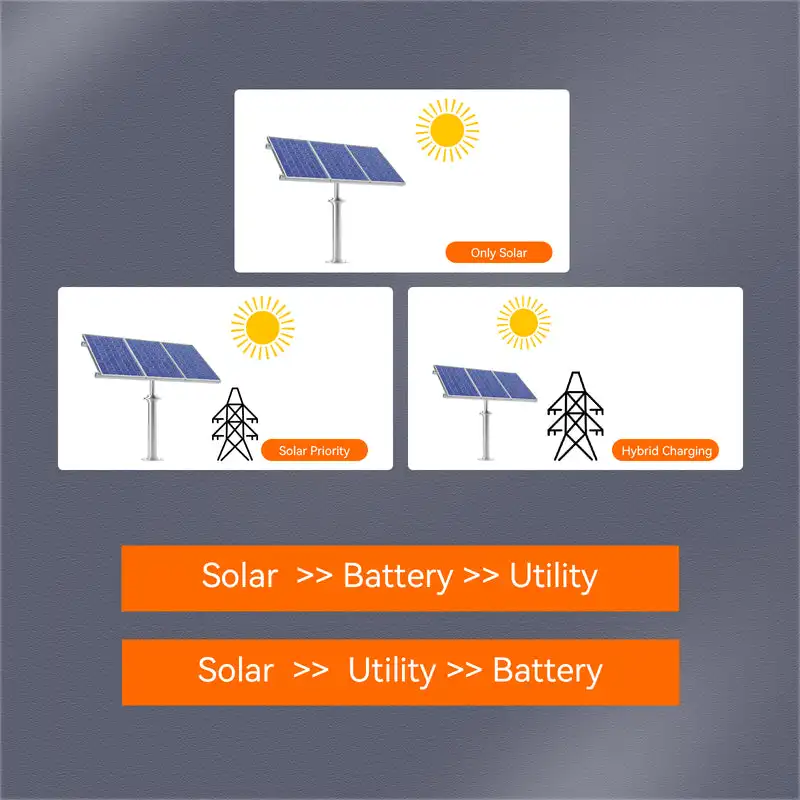

5. Solar energy and utility grid can power loads at the same time
6. AC input is compatible with mains and generator
7. Automatic restart function when mains power is restored
8. Overload/ Over temperature/ short circuit protection
9. The intelligent charging design of battery makes the battery more fully utilized
10. RS485 port Used for communication with BMS
11. Cold start function
12. Built-in MPPT, operating voltage range 55V~500V, open circuit voltage 500Voc
13. RGB lamp, which displays different colors according to inverter status(optional)
INVERTER MODEL | POW-HVM4.2K-24V-D | |
Rated Output Power | DC12V-2300VA/2300W | DC24V-4200VA/4200W |
INPUT | ||
Voltage | 230VAC | |
Selectable Voltage Range | 170~280VAC(For Personal Computers) | |
90~28OVAC(For Home Appliances | ||
Frequency Range | 50 Hz/60Hz(Auto Sensing) | |
OUT PUT | ||
AC Voltage Regulation(Batt. Mode) | 230Vac | |
Surge Power | 4600W | 8400W |
Efficiency (peak) Battery to INV | 94% | |
Transfer Time | 10ms(For Personal Computers); 20ms(For Home Appliances) | |
BATTERY&AC CHARGE | ||
Battery Voltage | 12V | 24V |
Floating Charge Voltage | 13.5V | 27V |
Overcharge Protection | 16VDC | 32VDC |
Maximum Charge Current | 100A | |
SOLAR CHARGE | ||
Maximum PVArray Power | 4000W | |
MPPT Range @Operating Voltage | 55~500VDC | |
Maximum PVArray Open Circuit Voltage | 500VDC | |
Maximum Charge Current | 100A | |
PHYSICAL | ||
Communication interface | RS485/RS232 BMS/WIFI | |
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
Operating Temperature | -20°C to 55°C | |
Storage Temperature | -20'°C -60°C |
