Product Description
5000W 3000W Hybrid Power Inverter DC 24V 48V To 110V/120V AC with 80A MPPT Solar Charger Pure Sine Wave Solar Home System
5000W 3000W Hybrid Power Inverter DC 24V 48V To 110V/120V AC with 80A MPPT Solar Charger Pure Sine Wave Solar Home SystemRecommend for you

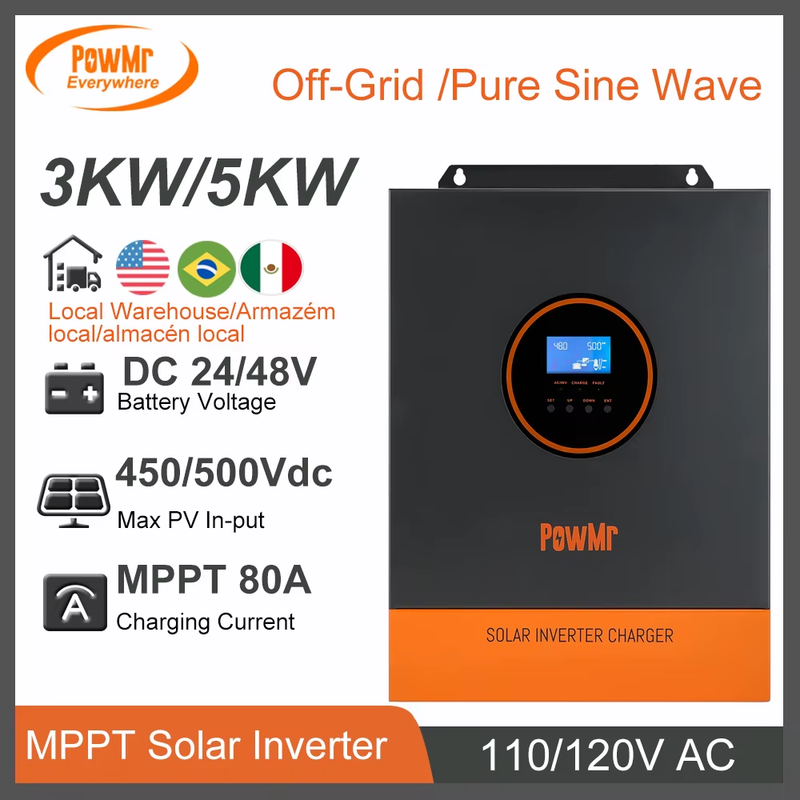

PowMr 5000W 3000W Hybrid Power Inverter DC 24V 48V To 110V/120V AC with 80A MPPT Solar
Charger Pure Sine Wave Solar Home System
Product Features
1. Pure Sine Wave inverter.
2. Higher output power up to 3000W /5000W3.120Vac AC output.4.Supports single-phase devices.5.Fast switching time of 10ms.6.Compatible with 24V/48V lithium-ion and lead-acid battery, support user-define.7.Max. PV charging current up to 80A.8.Max. AC charging current up to 40A.9.Max. hybrid charging current up to 80A.10.90~140Vac AC input voltage range.11.120~450Vdc wide voltage range for PV access.12.1 MPP Tracker, with 99.9% efficiency.13.Configure multiple communication interfaces (USB/CAN/RS485(WiFi/GPRS)/Dry node control).14.Durable finish with high anti-corrosion.15.Effective forced air cooling to ensure that the equipment runs stably.Inverter Specification
| Models | POW-LVM3K-24V | POW-LVM5K-48V |
| AC Mode | ||
| Rated input voltage | 110/120Vac | |
| Input voltage range | (90Vac-140Vac) | |
| Frequency | 50Hz/ 60Hz (auto-sensing) | 50Hz/ 60Hz (auto-sensing) |
| Overload/short-circuit protection | Circuit breaker | |
| Efficiency | >95% | |
| Maximum bypass overload current | 40A | 63A |
| Inverting Mode | ||
| Output voltage waveform | Pure sine wave | |
| Rated output power (VA) | 3000 | 5000 |
| Rated output power (W) | 3000 | 5000 |
| Rated output voltage (Vac) | 120Vac | 120Vac |
| Maximum Efficiency | >92% | >90% |
| Peak power | 6000VA | 10000VA |
| Loaded motor capability | 2HP | 4HP |
| Rated battery input voltage | 24V (Minimum starting voltage 22V) | 48V (minimum start voltage 44V) |
| Power saving mode | Load ≤50W | |
| AC Charging | ||
| Battery type | Lead acid or lithium battery | |
| Maximum charge current(can be set) | 0-40A | |
| Charge voltage range | 20–33Vdc | 40–60Vdc |
| Breaker specification | 40A | 63A |
| Solar Charging | ||
| Maximum PV open-circuit voltage | 450Vdc | 500Vdc |
| PV operating voltage range | 120~450Vdc | 120-500Vdc |
| Battery voltage range | 20~33Vdc | 40-60Vdc |
| Maximum input power | 4000W | 5500W |
| Charge current range of solar energy(settable) | 0-80A | |
| Authentication Specification | ||
| EMC authentication grade | EN61000 | |
| Noise | ≤60dB | |
| Communication interface | USB/RS485 (WiFi/GPRS)/dry node control | |
| Dimension (L*W*D) | 378mm*280mm*103mm | 426mm*322mm*126mm |
| Weight (kg) | 8 | 11.5 |
3000W Pure sine Wave Inverter 24V DC to 120V /110V AC, built in 80A Mppt charge controlle, is a new all-in-one hybrid solar charge inverter, Max 4000W 13A 450V Input , Starting voltage>150V. Fit for24V Lead-Acid(seal, AGM,Gel,Flooded) and Lithium battery. Support Utility/Generator/Solar Charge.
5000W Solar Inverter 48V DC to 110V/120V AC, built in 80A Mppt charge controller, is a new all-in-one hybrid solar inverter charger, fit for 48V Lead-Acid(seal, AGM,Gel,Flooded) and Lithium battery. Support Utility/Generator/Solar Charge.
Compatible with Lead-acid Battery and Lithium Battery
Hybrid Charging Max Charger Current (AC charger+PV charger): 80A
Wiring Diagram and Technical Specifications
3000W
5000W
Wide Range of Applications
