Product Description
100A 80A MPPT Solar Charge Controller 12V/24V/36V/48V Max Solar Panel PV 160Vdc Parallel Up to 12 Units Fit for Lithium Battery
100A 80A MPPT Solar Charge Controller 12V/24V/36V/48V Max Solar Panel PV 160Vdc Parallel Up to 12 Units Fit for Lithium Battery100A 80A MPPT Solar Charge Controller 12V/24V/36V/48V Max Solar Panel PV 160Vdc Parallel Up to 12 Units Fit for Lithium Battery
Product Features
Integrated Charging Presets

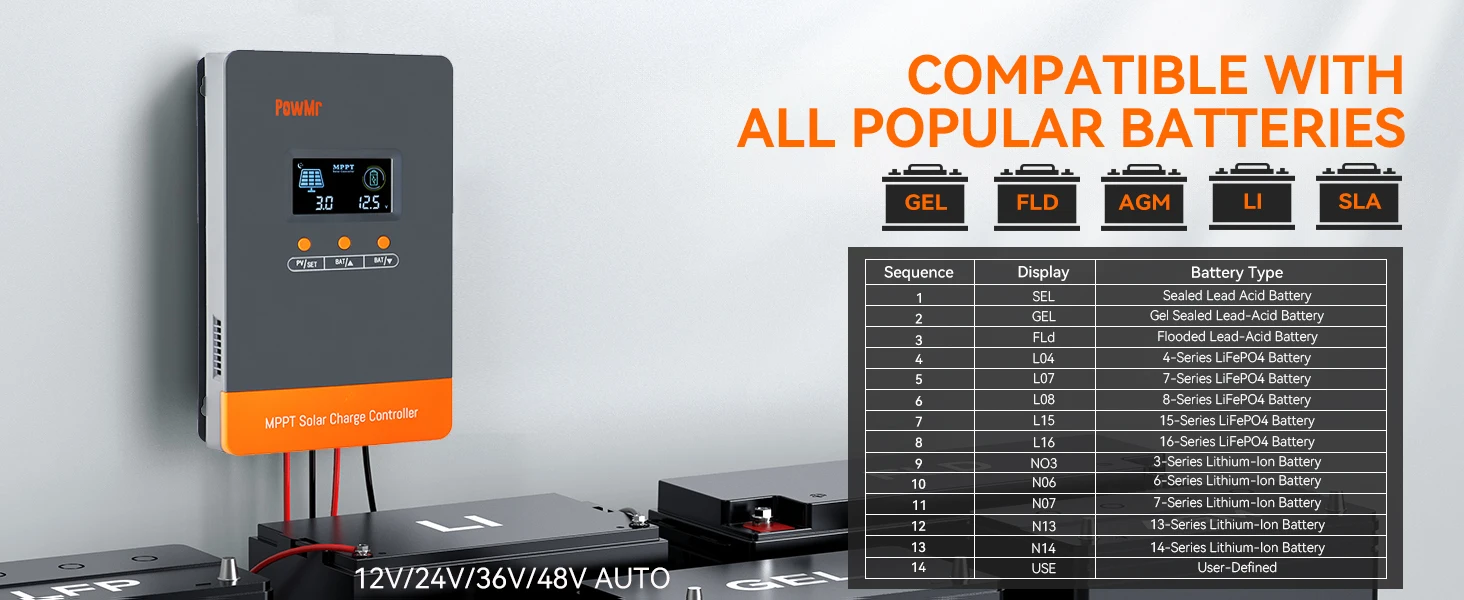

Integrated charging modes include adaptive charging logic, suitable for most battery types such as flooded lead-acid batteries, gel-sealed lead-acid batteries, and lithium batteries. Specific charging parameters for each battery type can be found in Section 3.5

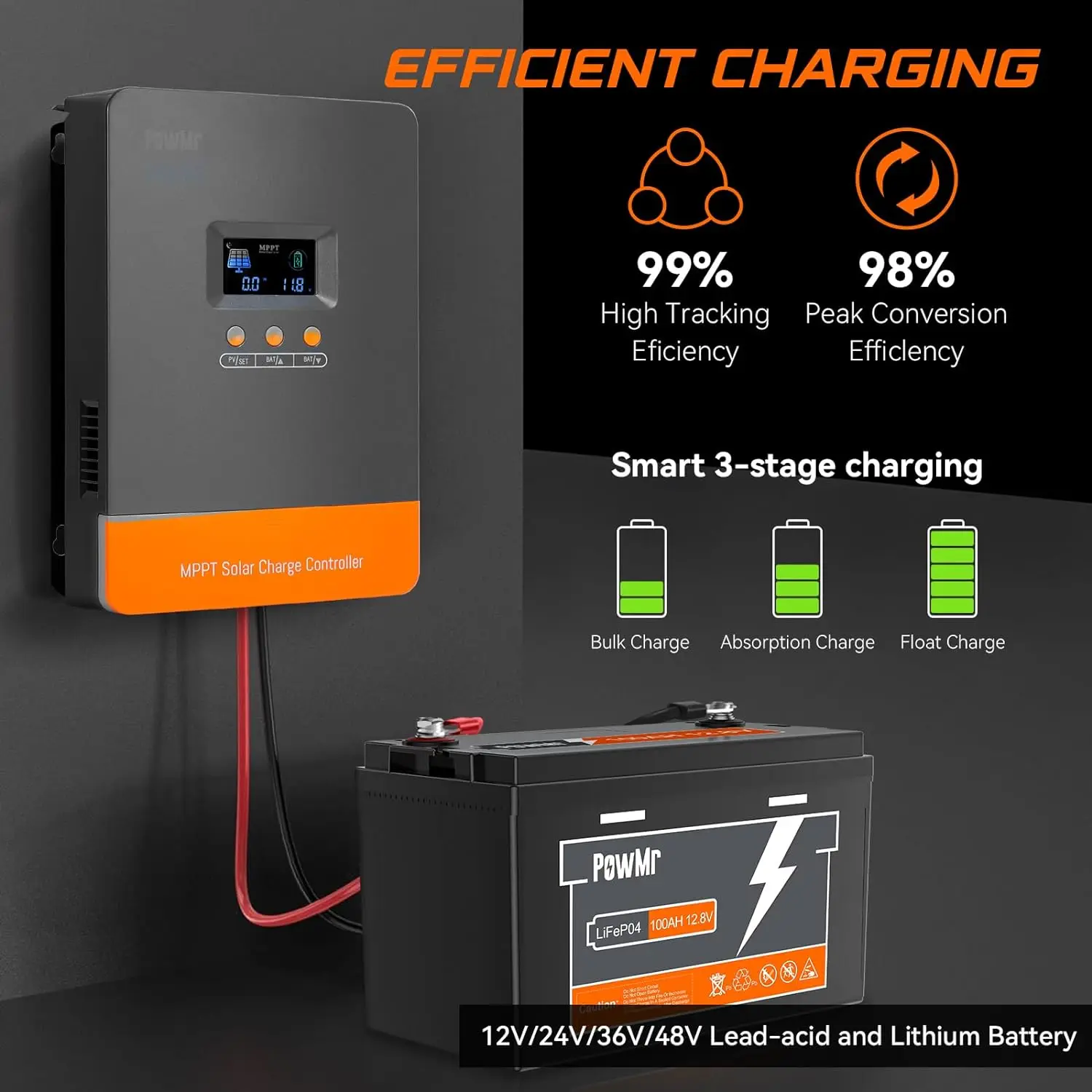

Multi-Stage Charging Algorithm
The multi-stage charging algorithm is designed to optimize each charging cycle. After the batteries are fully charged, it maintains battery capacity by applying preset charging parameters in specific charging stages.

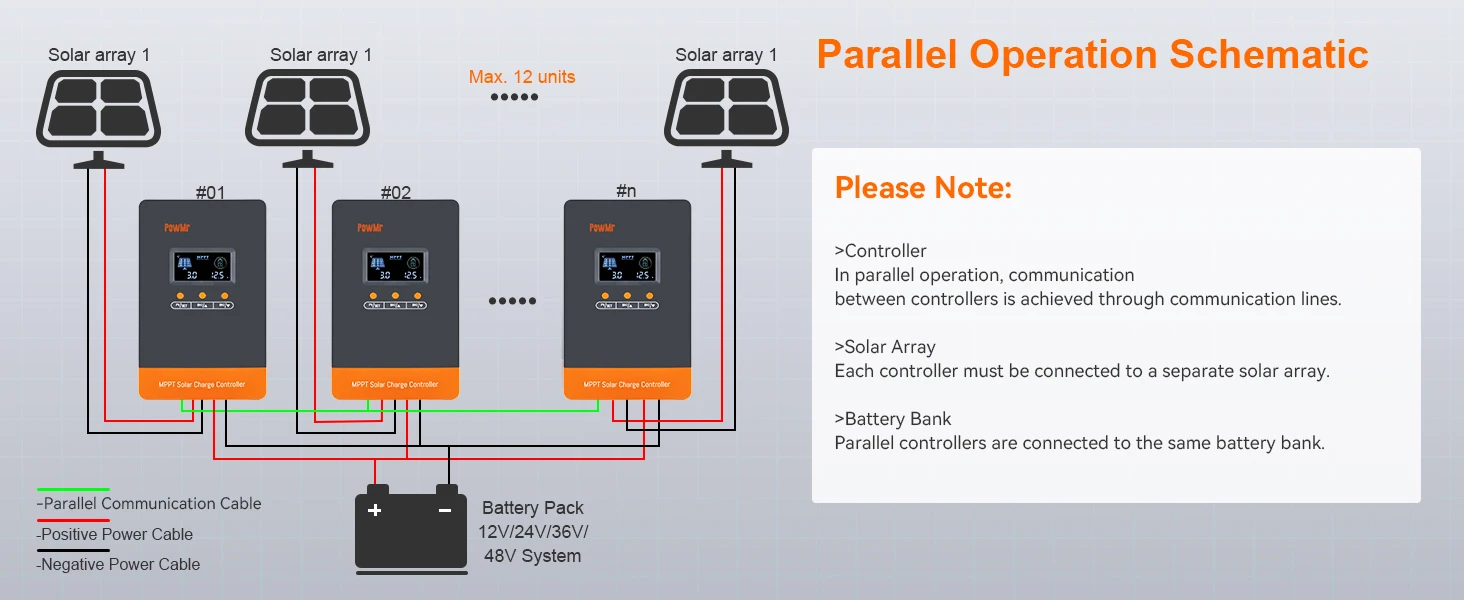

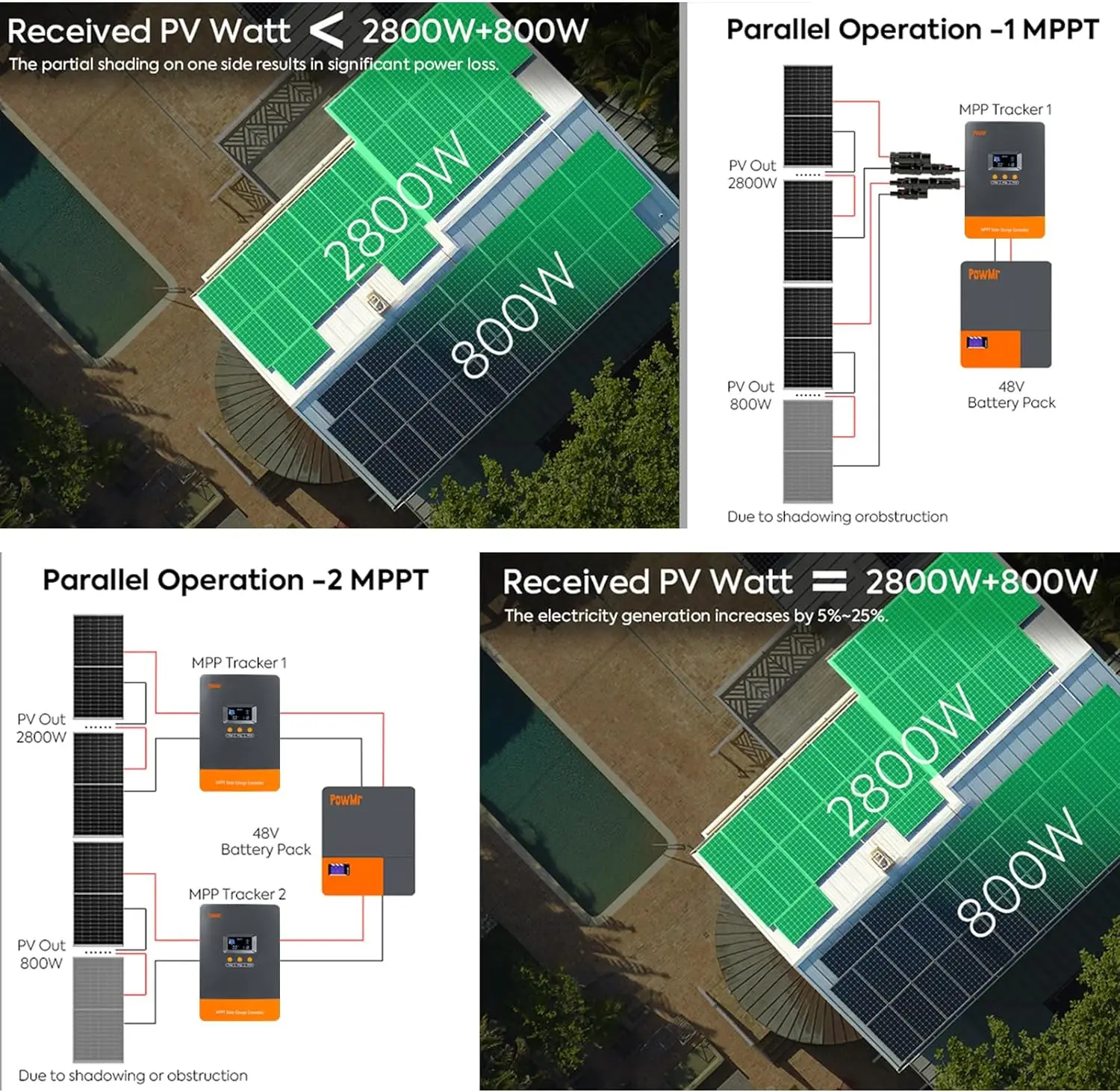

Supports Up to 12 Units in Parallel
The parallel operation function allows for easy expansion of the solar panel configuration and energy storage capacity limits, thus increasing the scale of energy storage. For detailed parallel operation guidelines, refer to Section 7.
Adaptive Boost Charging
During the initial charging phase, adaptive boost charging monitors battery response and automatically determines the duration of the boost stage for each independent charging cycle, ensuring that the battery is fully charged at any discharge level or capacity while avoiding overcharging during the boost charging stage (extends battery life).
External Temperature Probe Configuration
Enhance precision in battery temperature monitoring by configuring an external temperature probe. This ensures accurate temperature compensation for optimal system performance.

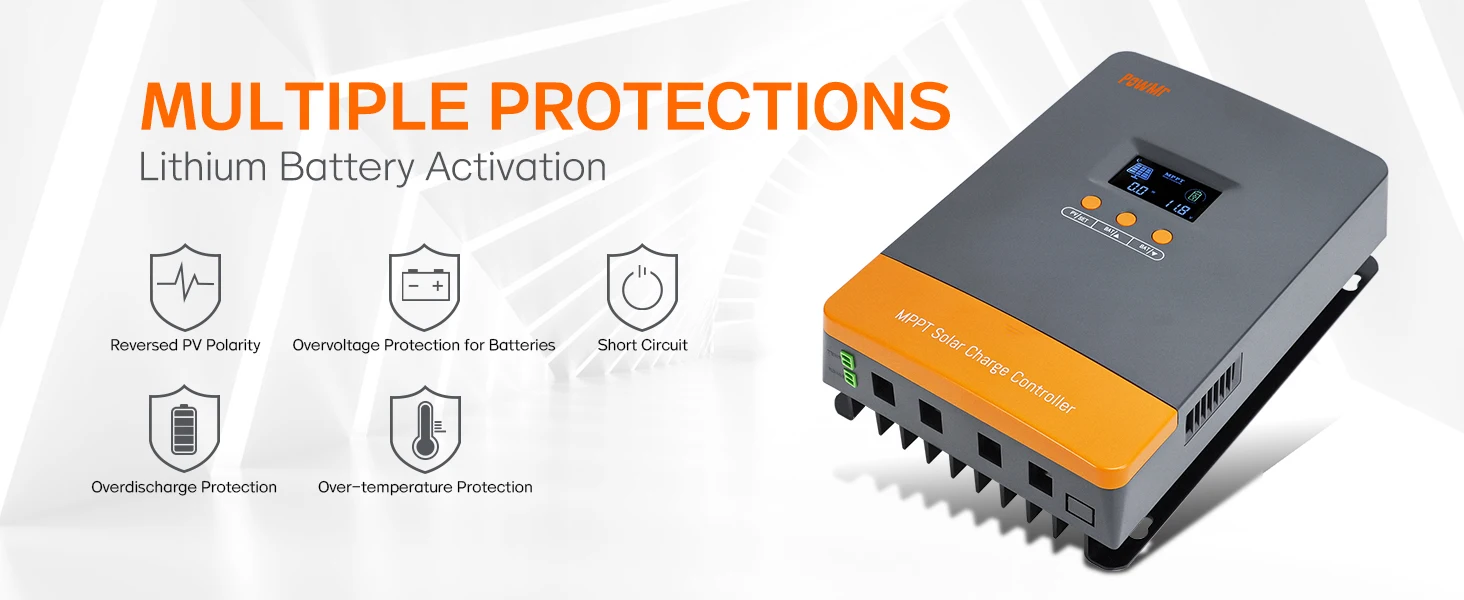

Lithium Battery Activation
Compatible with lithium batteries. When the battery type parameter is set to lithium batteries, the charging cycle will be adjusted to accommodate the needs of lithium battery charging. Additionally, when connected lithium batteries are in a protected state, the controller will activate the lithium batteries with the energy from the solar panels, with current not exceeding the lithium battery
protection voltage and current range.
Specification
| Models | 80A | 100A |
| Solar Input Specification | ||

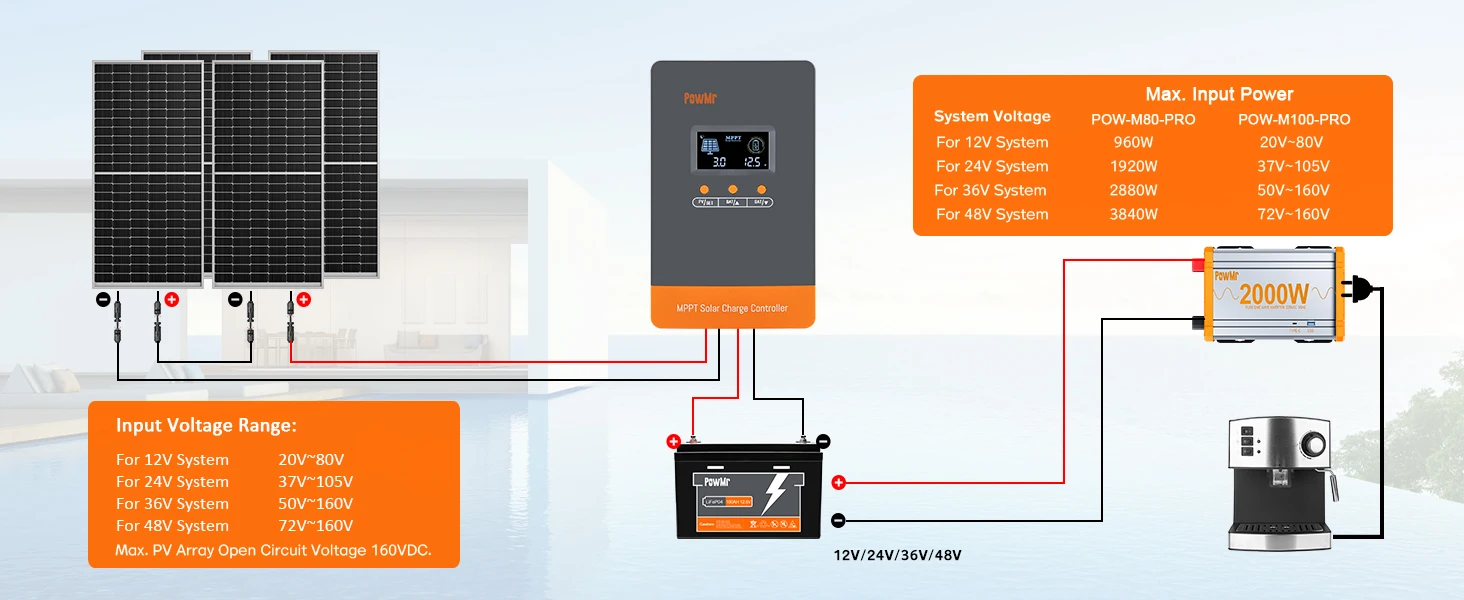

| Max. Solar Array Open-CircuitVoltage | 160V | |
| Maximum Input Power:For 12V SystemFor 24V SystemFor 36V SystemFor 48V System | 960W1920W2880W3840W | 1200W2400W3600W4800W |
| Input Voltage Range:For 12V SystemFor 24V SystemFor 36V SystemFor 48V System | 20V~80V37V~105V50V~160V72V~160V | |
| Battery Charging Specification | ||
| Charging Technology | MPPT | |
| Charging Algorithm | 3 Stages | |
| Nominal System Voltage | 12V/24V/36V/48V | |
| Battery Voltage Range | 9~60V | |
| Rated Charging Current | 80A | 100A |
| Maximum Efficiency | ≤98% | |
| MPPT Efficiency | >99% | |
| Temperature Compensation | -3mV/℃/2V（default） | |
| Self-Consumption | 44mA/12V; 26mA/24V; 18mA/36V; 12mA/48V | |
| Environment Specification | ||
| Operating Temperature Range | -35℃~+45℃ | |
| Humidity Range | ≤95%，Non-condensing | |
| Altitude | <3000m | |
| General Specification | ||
| Protection Level | IP32 | |
| Dimensions | 260x180x75mm | 315x195x80mm |
